某蓝牙适配器逆向概述

看了Tarlogic研究团队在39C3(The 39th Chaos Communication Congress)的Liberating Bluetooth on the ESP32议题有感而发

# Why Not  the ESP32?

关于ESP32的蓝牙相关逆向，有BrakTooth: Causing Havoc on Bluetooth Link Manager via Directed Fuzzing的BR/EDR逆向和ESPwn32: Hacking with ESP32 System-on-Chips
的BLE逆向，还有39C3大会议题Liberating Bluetooth on the ESP32的BLE逆向。
虽然ESP32蓝牙支持双模，但它还是有些问题的，它的BLE是4.2版本，不完全兼容BLE5.0，并且它的CEVA蓝牙4.2 IP的BLE LMAC官方中断寄存器配置有些问题，官方参考实现的BLE UMAC的事件调度很一般，最好是找蓝牙硬件版本至少是5.0的CEVA双模IP的芯片进行逆向。

某蓝牙适配器的蓝牙芯片的硬件版本就是5.0，对其ROM固件进行逆向后的相关汇总，由于该蓝牙芯片采用CEVA蓝牙5.0双模IP，实际上是逆向CEVA蓝牙5.0双模IP的物理层和链路层的相关资料。

# Architecture
## Dual Mode

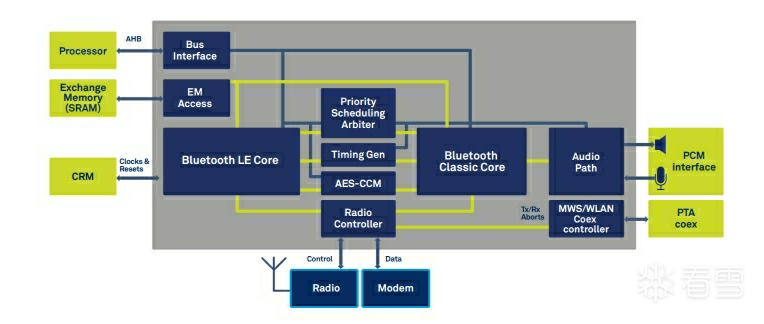

架构如下(图片来自CEVA Bluetooth Product Brief)：

![image0](upload/attach/202601/422740_5ADAQ6NERXYEYJV.webp)

## BLE 4.2

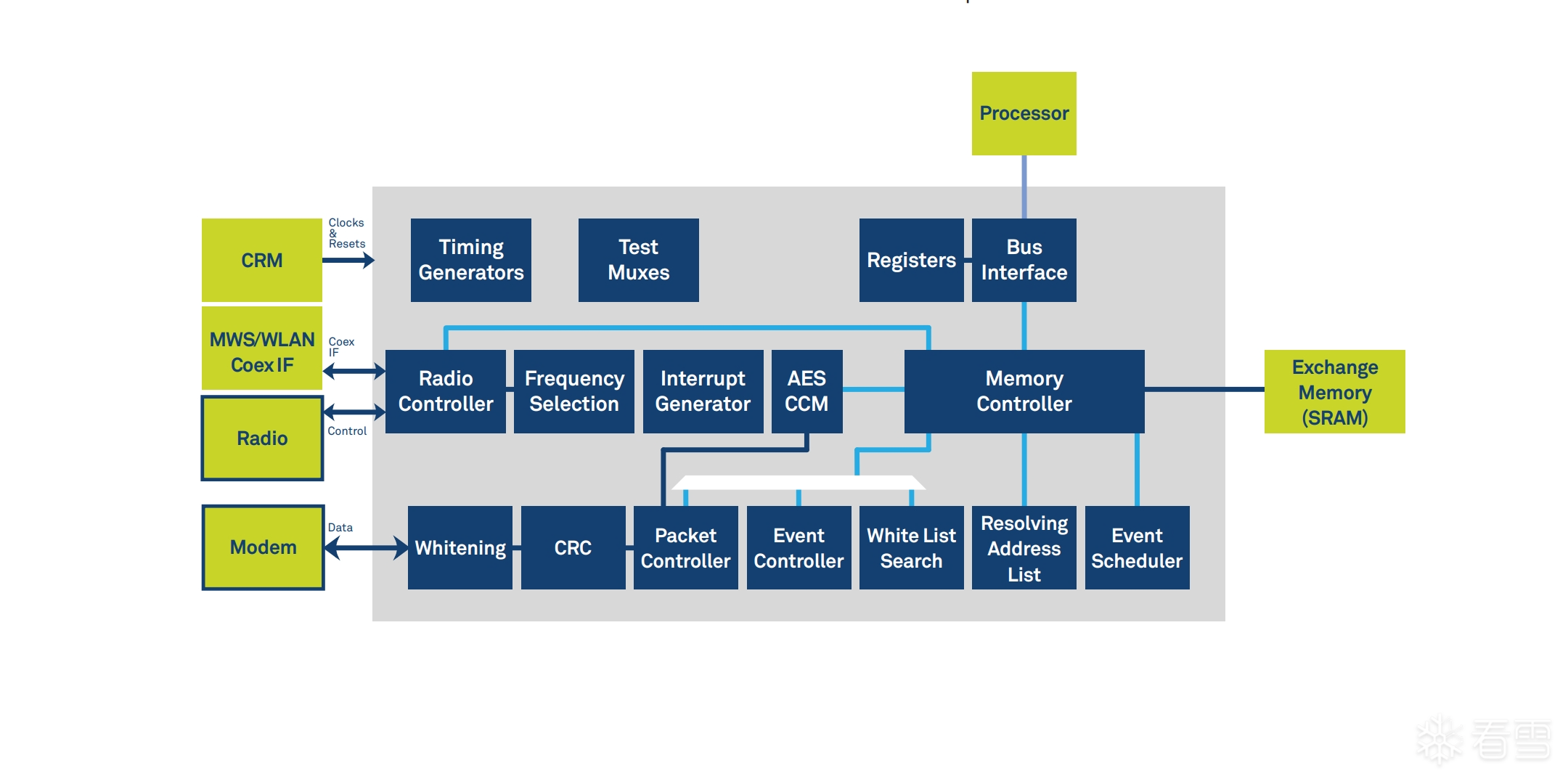

架构如下(图片来自CEVA Bluetooth Product Brief)：

![image1](upload/attach/202601/422740_49CSSQ3KEPTACHA.webp)

## BLE 5.0
和BLE 4.2的区别是Bit Stream多了LE Coded FEC。

## BR/EDR
和BLE 4.2的区别架构是没有Resolve Address List和White List Search，Bit Stream不一样，多了Audio Path，音频路径Audio Path有可能是ESCO<-->CVSD<-->PCM <-->MIC/Speakers或ESCO<-->Audio DSP<-->Audio ADC/Audio DAC<-->MIC/Speakers，BLE 4.2 Event Scheduler和Event Controller在BR/EDR称之为Frame Scheduler和Frame Controller，4.2版本
BR/EDR的Frame Scheduler和BLE的Event Scheduler并不兼容，5.0版本开始兼容，5.1版本统称Activity Scheduler。

# PHY
## Radio
  使用自定义版本，频率合成采用的PLL不知道是不是ADPLL。

## Modem
  使用官方版本，官方有好多个版本，蓝牙4.x可能有2个，蓝牙5.x可能有2-3个，蓝牙6.x可能还有1个，本芯片大概采用官方蓝牙4.x版本的BlueJay Modem，官方蓝牙4.x版本的另外一个是Ripple Modem，有一个常见的实现是Ripple Radio和BlueJay Modem的组合，本芯片应该是采用自定义Radio和BlueJay Modem的组合。

# MAC
## LMAC
### Radio Contoller
  有三个部分:共用的Dual Mode、BR/EDR和BLE。基址?0000000H(隐去首地址)，标记的寄存器偏移如下:

|Offset   | Mode         |
 |:------------|:-----------------|
 |0x0000 |Dual Mode |
 |0x0400 |BR/EDR      |
 |0x0800 |BLE             |

### Hardware Version
  硬件版本是5.0，定义如下：

|Mode       |Type   |Release |Upgrade |Build|
  |:---------------|:---------|:------------|:--------------|:--------|
  |BR/EDR    |0x09  |0x00      |0x10       |0x00|
  |BLE           |0x09  |0x00     |0x1A       |0x00|

### Interrupt
   中断寄存器定义如下:

   ```
   //蓝牙4.2版本8
      //BR/EDR的Interrupt Control Register和BLE的Interrupt Control Register不能形成Union Type
      //BR/EDR的Frame Scheduler和BLE的Event Scheduler无法兼容
      typedef struct {

          uint32_t clknintmsk: 1;
          uint32_t rxintmsk: 1;
          uint32_t slpintmsk: 1;
          uint32_t audioint0msk: 1;
          uint32_t audioint1msk: 1;
          uint32_t audioint2msk: 1;
          uint32_t frsyncintmsk: 1;//[6:6] umac linkdriver ld_fm_prog_push
          uint32_t mtoffint0msk: 1;
          uint32_t mtoffint1msk: 1;
          uint32_t finetgtintmsk: 1;
          uint32_t grosstgtintmsk: 1;
          uint32_t errorintmsk: 1;
          uint32_t mwswcitxintmsk: 1;
          uint32_t mwswcirxintmsk: 1;
          uint32_t frameintmsk: 1;
          uint32_t frameapfaintmsk: 1;
          uint32_t swintmsk: 1;
          uint32_t sketintmsk: 1;
          uint32_t reserved_18_31: 14;

      }bt_v8_lmac_intcntl;

typedef struct {

          uint32_t cscntintmsk: 1;
          uint32_t rxintmsk: 1;
          uint32_t slpintmsk: 1;
          uint32_t eventintmsk: 1;//[3:3] umac le linkdriver lld_event_schedule
          uint32_t cryptintmsk: 1;
          uint32_t errorintmsk: 1;
          uint32_t grosstgtimintmsk: 1;
          uint32_t finetgtimintmsk: 1;
          uint32_t eventapfaintmsk: 1;
          uint32_t swintmsk: 1;
          uint32_t audioint0msk: 1;
          uint32_t audioint1msk: 1;
          uint32_t audioint2msk: 1;
          uint32_t reserved_13_14: 2;
          uint32_t cscntdevmsk: 1;
          uint32_t reserved_16_31: 16;

      }ble_v8_lmac_intcntl;

//ESP32 蓝牙双模4.2 ROM
      #define r_ld_fm_prog_push_ptr 0x4003a9d4
      #define r_lld_evt_schedule_ptr 0x40047908

      // 蓝牙5.0版本9
      //BR/EDR的Interrupt Control Register和BLE的Interrupt Control Register可以形成Union Type
      //BR/EDR的Frame Scheduler和BLE的Event Scheduler可以兼容
      typedef struct {

          uint32_t clknintmsk: 1;
          uint32_t reserved_01_01: 1;
          uint32_t rxintmsk: 1;//umac sch_prog_push
          uint32_t slpintmsk: 1;
          uint32_t startfrmintmsk: 1;//umac sch_prog_push
          uint32_t endfrmintmsk: 1;//umac sch_prog_push
          uint32_t skipfrmintmsk: 1;//umac sch_prog_push
          uint32_t cryptintmsk: 1;
          uint32_t errorintmsk: 1;
          uint32_t grosstgtintmsk: 1;
          uint32_t finetgtintmsk: 1;
          uint32_t timestampintmsk: 1;
          uint32_t swintmsk: 1;
          uint32_t audioint0msk: 1;
          uint32_t audioint1msk: 1;
          uint32_t audioint2msk: 1;
          uint32_t frsyncintmsk: 1;//umac sch_prog_push
          uint32_t mtoffint0msk: 1;
          uint32_t mtoffint1msk: 1;
          uint32_t mwswcitxintmsk: 1;
          uint32_t mwswcirxintmsk: 1;
          uint32_t reserved_21_23: 3;
          uint32_t clknintsrval: 4;
          uint32_t clknintsrmsk: 3;
          uint32_t reserved_31_31: 1;

      }bt_v9_lmac_intcntl;

typedef struct {

          uint32_t clknintmsk: 1;
          uint32_t txintmsk: 1;//umac sch_prog_push
          uint32_t rxintmsk: 1;//umac sch_prog_push
          uint32_t slpintmsk: 1;
          uint32_t startevtintmsk: 1;//umac sch_prog_push
          uint32_t endevtintmsk: 1;//umac sch_prog_push
          uint32_t skipevtintmsk: 1;//umac sch_prog_push
          uint32_t cryptintmsk: 1;
          uint32_t errorintmsk: 1;
          uint32_t grosstgtimintmsk: 1;
          uint32_t finetgtimintmsk: 1;
          uint32_t timestamptgtintmsk: 1;
          uint32_t swintmsk: 1;
          uint32_t audioint0msk: 1;
          uint32_t audioint1msk: 1;
          uint32_t audioint2msk: 1;
          uint32_t reserved_16_23: 8;
          uint32_t clknintsrval: 4;
          uint32_t clknintsrmsk: 3;
          uint32_t reserved_31_31: 1;

      }ble_v9_lmac_intcntl;

//ESP32-C3 BLE 5.0 ROM
      #define r_sch_prog_push_ptr 0x40001540

      //蓝牙5.1版本10
      //BR/EDR的Frame Scheduler和BLE的Event Scheduler统称Activity Scheduler
      //新增一个共用的中断控制寄存器，配置在Dual Mode
      //FIFO中断很关键
      //从RSL15 Hardware Reference的6.3.3节BB Controller Interrupts学习了解该中断
      typedef struct {

          uint32_t clknintmsk: 1;
          uint32_t slpintmsk: 1;
          uint32_t cryptintmsk: 1;
          uint32_t swintmsk: 1;
          uint32_t finetgtintmsk: 1;
          uint32_t timestamptgt1intmsk: 1;
          uint32_t timestamptgt2intmsk: 1;
          uint32_t reserved_07_14: 8;
          uint32_t fifointmsk: 1;//umac sch_prog_fifo
          uint32_t reserved_16_23: 8;
          uint32_t clknintsrval: 4;
          uint32_t clknintsrmsk: 3;
          uint32_t reserved_31_31: 1;

      }dm_v10_lmac_intcntl1;

typedef struct {

          uint32_t startactintstat: 1;
          uint32_t endactintstat: 1;
          uint32_t skipactintstat: 1;
          uint32_t txintstat: 1;
          uint32_t rxintstat: 1;
          uint32_t isotxintstat: 1;
          uint32_t isorxintstat: 1;
          uint32_t reserved_07_14: 8;
          uint32_t actflag: 1;//0:BR/EDR Enable 1:BLE Enable
          uint32_t reserved_16_23: 8;
          uint32_t current_et_idx: 4;
          uint32_t skip_et_idx: 4;

      }dm_v10_lmac_actfifostat;

   ```
### Exchange Memory
  Event Scheduler访问ET(Exchange Table)，Event Controller访问CS(Control Structures)，Packet Controller访问TX Descriptors/RX Descriptors，ET结构如下(图片来自RSL10 Hardware Reference)：

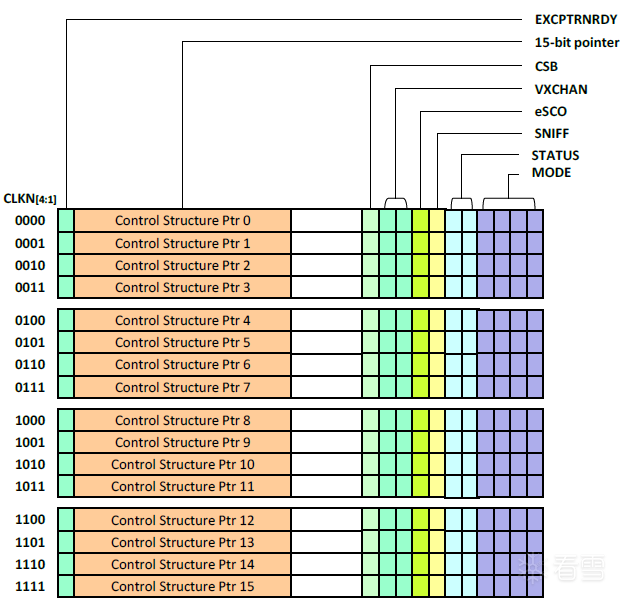

![image2](upload/attach/202601/422740_BS22REPM6DT253R.webp)

 该结构属于BR/EDR ET，和BLE ET形成Union Type。

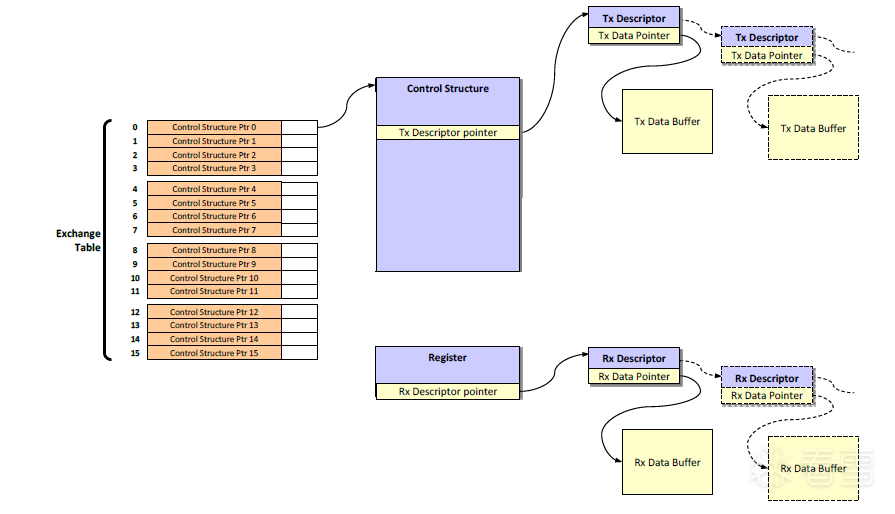

 ET 控制结构如下(图片来自RSL15 Hardware Reference):

![image3](upload/attach/202601/422740_UP3B5SRZZQ9F6EJ.webp)

 TX EM寄存器访问类似四重指针访问：ET-->CS-->TX Descriptors--> TX Data Buffer；RX EM寄存器访问类似三重指针访问：Radio Contoller ET_CURRENTRXDESCPTR-->RX Descriptors-->RX Data Buffer。

 标记的寄存器偏移如下:

```
      #define BASE   (0x00000000)
      #define EM_OFFSET   (0x00010000)
      #define EM_BASE (BASE+EM_OFFSET)

      //// Exchange Table
      #define EM_ET_OFFSET (0x0000)

      /// Frequency Table
      #define EM_FT_OFFSET (0x0100)

      ////Unknown
      #define EM_UNKNOWN_OFFSET  (0x0150)

      ////BLE  Encryption
      #define EM_BLE_AES_OFFSET  (0x0156)

      ////BLE Control Structures
      #define EM_BLE_CS_OFFSET   (0x0176)

      ////BLE White List
      #define EM_BLE_WL_OFFSET  (0x0662)

      ////BLE Resolve Address List
      #define EM_BLE_RAL_OFFSET  (0x06D2)

      ////BLE RX Descriptors
      #define EM_BLE_RX_DESC_OFFSET  (0x076E)

      ////BLE TX Descriptors
      #define EM_BLE_TX_DESC_OFFSET  (0x07E6)

      ////BLE LLCP TX Buffers
      #define EM_BLE_LLCPTXBUF_OFFSET (0x0C7E)

      ////BLE Advertising Extended TX Buffer
      #define EM_BLE_ADVEXTHDRTXBUF_OFFSET  (0x0EBE)

  ////BLE Advertising Data TX Buffers
      #define EM_BLE_ADVDATATXBUF_OFFSET  (0x11B2)

      ////BLE Aux Connect Req TX Buffer
      #define EM_BLE_AUXCONNECTREQTXBUF_OFFSET  (0x4D3A)

      ////BLE ACL RX Buffers
      #define EM_BLE_DATARXBUF_OFFSET   (0x4DA0)

      ////BLE ACL TX Buffers
      #define EM_BLE_ACLTXBUF_OFFSET  (0x56A0)

      ////BR/EDR Encryption
      #define EM_BT_E0_OFFSET  (0x64A0)

      ////BR/EDR Control Structures
      #define EM_BT_CS_OFFSET  (0x64B0)

      ////BR/EDR RX Descriptors
      #define EM_BT_RXDESC_OFFSET  (0x6948)

      ////BR/EDR TX Descriptors
      #define EM_BT_TXDESC_OFFSET  (0x6980)

      ////BR/EDR LMP RX Buffers
      #define EM_BT_LMPRXBUF_OFFSET  (0x6A34)

      ////BR/EDR LMP TX Buffers
      #define EM_BT_LMPTXBUF_OFFSET   (0x6A84)

      ////BR/EDR ISCAN FHS TX Buffer
      #define EM_BT_ISCANFHSTXBUF_OFFSET  (0x6BD4)

      ////BR/EDR PAGE FHS TX Buffer
      #define EM_BT_PAGEFHSTXBUF_OFFSET  (0x6BE8)

      ////BR/EDR EIR TX Buffer
      #define EM_BT_EIRTXBUF_OFFSET  (0x6BFC)

      ////BR/EDR SAM Local SubMap Buffer
      #define EM_BT_LOCAL_SAM_SUBMAP_OFFSET (0x6CEC)

      ////BR/EDR SAM Peer Map Buffer
      #define EM_BT_PEER_SAM_MAP_OFFSET  (0x6CFA)

      ////BR/EDR Sync Train Packet TX Buffer
      #define EM_BT_STPTXBUF_OFFSET   (0x6EBA)

      ////BR/EDR ACL RX Buffers
      #define EM_BT_ACLRXBUF_OFFSET   (0x6ED6)

      ////BR/EDR ACL TX Buffers
      #define EM_BT_ACLTXBUF_OFFSET  (0x86EE)

      ////BR/EDR Audio Buffers
      #define EM_BT_AUDIOBUF_OFFSET   (0xAB12)

```

本芯片的BLE计算CS数据(0x0662-0x0176)=0xE*0x5A，CS数量0xE个，CS大小0x5A。 ESP32的BLE计算CS数据(0x480-0x0B8)=0xB*0x58，CS数量0xB个，CS大小0x58。
本芯片的BR/EDR计算CS数据 (0x6948-0x64B0)=0xC*0x62， ESP32的BR/EDR计算CS数据 (0x2382-0x1DEE)=0xE*0x66。 CS数量从0xE变成0xC，因此本芯片BR/EDR应该不支持CSB，5.0 BR/EDR的EM CS可能是少了acl_dmprio_cntl和esco_dmprio_cntl这两个寄存器，CS大小由0x66变成0x62 ？BLE和BR/EDR的共存功能废除？5.1 BR/EDR的EM CS好像还少了某个寄存器使得CS大小变成0x60，5.1以后的版本BR/EDR硬件功能冻结，CS固定大小0x60？

## UMAC
 ### ROM
 BR/EDR有Classic Link Driver(LD)、Classic Link Controller (LC)和Classic Link Manager (LM)模块；BLE有LE Link Driver(LLD)、LE Link Controller(LLC)和LE Link Manager(LLM)模块。重点关注Link Driver，通过配置EM寄存器和LMAC通信。通过JTAG得到UMAC ROM固件，如果需要新增UMAC功能，需要进行ROM Patch，或者标记完成物理层PHY和链路层LMAC的寄存器后重新实现Controller UMAC。

# HCI
 ## USB
好像是采用Synopsys的DWC USB 2.0 IP，可惜只支持USB 2.0全速，不支持USB2.0高速，USB2.0全速的1ms时隙大于蓝牙625us的时隙，无法实时通信。

# What can’t be done?
由于蓝牙跳频和同步字的原因，要想完全无侵入抓去蓝牙空口包是很困难的，可能需要物理层PHY和链路层MAC的密切配合，通过逆向得到的资料很难实现这个要求，ESP32不行，本蓝牙芯片也不行。

# Future work
对采用CEVA蓝牙硬件版本至少是5.2版本的双模IP，带有USB 2.0高速的蓝牙芯片的逆向
# References
 - BrakTooth: Causing Havoc on Bluetooth Link Manager via Directed Fuzzing
 - ESPwn32: Hacking with ESP32 System-on-Chips
 - Liberating Bluetooth on the ESP32
 - ESP-IDF
 - ESP-ROM-ELFS
 - ESP32 Firmware Patching Framework
 - CEVA Bluetooth Product Brief
 - RSL10 Hardware Reference
 - RSL15 Hardware Reference
