## 前言

极路由存在远程命令执行漏洞,这是一个非常古老的漏洞,并且影响到全版本。分为两篇进行介绍,第一篇为固件分析和环境的模拟运行,第二篇为cloud_token的计算和远程命令执行漏洞分析。

## 固件分析

极路由的固件有两种打包方式一种是以R34-sysupgrade-20180615-fafd840f.bin固件为例，一种是以HC5661-sysupgrade-20180510-5dd5e8fd.bin固件为例。

### R34固件分析

运行binwalk R34-sysupgrade-20180615-fafd840f.bin 命令分析固件的格式。

```bash
binwalk R34-sysupgrade-20180615-fafd840f.bin

DECIMAL       HEXADECIMAL     DESCRIPTION
--------------------------------------------------------------------------------
0             0x0             Flattened device tree, size: 18341440 bytes, version: 17
220           0xDC            ELF, 32-bit LSB shared object, ARM, version 1 (SYSV)
321153        0x4E681         Certificate in DER format (x509 v3), header length: 4, sequence length: 1284
321269        0x4E6F5         Certificate in DER format (x509 v3), header length: 4, sequence length: 1288
322357        0x4EB35         Certificate in DER format (x509 v3), header length: 4, sequence length: 1284
391812        0x5FA84         CRC32 polynomial table, little endian
393544        0x60148         CRC32 polynomial table, little endian
404739        0x62D03         HTML document header
413385        0x64EC9         HTML document footer
413487        0x64F2F         HTML document header
422816        0x673A0         HTML document footer
422915        0x67403         HTML document header
431154        0x69432         HTML document footer
431267        0x694A3         HTML document header
431555        0x695C3         HTML document footer
514524        0x7D9DC         UBI erase count header, version: 1, EC: 0x0, VID header offset: 0x800, data offset: 0x1000
```

系统文件是UBI格式的，使用binwalk -e R34-sysupgrade-20180615-fafd840f.bin进行解包，会提取出一个7D9DC.ubi文件,查看文件信息为UBI image, version 1。

```bash
file 7D9DC.ubi
7D9DC.ubi: UBI image, version 1
```

使用ubireader_extract_images 7D9DC.ubi命令提取到3个ubifs文件，分别为kernel data rootfs 。

```bash
img-1782569745_vol-kernel.ubifs  img-1782569745_vol-rootfs_data.ubifs  img-1782569745_vol-ubi_rootfs.ubifs
```

执行file img-1782569745_vol-ubi_rootfs.ubif查看rootfs的文件格式,发现是Squashfs filesystem格式的文件系统，使用xz格式进行的压缩。

```bash
file img-1782569745_vol-ubi_rootfs.ubifs
img-1782569745_vol-ubi_rootfs.ubifs: Squashfs filesystem, little endian, version 4.0, xz compressed, 13262802 bytes, 3148 inodes, blocksize: 262144 bytes, created: Fri Jun 15 04:51:41 2018
```

执行7z x img-1782569745_vol-ubi_rootfs.ubif进行解压缩得到路由器的系统文件。

```bash
7z x img-1782569745_vol-ubi_rootfs.ubifs

7-Zip 23.01 (x64) : Copyright (c) 1999-2023 Igor Pavlov : 2023-06-20
 64-bit locale=C.UTF-8 Threads:20 OPEN_MAX:10240

Scanning the drive for archives:
1 file, 13459456 bytes (13 MiB)

Extracting archive: img-1782569745_vol-ubi_rootfs.ubifs

WARNINGS:
There are data after the end of archive

--
Path = img-1782569745_vol-ubi_rootfs.ubifs
Type = SquashFS
WARNINGS:
There are data after the end of archive
Physical Size = 13262802
Tail Size = 196654
Headers Size = 65784
File System = SquashFS 4.0
Method = XZ
Cluster Size = 262144
Big-endian = -
Created = 2018-06-15 12:51:41
Characteristics = DUPLICATES_REMOVED EXPORTABLE NO_XATTRS COMPRESSOR_OPTIONS
Code Page = UTF-8
```

### HC5761固件分析

使用binwalk HC5761-sysupgrade-20180510-0dd7abd0.bin分析固件的文件系统，固态文件是由U-Boot + uImage + xz 文件组成，xz就是我们需要提取的rootfs。

```bash
binwalk HC5761-sysupgrade-20180510-0dd7abd0.bin

DECIMAL       HEXADECIMAL     DESCRIPTION
--------------------------------------------------------------------------------
116944        0x1C8D0         U-Boot version string, "U-Boot 1.1.3 (May 10 2018 - 06:06:17)"
124311        0x1E597         HTML document header
132957        0x2075D         HTML document footer
133059        0x207C3         HTML document header
142384        0x22C30         HTML document footer
142483        0x22C93         HTML document header
150722        0x24CC2         HTML document footer
150835        0x24D33         HTML document header
151123        0x24E53         HTML document footer
327680        0x50000         uImage header, header size: 64 bytes, header CRC: 0x46F46105, created: 2018-05-09 22:25:36, image size: 1122008 bytes, Data Address: 0x80000000, Entry Point: 0x80000000, data CRC: 0x755C17D9, OS: Linux, CPU: MIPS, image type: OS Kernel Image, compression type: lzma, image name: "HC5761"
327744        0x50040         LZMA compressed data, properties: 0x6D, dictionary size: 8388608 bytes, uncompressed size: 3333004 bytes
1507454       0x17007E        xz compressed data
1614226       0x18A192        xz compressed data
1707378       0x1A0D72        xz compressed data

...

12768656      0xC2D590        xz compressed data
12770562      0xC2DD02        xz compressed data
12772524      0xC2E4AC        xz compressed data
```

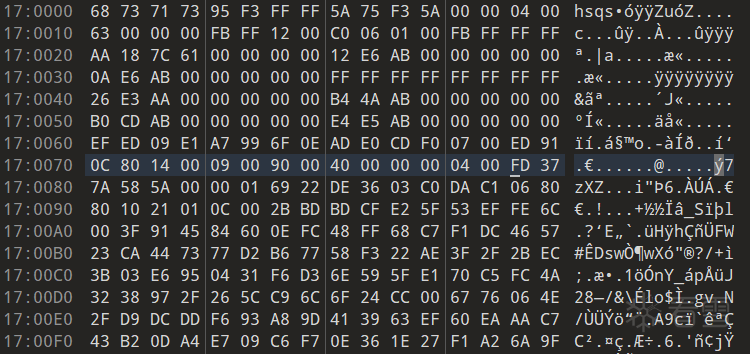

用010打开固件跳到0x17007E发现从0x170000开始的是SquashFS文件格式。

![SquashFS文件格式](upload/attach/202510/920134_W2M3KQF8MKZNXCE.webp)

既然是SquashFS文件格式，为什么binwalk没有识别出呢，先使用dd命令或者手动把从0x170000开始的所有文件导出存为HC5761.bin，执行file HC5761.bin命令查看文件类型。

```bash
file HC5761.bin
HC5761.bin: Squashfs filesystem, little endian, version -5.-1, 1525904730 bytes, -3179 inodes, blocksize: 6314 bytes, created: Sun May 22 10:03:44 2061
```

version -5.-1显然是错误的，R34的是version 4.0。使用SquashFS.bt打开img-1782569745_vol-ubi_rootfs.ubifs，然后查看version的字段的偏移，将HC5761.bin的0X1C开始处修改为 04 00 00 00 . 然后就可以使用SquashFS.bt打开HC5761.bin了，这里也可以确定是与0XFF进行了异或。

-3179 inodes 也需要修改， 95 F3 FF FF 与 0XFF 异或 6A 0C 00 00 。

compression 的 FB FF 修改为 04 00 。

![SquashFS文件格式](upload/attach/202510/920134_59MSWEUYASGGRH9.webp)

使用 file HC5761.bin 和 binwalk HC5761.bin 分析，都显示正常。

```bash
file HC5761.bin
HC5761.bin: Squashfs filesystem, little endian, version 4.0, xz compressed, 11265554 bytes, 3178 inodes, blocksize: 262144 bytes, created: Wed May  9 22:25:30 2018
```

```bash
binwalk HC5761.bin

DECIMAL       HEXADECIMAL     DESCRIPTION
--------------------------------------------------------------------------------
0             0x0             Squashfs filesystem, little endian, version 4.0, compression:xz, size: 11265554 bytes, 3178 inodes, blocksize: 262144 bytes, created: 2018-05-09 22:25:30
```

然后使用7z x HC5761.bin 解压得到固件的rootfs。

```bash
7z x HC5761.bin

7-Zip 23.01 (x64) : Copyright (c) 1999-2023 Igor Pavlov : 2023-06-20
 64-bit locale=C.UTF-8 Threads:20 OPEN_MAX:10240

Scanning the drive for archives:
1 file, 11272196 bytes (11 MiB)

Extracting archive: HC5761.bin

WARNINGS:
There are data after the end of archive

--
Path = HC5761.bin
Type = SquashFS
WARNINGS:
There are data after the end of archive
Physical Size = 11265554
Tail Size = 6642
Headers Size = 66284
File System = SquashFS 4.0
Method = XZ
Cluster Size = 262144
Big-endian = -
Created = 2018-05-10 06:25:30
Characteristics = DUPLICATES_REMOVED EXPORTABLE NO_XATTRS COMPRESSOR_OPTIONS
Code Page = UTF-8
```

***

## 模拟运行

安装qemu模拟器qemu-user-static，利用Linux的binfmt_misc机制执行MIPS架构的sh，跳转到rootfs的根目录，执行sudo chroot . bin/busybox sh 进入固件的shell。

```bash
sudo chroot . bin/busybox sh

BusyBox v1.22.1 (2018-05-10 06:04:58 CST) built-in shell (ash)
Enter 'help' for a list of built-in commands.

/ # ls
bin      dev      etc      lib      mnt      overlay  proc     rom      root     sbin     sys      tmp      usr      www
```

/etc/init.d/nginx 为nginx的启动shell。运行source /etc/init.d/nginx;start;启动nginx，提示/var/run/ 目录不存在，mkdir -p /var/run/建立目录，再建立目录 mkdir -p /var/lock/。

```bash
$source /etc/init.d/nginx;start;
sh: awk: not found
sh: awk: not found
ifconfig: /proc/net/dev: No such file or directory
ifconfig: eth2: error fetching interface information: Device not found
/sbin/uci: Entry not found
sh: awk: not found
nginx: [alert] lua_code_cache is off; this will hurt performance in /etc/nginx/vh.tw.conf:18
nginx: the configuration file /etc/nginx/nginx.conf syntax is ok
nginx: [emerg] open() "/var/run/nginx.pid" failed (2: No such file or directory)
nginx: configuration file /etc/nginx/nginx.conf test failed
```

之后再运行 source /etc/init.d/nginx;start; 开启nginx。
运行 source /etc/init.d/fcgi-cgi;start; 开启fcgi-cgi。

```bash
/ # source /etc/init.d/nginx;start;
sh: awk: not found
sh: awk: not found
ifconfig: /proc/net/dev: No such file or directory
ifconfig: eth2: error fetching interface information: Device not found
/sbin/uci: Entry not found
sh: awk: not found
nginx: [alert] lua_code_cache is off; this will hurt performance in /etc/nginx/vh.tw.conf:18
nginx: the configuration file /etc/nginx/nginx.conf syntax is ok
nginx: configuration file /etc/nginx/nginx.conf test is successful
nginx: [alert] lua_code_cache is off; this will hurt performance in /etc/nginx/vh.tw.conf:18
/ # source /etc/init.d/fcgi-cgi;start;
spawn-fcgi: child spawned successfully: PID: 4565
```

浏览器访问 <mark class="encrypted">e1aK9s2c8@1M7q4)9K6b7g2)9J5c8W2)9J5c8U0p5J5y4#2)9J5k6e0m8Q4x3X3f1H3i4K6u0W2x3g2)9J5c8X3y4Y4K9g2)9J5k6r3u0A6L8W2)9J5c8R3`.`.</mark> 出现路由器配置页面则表示启动成功。

![路由器配置页面](upload/attach/202510/920134_BSKKBVSD29VRUSQ.webp)

登录后可查看完整内容
