[原创]记录学到三种的so加固方式
-
发表于: 2025-5-18 16:53
-
简单分享一下学习到的So加固的方案，前前后后实现差不多用了两周的时间，实践下来也学到了很多关于So的知识。如果文章中有讲述错误的地方，欢迎各位大佬斧正，谢谢。本文章的代码基于关于SO加密对抗的两种实现方式
在看本篇文章之前，最好需要了解一下ELF文件格式，以及So的加载流程，这里推荐oacia大佬的两篇文章。ELF结构分析及ElfReader和安卓so加载流程源码分析。
下面是编译为libmathlib.so前的源代码，我们将要加密int mymyadd(int a, int b)
未加密前
加密后，IDA自然无法正确识别出函数
加密函数，首先自然要从ELF文件中找到函数的位置以及函数的大小。
这里看一下源码中dlsym函数怎么处理的。
调用了__loader_dlsym(handle, symbol, caller_addr)
调用了dlsym_impl(handle, symbol, nullptr, caller_addr);
调用了do_dlsym(handle, symbol, version, caller_addr, &result)
if (handle == RTLD_DEFAULT || handle == RTLD_NEXT)是判断特殊句柄，所以我们的情况走的是else语句。那么调用了dlsym_handle_lookup(si, &found, sym_name, vi)
进入if语句也是调用了dlsym_handle_lookup_impl
调用了current_soinfo->find_symbol_by_name(symbol_name, vi);
这里根据设置了FLAG_GNU_HASH标志位选择使用GNU哈希查找还是ELF哈希查找。GNU哈希是一种更现代、更高效的符号查找方法，特别针对大型库进行了优化。
这里我将两个函数都粘贴出来，我们选择学习GNU哈希查找
根据函数得知，需要计算得到gnu_hash以及其他例如布隆过滤器掩码字数gnu_maskwords_，布隆过滤器数组gnu_bloom_filter_，符号表地址symtab_等。
其中gnu_hash值简单，只需要按照下面的函数计算即可
至于gnu_maskwords_，gnu_bloom_filter_，符号表地址symtab_等
按照源码中的提示，就更好解决了。通过ELF Header定位到Program Header Table，遍历Program Header Table，找到类型为PT_DYNAMIC的动态段的偏移量和大小，这个段包含了动态链接的关键信息。GNU哈希表地址和符号表地址都可以通过分析动态段中的条目得到
具体分析已经完毕，实现代码如下
注意这里原作者定义了FUNC_SIZE常量，如果不想这么做就得跟加密一样去解析ELF文件找动态段来遍历获取函数大小。
1.dlopen打开库文件用dlsym获取函数地址
2.修改内存权限，解密覆盖函数地址范围，恢复内存权限

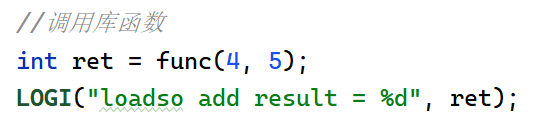

3.调用函数运行
4.修改内存权限，加密覆盖函数地址范围，恢复内存权限

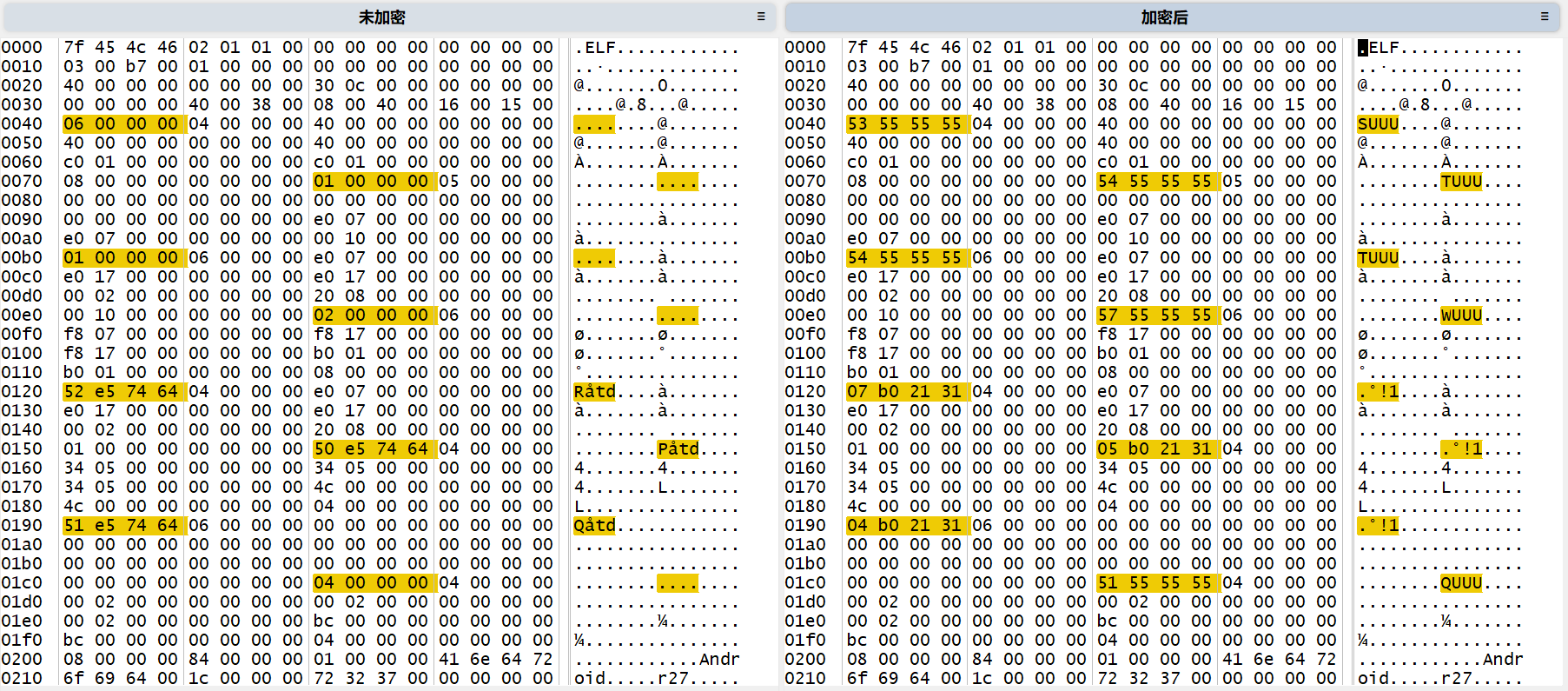

在方式一的基础上，对每个段头的type进行了异或处理。
加密代码前面已经贴出来了，就是当传入参数mode = MODE_DUPLEX时参与的加密。该方法具体的调用流程可以看原作者的文章，自定义linker对so加载分析得非常好。
只是这种方式的加密下，使用IDA仍能打开so文件静态分析，只修改了Program Header Table，而没有修改Section Header Table，所以IDA仍然能通过节头表获取大部分需要的信息。因此我在这里分享第三种so加密方法，自定义ELF文件格式，并且根据android源码自定义linker加载。
该方法加密后的so文件IDA肯定是无法解析的。
左边部分为原本标准格式未加密so文件，右边为自定义格式且RC4加密后so文件
左边部分为原本标准格式未加密so文件，右边为自定义格式且RC4解密后so文件
其中自定义的文件头Custom_Elf64_Ehdr自然可以不用与标准的文件头一样，这里我为了方便实现就没有变动。实际情况中可以调换顺序，调用时用计算的偏移，或者直接删除没有用到的部分都可以。e_ident也可以不只改魔数头，其他删掉都可以，毕竟linker都有我们自己实现了，也没必要叫校验了。
那么现在有两个选择，一种是恢复为标准ELF文件格式后加载，另一种则是直接从自定义ELF文件格式加载。我选择从自定义ELF文件格式加载。
但是如果想学习自定义ELF文件格式加载，建议先恢复为标准ELF文件格式，加载成功后，对照修改。
按照android加载so的流程来
这里传入的file_offset是ELF Header的偏移，一般标准ELF文件的偏移都是0，所以这里直接置0，而自定义的ELF的ELF Header偏移则用origin_file_size_保存一下，后面有用
在这里传入的参数file_offset是ELF Header的偏移，正常so文件的偏移都是0，所以我直接置0，这样可以保证后面映射到内存时不出错，而把自定义的格式ELF Header的偏移使用origin_file_size_保存了起来。
在这里就可以把刚才保存的origin_file_size_使用起来，使得能够正确的读到so文件头。
跟源码差不多，只是ELF的魔数头需要替换为我们自定义的.csf，并且这个校验步骤完全可以省略掉。
代码部分跟源码一样
其中主要说一下FindPhdr(),在这个程序中有一个很坑的点在于后面的一步si_->phdr = elfreader->loaded_phdr();。在Program Header Table中如果有p_type == PT_PHDR的段，那么该段类型的数组元素如果存在的话，则给出了程序头部表自身的大小和位置，既包括在文件中也包括在内存中的信息。也就是说段中的p_vaddr和p_offset的值是原来Program Header Table的偏移值，这就会导致si_->phdr = elfreader->loaded_phdr();指向的是错误的内存。这里我的解决办法是直接判断是不是自定义格式的ELF文件，如果是则让loaded_phdr_ = phdr_table_。
我们用dlopen打开一个空壳so，然后填入我们自己so的信息，达到替换的操作。这里的关键点在于实现soinfo_from_handle函数，这个函数由于并没有导出，所以需要自己实现。
我们仔细看一下这个函数的源码，发现其实只用到了g_soinfo_handles_map这个全局变量是不知道的。再参考原文使用的是偏移地址，那么我们完善一下，解析linker64这个ELF文件，就可以适用于不同的安卓版本了。
后面的预链接与链接过程则与原文一样了。
调用日志
我们使用libjoke.so作为我们的壳，所以我们自然要在soinfolist中找的是libjoke.so，使用frida打印一下。红线上面部分是soinfolist遍历的结构，下面部分是打印的是ELF文件的前64字节数据，正是我们之前3.1节图中使用RC4解密后传入的数据。
这里三种方法可以并不止局限于一种，可以搭配使用。既然都是自定义linker加载了，自然so可以放在更隐蔽的地方。在这里call_constructors没有实现，有兴趣的朋友可以自己实现一下。具体完整代码我就不贴出来了，里面各种各样调试信息绕来绕去没删除，写得太乱了。
// bionic/libdl/libdl.cppvoid* dlsym(void* handle, const char* symbol) { const void* caller_addr = __builtin_return_address(0); return __loader_dlsym(handle, symbol, caller_addr);}// bionic/libdl/libdl.cppvoid* dlsym(void* handle, const char* symbol) { const void* caller_addr = __builtin_return_address(0); return __loader_dlsym(handle, symbol, caller_addr);}// bionic/linker/dlfcn.cppvoid* __loader_dlsym(void* handle, const char* symbol, const void* caller_addr) { return dlsym_impl(handle, symbol, nullptr, caller_addr);}// bionic/linker/dlfcn.cppvoid* __loader_dlsym(void* handle, const char* symbol, const void* caller_addr) { return dlsym_impl(handle, symbol, nullptr, caller_addr);}// bionic/linker/dlfcn.cppvoid* dlsym_impl(void* handle, const char* symbol, const char* version, const void* caller_addr) { ScopedPthreadMutexLocker locker(&g_dl_mutex); g_linker_logger.ResetState(); void* result; if (!do_dlsym(handle, symbol, version, caller_addr, &result)) { __bionic_format_dlerror(linker_get_error_buffer(), nullptr); return nullptr; } return result;}// bionic/linker/dlfcn.cppvoid* dlsym_impl(void* handle, const char* symbol, const char* version, const void* caller_addr) { ScopedPthreadMutexLocker locker(&g_dl_mutex); g_linker_logger.ResetState(); void* result; if (!do_dlsym(handle, symbol, version, caller_addr, &result)) { __bionic_format_dlerror(linker_get_error_buffer(), nullptr); return nullptr; } return result;}// bionic/linker/linker.cppbool do_dlsym(void* handle, const char* sym_name, const char* sym_ver, const void* caller_addr, void** symbol) { ScopedTrace trace("dlsym");#if !defined(__LP64__) if (handle == nullptr) { DL_SYM_ERR("dlsym failed: library handle is null"); return false; }#endif soinfo* found = nullptr; const ElfW(Sym)* sym = nullptr; soinfo* caller = find_containing_library(caller_addr); android_namespace_t* ns = get_caller_namespace(caller); soinfo* si = nullptr; if (handle != RTLD_DEFAULT && handle != RTLD_NEXT) { si = soinfo_from_handle(handle); } LD_LOG(kLogDlsym, "dlsym(handle=%p(\"%s\"), sym_name=\"%s\", sym_ver=\"%s\", caller=\"%s\", caller_ns=%s@%p) ...", handle, si != nullptr ? si->get_realpath() : "n/a", sym_name, sym_ver, caller == nullptr ? "(null)" : caller->get_realpath(), ns == nullptr ? "(null)" : ns->get_name(), ns); auto failure_guard = android::base::make_scope_guard( [&]() { LD_LOG(kLogDlsym, "... dlsym failed: %s", linker_get_error_buffer()); }); if (sym_name == nullptr) { DL_SYM_ERR("dlsym failed: symbol name is null"); return false; } version_info vi_instance; version_info* vi = nullptr; if (sym_ver != nullptr) { vi_instance.name = sym_ver; vi_instance.elf_hash = calculate_elf_hash(sym_ver); vi = &vi_instance; } if (handle == RTLD_DEFAULT || handle == RTLD_NEXT) { sym = dlsym_linear_lookup(ns, sym_name, vi, &found, caller, handle); } else { if (si == nullptr) { DL_SYM_ERR("dlsym failed: invalid handle: %p", handle); return false; } sym = dlsym_handle_lookup(si, &found, sym_name, vi); } if (sym != nullptr) { uint32_t bind = ELF_ST_BIND(sym->st_info); uint32_t type = ELF_ST_TYPE(sym->st_info); if ((bind == STB_GLOBAL || bind == STB_WEAK) && sym->st_shndx != 0) { if (type == STT_TLS) { // For a TLS symbol, dlsym returns the address of the current thread's // copy of the symbol. const soinfo_tls* tls_module = found->get_tls(); if (tls_module == nullptr) { DL_SYM_ERR("TLS symbol \"%s\" in solib \"%s\" with no TLS segment", sym_name, found->get_realpath()); return false; } void* tls_block = get_tls_block_for_this_thread(tls_module, /*should_alloc=*/true); *symbol = static_cast<char*>(tls_block) + sym->st_value; } else { *symbol = reinterpret_cast<void*>(found->resolve_symbol_address(sym)); } failure_guard.Disable(); LD_LOG(kLogDlsym, "... dlsym successful: sym_name=\"%s\", sym_ver=\"%s\", found in=\"%s\", address=%p", sym_name, sym_ver, found->get_soname(), *symbol); return true; } DL_SYM_ERR("symbol \"%s\" found but not global", symbol_display_name(sym_name, sym_ver).c_str()); return false; } DL_SYM_ERR("undefined symbol: %s", symbol_display_name(sym_name, sym_ver).c_str()); return false;}// bionic/linker/linker.cppbool do_dlsym(void* handle, const char* sym_name, const char* sym_ver, const void* caller_addr, void** symbol) { ScopedTrace trace("dlsym");#if !defined(__LP64__) if (handle == nullptr) { DL_SYM_ERR("dlsym failed: library handle is null"); return false; }#endif soinfo* found = nullptr; const ElfW(Sym)* sym = nullptr; soinfo* caller = find_containing_library(caller_addr); android_namespace_t* ns = get_caller_namespace(caller); soinfo* si = nullptr; if (handle != RTLD_DEFAULT && handle != RTLD_NEXT) { si = soinfo_from_handle(handle); } LD_LOG(kLogDlsym, "dlsym(handle=%p(\"%s\"), sym_name=\"%s\", sym_ver=\"%s\", caller=\"%s\", caller_ns=%s@%p) ...", handle, si != nullptr ? si->get_realpath() : "n/a", sym_name, sym_ver, caller == nullptr ? "(null)" : caller->get_realpath(), ns == nullptr ? "(null)" : ns->get_name(), ns); auto failure_guard = android::base::make_scope_guard( [&]() { LD_LOG(kLogDlsym, "... dlsym failed: %s", linker_get_error_buffer()); }); if (sym_name == nullptr) { DL_SYM_ERR("dlsym failed: symbol name is null"); return false; } version_info vi_instance; version_info* vi = nullptr; if (sym_ver != nullptr) { vi_instance.name = sym_ver; vi_instance.elf_hash = calculate_elf_hash(sym_ver); vi = &vi_instance; } if (handle == RTLD_DEFAULT || handle == RTLD_NEXT) { sym = dlsym_linear_lookup(ns, sym_name, vi, &found, caller, handle); } else { if (si == nullptr) { DL_SYM_ERR("dlsym failed: invalid handle: %p", handle); return false; } sym = dlsym_handle_lookup(si, &found, sym_name, vi); } if (sym != nullptr) { uint32_t bind = ELF_ST_BIND(sym->st_info); uint32_t type = ELF_ST_TYPE(sym->st_info); if ((bind == STB_GLOBAL || bind == STB_WEAK) && sym->st_shndx != 0) { if (type == STT_TLS) { // For a TLS symbol, dlsym returns the address of the current thread's // copy of the symbol. const soinfo_tls* tls_module = found->get_tls(); if (tls_module == nullptr) { DL_SYM_ERR("TLS symbol \"%s\" in solib \"%s\" with no TLS segment", sym_name, found->get_realpath()); return false; } void* tls_block = get_tls_block_for_this_thread(tls_module, /*should_alloc=*/true); *symbol = static_cast<char*>(tls_block) + sym->st_value; } else { *symbol = reinterpret_cast<void*>(found->resolve_symbol_address(sym)); } failure_guard.Disable(); LD_LOG(kLogDlsym, "... dlsym successful: sym_name=\"%s\", sym_ver=\"%s\", found in=\"%s\", address=%p", sym_name, sym_ver, found->get_soname(), *symbol); return true; } DL_SYM_ERR("symbol \"%s\" found but not global", symbol_display_name(sym_name, sym_ver).c_str()); return false; } DL_SYM_ERR("undefined symbol: %s", symbol_display_name(sym_name, sym_ver).c_str()); return false;}// linker/linker.cppstatic const ElfW(Sym)* dlsym_handle_lookup(soinfo* si, soinfo** found, const char* name, const version_info* vi) { // According to man dlopen(3) and posix docs in the case when si is handle // of the main executable we need to search not only in the executable and its // dependencies but also in all libraries loaded with RTLD_GLOBAL. // // Since RTLD_GLOBAL is always set for the main executable and all dt_needed shared // libraries and they are loaded in breath-first (correct) order we can just execute // dlsym(RTLD_DEFAULT, ...); instead of doing two stage lookup. if (si == solist_get_somain()) { return dlsym_linear_lookup(&g_default_namespace, name, vi, found, nullptr, RTLD_DEFAULT); } SymbolName symbol_name(name); // note that the namespace is not the namespace associated with caller_addr // we use ns associated with root si intentionally here. Using caller_ns // causes problems when user uses dlopen_ext to open a library in the separate // namespace and then calls dlsym() on the handle. return dlsym_handle_lookup_impl(si->get_primary_namespace(), si, nullptr, found, symbol_name, vi);}// linker/linker.cppstatic const ElfW(Sym)* dlsym_handle_lookup(soinfo* si, soinfo** found, const char* name, const version_info* vi) { // According to man dlopen(3) and posix docs in the case when si is handle // of the main executable we need to search not only in the executable and its // dependencies but also in all libraries loaded with RTLD_GLOBAL. // // Since RTLD_GLOBAL is always set for the main executable and all dt_needed shared // libraries and they are loaded in breath-first (correct) order we can just execute // dlsym(RTLD_DEFAULT, ...); instead of doing two stage lookup. if (si == solist_get_somain()) { return dlsym_linear_lookup(&g_default_namespace, name, vi, found, nullptr, RTLD_DEFAULT); } SymbolName symbol_name(name); // note that the namespace is not the namespace associated with caller_addr // we use ns associated with root si intentionally here. Using caller_ns // causes problems when user uses dlopen_ext to open a library in the separate // namespace and then calls dlsym() on the handle. return dlsym_handle_lookup_impl(si->get_primary_namespace(), si, nullptr, found, symbol_name, vi);}// bionic/linker/linker.cppstatic const ElfW(Sym)* dlsym_handle_lookup_impl(android_namespace_t* ns, soinfo* root, soinfo* skip_until, soinfo** found, SymbolName& symbol_name, const version_info* vi) { const ElfW(Sym)* result = nullptr; bool skip_lookup = skip_until != nullptr; walk_dependencies_tree(root, [&](soinfo* current_soinfo) { if (skip_lookup) { skip_lookup = current_soinfo != skip_until; return kWalkContinue; } if (!ns->is_accessible(current_soinfo)) { return kWalkSkip; } result = current_soinfo->find_symbol_by_name(symbol_name, vi); if (result != nullptr) { *found = current_soinfo; return kWalkStop; } return kWalkContinue; }); return result;}// bionic/linker/linker.cppstatic const ElfW(Sym)* dlsym_handle_lookup_impl(android_namespace_t* ns, soinfo* root, soinfo* skip_until, soinfo** found, SymbolName& symbol_name, const version_info* vi) { const ElfW(Sym)* result = nullptr; bool skip_lookup = skip_until != nullptr; walk_dependencies_tree(root, [&](soinfo* current_soinfo) { if (skip_lookup) { skip_lookup = current_soinfo != skip_until; return kWalkContinue; } if (!ns->is_accessible(current_soinfo)) { return kWalkSkip; } result = current_soinfo->find_symbol_by_name(symbol_name, vi); if (result != nullptr) { *found = current_soinfo; return kWalkStop; } return kWalkContinue; }); return result;}// bionic/linker/linker_soinfo.cppconst ElfW(Sym)* soinfo::find_symbol_by_name(SymbolName& symbol_name, const version_info* vi) const { return is_gnu_hash() ? gnu_lookup(symbol_name, vi) : elf_lookup(symbol_name, vi);}// bionic/linker/linker_soinfo.cppconst ElfW(Sym)* soinfo::find_symbol_by_name(SymbolName& symbol_name, const version_info* vi) const { return is_gnu_hash() ? gnu_lookup(symbol_name, vi) : elf_lookup(symbol_name, vi);}// bionic/linker/linker_soinfo.cppconst ElfW(Sym)* soinfo::gnu_lookup(SymbolName& symbol_name, const version_info* vi) const { const uint32_t hash = symbol_name.gnu_hash(); constexpr uint32_t kBloomMaskBits = sizeof(ElfW(Addr)) * 8; const uint32_t word_num = (hash / kBloomMaskBits) & gnu_maskwords_; const ElfW(Addr) bloom_word = gnu_bloom_filter_[word_num]; const uint32_t h1 = hash % kBloomMaskBits; const uint32_t h2 = (hash >> gnu_shift2_) % kBloomMaskBits; LD_DEBUG(lookup, "SEARCH %s in %s@%p (gnu)", symbol_name.get_name(), get_realpath(), reinterpret_cast<void*>(base)); // test against bloom filter if ((1 & (bloom_word >> h1) & (bloom_word >> h2)) == 0) { return nullptr; } // bloom test says "probably yes"... uint32_t n = gnu_bucket_[hash % gnu_nbucket_]; if (n == 0) { return nullptr; } const ElfW(Versym) verneed = find_verdef_version_index(this, vi); const ElfW(Versym)* versym = get_versym_table(); do { ElfW(Sym)* s = symtab_ + n; if (((gnu_chain_[n] ^ hash) >> 1) == 0 && check_symbol_version(versym, n, verneed) && strcmp(get_string(s->st_name), symbol_name.get_name()) == 0 && is_symbol_global_and_defined(this, s)) { return symtab_ + n; } } while ((gnu_chain_[n++] & 1) == 0); return nullptr;}// bionic/linker/linker_soinfo.cppconst ElfW(Sym)* soinfo::gnu_lookup(SymbolName& symbol_name, const version_info* vi) const { const uint32_t hash = symbol_name.gnu_hash(); constexpr uint32_t kBloomMaskBits = sizeof(ElfW(Addr)) * 8; const uint32_t word_num = (hash / kBloomMaskBits) & gnu_maskwords_; const ElfW(Addr) bloom_word = gnu_bloom_filter_[word_num]; const uint32_t h1 = hash % kBloomMaskBits; const uint32_t h2 = (hash >> gnu_shift2_) % kBloomMaskBits; LD_DEBUG(lookup, "SEARCH %s in %s@%p (gnu)", symbol_name.get_name(), get_realpath(), reinterpret_cast<void*>(base)); // test against bloom filter if ((1 & (bloom_word >> h1) & (bloom_word >> h2)) == 0) { return nullptr; } // bloom test says "probably yes"... uint32_t n = gnu_bucket_[hash % gnu_nbucket_]; if (n == 0) { return nullptr; } const ElfW(Versym) verneed = find_verdef_version_index(this, vi); const ElfW(Versym)* versym = get_versym_table(); do { ElfW(Sym)* s = symtab_ + n; if (((gnu_chain_[n] ^ hash) >> 1) == 0 && check_symbol_version(versym, n, verneed) && strcmp(get_string(s->st_name), symbol_name.get_name()) == 0 && is_symbol_global_and_defined(this, s)) { return symtab_ + n; } } while ((gnu_chain_[n++] & 1) == 0); return nullptr;}// bionic/linker/linker_soinfo.cppconst ElfW(Sym)* soinfo::elf_lookup(SymbolName& symbol_name, const version_info* vi) const { uint32_t hash = symbol_name.elf_hash(); LD_DEBUG(lookup, "SEARCH %s in %s@%p h=%x(elf) %zd", symbol_name.get_name(), get_realpath(), reinterpret_cast<void*>(base), hash, hash % nbucket_); const ElfW(Versym) verneed = find_verdef_version_index(this, vi); const ElfW(Versym)* versym = get_versym_table(); for (uint32_t n = bucket_[hash % nbucket_]; n != 0; n = chain_[n]) { ElfW(Sym)* s = symtab_ + n; if (check_symbol_version(versym, n, verneed) && strcmp(get_string(s->st_name), symbol_name.get_name()) == 0 && is_symbol_global_and_defined(this, s)) { return symtab_ + n; } } return nullptr;}// bionic/linker/linker_soinfo.cppconst ElfW(Sym)* soinfo::elf_lookup(SymbolName& symbol_name, const version_info* vi) const { uint32_t hash = symbol_name.elf_hash(); LD_DEBUG(lookup, "SEARCH %s in %s@%p h=%x(elf) %zd", symbol_name.get_name(), get_realpath(), reinterpret_cast<void*>(base), hash, hash % nbucket_); const ElfW(Versym) verneed = find_verdef_version_index(this, vi); const ElfW(Versym)* versym = get_versym_table(); for (uint32_t n = bucket_[hash % nbucket_]; n != 0; n = chain_[n]) { ElfW(Sym)* s = symtab_ + n; if (check_symbol_version(versym, n, verneed) && strcmp(get_string(s->st_name), symbol_name.get_name()) == 0 && is_symbol_global_and_defined(this, s)) { return symtab_ + n; } } return nullptr;}static uint32_t gnu_hash(const char *s0){ const unsigned char *s = (void *)s0; uint_fast32_t h = 5381; for (; *s; s++) h += h*32 + *s; return h;}static uint32_t gnu_hash(const char *s0){ const unsigned char *s = (void *)s0; uint_fast32_t h = 5381; for (; *s; s++) h += h*32 + *s; return h;}// bionic/linker/linker.cppcase DT_GNU_HASH: gnu_nbucket_ = reinterpret_cast<uint32_t*>(load_bias + d->d_un.d_ptr)[0]; // skip symndx gnu_maskwords_ = reinterpret_cast<uint32_t*>(load_bias + d->d_un.d_ptr)[2]; gnu_shift2_ = reinterpret_cast<uint32_t*>(load_bias + d->d_un.d_ptr)[3]; gnu_bloom_filter_ = reinterpret_cast<ElfW(Addr)*>(load_bias + d->d_un.d_ptr + 16); gnu_bucket_ = reinterpret_cast<uint32_t*>(gnu_bloom_filter_ + gnu_maskwords_); // amend chain for symndx = header[1] gnu_chain_ = gnu_bucket_ + gnu_nbucket_ - reinterpret_cast<uint32_t*>(load_bias + d->d_un.d_ptr)[1]; if (!powerof2(gnu_maskwords_)) { DL_ERR("invalid maskwords for gnu_hash = 0x%x, in \"%s\" expecting power to two", gnu_maskwords_, get_realpath()); return false; } --gnu_maskwords_; flags_ |= FLAG_GNU_HASH; break;// bionic/linker/linker.cppcase DT_GNU_HASH: gnu_nbucket_ = reinterpret_cast<uint32_t*>(load_bias + d->d_un.d_ptr)[0]; // skip symndx gnu_maskwords_ = reinterpret_cast<uint32_t*>(load_bias + d->d_un.d_ptr)[2]; gnu_shift2_ = reinterpret_cast<uint32_t*>(load_bias + d->d_un.d_ptr)[3]; gnu_bloom_filter_ = reinterpret_cast<ElfW(Addr)*>(load_bias + d->d_un.d_ptr + 16); gnu_bucket_ = reinterpret_cast<uint32_t*>(gnu_bloom_filter_ + gnu_maskwords_); // amend chain for symndx = header[1] gnu_chain_ = gnu_bucket_ + gnu_nbucket_ - reinterpret_cast<uint32_t*>(load_bias + d->d_un.d_ptr)[1]; if (!powerof2(gnu_maskwords_)) { DL_ERR("invalid maskwords for gnu_hash = 0x%x, in \"%s\" expecting power to two", gnu_maskwords_, get_realpath()); return false; } --gnu_maskwords_; flags_ |= FLAG_GNU_HASH; break;int harden_handle(char *src_path, char *name, char *dst_path, int mode) { Elf64_Ehdr header_; Elf64_Phdr phdr_; Elf64_Dyn dyn_; int dyn_off; int dyn_size; int dyn_count; Elf64_Addr dyn_symtab; Elf64_Addr dyn_strtab; Elf64_Addr dyn_gnuhash; int dyn_strsz; uint32_t symndex; // GNU哈希表相关变量 uint32_t gnu_nbucket_; uint32_t gnu_maskwords_; uint32_t gnu_shift2_; Elf64_Addr *gnu_bloom_filter_; uint32_t* gnu_bucket_; uint32_t* gnu_chain_; bool has_gnu_hash = false; // 打开源文件 int fd = open(src_path, O_RDONLY); if (fd == -1) { LOGE("error opening source file"); return -1; } //读elf头 int ret = read(fd, &header_, sizeof(header_)); if (ret < 0) { LOGE("error read file!"); } //读程序头 lseek(fd, header_.e_phoff, SEEK_SET); for (int i = 0; i < header_.e_phnum; i++) { ret = read(fd, &phdr_, sizeof(phdr_)); if (ret < 0) { LOGE("error read file!"); } if (phdr_.p_type != PT_DYNAMIC) { continue; } dyn_off = phdr_.p_offset; dyn_size = phdr_.p_filesz; dyn_count = phdr_.p_memsz / (8 * 2); } //读动态段 lseek(fd, dyn_off, SEEK_SET); for(int i = 0; i < dyn_count; i++) { ret = read(fd, &dyn_, sizeof(dyn_)); if (ret < 0) { LOGI("error read file!"); } switch (dyn_.d_tag) { case DT_SONAME: break; case DT_GNU_HASH: dyn_gnuhash = dyn_.d_un.d_ptr; break; case DT_SYMTAB: dyn_symtab = dyn_.d_un.d_ptr; break; case DT_SYMENT: break; case DT_STRTAB: dyn_strtab = dyn_.d_un.d_ptr; break; case DT_STRSZ: dyn_strsz = dyn_.d_un.d_val; break; } } char *dynstr = (char*) malloc(dyn_strsz); if(dynstr == NULL){ LOGE("malloc failed"); } lseek(fd, dyn_strtab, SEEK_SET); ret = read(fd, dynstr, dyn_strsz); if (ret < 0) { LOGE("read .dynstr failed"); } //Gnu Hash桶查找法 gnu_nbucket_ = dyn_gnuhash[0]; uint32_t symndx = dyn_gnuhash[1]; gnu_maskwords_ = dyn_gnuhash[2]; gnu_shift2_ = dyn_gnuhash[3]; gnu_bloom_filter_ = reinterpret_cast<Elf64_Addr *>(dyn_gnuhash + 16);//布隆滤波器地址 gnu_bucket_ = reinterpret_cast<uint32_t*>(gnu_bloom_filter_ + gnu_maskwords_);//bucket起始地址 gnu_chain_ = gnu_bucket_ + gnu_nbucket_ - symndx;//chain起始地址减去index偏差 uint32_t hash = gnu_hash(name); uint32_t h2 = hash >> gnu_shift2_; uint32_t bloom_mask_bits = sizeof(Elf64_Addr) * 8; uint32_t word_num = (hash / bloom_mask_bits) & gnu_maskwords_; uint32_t val = hash % gnu_nbucket_; // 检查哈希桶 uint32_t n = gnu_bucket_[hash % gnu_nbucket_]; if (n == 0) { printf("符号'%s'所在哈希桶为空\n", name); return false; } Elf64_Sym s; uint32_t chain; do { lseek(fd, dyn_symtab + n * sizeof(Elf64_Sym), SEEK_SET); ret = read(fd, &s, sizeof(Elf64_Sym)); if (ret < 0) { LOGI("read gnuhash failed"); } LOGI("name = %d %s", s.st_name, dynstr + s.st_name); lseek(fd, reinterpret_cast<uint64_t>(gnu_chain_ + n), SEEK_SET); ret = read(fd, &chain, sizeof(chain)); if (ret < 0) { LOGI("read gnuhash failed"); } if (((chain ^ hash) >> 1) == 0 && strcmp(dynstr + s.st_name, name) == 0) { LOGI("found function(%s) at %p(%zd)", name, reinterpret_cast<void*>(s.st_value), static_cast<size_t>(s.st_size)); break; } n++; lseek(fd, reinterpret_cast<uint64_t>(gnu_chain_ + n), SEEK_SET); ret = read(fd, &chain, sizeof(chain)); if (ret < 0) { LOGI("read gnuhash failed"); } } while((chain & 1) == 0); uint32_t size = get_file_size(src_path); char *file_buf = (char *)malloc(size); if (file_buf == NULL) { LOGI("file buf malloc failed"); } lseek(fd, 0, SEEK_SET); ret = read(fd, file_buf, size); if (ret < 0) { LOGI("read file buf failed"); } close(fd); //so修改与保存 char save_path[128] = {0}; fd = open(dst_path, O_RDWR | O_CREAT, 0644); if (fd == -1) { LOGI("error opening file, %s", dst_path); return -1; } char *encrypt_buf = (char *)malloc(s.st_size); encrypt((unsigned char *) RC4_KEY, reinterpret_cast<unsigned char *>(encrypt_buf), reinterpret_cast<unsigned char *>(&file_buf[s.st_value]), FUNC_SIZE); memcpy(&file_buf[s.st_value], encrypt_buf, FUNC_SIZE); if (mode == MODE_DUPLEX) { for (int i = 0; i < header_.e_phnum; i++) { file_buf[header_.e_phoff + i * sizeof(phdr_)] = file_buf[header_.e_phoff + i * sizeof(phdr_)] ^ XOR_MAGIC; file_buf[header_.e_phoff + i * sizeof(phdr_) + 1] = file_buf[header_.e_phoff + i * sizeof(phdr_) + 1] ^ XOR_MAGIC; file_buf[header_.e_phoff + i * sizeof(phdr_) + 2] = file_buf[header_.e_phoff + i * sizeof(phdr_) + 2] ^ XOR_MAGIC; file_buf[header_.e_phoff + i * sizeof(phdr_) + 3] = file_buf[header_.e_phoff + i * sizeof(phdr_) + 3] ^ XOR_MAGIC; } } write(fd, file_buf, size); free(encrypt_buf); close(fd); return 0;}int harden_handle(char *src_path, char *name, char *dst_path, int mode) { Elf64_Ehdr header_; Elf64_Phdr phdr_; Elf64_Dyn dyn_; int dyn_off; int dyn_size; int dyn_count; Elf64_Addr dyn_symtab; Elf64_Addr dyn_strtab; Elf64_Addr dyn_gnuhash; int dyn_strsz; uint32_t symndex; // GNU哈希表相关变量 uint32_t gnu_nbucket_; uint32_t gnu_maskwords_; uint32_t gnu_shift2_; Elf64_Addr *gnu_bloom_filter_; uint32_t* gnu_bucket_; uint32_t* gnu_chain_; bool has_gnu_hash = false; // 打开源文件 int fd = open(src_path, O_RDONLY); if (fd == -1) { LOGE("error opening source file"); return -1; } //读elf头 int ret = read(fd, &header_, sizeof(header_)); if (ret < 0) { LOGE("error read file!"); } //读程序头 lseek(fd, header_.e_phoff, SEEK_SET); for (int i = 0; i < header_.e_phnum; i++) { ret = read(fd, &phdr_, sizeof(phdr_)); if (ret < 0) { LOGE("error read file!"); } if (phdr_.p_type != PT_DYNAMIC) { continue; } dyn_off = phdr_.p_offset; dyn_size = phdr_.p_filesz; dyn_count = phdr_.p_memsz / (8 * 2); } //读动态段 lseek(fd, dyn_off, SEEK_SET); for(int i = 0; i < dyn_count; i++) { ret = read(fd, &dyn_, sizeof(dyn_)); if (ret < 0) { LOGI("error read file!"); } switch (dyn_.d_tag) { case DT_SONAME: break; case DT_GNU_HASH: dyn_gnuhash = dyn_.d_un.d_ptr; break; case DT_SYMTAB: dyn_symtab = dyn_.d_un.d_ptr; break; case DT_SYMENT: break; case DT_STRTAB: dyn_strtab = dyn_.d_un.d_ptr; break; case DT_STRSZ: dyn_strsz = dyn_.d_un.d_val; break; } } char *dynstr = (char*) malloc(dyn_strsz); if(dynstr == NULL){ LOGE("malloc failed"); } lseek(fd, dyn_strtab, SEEK_SET); ret = read(fd, dynstr, dyn_strsz); if (ret < 0) { LOGE("read .dynstr failed"); } //Gnu Hash桶查找法 gnu_nbucket_ = dyn_gnuhash[0]; uint32_t symndx = dyn_gnuhash[1]; gnu_maskwords_ = dyn_gnuhash[2]; gnu_shift2_ = dyn_gnuhash[3]; gnu_bloom_filter_ = reinterpret_cast<Elf64_Addr *>(dyn_gnuhash + 16);//布隆滤波器地址 gnu_bucket_ = reinterpret_cast<uint32_t*>(gnu_bloom_filter_ + gnu_maskwords_);//bucket起始地址 gnu_chain_ = gnu_bucket_ + gnu_nbucket_ - symndx;//chain起始地址减去index偏差 uint32_t hash = gnu_hash(name); uint32_t h2 = hash >> gnu_shift2_; uint32_t bloom_mask_bits = sizeof(Elf64_Addr) * 8; uint32_t word_num = (hash / bloom_mask_bits) & gnu_maskwords_; uint32_t val = hash % gnu_nbucket_; // 检查哈希桶 uint32_t n = gnu_bucket_[hash % gnu_nbucket_]; if (n == 0) { printf("符号'%s'所在哈希桶为空\n", name); return false; } Elf64_Sym s; uint32_t chain; do { lseek(fd, dyn_symtab + n * sizeof(Elf64_Sym), SEEK_SET); ret = read(fd, &s, sizeof(Elf64_Sym)); if (ret < 0) { LOGI("read gnuhash failed"); } LOGI("name = %d %s", s.st_name, dynstr + s.st_name); lseek(fd, reinterpret_cast<uint64_t>(gnu_chain_ + n), SEEK_SET); ret = read(fd, &chain, sizeof(chain)); if (ret < 0) { LOGI("read gnuhash failed"); } if (((chain ^ hash) >> 1) == 0 && strcmp(dynstr + s.st_name, name) == 0) { LOGI("found function(%s) at %p(%zd)", name, reinterpret_cast<void*>(s.st_value), static_cast<size_t>(s.st_size)); break; } n++; lseek(fd, reinterpret_cast<uint64_t>(gnu_chain_ + n), SEEK_SET); ret = read(fd, &chain, sizeof(chain)); if (ret < 0) { LOGI("read gnuhash failed"); } } while((chain & 1) == 0); uint32_t size = get_file_size(src_path); char *file_buf = (char *)malloc(size); if (file_buf == NULL) { LOGI("file buf malloc failed"); } lseek(fd, 0, SEEK_SET); ret = read(fd, file_buf, size); if (ret < 0) { LOGI("read file buf failed"); } close(fd); //so修改与保存 char save_path[128] = {0}; fd = open(dst_path, O_RDWR | O_CREAT, 0644); if (fd == -1) { LOGI("error opening file, %s", dst_path); return -1; } char *encrypt_buf = (char *)malloc(s.st_size); encrypt((unsigned char *) RC4_KEY, reinterpret_cast<unsigned char *>(encrypt_buf), reinterpret_cast<unsigned char *>(&file_buf[s.st_value]), FUNC_SIZE); memcpy(&file_buf[s.st_value], encrypt_buf, FUNC_SIZE); if (mode == MODE_DUPLEX) { for (int i = 0; i < header_.e_phnum; i++) { file_buf[header_.e_phoff + i * sizeof(phdr_)] = file_buf[header_.e_phoff + i * sizeof(phdr_)] ^ XOR_MAGIC; file_buf[header_.e_phoff + i * sizeof(phdr_) + 1] = file_buf[header_.e_phoff + i * sizeof(phdr_) + 1] ^ XOR_MAGIC; file_buf[header_.e_phoff + i * sizeof(phdr_) + 2] = file_buf[header_.e_phoff + i * sizeof(phdr_) + 2] ^ XOR_MAGIC; file_buf[header_.e_phoff + i * sizeof(phdr_) + 3] = file_buf[header_.e_phoff + i * sizeof(phdr_) + 3] ^ XOR_MAGIC; } } write(fd, file_buf, size); free(encrypt_buf); close(fd); return 0;}extern "C"JNIEXPORT void JNICALLJava_com_example_mylinkerwith21_MainActivity_loadSO(JNIEnv *env, jobject thiz, jstring jEncryptedFileDirectoryPath) { void *lib; uint64_t start; uint64_t end; ssize_t page; FUNC lib_func = NULL; RC4_CTX ctx; char buf[512] = {0}; int result; LOGI("loadSO called!"); const char *encryptedFileDirectoryPath = env->GetStringUTFChars(jEncryptedFileDirectoryPath, nullptr); if (encryptedFileDirectoryPath == nullptr) { LOGE("Failed to get string characters for encrypted file directory path"); return; } // 构建加密文件的完整加载路径 (从私有目录) const char* encryptedFileName = "libmathlib_encrypt.so"; // 计算所需缓冲区大小: 目录路径长度 + 1 (斜杠) + 文件名长度 + 1 (null terminator) size_t requiredPathSize = strlen(encryptedFileDirectoryPath) + 1 + strlen(encryptedFileName) + 1; char* encryptedLoadPath = (char*)malloc(requiredPathSize); if (encryptedLoadPath == nullptr) { LOGE("Failed to allocate memory for encrypted load path"); env->ReleaseStringUTFChars(jEncryptedFileDirectoryPath, encryptedFileDirectoryPath); return; // 返回，内存分配失败 } // 拼接路径 sprintf(encryptedLoadPath, "%s/%s", encryptedFileDirectoryPath, encryptedFileName); LOGI("Loading from path: %s", encryptedLoadPath); // 使用构建的私有目录路径下的加密文件路径进行 dlopen lib = dlopen(encryptedLoadPath, RTLD_LAZY); // 释放动态分配的内存 free(encryptedLoadPath); // 释放JNI字符串资源 env->ReleaseStringUTFChars(jEncryptedFileDirectoryPath, encryptedFileDirectoryPath); if (lib == NULL) { LOGE("%s dlopen failed: %s\n", encryptedFileName, dlerror()); return; // dlopen 失败，直接返回 } // --- 后面的逻辑与原始代码类似，操作dlopen加载的库 --- //获取库函数 lib_func = reinterpret_cast<FUNC>(dlsym(lib, "mymyadd")); if (!lib_func) { LOGI("can't find module symbol 'mymyadd': %s\n", dlerror()); dlclose(lib); // dlsym 失败，关闭库 return; // dlsym 失败，返回 } LOGI("loadso lib_func = %p", lib_func); //修改内存读写权限 // 注意：parse_maps_for_lib 函数需要根据加载的库名来查找，这里是 "libmathlib_encrypt.so" // 确保 parse_maps_for_lib 能够正确找到加载的库的内存映射 parse_maps_for_lib("libmathlib_encrypt.so", &start, &end); // 使用加载的库名 if (start == 0 && end == 0) { LOGI("Failed to find memory map for libmathlib_encrypt.so"); dlclose(lib); // 查找内存映射失败，关闭库 return; } page = end - start; // 确保 page 是页对齐的，mprotect 要求地址和大小都是页对齐的 // 简单的示例省略了页对齐处理，实际生产代码需要考虑 if (mprotect((void*)start, page, PROT_READ | PROT_WRITE | PROT_EXEC) == -1) { LOGI("mprotect failed for PROT_READ | PROT_WRITE | PROT_EXEC: %s", strerror(errno)); // 添加错误信息 dlclose(lib); // mprotect 失败，关闭库 return; // mprotect 失败，返回 } //解密覆盖 // 确保 RC4_KEY 和 FUNC_SIZE 在某个头文件中定义且可访问 // 确保 buf 大小足够 FUNC_SIZE rc4_init(&ctx, (unsigned char *) RC4_KEY, strlen(reinterpret_cast<const char *>(RC4_KEY))); rc4_run(&ctx, reinterpret_cast<unsigned char *>(buf), reinterpret_cast<unsigned char *>(lib_func), FUNC_SIZE); memcpy((void*)lib_func, buf, FUNC_SIZE); //权限还原 if (mprotect((void*)start, page, PROT_READ | PROT_EXEC) == -1) { LOGI("mprotect failed for PROT_READ | PROT_EXEC: %s", strerror(errno)); // 添加错误信息 // 即使还原权限失败，也要尝试调用函数，但记录错误 } //调用库函数 result = lib_func(1, 2); LOGI("loadso add result = %d", result); // --- 清理阶段 --- // 修改内存读写权限以便加密还原 if (mprotect((void*)start, page, PROT_READ | PROT_WRITE | PROT_EXEC) == -1) { LOGI("mprotect failed for PROT_READ | PROT_WRITE | PROT_EXEC during re-encryption: %s", strerror(errno)); // 如果这里失败了，后续的加密和还原权限操作可能也会失败，但是仍然尝试关闭库 } else { //加密还原覆盖 rc4_init(&ctx, (unsigned char *) RC4_KEY, strlen(reinterpret_cast<const char *>(RC4_KEY))); rc4_run(&ctx, reinterpret_cast<unsigned char *>(buf), reinterpret_cast<unsigned char *>(lib_func), FUNC_SIZE); memcpy((void*)lib_func, buf, FUNC_SIZE); //权限还原 if (mprotect((void*)start, page, PROT_READ | PROT_EXEC) == -1) { LOGI("mprotect failed for PROT_READ | PROT_EXEC after re-encryption: %s", strerror(errno)); } } // 关闭库 dlclose(lib);}extern "C"JNIEXPORT void JNICALLJava_com_example_mylinkerwith21_MainActivity_loadSO(JNIEnv *env, jobject thiz, jstring jEncryptedFileDirectoryPath) { void *lib; uint64_t start; uint64_t end; ssize_t page; FUNC lib_func = NULL; RC4_CTX ctx; char buf[512] = {0}; int result; LOGI("loadSO called!"); const char *encryptedFileDirectoryPath = env->GetStringUTFChars(jEncryptedFileDirectoryPath, nullptr); if (encryptedFileDirectoryPath == nullptr) { LOGE("Failed to get string characters for encrypted file directory path"); return; } // 构建加密文件的完整加载路径 (从私有目录) const char* encryptedFileName = "libmathlib_encrypt.so"; // 计算所需缓冲区大小: 目录路径长度 + 1 (斜杠) + 文件名长度 + 1 (null terminator) size_t requiredPathSize = strlen(encryptedFileDirectoryPath) + 1 + strlen(encryptedFileName) + 1; char* encryptedLoadPath = (char*)malloc(requiredPathSize); if (encryptedLoadPath == nullptr) { LOGE("Failed to allocate memory for encrypted load path"); env->ReleaseStringUTFChars(jEncryptedFileDirectoryPath, encryptedFileDirectoryPath); return; // 返回，内存分配失败 } // 拼接路径 sprintf(encryptedLoadPath, "%s/%s", encryptedFileDirectoryPath, encryptedFileName); LOGI("Loading from path: %s", encryptedLoadPath); // 使用构建的私有目录路径下的加密文件路径进行 dlopen lib = dlopen(encryptedLoadPath, RTLD_LAZY); // 释放动态分配的内存 free(encryptedLoadPath); // 释放JNI字符串资源 env->ReleaseStringUTFChars(jEncryptedFileDirectoryPath, encryptedFileDirectoryPath); if (lib == NULL) { LOGE("%s dlopen failed: %s\n", encryptedFileName, dlerror()); return; // dlopen 失败，直接返回 } // --- 后面的逻辑与原始代码类似，操作dlopen加载的库 --- //获取库函数 lib_func = reinterpret_cast<FUNC>(dlsym(lib, "mymyadd")); if (!lib_func) { LOGI("can't find module symbol 'mymyadd': %s\n", dlerror()); dlclose(lib); // dlsym 失败，关闭库 return; // dlsym 失败，返回 } LOGI("loadso lib_func = %p", lib_func); //修改内存读写权限 // 注意：parse_maps_for_lib 函数需要根据加载的库名来查找，这里是 "libmathlib_encrypt.so" // 确保 parse_maps_for_lib 能够正确找到加载的库的内存映射 parse_maps_for_lib("libmathlib_encrypt.so", &start, &end); // 使用加载的库名 if (start == 0 && end == 0) { LOGI("Failed to find memory map for libmathlib_encrypt.so"); dlclose(lib); // 查找内存映射失败，关闭库 return; } page = end - start; // 确保 page 是页对齐的，mprotect 要求地址和大小都是页对齐的 // 简单的示例省略了页对齐处理，实际生产代码需要考虑 if (mprotect((void*)start, page, PROT_READ | PROT_WRITE | PROT_EXEC) == -1) { LOGI("mprotect failed for PROT_READ | PROT_WRITE | PROT_EXEC: %s", strerror(errno)); // 添加错误信息 dlclose(lib); // mprotect 失败，关闭库 return; // mprotect 失败，返回 } //解密覆盖 // 确保 RC4_KEY 和 FUNC_SIZE 在某个头文件中定义且可访问 // 确保 buf 大小足够 FUNC_SIZE rc4_init(&ctx, (unsigned char *) RC4_KEY, strlen(reinterpret_cast<const char *>(RC4_KEY))); rc4_run(&ctx, reinterpret_cast<unsigned char *>(buf), reinterpret_cast<unsigned char *>(lib_func), FUNC_SIZE); memcpy((void*)lib_func, buf, FUNC_SIZE); //权限还原 if (mprotect((void*)start, page, PROT_READ | PROT_EXEC) == -1) { LOGI("mprotect failed for PROT_READ | PROT_EXEC: %s", strerror(errno)); // 添加错误信息 // 即使还原权限失败，也要尝试调用函数，但记录错误 } //调用库函数 result = lib_func(1, 2); LOGI("loadso add result = %d", result); // --- 清理阶段 --- // 修改内存读写权限以便加密还原 if (mprotect((void*)start, page, PROT_READ | PROT_WRITE | PROT_EXEC) == -1) { LOGI("mprotect failed for PROT_READ | PROT_WRITE | PROT_EXEC during re-encryption: %s", strerror(errno)); // 如果这里失败了，后续的加密和还原权限操作可能也会失败，但是仍然尝试关闭库 } else { //加密还原覆盖 rc4_init(&ctx, (unsigned char *) RC4_KEY, strlen(reinterpret_cast<const char *>(RC4_KEY))); rc4_run(&ctx, reinterpret_cast<unsigned char *>(buf), reinterpret_cast<unsigned char *>(lib_func), FUNC_SIZE); memcpy((void*)lib_func, buf, FUNC_SIZE); //权限还原 if (mprotect((void*)start, page, PROT_READ | PROT_EXEC) == -1) { LOGI("mprotect failed for PROT_READ | PROT_EXEC after re-encryption: %s", strerror(errno)); } } // 关闭库 dlclose(lib);}#pragma pack(push, 1) typedef struct custom_elf64_file{ Elf64_Off elf_header_off; Elf64_Half elf_header_size; Elf64_Off elf_program_header_table_off; Elf64_Half elf_program_header_table_num; Elf64_Half elf_program_header_table_size; }Custom_Elf64_File; #pragma pack(pop)typedef struct { unsigned char e_ident[EI_NIDENT]; /* Magic number and other info 16 bytes*/ Elf64_Half e_type; /* Object file type 2 bytes*/ Elf64_Half e_machine; /* Architecture 2 bytes*/ Elf64_Word e_version; /* Object file version 4 bytes*/ Elf64_Addr e_entry; /* Entry point virtual address 8 bytes*/ Elf64_Off e_phoff; /* Program header table file offset 8 bytes*/ Elf64_Off e_shoff; /* Section header table file offset */ Elf64_Word e_flags; /* Processor-specific flags */ Elf64_Half e_ehsize; /* ELF header size in bytes */ Elf64_Half e_phentsize; /* Program header table entry size */ Elf64_Half e_phnum; /* Program header table entry count */ Elf64_Half e_shentsize; /* Section header table entry size */ Elf64_Half e_shnum; /* Section header table entry count */ Elf64_Half e_shstrndx; /* Section header string table index */ } Custom_Elf64_Ehdr;int do_pack(char *inputfile_buffer, size_t inputfile_size, char *outfile_buffer, size_t outfile_size) { if (NULL == inputfile_buffer || 0 == inputfile_size || NULL == outfile_buffer) { return -1; } // Validate input file is an ELF file Elf64_Ehdr* orig_ehdr = (Elf64_Ehdr *)inputfile_buffer; // 验证ELF魔数 if (memcmp(orig_ehdr->e_ident, ELFMAG, SELFMAG) != 0) { return -2; } // Calculate sizes and offsets size_t phdr_table_size = orig_ehdr->e_phnum * orig_ehdr->e_phentsize; size_t enc_ehdr_offset = inputfile_size; size_t enc_phdr_offset = enc_ehdr_offset + orig_ehdr->e_ehsize; size_t final_size = enc_phdr_offset + phdr_table_size; // Check if output buffer is large enough if (final_size > outfile_size) { return -3; } // 1. Copy original file to output buffer memcpy(outfile_buffer, inputfile_buffer, inputfile_size); // 2. Create custom ELF file header Custom_Elf64_File custom_file = {0}; custom_file.elf_header_off = enc_ehdr_offset; custom_file.elf_header_size = orig_ehdr->e_ehsize; custom_file.elf_program_header_table_off = enc_phdr_offset; custom_file.elf_program_header_table_num = orig_ehdr->e_phnum; custom_file.elf_program_header_table_size = phdr_table_size; // 3. Create modified ELF header based on original Custom_Elf64_Ehdr custom_ehdr = {0}; memcpy(&custom_ehdr, orig_ehdr, sizeof(Elf64_Ehdr)); // 只修改魔数头，保留其他e_ident字段 memcpy(custom_ehdr.e_ident, ".csf", 4); // Change magic number // 4. Encrypt and store the modified ELF header at end of file encrypt((unsigned char *)RC4_KEY, RC4_KEY_LEN, reinterpret_cast<unsigned char *>(outfile_buffer + enc_ehdr_offset), reinterpret_cast<unsigned char *>(&custom_ehdr), orig_ehdr->e_ehsize); // 5. Encrypt and store the original program header table at end of file encrypt((unsigned char *)RC4_KEY, RC4_KEY_LEN, reinterpret_cast<unsigned char *>(outfile_buffer + enc_phdr_offset), reinterpret_cast<unsigned char *>(inputfile_buffer + orig_ehdr->e_phoff), phdr_table_size); // 6. Find and encrypt all PT_LOAD segments in place Elf64_Phdr *phdr = (Elf64_Phdr *)(inputfile_buffer + orig_ehdr->e_phoff); for (int i = 0; i < orig_ehdr->e_phnum; i++) { if (phdr[i].p_type == PT_LOAD) { // Validate segment boundaries if (phdr[i].p_offset + phdr[i].p_filesz > inputfile_size) { return -4; } LOGI("第%d个PT_LOAD段，偏移值为%llu，大小为%llu", i, phdr[i].p_offset, phdr[i].p_filesz); encrypt((unsigned char *)RC4_KEY, RC4_KEY_LEN, reinterpret_cast<unsigned char *>(outfile_buffer + phdr[i].p_offset), reinterpret_cast<unsigned char *>(outfile_buffer + phdr[i].p_offset), phdr[i].p_filesz); } } // 7. Zero out original ELF header in output buffer memset(outfile_buffer, 0, sizeof(Elf64_Ehdr)); // 8. Zero out original program header table in output buffer memset(outfile_buffer + orig_ehdr->e_phoff, 0, phdr_table_size); // 9. Write custom file header structure at beginning of output file memcpy(outfile_buffer, &custom_file, sizeof(Custom_Elf64_File)); return 0; } int unpack(char *elf_pack_data, size_t file_size, Custom_Elf64_File my_elf64_file) { // 输入验证 if (!elf_pack_data) { return -1; } // 检查头值的合理性 if (my_elf64_file.elf_header_size == 0 || my_elf64_file.elf_program_header_table_size == 0 || my_elf64_file.elf_program_header_table_num == 0) { return -2; } // 检查文件偏移是否在文件范围内 if (my_elf64_file.elf_header_off >= file_size || my_elf64_file.elf_program_header_table_off >= file_size) { return -3; } // 0. 保存Custom_Elf64_File原始数据副本 Custom_Elf64_File original_custom_file; memcpy(&original_custom_file, elf_pack_data, sizeof(Custom_Elf64_File)); // 1. 分配解密缓冲区 char *decrypted_ehdr = (char *)malloc(my_elf64_file.elf_header_size); if (!decrypted_ehdr) { return -4; } char *decrypted_phdr = (char *)malloc(my_elf64_file.elf_program_header_table_size); if (!decrypted_phdr) { free(decrypted_ehdr); return -5; } // 2. 解密ELF头 decrypt((unsigned char *)RC4_KEY, RC4_KEY_LEN, reinterpret_cast<unsigned char *>(decrypted_ehdr), reinterpret_cast<unsigned char *>(elf_pack_data + my_elf64_file.elf_header_off), my_elf64_file.elf_header_size); // 验证解密后的ELF头 Elf64_Ehdr *decrypted_elf_header = (Elf64_Ehdr *)decrypted_ehdr; if (memcmp(decrypted_elf_header->e_ident, ".csf", 4) != 0) { free(decrypted_ehdr); free(decrypted_phdr); return -6; } // 3. 解密程序头表 decrypt((unsigned char *)RC4_KEY, RC4_KEY_LEN, reinterpret_cast<unsigned char *>(decrypted_phdr), reinterpret_cast<unsigned char *>(elf_pack_data + my_elf64_file.elf_program_header_table_off), my_elf64_file.elf_program_header_table_size); // 4. 分析程序头表，找出所有LOAD段 Elf64_Phdr *decrypted_ph_table = (Elf64_Phdr *)decrypted_phdr; // 验证头表条目数量 if (decrypted_elf_header->e_phnum != my_elf64_file.elf_program_header_table_num) { free(decrypted_ehdr); free(decrypted_phdr); return -7; } // 5. 验证程序头表 for (int i = 0; i < my_elf64_file.elf_program_header_table_num; i++) { Elf64_Phdr *current_phdr = &decrypted_ph_table[i]; if (current_phdr->p_type == PT_LOAD) { // 检查段边界 if (current_phdr->p_offset + current_phdr->p_filesz > file_size) { free(decrypted_ehdr); free(decrypted_phdr); return -8; } } } // 6. 解密所有LOAD段 for (int i = 0; i < my_elf64_file.elf_program_header_table_num; i++) { Elf64_Phdr *current_phdr = &decrypted_ph_table[i]; if (current_phdr->p_type == PT_LOAD && current_phdr->p_filesz > 0) { // 解密段 decrypt((unsigned char *)RC4_KEY, RC4_KEY_LEN, reinterpret_cast<unsigned char *>(elf_pack_data + current_phdr->p_offset), reinterpret_cast<unsigned char *>(elf_pack_data + current_phdr->p_offset), current_phdr->p_filesz); } } // 7. 将解密后的ELF头和程序头表存储在原位置，供restore函数使用 memcpy(elf_pack_data + my_elf64_file.elf_header_off, decrypted_ehdr, my_elf64_file.elf_header_size); memcpy(elf_pack_data + my_elf64_file.elf_program_header_table_off, decrypted_phdr, my_elf64_file.elf_program_header_table_size); // 8. 恢复原始的Custom_Elf64_File数据 memcpy(elf_pack_data, &original_custom_file, sizeof(Custom_Elf64_File)); // 9. 清理资源 free(decrypted_ehdr); free(decrypted_phdr); return 0; }int restore_elf(char *decrypted_data, size_t file_size, Custom_Elf64_File my_elf64_file, char **restored_data, size_t *restored_size) { // 输入验证 if (!decrypted_data || !restored_data || !restored_size) { return -1; } // 获取解密后的ELF头和程序头表 Elf64_Ehdr *decrypted_elf_header = (Elf64_Ehdr *)(decrypted_data + my_elf64_file.elf_header_off); Elf64_Phdr *decrypted_phdr_table = (Elf64_Phdr *)(decrypted_data + my_elf64_file.elf_program_header_table_off); // 验证解密后的ELF头 if (memcmp(decrypted_elf_header->e_ident, ".csf", 4) != 0) { return -2; } // 计算恢复后的文件大小 // 1. 考虑所有段的结尾 size_t max_segment_end = 0; for (int i = 0; i < my_elf64_file.elf_program_header_table_num; i++) { Elf64_Phdr *current_phdr = &decrypted_phdr_table[i]; size_t segment_end = current_phdr->p_offset + current_phdr->p_filesz; if (segment_end > max_segment_end) { max_segment_end = segment_end; } } // 2. 考虑节表的结尾 (如果存在) size_t section_table_end = 0; if (decrypted_elf_header->e_shoff > 0 && decrypted_elf_header->e_shnum > 0) { section_table_end = decrypted_elf_header->e_shoff + decrypted_elf_header->e_shnum * decrypted_elf_header->e_shentsize; } // 取最大值作为文件大小的基础 size_t new_file_size = (max_segment_end > section_table_end) ? max_segment_end : section_table_end; // 确保文件大小至少包含ELF头和程序头表 size_t min_size = decrypted_elf_header->e_phoff + decrypted_elf_header->e_phnum * decrypted_elf_header->e_phentsize; if (new_file_size < min_size) { new_file_size = min_size; } // 确保新文件大小不超过原文件中不包含尾部附加数据的大小 if (new_file_size > my_elf64_file.elf_header_off && my_elf64_file.elf_header_off > min_size) { new_file_size = my_elf64_file.elf_header_off; } // 分配新的内存来存储恢复的ELF文件 *restored_data = (char *)malloc(new_file_size); if (!*restored_data) { return -3; } // 复制基本数据（不包括末尾额外数据） memcpy(*restored_data, decrypted_data, new_file_size); // 创建完整的ELF头 Elf64_Ehdr restored_ehdr = {0}; memcpy(&restored_ehdr, decrypted_elf_header, sizeof(Elf64_Ehdr)); // 只恢复标准ELF魔数，保留其他e_ident字段原值 memcpy(restored_ehdr.e_ident, ELFMAG, SELFMAG); // 标准魔数: 0x7F ELF // 写入ELF头 memcpy(*restored_data, &restored_ehdr, sizeof(Elf64_Ehdr)); // 确定程序头表的位置和大小 Elf64_Off phdr_restore_offset = restored_ehdr.e_phoff; // 如果e_phoff不合理，使用标准位置 if (phdr_restore_offset < sizeof(Elf64_Ehdr) || phdr_restore_offset >= new_file_size) { phdr_restore_offset = sizeof(Elf64_Ehdr); // 通常是64字节 // 更新ELF头中的程序头表偏移 ((Elf64_Ehdr*)(*restored_data))->e_phoff = phdr_restore_offset; } // 确保程序头表不会超出文件边界 size_t phdr_table_size = decrypted_elf_header->e_phnum * decrypted_elf_header->e_phentsize; if (phdr_restore_offset + phdr_table_size > new_file_size) { free(*restored_data); *restored_data = NULL; *restored_size = 0; return -4; } // 复制程序头表 memcpy(*restored_data + phdr_restore_offset, decrypted_phdr_table, phdr_table_size); // 设置恢复后的文件大小 *restored_size = new_file_size; // 最后验证恢复的ELF文件 Elf64_Ehdr *final_ehdr = (Elf64_Ehdr *)(*restored_data); if (memcmp(final_ehdr->e_ident, ELFMAG, SELFMAG) != 0) { free(*restored_data); *restored_data = NULL; *restored_size = 0; return -5; } return 0; }#pragma pack(push, 1) typedef struct custom_elf64_file{ Elf64_Off elf_header_off; Elf64_Half elf_header_size; Elf64_Off elf_program_header_table_off; Elf64_Half elf_program_header_table_num; Elf64_Half elf_program_header_table_size; }Custom_Elf64_File; #pragma pack(pop)typedef struct { unsigned char e_ident[EI_NIDENT]; /* Magic number and other info 16 bytes*/ [培训]Windows内核深度攻防：从Hook技术到Rootkit实战！
|
|
|---|---|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
