[原创]关于--inline-max-code-units=0的隐藏
-
发表于: 2025-4-16 11:13
-
前言

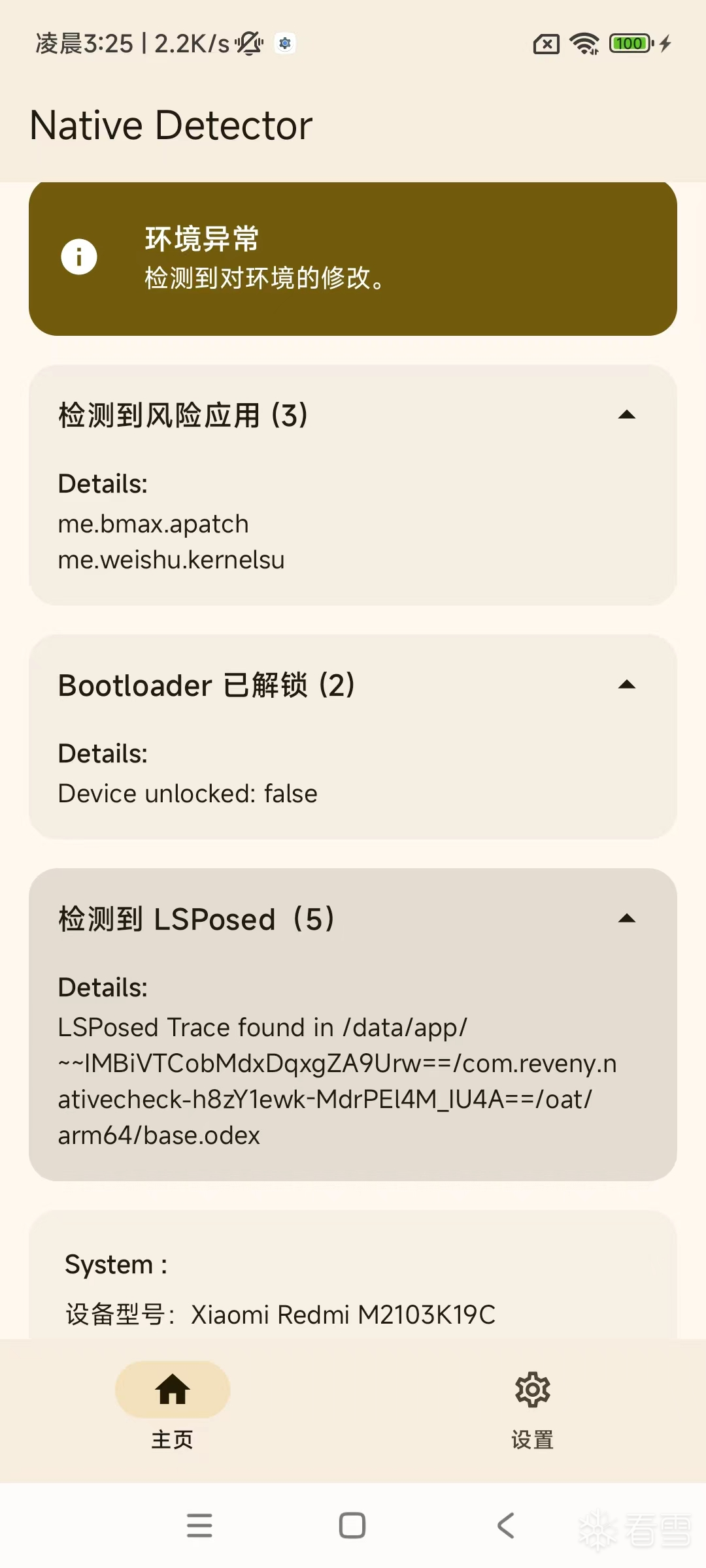

在LSPosed中, 已通过mount --bind的方式拦截了dex2oat的调用, 并添加了--inline-max-code-units=0参数, 但是在base.odex中还是有痕迹, Native Detector还是可以检测出来.
LSPosed的实现参考: Xposed 框架 ART 参数修复
确认
在adb shell中
1 2 | cd /data/app/~~*==/com.reveny.nativecheck-*/oat/arm64/strings base.odex | grep dex2oat-cmdline -A3 |
解决
在生成
base.odex后删除相关字符串
思路
由于LSPosed daemon已经拦截中真实的dex2oat, 直接在假的dex2oat与daemon通信时传递--oat-location中的路径和通知真实dex2oat运行结束就行
- 传递odex路径
fexecve会替换进程, fork后, 等待结束后通知daemon- daemon收到结束通知后(要等一会, 文件好像没写入), 替换
base.odex中的--inline-max-code-units=0为等长的空格
代码(这里我偷个懒, 直接用shell执行替换)
dex2oat/src/main/cpp/dex2oat.c
在write_int传递路径
1 2 3 4 5 6 7 8 9 10 11 12 13 | write_int(sock_fd, ID_VEC(LP_SELECT(0, 1), strstr(argv[0], "dex2oatd") != NULL));char location_odex[NAME_MAX];for (int i = 1; i < argc; i++) { // LOGD("dex2oat argv[%d]: %s", i, argv[i]); if (strncmp(argv[i], "--oat-location=", 15) == 0) { strcpy(location_odex, argv[i] + 15); LOGV("dex2oat location-odex: %s, uid: %d", location_odex, getuid()); }}size_t ps = strlen(location_odex);write(sock_fd, &ps, sizeof(char)); // 255以下write(sock_fd, location_odex, ps);int stock_fd = recv_fd(sock_fd); |
daemon/src/main/java/org/lsposed/lspd/service/Dex2OatService.java
1 2 3 4 5 6 7 8 9 | var id = is.read();var ignore = is.skip(3);int path_len = is.read();byte[] bytes = new byte[path_len];if (is.read(bytes) > 0) { String odex = new String(bytes).trim(); Credentials credentials = client.getPeerCredentials(); new Thread(() -> waitDex2oatExit(odex, credentials)).start();} |
waitDex2oatExit
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 | private void waitDex2oatExit(String odex, Credentials credentials) { try { Log.d(TAG, "path=" + odex + ", uid=" + Os.getuid() + ", peer_uid=" + credentials.getUid() + ", peer_pid=" + credentials.getPid() + ", path_len=" + odex.length()); String command = "while [ -d \"/proc/" + credentials.getPid() + "\" ]; do sleep 1; done"; java.lang.Process process = Runtime.getRuntime().exec(new String[]{"/system/bin/sh", "-c", command}); process.waitFor(1, TimeUnit.HOURS); // 要替换成等长字符 has invalid shdr offset/size: 123616/640 String command2 = "sleep 3; PATH=$(magisk --path)/.magisk/busybox:$PATH; sed -i 's/--inline-max-code-units=0/ /g' '" + odex + "'"; java.lang.Process process2 = Runtime.getRuntime().exec(new String[]{"/system/bin/sh", "-c", command2}); new Thread(() -> { try (var out = new BufferedReader(new InputStreamReader(process2.getInputStream()))) { String line; while ((line = out.readLine()) != null) { Log.i(TAG, "dex2oat out: " + line); } } catch (IOException e) { Log.e(TAG, "Failed to read dex2oat output", e); } }).start(); new Thread(() -> { try (var err = new BufferedReader(new InputStreamReader(process2.getErrorStream()))) { String line; while ((line = err.readLine()) != null) { Log.e(TAG, "dex2oat err: " + line); } } catch (IOException e) { Log.e(TAG, "Failed to read dex2oat errput", e); } }).start(); process2.waitFor(30, TimeUnit.SECONDS); Log.i(TAG, "dex2oat exit with code " + process2.exitValue()); } catch (Exception e) { Log.e(TAG, "Failed to wait for dex2oat exit", e); }} |
确认修复
调试
Native Detector测试总是要卸载再安装, 可以使用cmd package compile -m interpret-only -f com.reveny.nativecheck主动调用dex2oat
下一期讲讲怎么在/proc/self/maps中改名
[培训]内核驱动高级班，冲击BAT一流互联网大厂工作，每周日13:00-18:00直播授课
最后于 2025-4-16 11:35
被无味编辑
，原因： 代码错误
赞赏记录
参与人
雪币
留言
时间
你瞒我瞒
你的分享对大家帮助很大，非常感谢！
1天前
陈某人
为你点赞！
2025-4-17 13:43
逆天而行
谢谢你的细致分析，受益匪浅！
2025-4-17 13:04
|
|
|---|---|
|
|
如果反检测，那是不是可以判断后面是否有等长度空格？
|
|
|
我只是偷懒, 应该是删除后, 修复一下so文件的格式就行, odex就是一个elf格式的so文件 |
|
|
|
|
|
有空出个文章
|
|
|
大佬。你一直是在对抗 牛头人的吗
 -小弟跟紧大哥脚步。能出一个教程吗。我想检测 【--inline-max-code-units=0参数】, 但是不知道怎么检测~
|
