[原创]新版dexprotector环境检测分析
-
发表于: 22小时前
-
参考：https://bbs.kanxue.com/thread-289170.htm
样本
com.Hyatt.hyt 26.7.0(7月份的一个版本)
目的
分析这个检测的目的是从防护的角度看如何实现，所以这里我们不会选择用最简单的方式绕过，而是把整个检测细节全部分析清楚。
库检测逻辑宏观总结
整个库把环境检测与脱壳结合起来，在jni_onload中对多个维度的环境信息进行检测，同时通过检测结果对解密的密匙加盐，一旦检测失败，即使通过frida强行hook也无法脱出来正确的dex，从而无法启动。
同时起了多个检测线程，持续检测环境变化。
环境准备

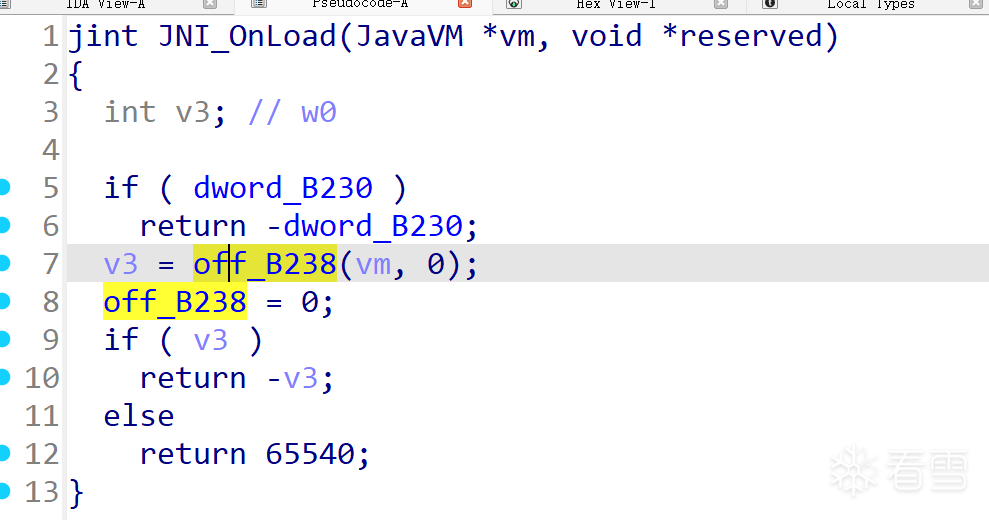

这里就不多说了，直接看参考文章即可，这里dexprotector直接通过一个匿名内存页面来自link了一个动态库，然后在这个动态库中解密释放了代码，再从dexprotector的jni_onload中跳到动态内存的代码段中去，核心逻辑如下：
下一步就是直接分析动态内存中dump下来的动态库了，一些ida配置的方式也直接见参考的文章即可。
准备工作
所有已知类型的变量全部改过来，例如 JavaVM* JNIEnv* 等，不要放过参数透传过程中丢失的类型信息，全部改过来，会大大节约分析的精力

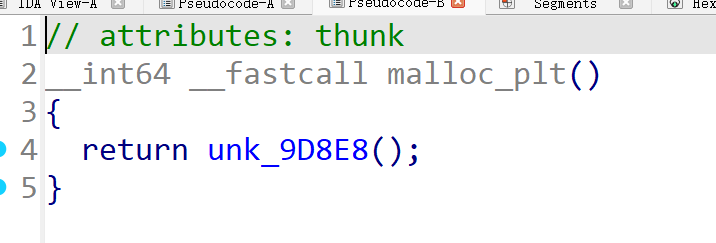

PLT函数，遇到一些明显像plt的函数可以直接通过hook的方式拿到运行时真正调用的内存地址，找到对应的库中的偏移量，直接改名

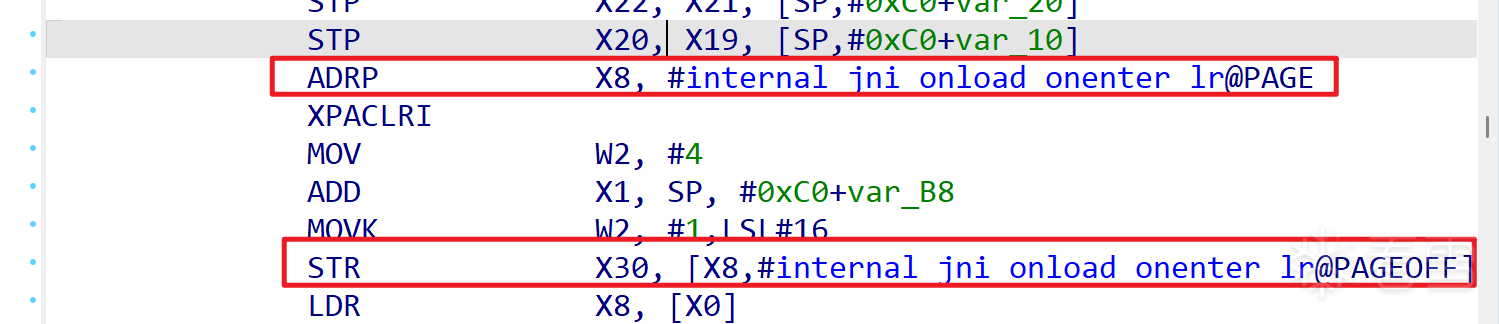

一些关键的全局变量做好重命名，例如，下面这段汇编其实很明显是把函数入口的lr保存到了一个全局变量中，后面检测可能会用
分析关键检测点
整个检测逻辑做了深度定制，一些关键的函数都没有用libc的，而是自己实现了，系统调用也是，全部用svc实现的，同时所有的字符串全部做了加密增加了分析难度。
先看几个common关键函数
字符串解密函数：sub_3B000
字符串解密函数，同时这个函数还会自检自己是否被hook，如果没被hook，再用一个全局密匙解密当前一个全局的字符串，而且经过实验发现这个密匙其实也是动态解密出来的，重命名为 decode_string_and_hook_myself，和他类似的函数还有一个是sub_4A114，也是解密字符串的，我们崇明名为decode_xor_string，不再赘述。
反汇编：
_BYTE *__fastcall decode_string_and_hook_myself(_DWORD *a1, _BYTE *a2, __int64 a3)
{
int v3; // w8
int v4; // w9
__int64 v5; // x10
char *v6; // x11
_BYTE *v7; // x14
__int64 v8; // x12
char v9; // t1
__int64 v10; // x15
__int64 i; // x16
unsigned __int64 v12; // t2
int v13; // w17
_DWORD v15[2]; // [xsp+8h] [xbp-8h]
v3 = a1[1];
// 这里在检测自己是否被hook
if ( (*decode_string_and_hook_myself & 0xFC) == 0x14
|| (v4 = *a1, (*decode_string_and_hook_myself & 0x1E) == 0x10)
&& (*(decode_string_and_hook_myself + 3) & 0x9F) == 0x90
|| (*decode_string_and_hook_myself & 0xFE) == 0x50
&& !*(decode_string_and_hook_myself + 1)
&& *(decode_string_and_hook_myself + 3) == 88 )
{
v4 = 0;
--v3;
}
if ( a3 )
{
v5 = 0;
v6 = (a1 + 2);
v7 = a2;
// 密匙
v8 = qword_A32D0[7];
do
{
v10 = v5 & 7;
if ( (v5 & 7) == 0 )
{
for ( i = 0; i != 108; i += 4 )
{
HIDWORD(v12) = v3;
LODWORD(v12) = v3;
v13 = *(v8 + i);
v3 = v13 ^ ((v12 >> 8) + v4);
v4 = v3 ^ __ROR4__(v4, 29);
}
v15[0] = v4;
v15[1] = v3;
}
++v5;
v9 = *v6++;
*v7++ = *(v15 + v10) ^ v9;
}
while ( v5 != a3 );
}
// 解密出来的字符串指针
return a2;
}绕过措施：在hook的onenter时机把检测自己是否被hook的代码nop掉，同时onleave的时机把解密的字符串打印出来，当然，这个函数分析到后面会发现不光他自己会检测自己是否被hook，sub_25AC8 这个函数也会检测他是不是被hook，所以其实还有一个应对措施就是先把密匙dump下来，然后直接用python重写解密，用于在offline解密字符串。
function hook_decode_string_and_hook_myself(libanon) {
Interceptor.attach(libanon.add(0x3b000), {
onEnter: function (args) {
nop_inst(libanon.add(0x3b01c), 3);
nop_inst(libanon.add(0x3b04c), 1);
nop_inst(libanon.add(0x3b07c), 1);
this.lr = this.context.lr;
this.strlen = args[2].toInt32();
},
onLeave: function (ret) {
console.log(
"decode_string_and_hook_myself ret is ",
ret.readCString(),
"; strlen is: ",
this.strlen,
"; lr is ",
this.lr.sub(libanon),
);
},
});
}自实现的libc同功能函数：sub_16864 sub_13BBC sub_26098 sub_260C0 等等
sub_26098 是 strchr
sub_16864 是 strstr
sub_13BBC 是strtoull
sub_260C0 是memcpy
解析进程stat信息：sub_28E74
从/proc/self/stat里拿到当前进程的栈指针，依次获取了argv、env以及auxv，并且把这几个指针存到全局变量中，这里最关键的就是auxv了，因为用auxv可以直接找到r_debug，进程的所有加载的so也就都能遍历了。这函数直接重命名为：collect_process_startup_info。
拿r_debug指针：sub_8BD60 sub_28F94
sub_28F94是遍历刚才刚获取的auxv指针用的，然后用key取值，外层sub_8BD60直接调这个函数然后给r_debug全局指针赋值，核心就下面两行
统一的错误处理函数
sub_380F8 : 错误处理，扔异常，封装错误信息字符串等等
一些列环境相关的初始化函数（这些函数都可以通过hook decode_string_and_hook_myself 得到解密的字符串，语义还是比较明确的）
sub_29098（get_build_version_and_first_api） : 获取build version以及first api
sub_203E0: 根据版本设置一些偏移量，这些偏移明显是为了兼容不同android版本的一些结构体字段的访问。
sub_5A204: 获取自己pagemap的fd
sub_52570: 初始化一系列java环境的信息，例如：currentActivityThread mBoundApplication mPackageName等等，直接通过解密字符串就可知。
检测函数1：inline hook 检测

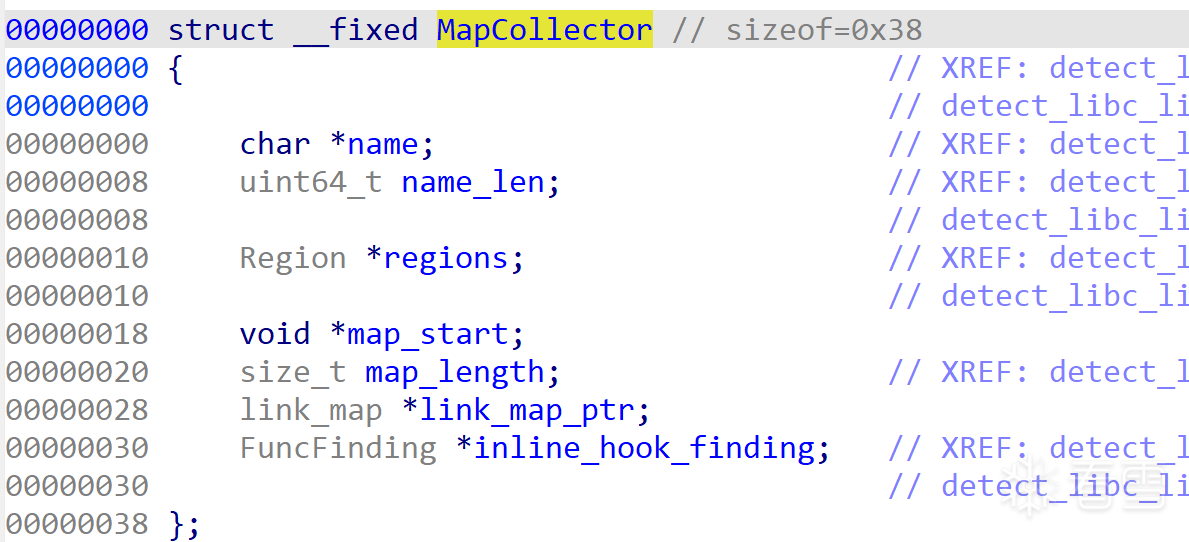

sub_6F948: 这个函数核心逻辑就是检测 libc，libart，libandroid这三个库是否被inline hook，核心的检测函数就是 sub_1F654， 通过对内存段中的异常跳转指令判断是否是inline hook。同时这个函数整体设计到对内存段的收集，需要定义一个结构体才能看清代码逻辑，同时这个函数的检测逻辑函数指针被当作参数直接pthread create，设置检测线程。
检测函数2：一系列基于字符串的环境检测
sub_1FC2C: debugger检测
sub_5E098: 这个函数很有意思，他是动态的申请了一块内存，然后往这块内存中写了一些指令，然后执行这段指令，而这段指令核心的逻辑就是把自己的返回值从0改成1.
sub_27150: magisk 检测，检测特定目录有没有magisk文件
sub_532BC: xpose 检测
sub_5E0C4：云环境检测
sub_2718C：root检测
sub_1A544：rom检测
sub_1A454：build tag检测
sub_1A1F0: bootloader检测
sub_4F240：adb检测
sub_927E0: 容器化检测
sub_53BF8: xpose file检测
sub_5E2E4：模拟器检测
sub_27244: system检测
sub_5F758： installer检测
生成初始解密密匙

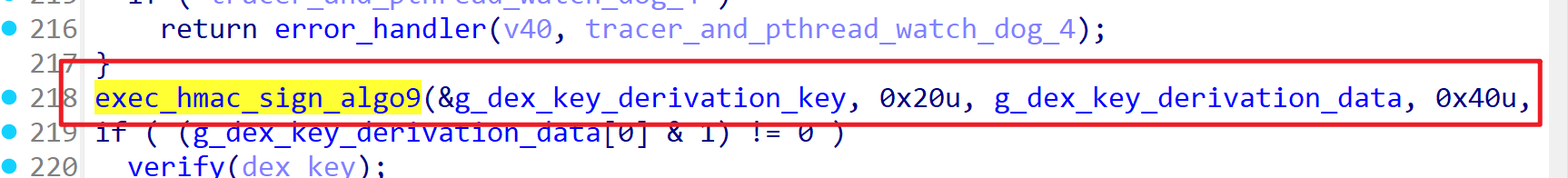

从全局变量生成最终需要作为hmac的密匙，这里这两个全局变量我已经重命名。
验签
sub_6DAE0
内存范围hash+检测
sub_120C4：全库最绝的一个检测，从当前位置以固定步长向前搜索，知道搜索到一个满足特殊要求的位置，停止，然后从这个位置开始向后做一个范围hash，把结果和固定值对比。通过hook发现，其实找到的就是这个库的基地址，也就是相当于从基地址做范围hash，相当于校验inline hook、plt hook、nop指令等所有内存改动痕迹。sub_94ED4 也是同理，只不过不是从基地址开始。
再之后就是生成密匙，脱壳，最后调用jni的findclass loadclass了。
最终的frida hook脚本如下
function nop_inst(start, size) {
var nop = [0x1f, 0x20, 0x03, 0xd5];
for (var i = 0; i < size; i += 1) {
Memory.writeByteArray(start.add(i * 4), nop);
}
}
function hook_decode_string_and_hook_myself(libanon) {
Interceptor.attach(libanon.add(0x3b000), {
onEnter: function (args) {
if (!g_has_dump) {
g_has_dump = true;
var addr = libanon.add(0xA3308).readPointer();
console.log("decode key is : \n", hexdump(addr, { length: 108 }));
}
//console.log("enter decode_string_and_hook_myself")
// nop
nop_inst(libanon.add(0x3b01c), 3);
nop_inst(libanon.add(0x3b04c), 1);
nop_inst(libanon.add(0x3b07c), 1);
this.lr = this.context.lr;
this.strlen = args[2].toInt32();
},
onLeave: function (ret) {
console.log(
"decode_string_and_hook_myself ret is ",
ret.readCString(),
"; strlen is: ",
this.strlen,
"; lr is ",
this.lr.sub(libanon),
);
},
});
}
function hook_decode_xor_string(libanon) {
Interceptor.attach(libanon.add(0x4a114), {
onEnter(args) {
this.out = args[1];
this.lr = this.context.lr;
},
onLeave(retval) {
console.log(
"decode_xor_string leave , ret is :",
this.out.readCString(),
" ; lr is : ",
this.lr.sub(libanon),
);
},
});
}
function handle_plt_functions(libanon) {
// 处理plt函数
var a = Memory.readPointer(libanon.add(0x9d990));
var abasename = Process.findModuleByAddress(a).name;
var abasebase = Process.findModuleByAddress(a).base;
console.log(
"abasename is : ",
abasename,
"; base is : ",
abasebase,
"; function bias is : ",
a.sub(abasebase),
);
}
function bypass_pthread_detect(libanon) {
// 替换线程执行函数
Interceptor.replace(
libanon.add(0x1ff04),
new NativeCallback(
function () {
console.log("0x1FF04 : bypassed");
while (true) {
Thread.sleep(1);
}
},
"int64",
[],
),
);
Interceptor.replace(
libanon.add(0x36fd4),
new NativeCallback(
function () {
console.log("0x36FD4 : bypassed");
while (true) {
Thread.sleep(1);
}
},
"int64",
[],
),
);
Interceptor.replace(
libanon.add(0x3c83c),
new NativeCallback(
function () {
console.log("0x3C83C : bypassed");
while (true) {
Thread.sleep(1);
}
},
"int64",
[],
),
);
Interceptor.replace(
libanon.add(0x4f38c),
new NativeCallback(
function () {
console.log("0x4F38C : bypassed");
while (true) {
Thread.sleep(1);
}
},
"int64",
[],
),
);
Interceptor.replace(
libanon.add(0x70004),
new NativeCallback(
function () {
console.log("0x70004 : bypassed");
while (true) {
Thread.sleep(1);
}
},
"int64",
[],
),
);
Interceptor.replace(
libanon.add(0x758a4),
new NativeCallback(
function () {
console.log("0x758A4 : bypassed");
while (true) {
Thread.sleep(1);
}
},
"int64",
[],
),
);
Interceptor.replace(
libanon.add(0x76404),
new NativeCallback(
function () {
console.log("0x76404 : bypassed");
while (true) {
Thread.sleep(1);
}
},
"int64",
[],
),
);
Interceptor.replace(
libanon.add(0x92c14),
new NativeCallback(
function () {
console.log("0x92C14 : bypassed");
while (true) {
Thread.sleep(1);
}
},
"int64",
[],
),
);
}
function hook_process_startup_info_collection(libanon) {
Interceptor.attach(libanon.add(0x28e74), {
onEnter(args) {
this.lr = this.context.lr;
console.log("onenter 0x28E74 ===============");
},
onLeave(ret) {
const argv = libanon.add(0xa2f28).readPointer();
const envp = libanon.add(0xa2f30).readPointer();
const auxv = libanon.add(0xa2f38).readPointer();
console.log("onleave 0x28E74, ret =", ret);
console.log("A2F28 =", argv);
console.log("A2F30 =", envp);
console.log("A2F38 =", auxv);
console.log("========== argv ==========");
for (let i = 0; i < 20; i++) {
let p = argv.add(i * Process.pointerSize).readPointer();
if (p.isNull()) {
console.log("argv[" + i + "] = NULL");
break;
}
console.log("argv[" + i + "] =", p.readCString());
}
console.log("========== envp ==========");
for (let i = 0; i < 100; i++) {
let p = envp.add(i * Process.pointerSize).readPointer();
if (p.isNull()) {
console.log("envp[" + i + "] = NULL");
break;
}
console.log("envp[" + i + "] =", p.readCString());
}
console.log("========== auxv ==========");
for (let i = 0; i < 50; i++) {
let entry = auxv.add(i * 16);
let type = entry.readU64();
let value = entry.add(8).readU64();
console.log("auxv[" + i + "] type =", type, "value =", value);
if (type.equals(0)) break;
}
},
});
}
function hook_dynamic_exec_code(libanon) {
Interceptor.attach(libanon.add(0x95420), {
onEnter(args) {
const code = args[0];
console.log("\n========== dynamic code ==========");
console.log("address : " + code);
console.log("size : 0x38");
console.log("\n--- HEX ---");
console.log(
hexdump(code, {
offset: 0,
length: 0x38,
header: true,
ansi: false,
}),
);
console.log("\n--- ARM64 ---");
let p = code;
const end = code.add(0x38);
while (p.compare(end) < 0) {
const insn = Instruction.parse(p);
console.log(p + " " + insn.mnemonic + " " + insn.opStr);
p = p.add(insn.size);
}
console.log("==================================\n");
},
});
Interceptor.attach(libanon.add(0x583c0), {
onEnter(args) {
this.lr = this.context.lr;
console.log("onenter 0x583C0, lr is : ", this.lr.sub(libanon));
const code = libanon.add(0x57810);
const size = 0xd4;
console.log("\n========== 0x57810 dynamic code ==========");
console.log("address : " + code);
console.log("size : " + size);
console.log("\n--- HEX ---");
console.log(
hexdump(code, {
offset: 0,
length: size,
header: true,
ansi: false,
}),
);
console.log("\n--- ARM64 ---");
let p = code;
const end = code.add(size);
while (p.compare(end) < 0) {
const insn = Instruction.parse(p);
console.log(p + " " + insn.mnemonic + " " + insn.opStr);
p = p.add(insn.size);
}
console.log("==================================\n");
},
onLeave(ret) {
console.log("onleave 0x583C0, ret is : ", ret.toString());
},
});
}
function dump_dynamic_so(libanon, libanon_size) {
console.log("start dump so");
var sodata = Memory.readByteArray(libanon, libanon_size);
var f = new File("/data/data/com.Hyatt.hyt/libanon.so", "wb");
f.write(sodata);
f.close();
console.log("done dump so");
}
function dump_dex_file(dex_ptr, dex_size) {
console.log("start dump dex file");
var dexdata = Memory.readByteArray(dex_ptr, dex_size);
var f = new File("/data/data/com.Hyatt.hyt/dex_file.dex", "wb");
f.write(dexdata);
f.close();
console.log("done dump dex file");
}
var g_clean_libanon_snapshot = null;
var g_clean_libanon_snapshot_size = 0;
function save_clean_libanon_snapshot(libanon, libanon_size) {
if (!libanon || libanon.isNull() || !libanon_size) {
console.log("[snapshot] invalid args");
return null;
}
if (g_clean_libanon_snapshot) {
console.log(
"[snapshot] already saved at",
g_clean_libanon_snapshot,
"size =",
g_clean_libanon_snapshot_size,
);
return g_clean_libanon_snapshot;
}
var shadow = Memory.alloc(libanon_size);
Memory.copy(shadow, libanon, libanon_size);
g_clean_libanon_snapshot = shadow;
g_clean_libanon_snapshot_size = libanon_size;
console.log("[snapshot] saved clean libanon at", shadow, "size =", libanon_size);
return shadow;
}
function hook_error_handler(libanon) {
Interceptor.attach(libanon.add(0x380f8), {
onEnter: function (args) {
console.log("error_handler onenter, error code is : ", args[1].toInt32());
},
});
}
function bypass_lib_c_inline_hook_detection(libanon) {
Interceptor.attach(libanon.add(0x6fe14), {
onLeave: function (ret) {
ret.replace(0);
},
});
}
function ror32(x, n) {
x = x >>> 0;
return ((x >>> n) | (x << (32 - n))) >>> 0;
}
function bytesToPrintable(u8) {
let s = "";
for (let i = 0; i < u8.length; i++) {
const b = u8[i];
if (b >= 0x20 && b <= 0x7e) s += String.fromCharCode(b);
else s += "\\x" + ("0" + b.toString(16)).slice(-2);
}
return s;
}
/**
* @param {NativePointer} a1Ptr 指向 blob: [u32 v4][u32 v3][cipher...]
* @param {number} length 解密长度（调用点第三参）
* @param {NativePointer} keySch qword_A32D0[7] 指向的 u32 key schedule
*/
function decodeDynString(a1Ptr, length, keySch) {
let v4 = a1Ptr.readU32() >>> 0; // a1[0]
let v3 = a1Ptr.add(4).readU32() >>> 0; // a1[1]
const ct = a1Ptr.add(8); // a1 + 2 dwords
const out = new Uint8Array(length);
const ks = new Uint8Array(8);
const dv = new DataView(ks.buffer);
for (let idx = 0; idx < length; idx++) {
if ((idx & 7) === 0) {
for (let off = 0; off < 108; off += 4) {
// 27 rounds
const k = keySch.add(off).readU32() >>> 0;
v3 = (k ^ ((ror32(v3, 8) + v4) >>> 0)) >>> 0;
v4 = (v3 ^ ror32(v4, 29)) >>> 0;
}
dv.setUint32(0, v4, true); // little-endian
dv.setUint32(4, v3, true);
}
out[idx] = ct.add(idx).readU8() ^ ks[idx & 7];
}
return out;
}
const g_str_targets = [[0x4923, 65]];
// 在拿到 libanon 后调用
function dumpUnreachedDynStrings(libanon) {
const qwordA32D0 = libanon.add(0xa32d0);
const keySch = qwordA32D0.add(7 * 8).readPointer();
g_str_targets.forEach(([off, len]) => {
const buf = decodeDynString(libanon.add(off), len, keySch);
console.log(
`[dynstr] off=0x${off.toString(16)} len=${len} -> ${bytesToPrintable(buf)}`,
);
});
}
function bypass_memory_hash_check(libanon) {
Interceptor.attach(libanon.add(0x94ed4), {
onEnter: function (args) {
this.lr = this.context.lr.sub(libanon);
if (this.lr.equals(0x37d68)) {
// sip_hash(qword_9D830, size, v44, ...), v44 在栈上紧跟 dex_key 之后
this.dex_key = args[2].sub(0x20);
}
},
onLeave: function (ret) {
if (this.lr.equals(0x37d68)) {
var expected = libanon.add(0xa32c8).readU64();
ret.replace(expected);
//console.log(
// "0x94ED4 patched ret, dex_key is:\n",
// hexdump(this.dex_key, { length: 32 }),
//);
}
},
});
}
var g_has_dump = false;
var g_dex_key = null;
function hook_hmac_sign_in_target(libanon) {
// Implementation for hooking HMAC sign in the target library
Interceptor.attach(libanon.add(0x7059C), {
onEnter: function (args) {
console.log(" hmac_sign_in_target called, lr is : ", this.context.lr.sub(libanon), "; target is : ", args[0].sub(libanon));
if (args[0].sub(libanon).equals(g_dex_key)) {
console.log(" dex_key has been changed by hmac_sign_in_target");
}
}
});
}
function hook_exec_hmac_sign_algo9_and_get_dex_key(libanon) {
Interceptor.attach(libanon.add(0x70500), {
onEnter: function (args) {
this.lr = this.context.lr.sub(libanon);
g_dex_key = args[4].sub(libanon);
}
});
}
function hook_verify_checksum(libanon) {
// Implementation for hooking the verify checksum function in the target library
Interceptor.attach(libanon.add(0x5C4DC), { // Replace 0x70600 with the actual offset of the verify checksum function
onEnter: function (args) {
this.lr = this.context.lr.sub(libanon);
},
onLeave: function (ret) {
console.log("verify_checksum returned, ret is : ", ret, "; lr is :" , this.lr);
}
});
}
function hook_find_mem_block_target_addr(libanon) {
// 找到 find_mem_block_and_hmac_sign 最终命中的内存块地址
// 这里其实hook的是 sha256()的地址
Interceptor.attach(libanon.add(0x55ED0), {
onEnter: function (args) {
this.lr = this.context.lr.sub(libanon);
// 来自 find_mem_block_and_hmac_sign 内部的 sha256(v5, len, ...)
if (this.lr.equals(0x12160)) {
var addr = args[0];
var len = args[1].toUInt32();
console.log("[find_mem_block] matched block addr =", addr, "off =", addr.sub(libanon), "len =", len);
console.log("[find_mem_block] start replace ....");
args[0] = g_clean_libanon_snapshot;
console.log("[find_mem_block] replaced with clean snapshot");
}
},
});
Interceptor.attach(libanon.add(0x120C4), {
onEnter: function (args) {
console.log("[find_mem_block] enter, dex_key =", args[0].sub(libanon));
},
});
}
function hook_decompress_dex(libanon) {
// decompress_dex
Interceptor.attach(libanon.add(0x8BF94), { // replace 0x123456 with the actual offset
onEnter: function (args) {
this.lr = this.context.lr.sub(libanon);
},
onLeave: function (ret) {
console.log("Interceptor detached at 0x8BF94, ret = ", ret, " lr = ", this.lr);
},
});
}
let g_cls_timeline_installed = false;
function hook_art_dexclassloader_timeline(libanon) {
if (g_cls_timeline_installed) return;
g_cls_timeline_installed = true;
const ts = () => Date.now();
// ---- Java 层：DexClassLoader / ClassLoader ----
Java.perform(function () {
const Exception = Java.use("java.lang.Exception");
const Log = Java.use("android.util.Log");
const DexClassLoader = Java.use("dalvik.system.DexClassLoader");
const PathClassLoader = Java.use("dalvik.system.PathClassLoader");
const BaseDexClassLoader = Java.use("dalvik.system.BaseDexClassLoader");
const ClassLoader = Java.use("java.lang.ClassLoader");
const DexFile = Java.use("dalvik.system.DexFile");
const watch = (n) =>
n && (n.indexOf("Hyatt") >= 0 || n.indexOf("Application") >= 0 || n.indexOf("Splash") >= 0);
const bt = () => Log.getStackTraceString(Exception.$new());
const dclInit = DexClassLoader.$init.overload(
"java.lang.String", "java.lang.String", "java.lang.String", "java.lang.ClassLoader"
);
dclInit.implementation = function (dexPath, odexPath, libPath, parent) {
console.log(`[${ts()}][DCL.$init] dexPath=${dexPath} odexPath=${odexPath} libPath=${libPath} parent=${parent}`);
console.log(bt());
return dclInit.call(this, dexPath, odexPath, libPath, parent);
};
const pclInit1 = PathClassLoader.$init.overload("java.lang.String", "java.lang.ClassLoader");
pclInit1.implementation = function (path, parent) {
console.log(`[${ts()}][PCL.$init-2] path=${path} parent=${parent}`);
return pclInit1.call(this, path, parent);
};
const pclInit2 = PathClassLoader.$init.overload("java.lang.String", "java.lang.String", "java.lang.ClassLoader");
pclInit2.implementation = function (dexPath, libPath, parent) {
console.log(`[${ts()}][PCL.$init-3] dexPath=${dexPath} libPath=${libPath} parent=${parent}`);
return pclInit2.call(this, dexPath, libPath, parent);
};
const findClass = BaseDexClassLoader.findClass.overload("java.lang.String");
findClass.implementation = function (name) {
if (watch(name)) console.log(`[${ts()}][BaseDexClassLoader.findClass] ${name}`);
return findClass.call(this, name);
};
const loadClass1 = ClassLoader.loadClass.overload("java.lang.String");
loadClass1.implementation = function (name) {
if (watch(name)) console.log(`[${ts()}][ClassLoader.loadClass] ${name} loader=${this}`);
return loadClass1.call(this, name);
};
const loadDex = DexFile.loadDex.overload("java.lang.String", "java.lang.String", "int");
loadDex.implementation = function (src, out, flags) {
console.log(`[${ts()}][DexFile.loadDex] src=${src} out=${out} flags=${flags}`);
return loadDex.call(this, src, out, flags);
};
});
// ---- ART 层：ClassLinker::DefineClass / FindClass ----
const art = Process.findModuleByName("libart.so");
if (!art) return;
for (const s of art.enumerateSymbols()) {
if (!/ClassLinker.*(DefineClass|FindClass)/.test(s.name)) continue;
if (s.name.indexOf("CheckJNI") >= 0) continue;
Interceptor.attach(s.address, {
onEnter(args) {
let desc = "";
for (let i = 0; i < 4; i++) {
try {
const t = Memory.readCString(args[i]);
if (t && t.length > 2 && t[0] === "L") { desc = t; break; }
} catch (_) {}
}
this.desc = desc;
console.log(`[${ts()}][ART] ${s.name} enter desc=${desc || "<na>"}`);
},
onLeave(ret) {
console.log(`[${ts()}][ART] leave ret=${ret}`);
}
});
}
}
function hook_calc_xxh64_like_fingerprint(libanon) {
Interceptor.attach(libanon.add(0x8A998), {
onEnter: function (args) {
console.log("calc_xxh64_like_fingerprint onEnter");
this.lr = this.context.lr.sub(libanon);
if (this.lr.equals(0x3D4C8) || this.lr.equals(0x5AF84)) {
console.log("calc_xxh64_like_fingerprint condition met");
args[0] = g_clean_libanon_snapshot;
}
},
onLeave: function (ret) {
console.log("calc_xxh64_like_fingerprint onLeave ret =", ret);
},
});
}
function hook_sub_82560(libanon) {
const f = libanon.add(0x82560);
console.log("xxxxxxxxxxxxxxxxx", f);
Interceptor.attach(f, {
onEnter(args) {
console.log("sub_82560 onEnter");
this.env = args[0];
this.a2 = args[1].toUInt32();
this.a3 = args[2];
this.a4 = args[3].toInt32() & 0xff;
this.a5 = args[4]; // char** output
let inStr = "<null>";
try {
if (!this.a3.isNull()) inStr = Memory.readCString(this.a3);
} catch (_) {
inStr = "<bad-cstr>";
}
console.log(
`[sub_82560] enter a2=${this.a2} a3="${inStr}" a4=${this.a4} a5=${this.a5}`
);
},
onLeave(retval) {
const ret = retval.toInt32();
let outPtr = ptr(0);
let outStr = "<null>";
try {
if (!this.a5.isNull()) {
outPtr = this.a5.readPointer(); // *a5
if (!outPtr.isNull()) outStr = Memory.readCString(outPtr);
}
} catch (_) {
outStr = "<bad-out>";
}
console.log(
`[sub_82560] leave ret=${ret} out_ptr=${outPtr} out_str="${outStr}"`
);
},
});
console.log("[sub_82560] hooked @ 0x82560");
}
function hook_unpack_result(libanon) {
Interceptor.attach(libanon.add(0x81890), { // Replace 0x12345 with the actual offset
onEnter: function (args) {
console.log("unpack_result onEnter");
this.lr = this.context.lr.sub(libanon);
this.out = args[0];
},
onLeave: function (ret) {
console.log("unpack_result lr is :", this.lr, "; size is :", ret, "; out is : \n", hexdump(this.out, { length: 16 }));
if (this.lr.equals(0x5aed8)) {
//dump_dex_file(this.out, ret.toUInt32());
}
},
});
}
function hook_dlopen() {
console.log("-------------Current PID:", Process.id);
var loader_android_dlopen_ext = Module.findExportByName(
null,
"__loader_android_dlopen_ext",
);
console.log(
"__loader_android_dlopen_ext address is => ",
loader_android_dlopen_ext,
);
Interceptor.attach(loader_android_dlopen_ext, {
onEnter: function (args) {
var pathptr = args[0];
var path = pathptr.readCString();
console.log("path is => ", path);
if (path && path.indexOf("libdexprotector.so") >= 0) {
this.match = true;
}
Thread.sleep(1);
},
onLeave: function (ret) {
if (this.match) {
var libdexprotector = Process.findModuleByName("libdexprotector.so");
if (libdexprotector) {
Interceptor.attach(libdexprotector.findExportByName("JNI_OnLoad"), {
onEnter: function (args) {
console.log("dexprotector jni_onload onenter");
this.internal_jni_onload_p = libdexprotector.base
.add(0xb238)
.readPointer();
var libanon = Process.findRangeByAddress(
this.internal_jni_onload_p,
).base;
var libanon_size = Process.findRangeByAddress(
this.internal_jni_onload_p,
).size;
this.libanon = libanon;
this.libanon_size = libanon_size;
// 这里用一块内存把干净的libanon保存起来
save_clean_libanon_snapshot(libanon, libanon_size);
console.log(
"libanon base is =========================> ",
libanon,
);
console.log(
"libanon size is =========================> ",
libanon_size,
);
console.log(
"internal jni onload location is =========================> ",
this.internal_jni_onload_p.sub(libanon),
);
//dumpUnreachedDynStrings(libanon);
//hook_decode_string_and_hook_myself(libanon);
hook_decode_xor_string(libanon);
//handle_plt_functions(libanon);
bypass_pthread_detect(libanon);
//hook_process_startup_info_collection(libanon);
// dump动态函数
//hook_dynamic_exec_code(libanon);
hook_error_handler(libanon);
bypass_lib_c_inline_hook_detection(libanon);
bypass_memory_hash_check(libanon);
// 看dex_key 是否被加盐
//hook_hmac_sign_in_target(libanon);
// 给 dex_key 指针赋值
hook_exec_hmac_sign_algo9_and_get_dex_key(libanon);
// hook verify checksum function
//hook_verify_checksum(libanon);
// hook find_mem_block_and_hmac_sign matched address
hook_find_mem_block_target_addr(libanon);
//hook_decompress_dex(libanon);
hook_calc_xxh64_like_fingerprint(libanon);
//hook_unpack_result(libanon);
hook_sub_82560(libanon);
},
onLeave: function (ret) {
console.log("dexprotector jni_onload onleave, ret: ", ret);
//dump_dynamic_so(this.libanon, this.libanon_size);
Thread.sleep(3);
},
});
}
}
},
});
}
function main() {
hook_dlopen();
}
setImmediate(main);冰与火的战歌：Windows内核攻防实战高级班！从零到实战，融合AI与Windows内核攻防全技术栈，打造具备自动化能力的内核开发高手。
|
|
|---|---|
|
|
|
