记录一下今年 2026 决赛过程

## 题目描述

>（1）  「影」核心系统「根」需要在一些开启了特殊特性的机器上才能部署成功，逆向找到成功部署条件！成功部署「影」核心系统，即成功运行shadow_panel.exe，控制台程序成功运行进入至输入终止密码的终端。(满分0.5分)
>
>（2）  「根」使用特殊方法，对操作系统底层进行了攻击，并借此将关键核心代码隐藏了起来，分析其完整实现流程。（满分2.5分）
>
>（3）  编写检测代码，检测（2）中「影」核心系统攻击操作系统底层的特殊方法。（满分2分）
>
>（4）  计算出正确的终止密码，输入到shadow_panel.exe中，使得其返回成功。(满分1.0分)
>
>（5）  编写keygen，使得在任意机器，任何一次运行shadow_panel.exe，都可以正确计算出终止密码。(满分2.5分)
>
>（6）  详细描述完整的解题过程和思路，提供所有编写的程序的源代码。做到清晰易懂，操作可以复现结果。编码工整风格优雅、注释详尽。相同实现方法下，提交时间靠前者得分更高，AI可用于辅助分析，其产出的内容(代码/文档等)需**明确标注**并提交完整**提示词**和**聊天记录，**赛事方针对此项的判断具有最终解释权。(满分1.5分

## (1)成功部署条件

有三个：

- 开启 VT-x 虚拟化，从它针对 Intel 加初赛的flag就能看出来，一定要开这个。
- 开启 Hyper-V，应用命令 `bcdedit /set {current} hypervisorlaunchtype auto` 即可。
- 管理员运行。

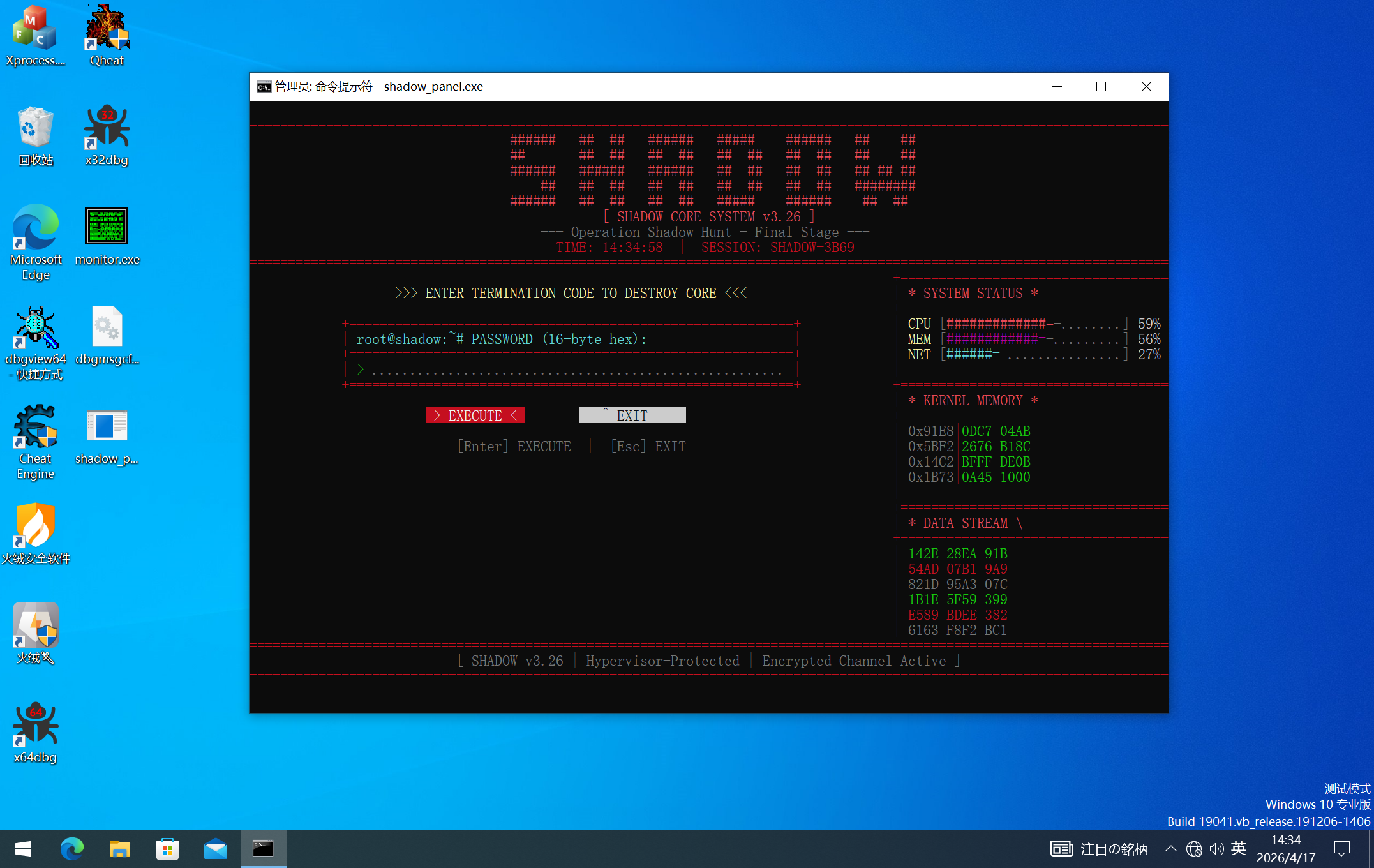

这三个条件满足之后，成功进入系统：

![](upload/attach/202604/919002_KY6Q5SG7NSNRDMZ.png)

## (2，4)找出隐藏的代码&计算Key

### 结论

「根」系统采用 **EPT Shadow Page（EPT影子页）** 技术攻击操作系统底层。该技术利用Hyper-V hypervisor提供的Extended Page Tables（EPT，扩展页表）机制，在CPU的内存地址翻译层面实现"读/执行分离"——同一个虚拟地址的读操作和执行操作被映射到不同的物理内存页。这使得PatchGuard等内核完整性校验机制读取到的是未修改的原始代码，而CPU实际执行的却是被篡改后的恶意代码。攻击完成后，驱动自行卸载销毁，但EPT修改作为hypervisor层的配置将持续生效，实现了真正意义上的"代码隐藏"。

### 分析

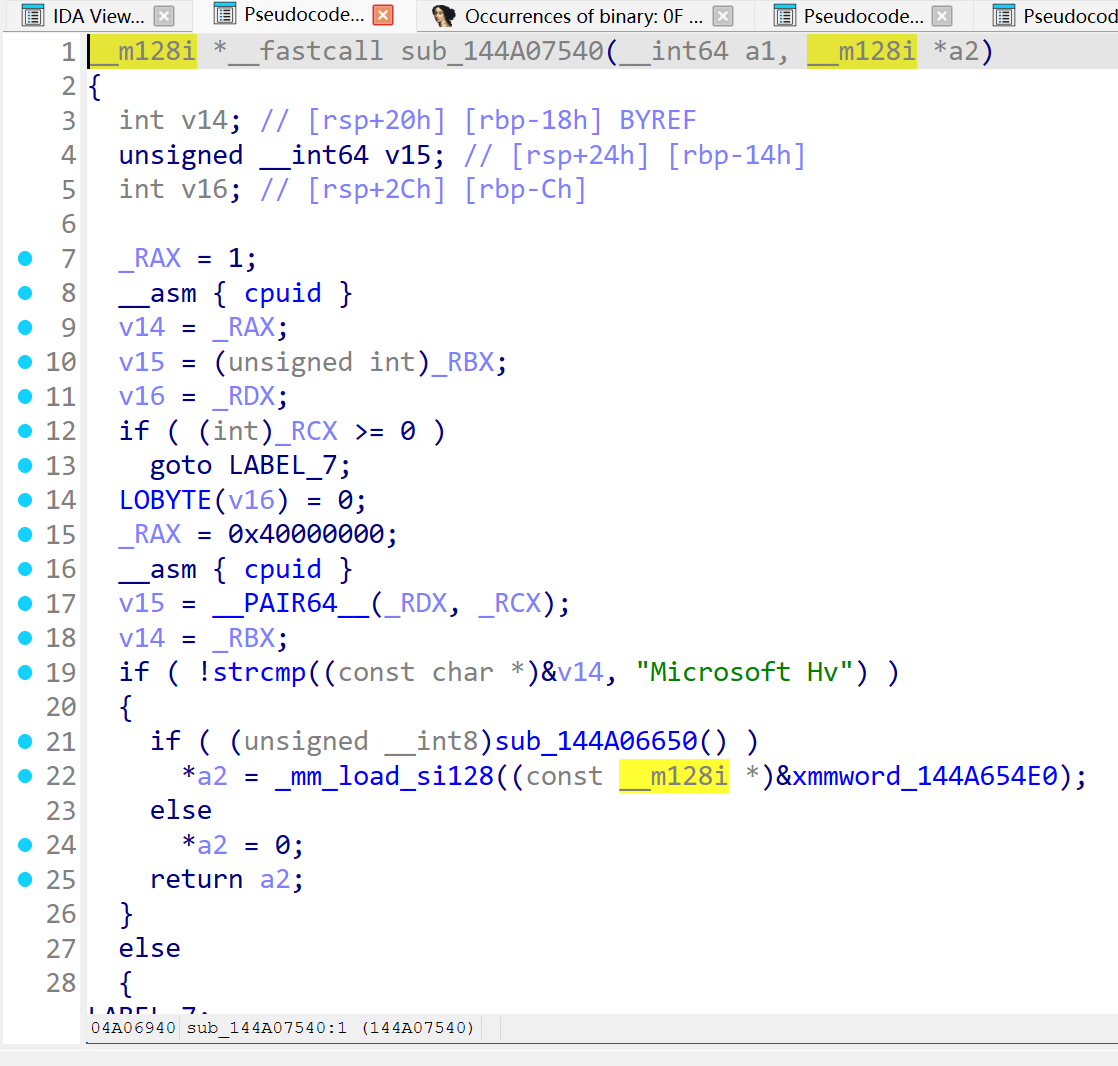

根据题目要求，`sub_144A07540` 检测环境是否满足要求：

![](upload/attach/202604/919002_Y47BWGJNUM9MAKB.png)

通过两次 `cpuid` 的调用，第一次检测 `ECX.bit31（Hypervisor Present位）`，第二次检测Hypervisor厂商字符串为 "Microsoft Hv"（Hyper-V），经过这里的分析，第一问的配置就出来了，需要开启 `hyper-v`。

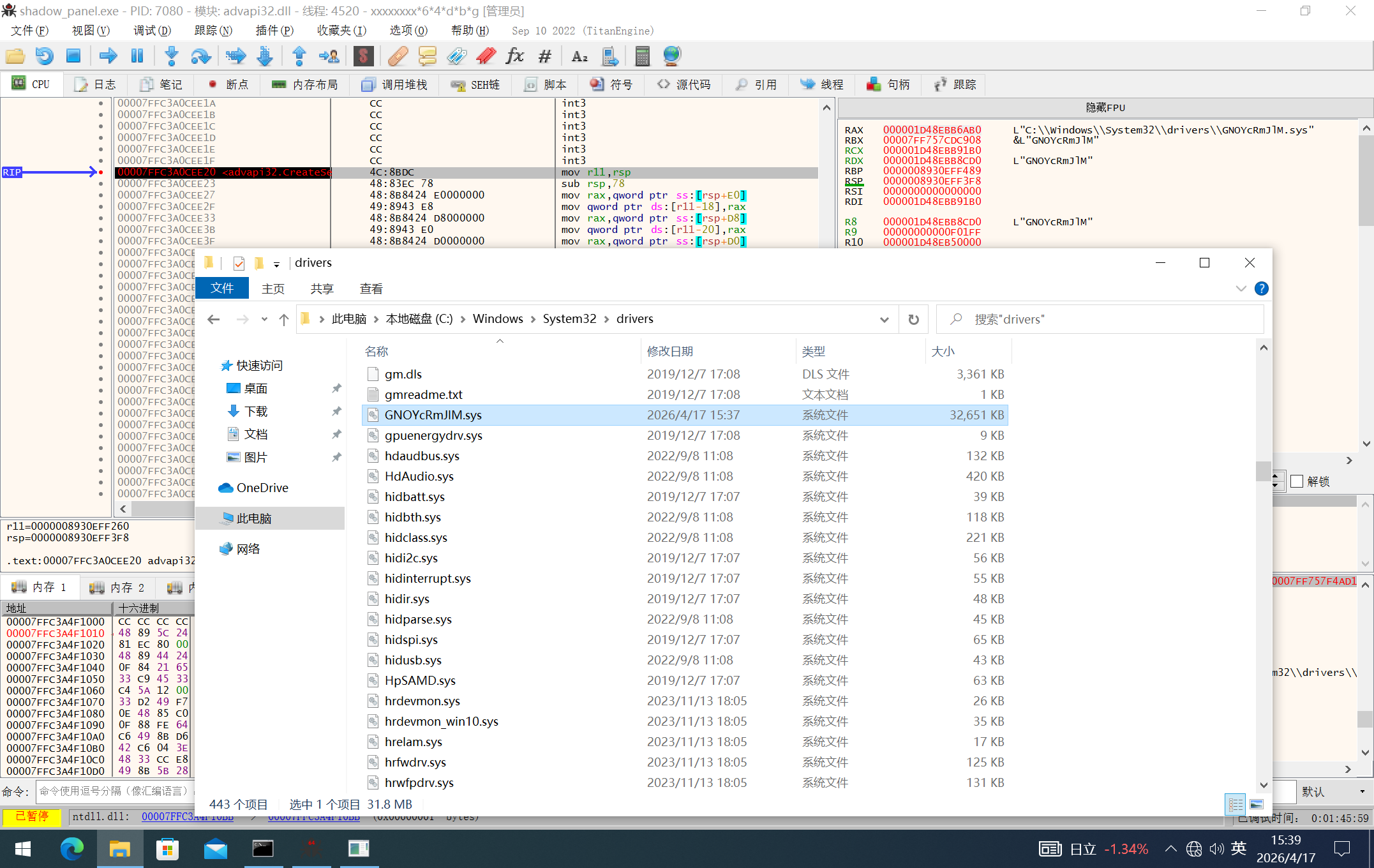

把驱动提取一下，断 `ControlService`，然后找到驱动文件即可。

![](upload/attach/202604/919002_96WFF3C8UG9VFZM.png)

通过 pdb 文件可知，驱动原始名字为 `hypercharge.sys`，加载的时候会把名字随机化。

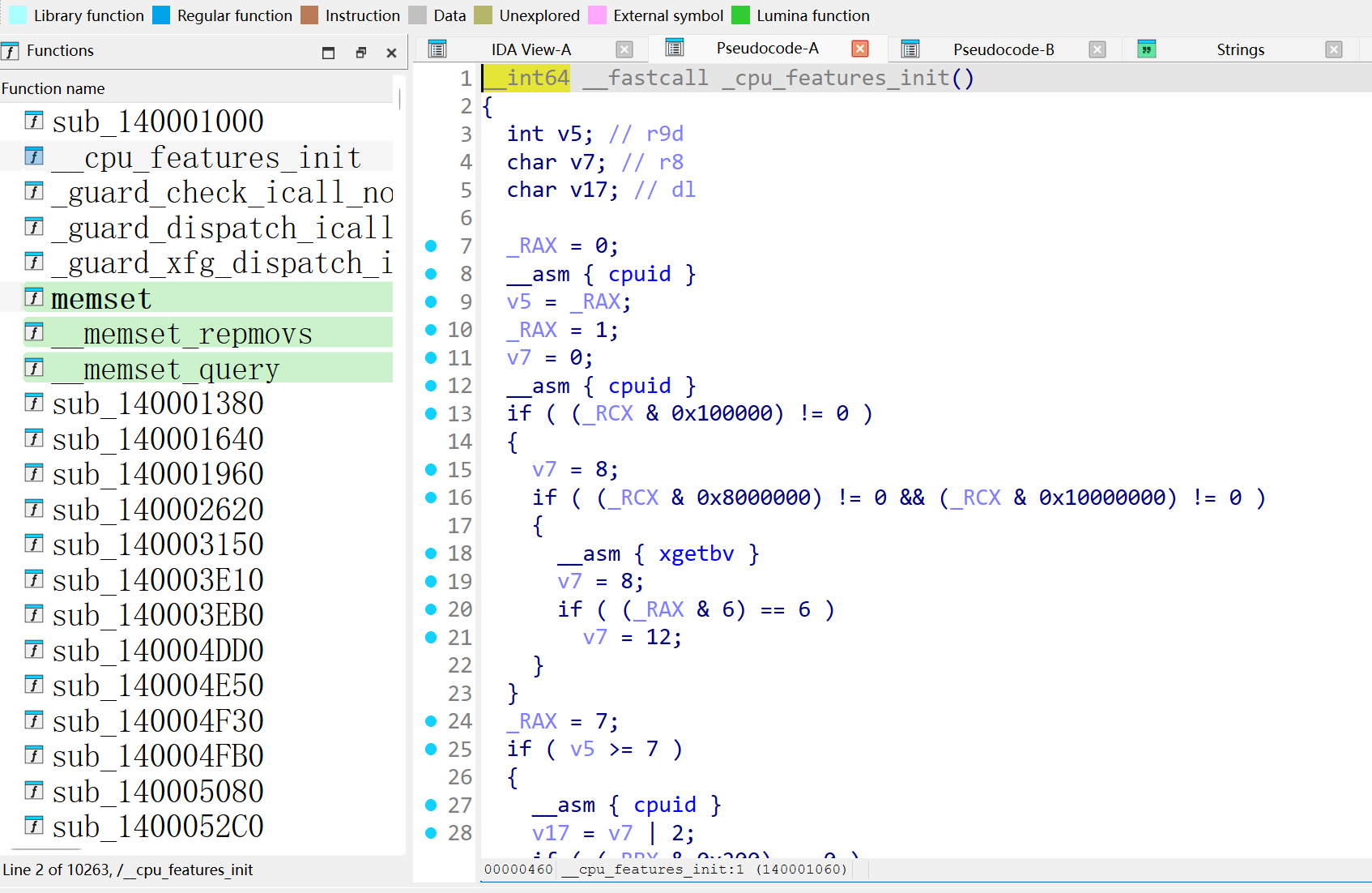

lumina可以识别少量函数，`0x140001060` 检测了 CPU 的特性。

![](upload/attach/202604/919002_A2HHSZWZPHC8575.png)

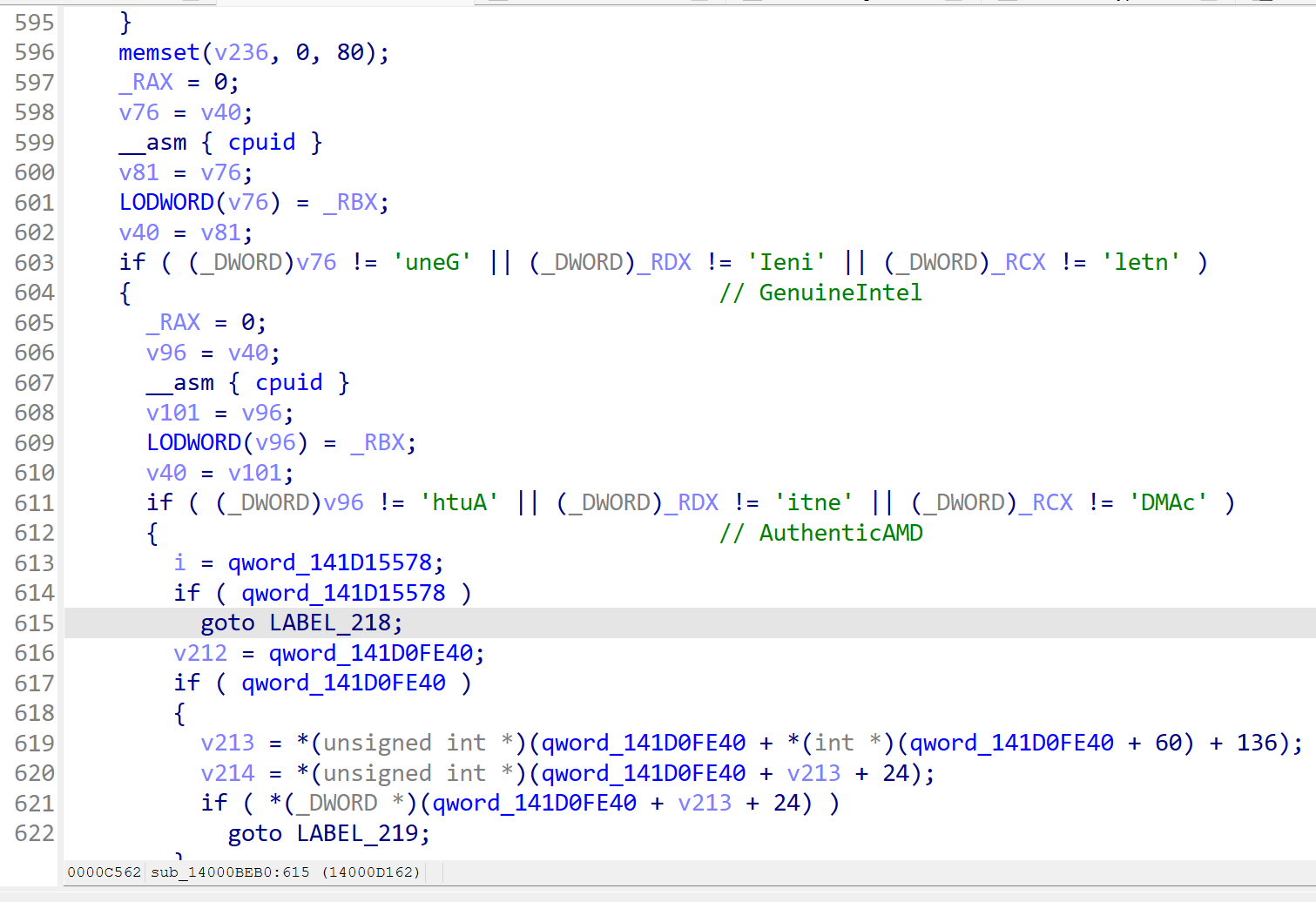

`0x14000BEB0` 检查了当前 CPU 是 `Intel` 还是 `AMD`，决定后续EPT/NPT操作的代码路径，我的 CPU 是 `Intel`。

![](upload/attach/202604/919002_KZ5CAACFZTSPUT4.png)

继续往下跟，驱动本身没有导入表，很多 API 都是通过 FNV-1a hash 动态解析的。比较关键的几个 hash 如下：

| hash | api | 作用 |
| --- | --- | --- |
| `0x2F0FCEED6FC55D71` | `RtlGetVersion` | 获取系统版本 |
| `0x8CD9141D23428B07` | `MmAllocateContiguousMemory` | 分配连续物理内存 |
| `0x8A0AB57E2BF51C65` | `MmGetPhysicalMemoryRanges` | 获取物理内存范围 |
| `0x306328EE8E049A39` | `MmCopyMemory` | 读取物理内存 |
| `0x40ED8EA987B20683` | `MmMapIoSpace` | 映射物理页 |
| `0x47E1CA0E288956C0` | `MmUnmapIoSpace` | 取消映射 |
| `0x0338042AB15F61CC` | `MmGetPhysicalAddress` | 获取物理地址 |
| `0x0D9FE78EA5EE16A1` | `KeInitializeEvent` | 初始化事件 |
| `0x1D9B1572A04955D7` | `IoBuildDeviceIoControlRequest` | 构造 IOCTL 请求 |
| `0xC26886D76545A61B` | `IofCallDriver` | 下发 IRP |
| `0x11BDFAD31435CB3C` | `KeWaitForSingleObject` | 等待 IOCTL 完成 |

这里可以看出来它不是简单的驱动 hook，而是在内核里继续调用 Hyper-V 相关的设备接口。

`sub_140009530` 是一个很关键的函数，它封装了一次操作，大概流程如下：

```c
KeInitializeEvent(&event, 1, 0);

irp = IoBuildDeviceIoControlRequest(
    0x4D014,
    device_object,
    &input,
    0x38,
    0,
    0,
    0,
    &event,
    &iosb);

status = IofCallDriver(device_object, irp);
if (status == STATUS_PENDING)
    KeWaitForSingleObject(&event, 0, 0, 0, 0);
```

其中 `0x4D014` 是发给 Hyper-V 设备对象的控制码，输入结构大小是 `0x38`。里面有页大小 `0x1000`，目标物理地址，还有一个操作码。

操作码这里比较有意思：

```c
op = (2 * (a2 == 42)) | 0x28;
```

也就是：

- `a2 == 42`，最后 op 为 `0x2A`。
- `a2 != 42`，最后 op 为 `0x28`。

因此它操作码只有两种，一个是 `0x2A`，一个是 `0x28`

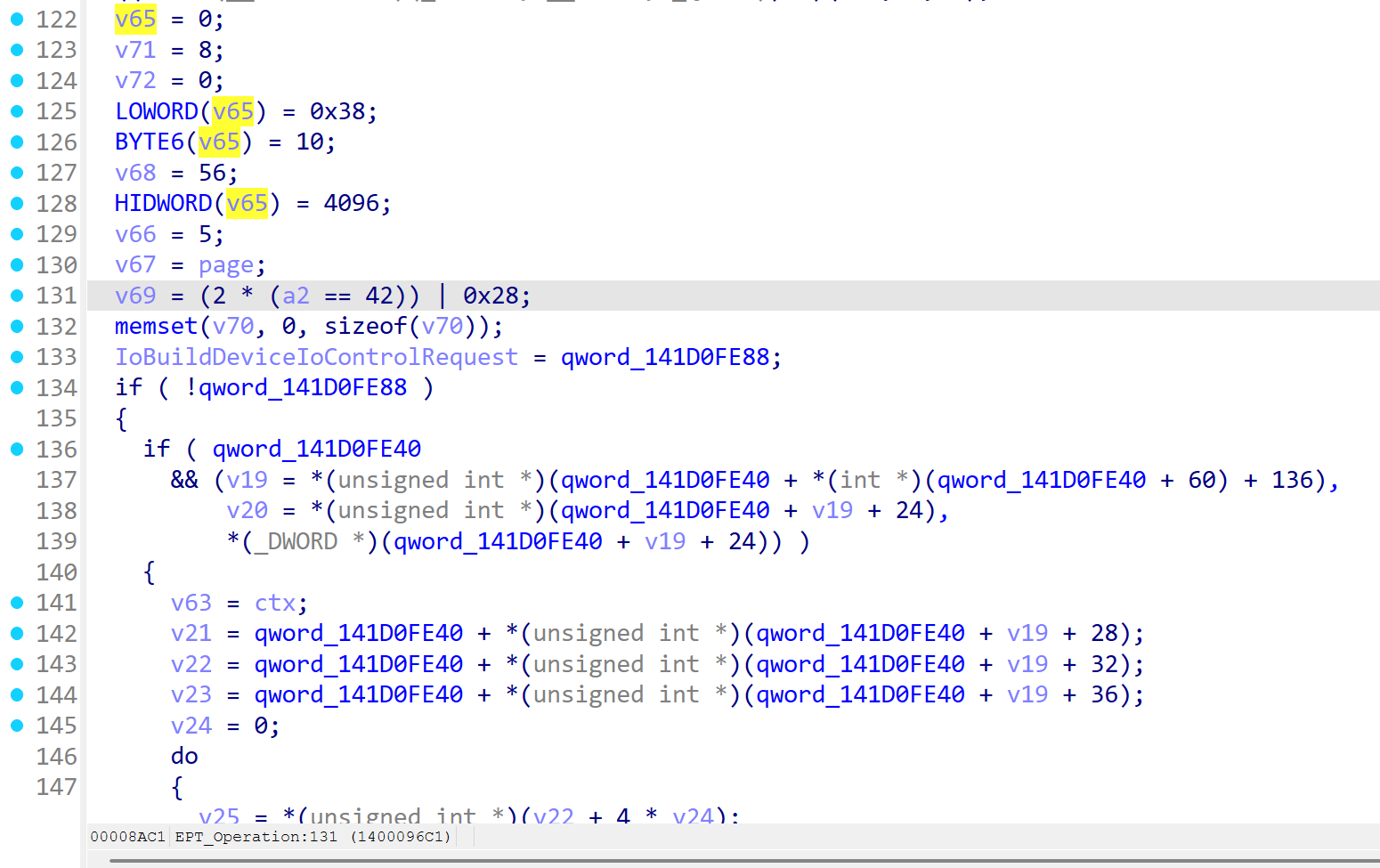

这个就是后面隐藏代码的基础，根据逻辑：

![](upload/attach/202604/919002_4YMDXW4RG3NW9F3.png)

可以大概得到 `IoBuildDeviceIoControlRequest` 的输入参数结构体：

```C++
#pragma pack(push, 1)
typedef struct _HYPER_EPT_IOCTL_INPUT {
    uint16_t Size0;        // +0x00 = 0x38
    uint8_t  unk02[4];     // +0x02
    uint8_t  Type;         // +0x06 = 0x0a
    uint8_t  unk07[5];     // +0x07
    uint32_t PageSize;     // +0x0c = 0x1000
    uint32_t CountOrMode;  // +0x10 = 5
    uint32_t unk14;        // +0x14
    uint64_t PageOrPhys;   // +0x18 = old_phys / new_phys / qword_141D0FD18+8
    uint32_t Size1;        // +0x20 = 0x38
    uint8_t  Operation;    // +0x24 = 0x28 or 0x2a
    uint8_t  unk25[7];     // +0x25 mostly zero
    uint8_t  Flags;        // +0x2c = 8
    uint8_t  unk2d[0x0b];  // +0x2d
} HYPER_EPT_IOCTL_INPUT;
#pragma pack(pop)
```

### 找到hook页面

既然已经分析出了 hook 的函数，那么直接上内核调试器断下看参数即可，应用层调试器断 `StartServiceW`，内核调试器下一个断点

```C++
VOID LoadImageNotifyRoutine(
    PUNICODE_STRING FullImageName,
    HANDLE ProcessId,
    PIMAGE_INFO ImageInfo
)
{
    if (!ProcessId && FullImageName && wcsstr(FullImageName->Buffer, L"DC0VBM4HKO"))
    {
        DBG_PRINT("\n> ============= Driver %ws ================\n", FullImageName->Buffer);
        HANDLE hThread;

Hooks::Base = ImageInfo->ImageBase;
        Hooks::Size = ImageInfo->ImageSize;
        DBG_PRINT("ImageBase: 0x%p\n", (UINT64)ImageInfo->ImageBase);
        DBG_PRINT("Breakpoint: 0x%p\n", (UINT64)ImageInfo->ImageBase + 0x9530);
        DbgBreakPoint();
        count = 0;
    }
}
```

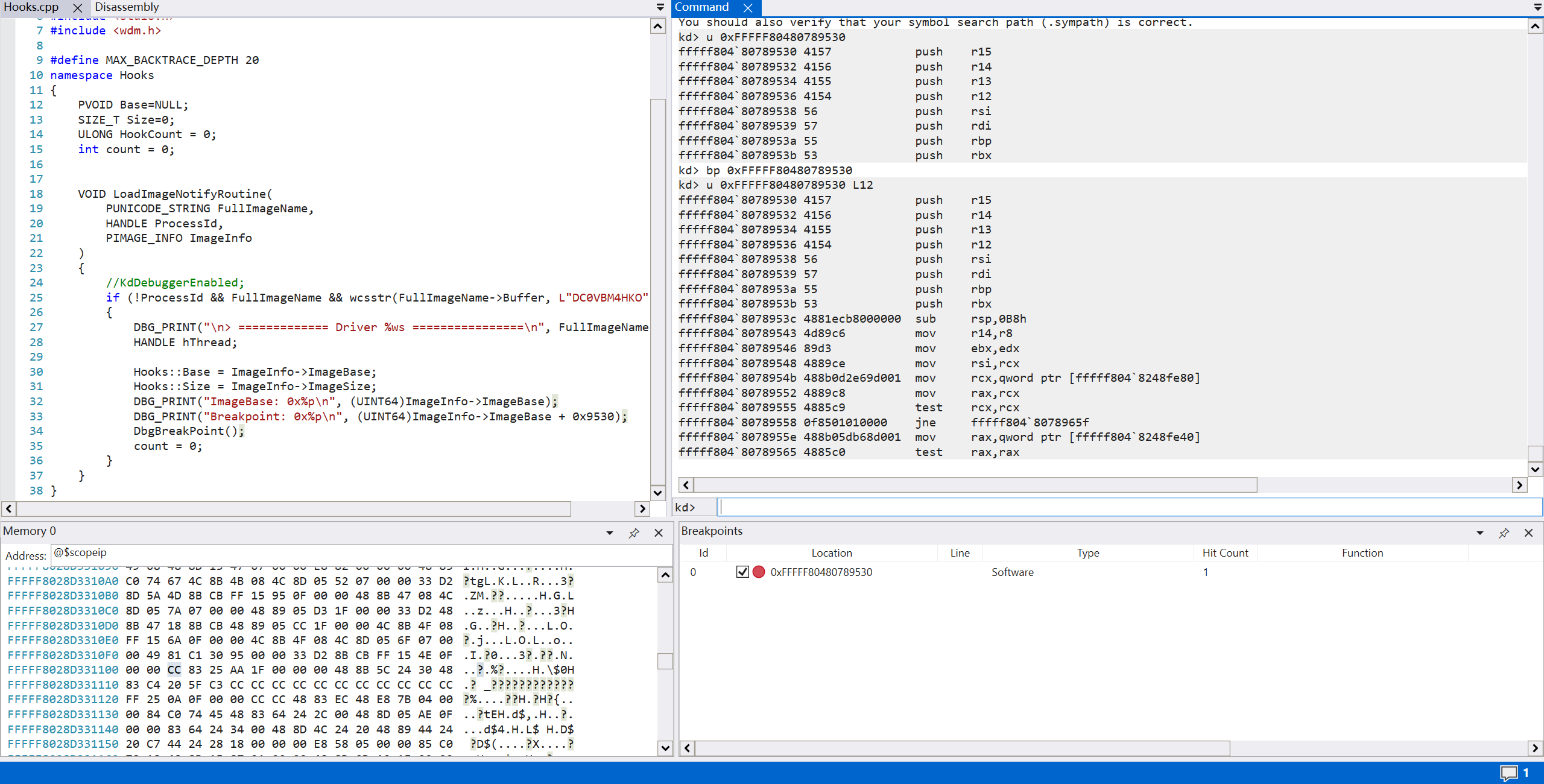

断 `StartServiceW` 的时候驱动名已经是固定的了，所以直接写死。

![](upload/attach/202604/919002_Y33WPVXY53JKMQJ.png)

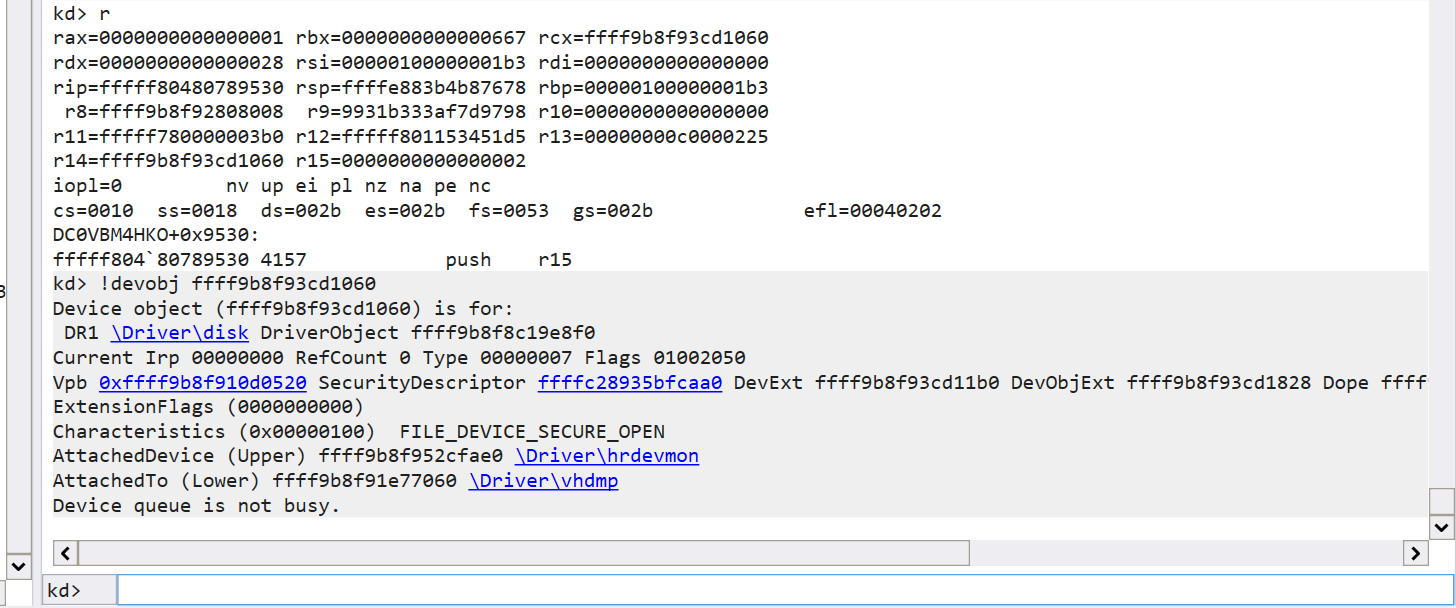

分析第一次命中断点

![](upload/attach/202604/919002_7XWSF6B6YPTUMQM.png)

先看看 `0x28` 操作的表示，rcx 指向了一个 `DriverObject`，对应了 `vhdmp` 设备，之前在用户层有见到过 `create_vhd` 之类的，感觉有一些关联。

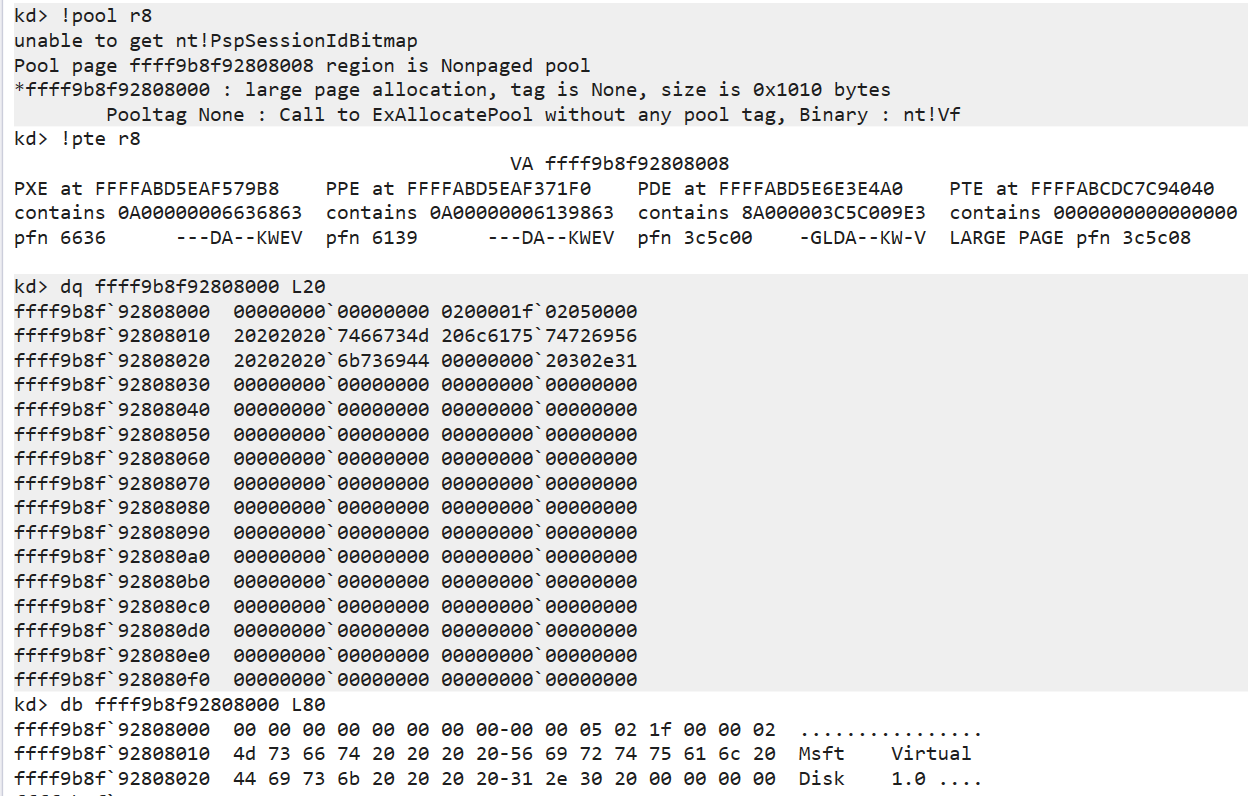

不过第三个参数给了一个 nonepaged 内存，上面描述了一些字符信息。

![](upload/attach/202604/919002_YDTX3SDYV599GXF.png)

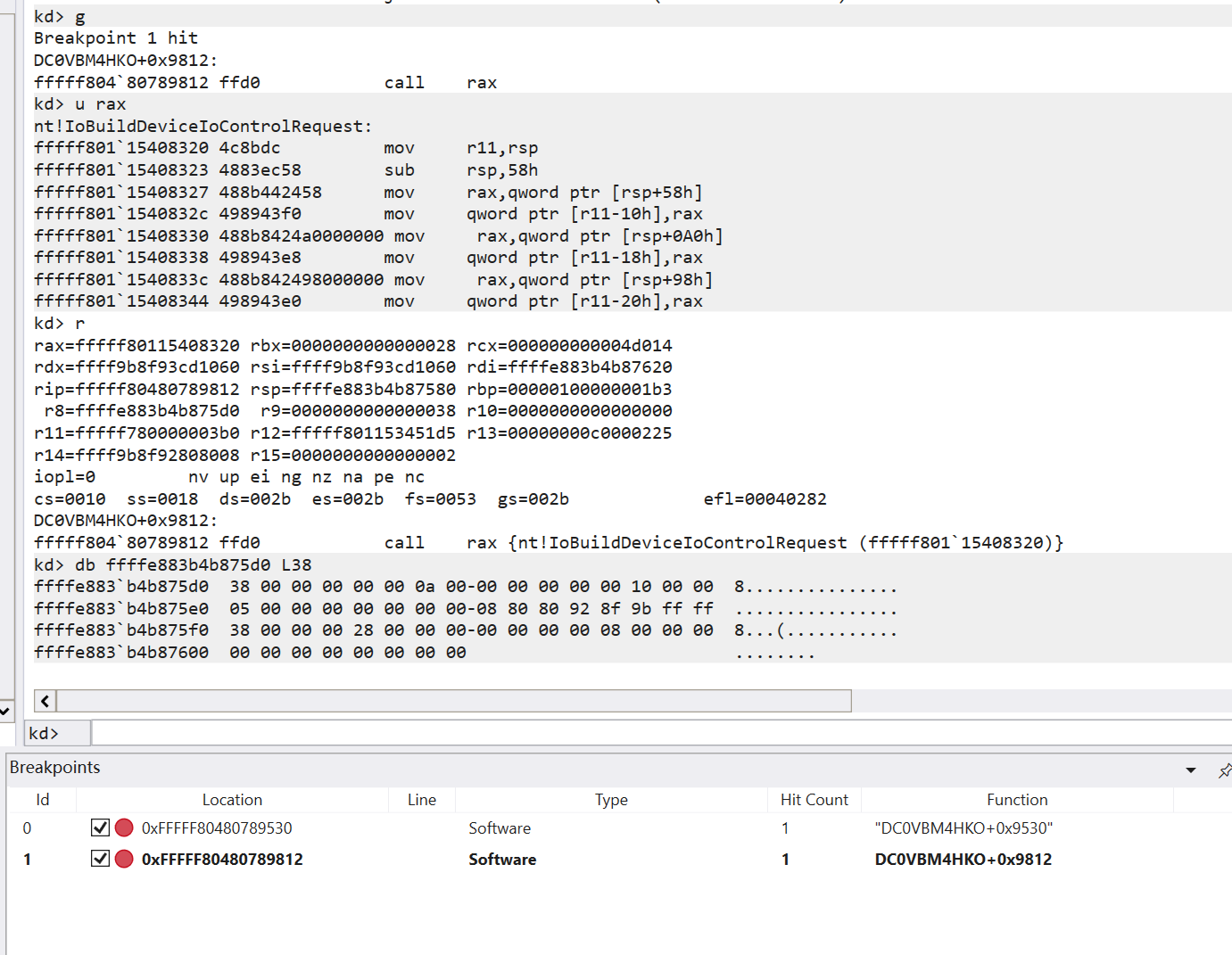

`Msft Virtual Disk   1.0`，跟到 API 去看，基本也坐实是 vhd 的初始化

![](upload/attach/202604/919002_UX42TZTFKQRJ8QY.png)

后面紧跟着断了一个 `0x2a` 的操作。

```
kd> g
8957812500 - STORMINI: StorNVMe - POWER: IDLE
Breakpoint 0 hit
DC0VBM4HKO+0x9530:
fffff804`80789530 4157            push    r15
kd> r
rax=ffff9b8f92808000 rbx=ffffb280780af000 rcx=ffff9b8f93cd1060
rdx=ffffe883b4b8732a rsi=ffffb280780ac000 rdi=0004000ffffffffd
rip=fffff80480789530 rsp=ffffe883b4b873a8 rbp=ffffb280780af000
 r8=ffffb280780af000  r9=1004000ffffffffd r10=0000000000000001
r11=ffffabd5eaf57000 r12=0000000000000000 r13=40ed8ea987b20683
r14=fffff801153440b9 r15=0000000000001000
iopl=0         nv up ei ng nz na pe nc
cs=0010  ss=0018  ds=002b  es=002b  fs=0053  gs=002b             efl=00040282
DC0VBM4HKO+0x9530:
fffff804`80789530 4157            push    r15
kd> dq rcx
ffff9b8f`93cd1060  00000000`07c80003 ffff9b8f`8c19e8f0
ffff9b8f`93cd1070  ffff9b8f`8ab56060 ffff9b8f`952cfae0
ffff9b8f`93cd1080  00000000`00000000 00000000`00000000
ffff9b8f`93cd1090  00000100`01002050 ffff9b8f`910d0520
ffff9b8f`93cd10a0  ffff9b8f`93cd11b0 00000002`00000007
ffff9b8f`93cd10b0  00000000`00000000 00000000`00000000
ffff9b8f`93cd10c0  00000000`00000000 00000000`00000000
ffff9b8f`93cd10d0  00000000`00000000 00000000`00000000
kd> dq ffffb280780af000
ffffb280`780af000  ffffffff`ffffffff ffffffff`ffffffff
ffffb280`780af010  ffffffff`ffffffff ffffffff`ffffffff
ffffb280`780af020  ffffffff`ffffffff ffffffff`ffffffff
ffffb280`780af030  ffffffff`ffffffff ffffffff`ffffffff
ffffb280`780af040  ffffffff`ffffffff ffffffff`ffffffff
ffffb280`780af050  ffffffff`ffffffff ffffffff`ffffffff
ffffb280`780af060  ffffffff`ffffffff ffffffff`ffffffff
ffffb280`780af070  ffffffff`ffffffff ffffffff`ffffffff
kd> !devobj ffff9b8f93cd1060
Device object (ffff9b8f93cd1060) is for:
 DR1 \Driver\disk DriverObject ffff9b8f8c19e8f0
Current Irp 00000000 RefCount 0 Type 00000007 Flags 01002050
Vpb 0xffff9b8f910d0520 SecurityDescriptor ffffc28935bfcaa0 DevExt ffff9b8f93cd11b0 DevObjExt ffff9b8f93cd1828 Dope ffff9b8f910d0440
ExtensionFlags (0000000000)
Characteristics (0x00000100)  FILE_DEVICE_SECURE_OPEN
AttachedDevice (Upper) ffff9b8f952cfae0 \Driver\hrdevmon
AttachedTo (Lower) ffff9b8f91e77060 \Driver\vhdmp
Device queue is not busy.
kd> kv
 # Child-SP          RetAddr               : Args to Child                                                           : Call Site
00 ffffe883`b4b873a8 fffff804`80783e56     : ffffd3f2`0ddf7517 f1a315f9`d31d2634 00000000`00001000 fffff801`15524300 : DC0VBM4HKO+0x9530
01 ffffe883`b4b873b0 fffff804`8078c485     : 00000000`00040246 ffffe883`b4b87540 fffff804`82718461 00000100`000001b3 : DC0VBM4HKO+0x3e56
02 ffffe883`b4b87400 fffff804`82558a09     : ffffffff`8000191c fffff801`15343f3b 7f2823d9`ac4595a2 fffff804`825556a4 : DC0VBM4HKO+0xc485
03 ffffe883`b4b87790 fffff804`82577026     : 00000000`00000000 00000000`00000000 ffff9b8f`937c7650 ffffe883`b4b87a20 : DC0VBM4HKO+0x1dd8a09
04 ffffe883`b4b87820 fffff804`824b4084     : 00000000`00000016 fffff801`155634f6 00000000`00000002 ffffffff`8000191c : DC0VBM4HKO+0x1df7026
05 ffffe883`b4b87890 fffff801`15961a2c     : ffff9b8f`953e6000 00000000`00000000 ffff9b8f`90bf48d0 00000000`00000000 : DC0VBM4HKO+0x1d34084
06 ffffe883`b4b878c0 fffff801`1592d1bd     : 00000000`00000016 00000000`00000000 00000000`00000000 00000000`00001000 : nt!PnpCallDriverEntry+0x4c
07 ffffe883`b4b87920 fffff801`159724c7     : 00000000`00000000 00000000`00000000 fffff801`15f25440 00000000`00000000 : nt!IopLoadDriver+0x4e5
08 ffffe883`b4b87af0 fffff801`15452b65     : ffff9b8f`00000000 ffffffff`8000191c ffff9b8f`8abf9040 ffff9b8f`00000000 : nt!IopLoadUnloadDriver+0x57
09 ffffe883`b4b87b30 fffff801`15471d25     : ffff9b8f`8abf9040 00000000`00000080 ffff9b8f`8a076200 000fe47f`b19bbdff : nt!ExpWorkerThread+0x105
0a ffffe883`b4b87bd0 fffff801`15600628     : fffff801`109e2180 ffff9b8f`8abf9040 fffff801`15471cd0 00000000`00000000 : nt!PspSystemThreadStartup+0x55
0b ffffe883`b4b87c20 00000000`00000000     : ffffe883`b4b88000 ffffe883`b4b81000 00000000`00000000 00000000`00000000 : nt!KiStartSystemThread+0x28

```

从调用栈来说，是从 `sub_140003E10` 调过来的

```C++
__int64 __fastcall sub_140003E10(__int64 a1, __int64 a2)
{
  __int64 v4; // rdi
  __int64 result; // rax
  unsigned int v6; // esi
  __int64 *v7; // [rsp+28h] [rbp-20h] BYREF

if ( !byte_141D0FD10 )
    return 0xC00000A3LL;
  v7 = 0;
  v4 = sub_140003EB0(a2, &v7);
  result = EPT_Operation(*(_QWORD *)qword_141D0FD18, 0x2A, a2);
  if ( v7 )
    *v7 = v4;
  if ( (int)result >= 0 )
  {
    v6 = EPT_Operation(*(_QWORD *)qword_141D0FD18, 0x28, a1);
    EPT_Operation(*(_QWORD *)qword_141D0FD18, 0x2A, qword_141D0FD18 + 8);
    return v6;
  }
  return result;
}
```

对应的也就是第一次的 `EPT_Operation`。

```
第二次调用 sub_140003E10
kd> dq rcx
ffffb280`780ac000  ffffffff`ffffffff ffffffff`ffffffff
ffffb280`780ac010  ffffffff`ffffffff ffffffff`ffffffff
ffffb280`780ac020  ffffffff`ffffffff ffffffff`ffffffff
ffffb280`780ac030  ffffffff`ffffffff ffffffff`ffffffff
ffffb280`780ac040  ffffffff`ffffffff ffffffff`ffffffff
ffffb280`780ac050  ffffffff`ffffffff ffffffff`ffffffff
ffffb280`780ac060  ffffffff`ffffffff ffffffff`ffffffff
ffffb280`780ac070  ffffffff`ffffffff ffffffff`ffffffff
kd> dq rdx
ffffb280`78d9a000  ffffffff`ffffffff ffffffff`ffffffff
ffffb280`78d9a010  ffffffff`ffffffff ffffffff`ffffffff
ffffb280`78d9a020  ffffffff`ffffffff ffffffff`ffffffff
ffffb280`78d9a030  ffffffff`ffffffff ffffffff`ffffffff
ffffb280`78d9a040  ffffffff`ffffffff ffffffff`ffffffff
ffffb280`78d9a050  ffffffff`ffffffff ffffffff`ffffffff
ffffb280`78d9a060  ffffffff`ffffffff ffffffff`ffffffff
ffffb280`78d9a070  ffffffff`ffffffff ffffffff`ffffffff

Breakpoint 3 hit
DC0VBM4HKO+0x3e10:
fffff804`80783e10 56              push    rsi
kd> dq rcx
ffffb280`780ac000  ffffffff`ffffffff ffffffff`ffffffff
ffffb280`780ac010  ffffffff`ffffffff ffffffff`ffffffff
ffffb280`780ac020  ffffffff`ffffffff ffffffff`ffffffff
ffffb280`780ac030  ffffffff`ffffffff ffffffff`ffffffff
ffffb280`780ac040  ffffffff`ffffffff ffffffff`ffffffff
ffffb280`780ac050  ffffffff`ffffffff ffffffff`ffffffff
ffffb280`780ac060  ffffffff`ffffffff ffffffff`ffffffff
ffffb280`780ac070  ffffffff`ffffffff ffffffff`ffffffff
kd> dq rdx
ffffb280`78d9c000  ffffffff`ffffffff ffffffff`ffffffff
ffffb280`78d9c010  ffffffff`ffffffff ffffffff`ffffffff
ffffb280`78d9c020  ffffffff`ffffffff ffffffff`ffffffff
ffffb280`78d9c030  ffffffff`ffffffff ffffffff`ffffffff
ffffb280`78d9c040  ffffffff`ffffffff ffffffff`ffffffff
ffffb280`78d9c050  ffffffff`ffffffff ffffffff`ffffffff
ffffb280`78d9c060  ffffffff`ffffffff ffffffff`ffffffff
ffffb280`78d9c070  ffffffff`ffffffff ffffffff`ffffffff
```

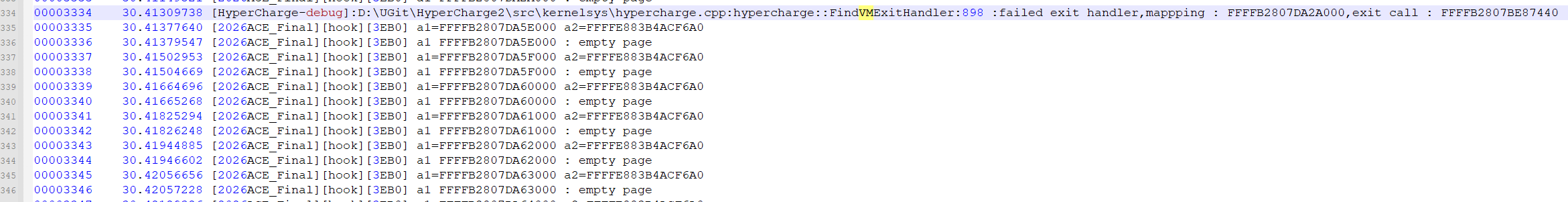

一次一次的比较慢，选择直接 inline hook 3E10和3EB0，找到关键的LOG，dump关键的页。

![](upload/attach/202604/919002_4XYQJNN6DWCZ8FV.png)

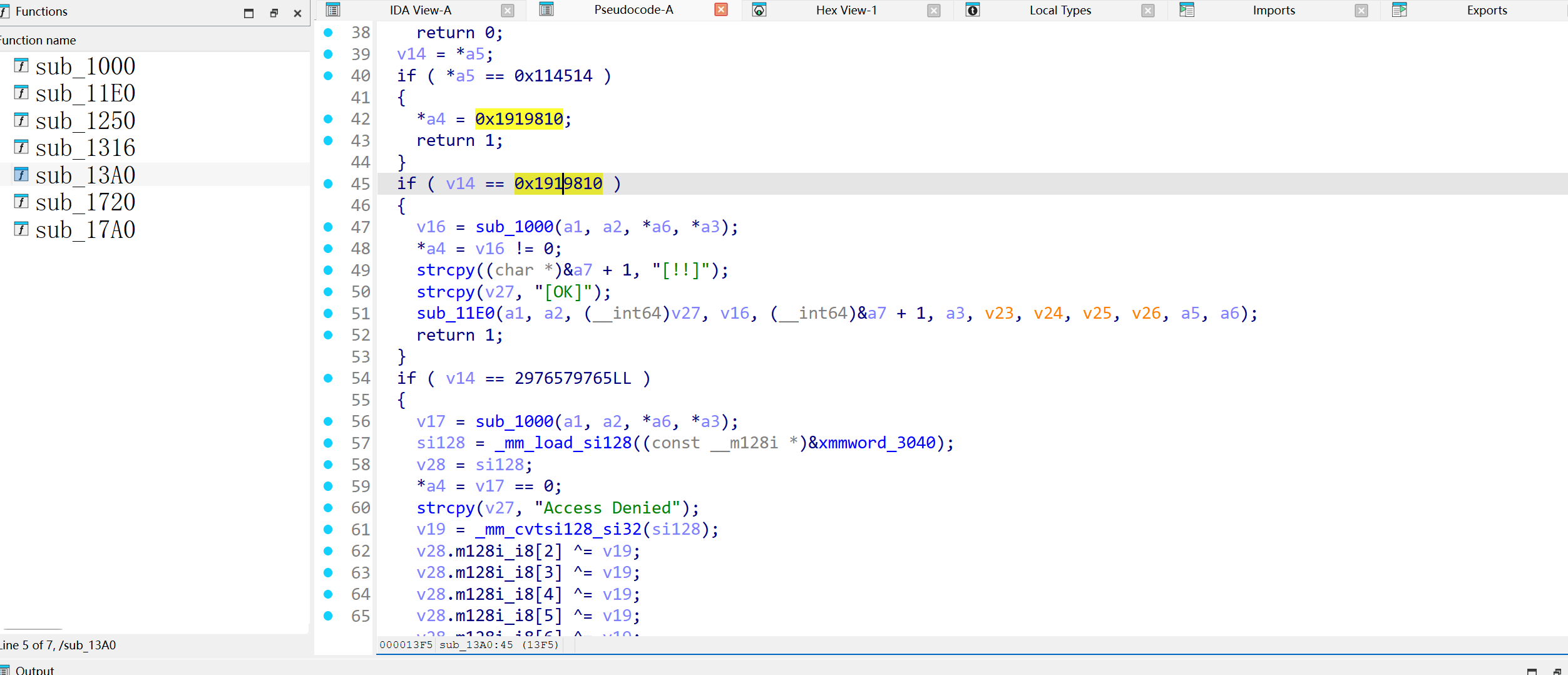

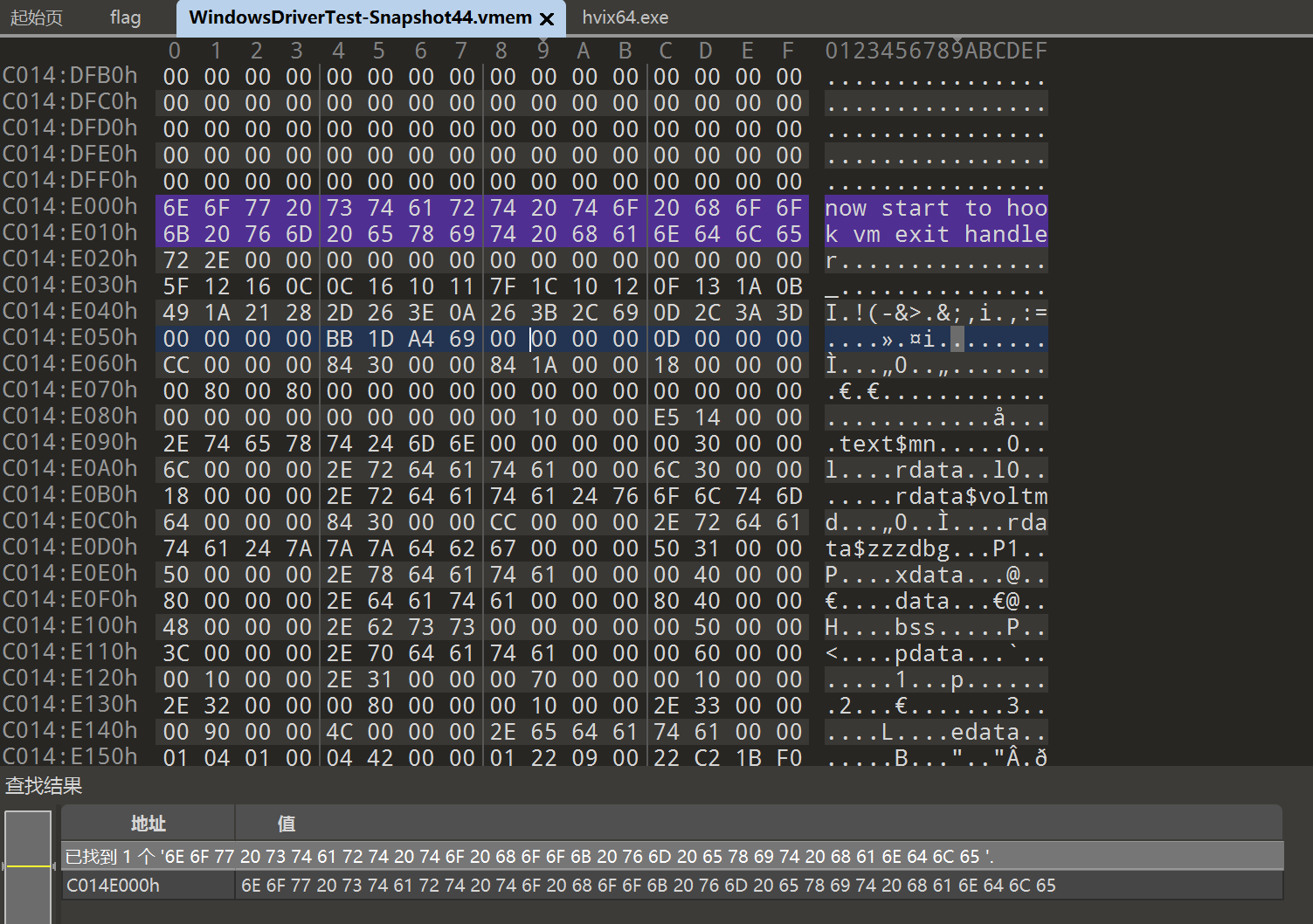

日志推断，它应该是 hook 了 `vmexit` 的 `handler`，中间是在做扫秒页表用特征码判断 vmexit 的操作。

![](upload/attach/202604/919002_GRAD927EUU9ND7B.png)

从dump的结果来看，基本可以确定就是 `Terminate Code` 算法的页面了。

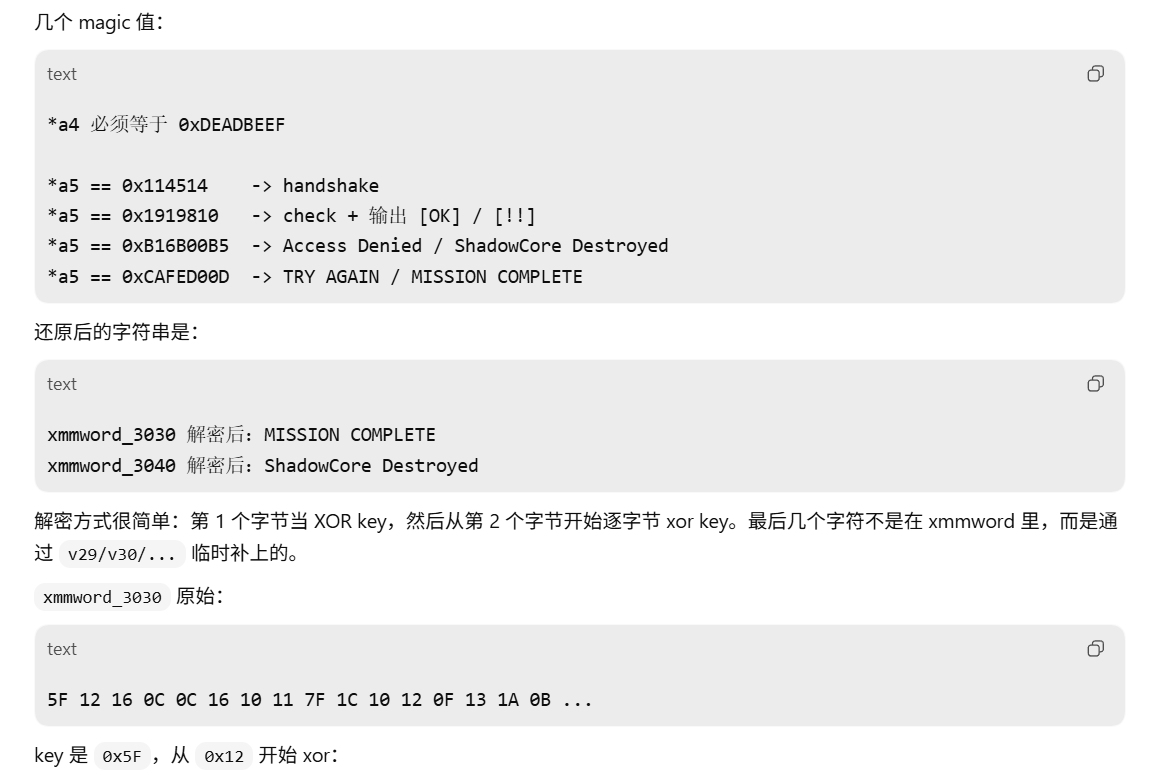

代码直接让ai分析，可以分析得到一些结果

![](upload/attach/202604/919002_DDQ3QQXY2C85MKT.png)

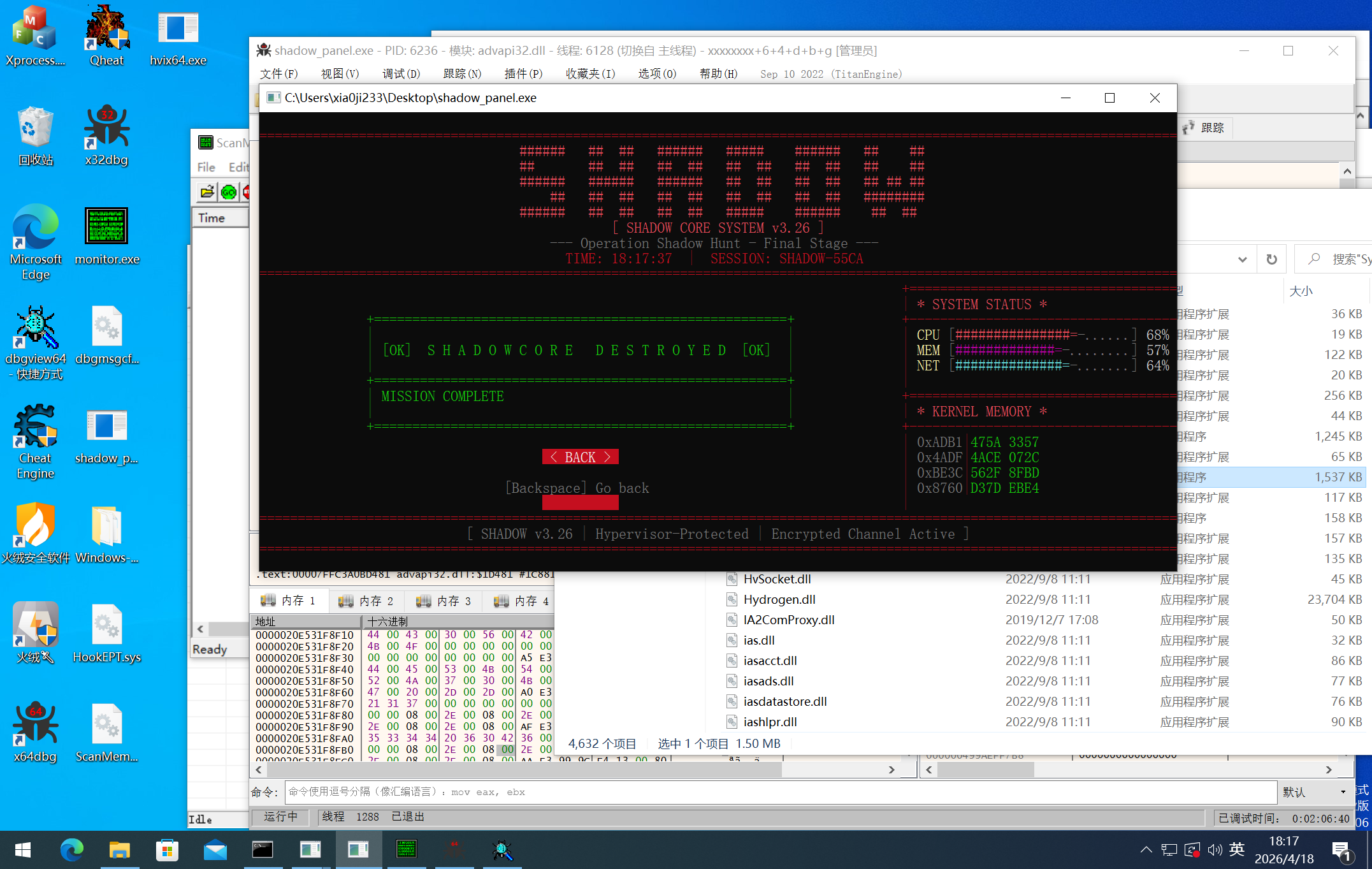

也是终于看到了验证成功的输出。

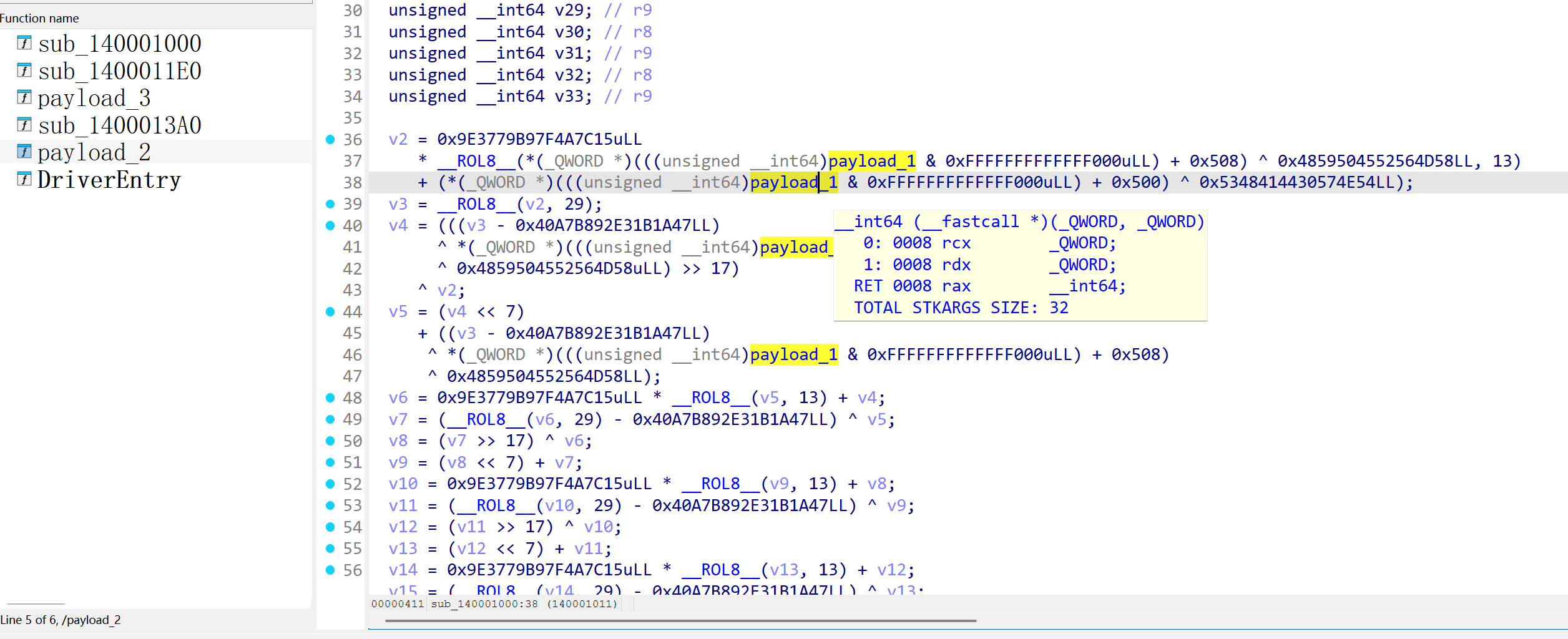

随后发现，dump的页面中存在 `payload.sys` 字符，那么无疑是驱动里面应该是释放了一个 PE 文件，找PE标志位，发现 `14000E630` 是一个 `PE loader`，下断，dump，拿到完整 PE 文件。

![](upload/attach/202604/919002_W9N9WJJGXEXFDKD.png)

这个注册机判定比较简单，基本就是直接算出明文去比对的，借助一下ai的神力，得到keygen。

```python
MASK = 0xFFFFFFFFFFFFFFFF

K = 0x9E3779B97F4A7C15
A = 0x5348414430574E54
B = 0x4859504552564D58
C = 0x40A7B892E31B1A47

def rol64(x, n):
    x &= MASK
    return ((x << n) | (x >> (64 - n))) & MASK

def keygen(seed16: bytes):
    assert len(seed16) == 16

seed0 = int.from_bytes(seed16[0:8], "little")
    seed1 = int.from_bytes(seed16[8:16], "little")

x = seed0 ^ A
    y = seed1 ^ B

for _ in range(8):
        x = (x + K * rol64(y, 13)) & MASK
        y = ((rol64(x, 29) - C) & MASK) ^ y
        y &= MASK
        x = (x ^ (y >> 17)) & MASK
        y = (y + ((x << 7) & MASK)) & MASK

return x, y

seed = bytes.fromhex("") # 16 bytes memory
key0, key1 = keygen(seed)
print(f"{key0:016x}{key1:016x}".upper())
```

现在最主要的是 payload1的地址不知道如何获取，陷入了僵局，只要拿到这 16 字节的数据，就可以完美还原出 `key`。

几经辗转还是认为特征码的判断这边有大说法，最后也认定了，AI 给的特征码是判断 NT 的结论是错误的，因为 NT 就在内存中，没必要通过 `vmhd` 设备去读物理内存再去比较特征码，经过一些资料的查找，最终认定关键文件 `hvix64.exe`，这个是 `hyper-v` 的关键文件。

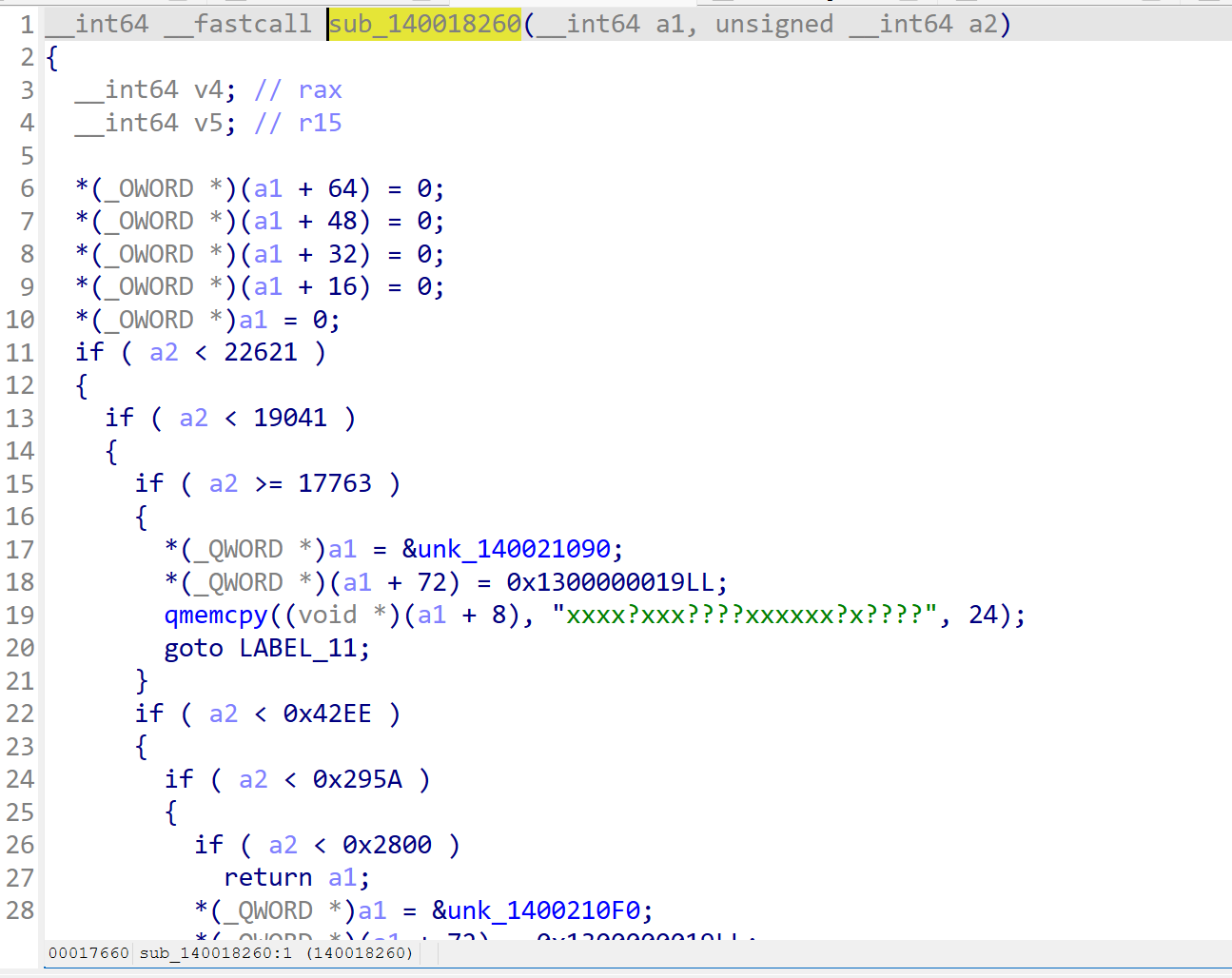

特征码函数 `sub_140018260`：

![](upload/attach/202604/919002_46SQUQTAKGD3JFD.png)

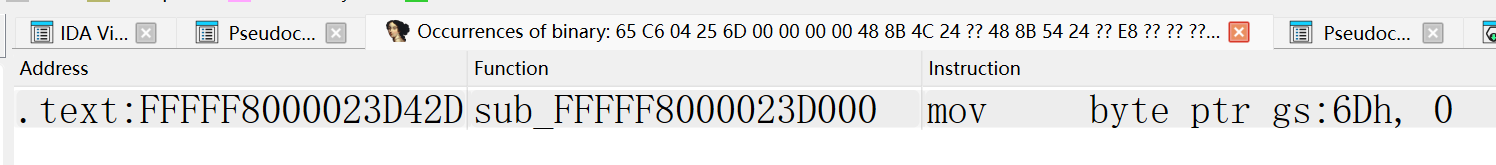

根据对自己虚拟机的windows版本判断，最终可以扫描序列 `65 C6 04 25 6D 00 00 00 00 48 8B 4C 24 ?? 48 8B 54 24 ?? E8 ?? ?? ?? ?? E9` 得到一个结果。

![](upload/attach/202604/919002_MBXCYR8CH8RNJZN.png)

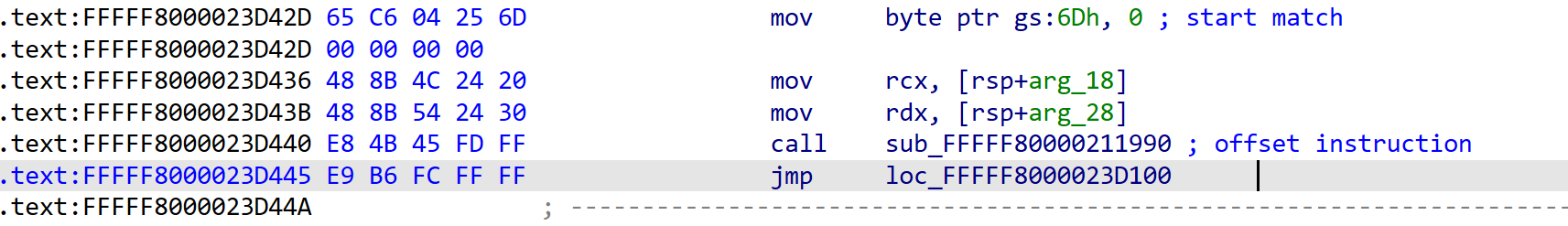

找到结果，它的 SIG 扫描传了一个 `len` 一个 `offset`，我系统的分支中，`len` 和 `offset` 分别是  `0x1D` 和 `0x13`，刚好对应了一个 CALL 的指令，如图所示

![](upload/attach/202604/919002_K586Q9MZE37XHQJ.png)

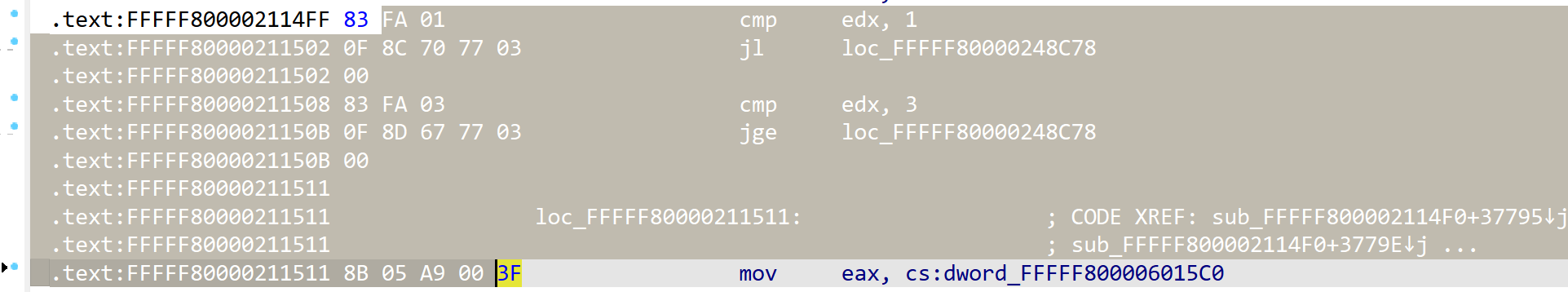

最终经过一些尝试，在 `call` 指向的内存就是 `payload1` 的值。

![](upload/attach/202604/919002_NVZMQDYYH3GSERR.png)

如图选中的就是 keygen 所需的内存。

```python
MASK = 0xFFFFFFFFFFFFFFFF

K = 0x9E3779B97F4A7C15
A = 0x5348414430574E54
B = 0x4859504552564D58
C = 0x40A7B892E31B1A47

def rol64(x, n):
    x &= MASK
    return ((x << n) | (x >> (64 - n))) & MASK

def keygen(seed16: bytes):
    assert len(seed16) == 16

seed0 = int.from_bytes(seed16[0:8], "little")
    seed1 = int.from_bytes(seed16[8:16], "little")

x = seed0 ^ A
    y = seed1 ^ B

return x, y

seed = bytes.fromhex("FA 01 0F 8C 70 77 03 00 83 FA 03 0F 8D 67 77 03")
key0, key1 = keygen(seed)
print(f"{key0:016x}{key1:016x}".upper())
# 89EB8A97F689F19012FFA10AFB37791A
```

该 Key 就是对应我系统上正确的 Key 了。

![](upload/attach/202604/919002_NYRTS5TW94WCVCD.png)

### 隐藏流程总结

上述分析的流程比较杂乱，因为是边调边写的，这里做一个完整的总结。

- exe 首先通过 `CPUID` 检查运行环境是否满足要求（需要 `Hyper-V`），随后将驱动释放到 `C:\Windows\System32\` 下并随机命名加载。驱动加载后会立即删除服务和驱动文件，因此磁盘上很难留下稳定文件名。
- 驱动层基本没有正常导入表，主要通过 `FNV-1a hash` 动态解析内核 API，包括后续访问设备栈和物理内存相关的关键 API。
- 程序创建/挂载一个 VHD，使系统产生 `vhdmp -> disk` 设备栈。这个 VHD 本身内容几乎为空，更像是为了得到一条可控的存储设备路径。
- 驱动找到 `vhdmp/disk` 相关设备对象后，通过 `IoBuildDeviceIoControlRequest` 构造 `IOCTL_SCSI_PASS_THROUGH_DIRECT` 请求，并通过 `IofCallDriver` 将 IRP 发送到磁盘设备栈中。该请求内部使用 `SCSI READ(10) / WRITE(10)`，以 4KB 页面为单位对目标页面进行读写/触发。
- 在页面读写和地址转换过程中，驱动还会使用 `MmMapIoSpace` 将物理地址映射到内核虚拟地址空间，从而读取或修改对应页面内容。结合 `vhdmp/disk` 路径，这部分效果上类似绕过普通 guest 视角去访问 Hyper-V 相关内存，因为 `hvix64.exe` / `hvax64.exe` 对普通 guest 调试视角并不可见，Windbg 也无法读相关的内存。
- 驱动根据 CPU 厂商选择目标模块：Intel 对应 `hvix64.exe`，AMD 对应 `hvax64.exe`。随后根据系统 build 选择对应特征码，在目标模块中匹配 VM-exit 路径附近的 call site。例如在 `hvix64.exe 10.0.19041.2006` 中，特征命中 `hvix64+0x23D42D`，描述符 offset 为 `0x13`，最终定位到 `hvix64+0x23D440` 这条 `call` 指令。
- 驱动会解析该 `call rel32`，得到原始目标函数地址，并结合已经编译好的 `payload.sys` 导出表，把原 handler、payload handler 以及若干偏移写入 payload 的 `.bss` 数据槽中。其中 ordinal 1 对应 `payload+0x4080`，用于保存原始处理路径，payload 在不处理的 VM-exit 上会跳回该地址。
- 完成上述准备后，驱动通过页面级替换/EPT hook 一类方式将 Hyper-V 的 CPUID VM-exit 处理路径接到 payload 中。驱动自身随后退出，但 Hyper-V 层的 CPUID handler 已经被 payload 接管。

以上就是关于隐藏代码的具体方式。

### Key流程分析

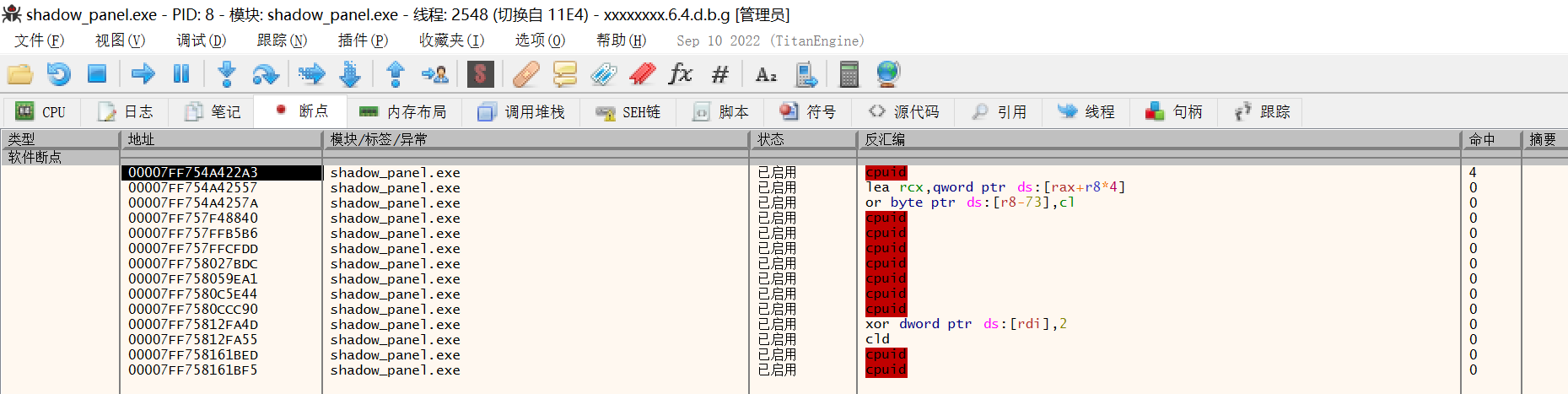

首先在应用层通过 `search pattern` 给所有可能的 `CPUID` 指令下断点，定位关键校验位置。

![](upload/attach/202604/919002_T2XGKTBUM4SCN4X.png)

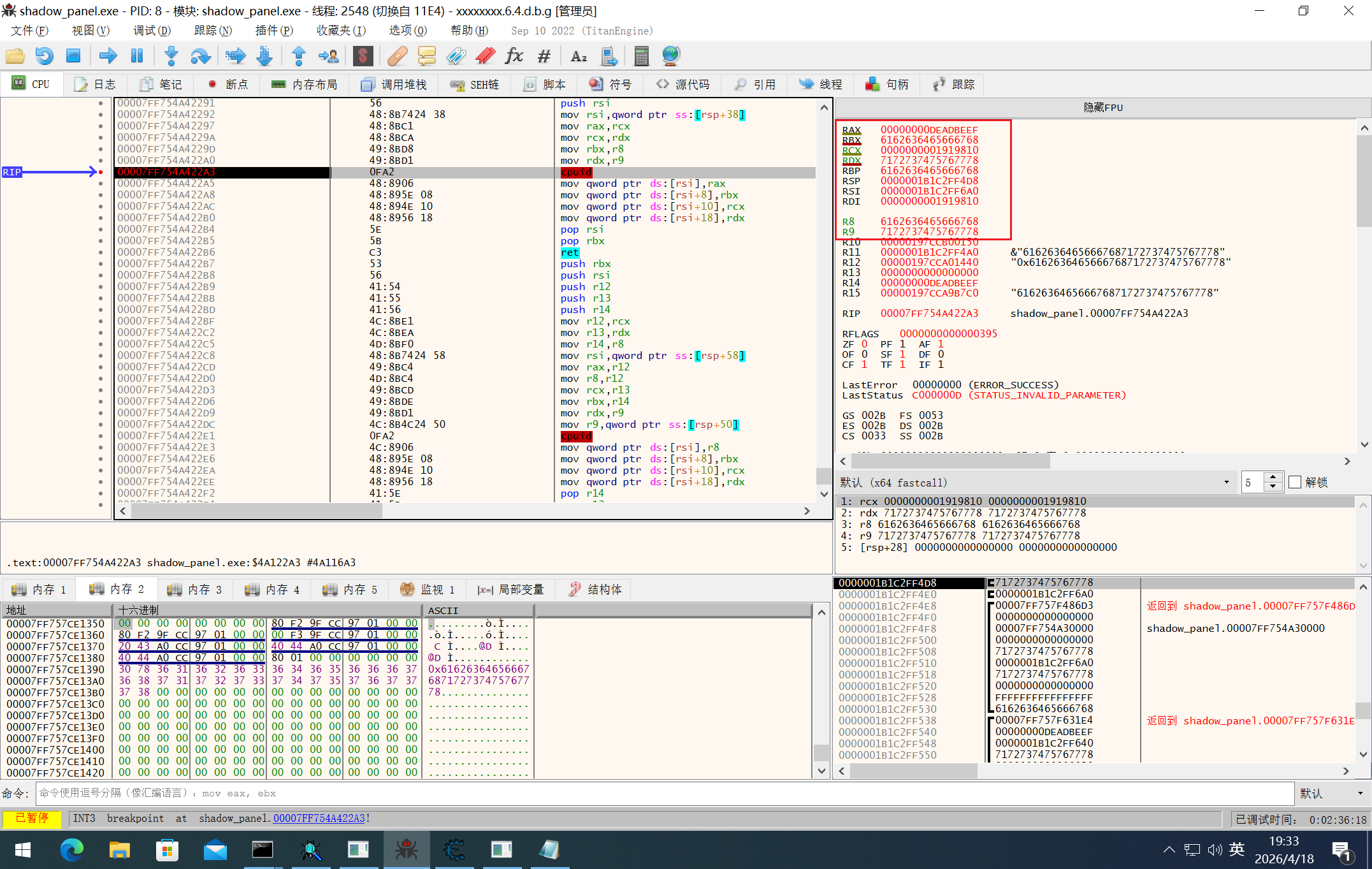

输入 `0x61626364656667687172737475767778`，观察断点处的寄存器上下文。

![](upload/attach/202604/919002_TZA5ETUHWGGMHB3.png)

此时大概可以猜出它的数据传递方式：

- `RAX` 放 `Magic Number 0xDEADBEEF`，用于让 Hyper-V 层的 payload 判断这是题目的私有 CPUID 通信请求。
- `RBX` 放 flag 前 16 位 hex。
- `RDX` 放 flag 后 16 位 hex。
- `RCX` 放另一个 `Magic Number`，作为命令控制码。

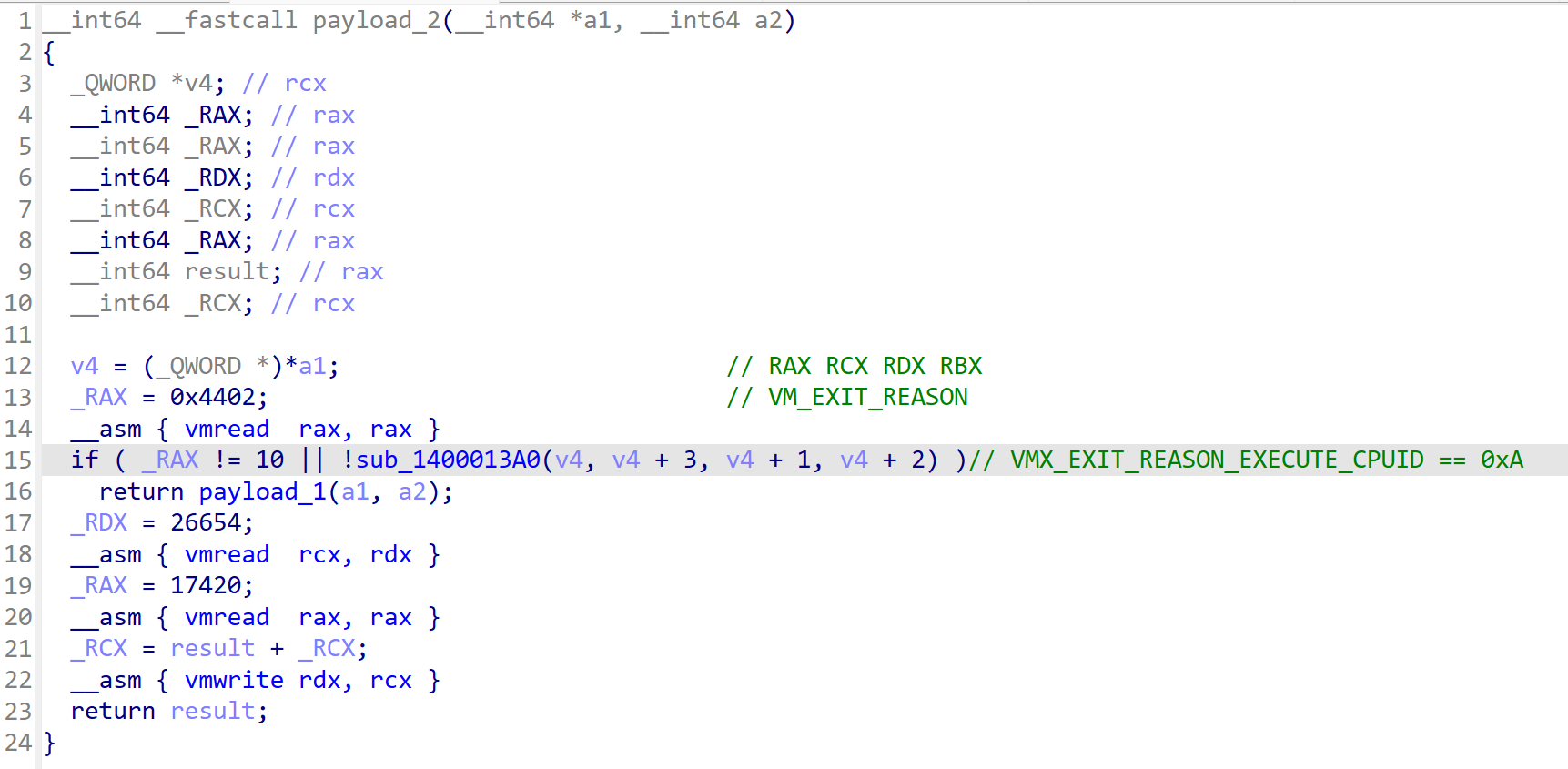

在 `payload.sys` 中可以找到对应 hook 的 VM-exit handler。

![](upload/attach/202604/919002_YYJMGWCH3G55VT4.png)

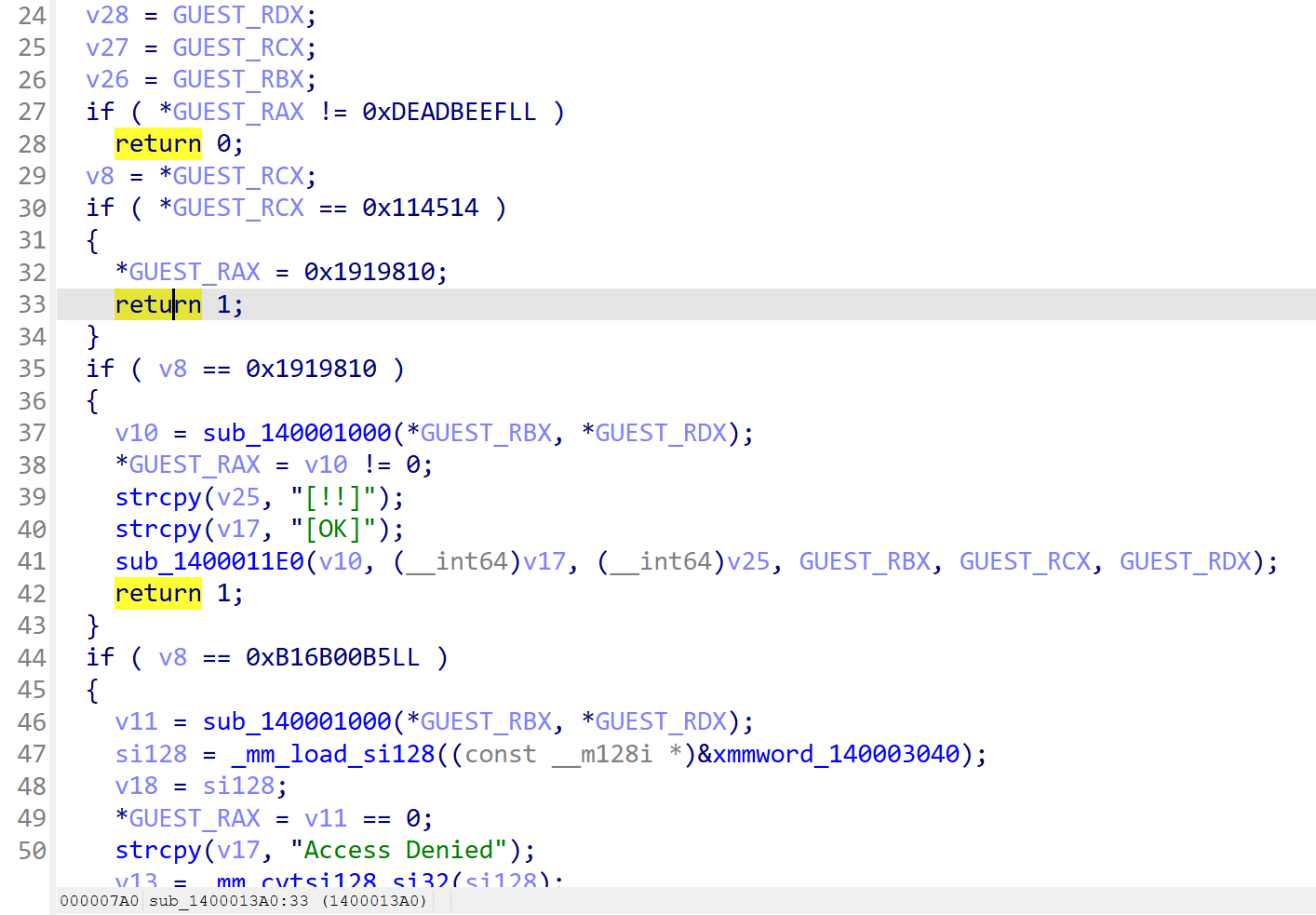

继续查看处理函数，通信逻辑会更加清楚。

![](upload/attach/202604/919002_8YKK3HKZRQQMF8F.png)

由此可以得出结论：

- payload 只额外处理 `RAX = 0xDEADBEEF` 的 `CPUID` VM-exit，其余 CPUID 或其它 VM-exit 一律转发给原来的 Hyper-V handler。
- `RCX` 作为命令控制码，处理四种命令：
  - `0x114514`：握手命令，不校验 flag，将 `GUEST_RAX` 设置为 `0x1919810` 后返回。
  - `0x1919810`：校验 flag 正确性，根据结果生成小 banner。
  - `0xB16B00B5`：校验 flag 正确性，根据结果生成剧情相关提示文字（核心被摧毁 / 访问拒绝）。
  - `0xCAFED00D`：校验 flag 正确性，根据结果生成最终提示文字（当前阶段成功 / 再次尝试）。
- 提示性文字会按顺序写回到 `RBX, RCX, RDX` 中。
- `sub_140001000` 是 flag 判断的关键校验函数。

flag 校验和 CPUID 通信逻辑至此分析完毕。

## (5) 编写正确的 KeyGen

将上面手动分析出的流程用代码实现即可。需要注意的是，seed 来自 Hyper-V 原 handler 所在页的固定偏移，因此需要根据 CPU 厂商区分目标模块：

- Intel 平台对应 `hvix64.exe`
- AMD 平台对应 `hvax64.exe`

驱动根据系统版本选择对应特征码，定位 Hyper-V 中的目标 call site，再解析原 handler 地址。`sub_140001000` 会取该地址所在页的 `+0x500` 和 `+0x508` 两个 qword 作为 seed，经过 8 轮 64 位混合运算后得到最终需要传入的两个 64 位值。

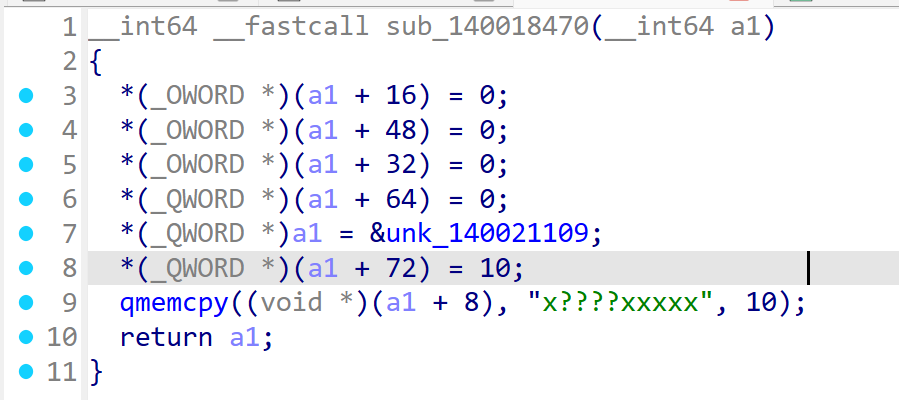

因为我的主机是 `Intel` 的，所以 `Intel` 的分支不需要重复分析，唯一需要找一下 `AMD` 的，经过寻找找到了对应的逻辑。

![](upload/attach/202604/919002_7AM65YNFH6PQ6HW.png)

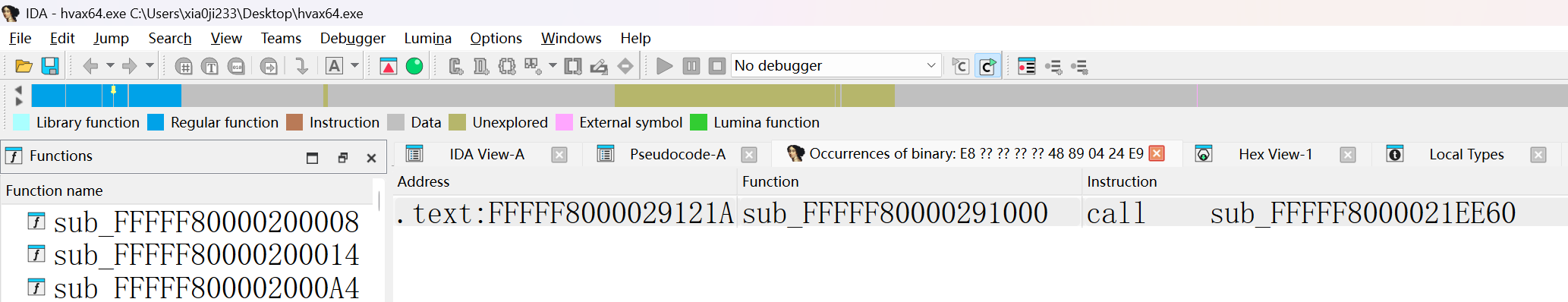

根据代码产生的特征码应该是 `E8 ?? ?? ?? ?? 48 89 04 24 E9`，可以在虚拟机对应的版本找到唯一的匹配。

![](upload/attach/202604/919002_SRNKVFFFZZMDBZJ.png)

`AMD` 平台似乎没有对于 `Build Number` 的判断，尝试一下本机（`Win11 25H2`）能否命中，经过检测发现也是可以的，看来逻辑就是这样了。

那么据此写出全平台通用 `Keygen`：

```C++
#define WIN32_LEAN_AND_MEAN
#include <windows.h>
#include <stdint.h>
#include <stdio.h>
#include <stdlib.h>
#include <string.h>
#include <ctype.h>

#define MASK_PAGE 0xFFFFF000u

typedef struct {
    const char* name;
    DWORD min_build;
    const unsigned char* pattern;
    const char* mask;
    DWORD length;
    DWORD call_offset;
} SIGNATURE;

typedef struct {
    DWORD va;
    DWORD vsize;
    DWORD raw;
    DWORD raw_size;
} PE_SECTION;

typedef struct {
    unsigned char* data;
    DWORD size;
    uint64_t image_base;
    PE_SECTION* sections;
    WORD section_count;
} PE_IMAGE;

typedef struct {
    int has_cpu;
    int is_intel;
    int has_build;
    DWORD build;
    const char* file_path;
} OPTIONS;

static const unsigned char kIntel22621[] = {
    0x66, 0x83, 0xFE, 0x01, 0x75, 0x0A, 0xE8, 0x00,
    0x00, 0x00, 0x00, 0x48, 0x8B, 0x4C, 0x24, 0x00,
    0xFB, 0x8B, 0xD6, 0x0B, 0x54, 0x24, 0x00, 0xE8,
    0x00, 0x00, 0x00, 0x00, 0xE9
};

static const unsigned char kIntel19041[] = {
    0x65, 0xC6, 0x04, 0x25, 0x6D, 0x00, 0x00, 0x00,
    0x00, 0x48, 0x8B, 0x4C, 0x24, 0x00, 0x48, 0x8B,
    0x54, 0x24, 0x00, 0xE8, 0x00, 0x00, 0x00, 0x00,
    0xE9
};

static const unsigned char kIntel17763[] = {
    0x48, 0x8B, 0x4C, 0x24, 0x00, 0xEB, 0x07, 0xE8,
    0x00, 0x00, 0x00, 0x00, 0xEB, 0xF2, 0x48, 0x8B,
    0x54, 0x24, 0x00, 0xE8, 0x00, 0x00, 0x00, 0x00,
    0xE9
};

static const unsigned char kIntel17134[] = {
    0xF2, 0x80, 0x3D, 0xFC, 0x12, 0x46, 0x00, 0x00,
    0x0F, 0x84, 0x00, 0x00, 0x00, 0x00, 0x48, 0x8B,
    0x54, 0x24, 0x00, 0xE8, 0x00, 0x00, 0x00, 0x00,
    0xE9
};

static const unsigned char kIntel10586[] = {
    0xD0, 0x80, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
    0x0F, 0x84, 0x00, 0x00, 0x00, 0x00, 0x48, 0x8B,
    0x54, 0x24, 0x00, 0xE8, 0x00, 0x00, 0x00, 0x00,
    0xE9
};

static const unsigned char kIntel10240[] = {
    0x60, 0xC0, 0x0F, 0x29, 0x68, 0xD0, 0x80, 0x3D,
    0x7E, 0xAF, 0x49, 0x00, 0x01, 0x0F, 0x84, 0x00,
    0x00, 0x00, 0x00, 0xE8, 0x00, 0x00, 0x00, 0x00,
    0xE9
};

static const unsigned char kAmdFixed[] = {
    0xE8, 0x00, 0x00, 0x00, 0x00, 0x48, 0x89, 0x04, 0x24, 0xE9
};

static const SIGNATURE kIntelSignatures[] = {
    { "intel_ge_22621", 22621, kIntel22621, "xxxxxxx????xxxx?xxxxxx?x????x", sizeof(kIntel22621), 0x17 },
    { "intel_ge_19041", 19041, kIntel19041, "xxxxxxxxxxxxx?xxxx?x????x", sizeof(kIntel19041), 0x13 },
    { "intel_ge_17763", 17763, kIntel17763, "xxxx?xxx????xxxxxx?x????x", sizeof(kIntel17763), 0x13 },
    { "intel_ge_17134", 17134, kIntel17134, "xxxxxxx?xx????xxxx?x????x", sizeof(kIntel17134), 0x13 },
    { "intel_ge_10586", 10586, kIntel10586, "xx????x?xx????xxxx?x????x", sizeof(kIntel10586), 0x13 },
    { "intel_ge_10240", 10240, kIntel10240, "xxxxxxxxxxxxxxx????x????x", sizeof(kIntel10240), 0x13 },
};

static const SIGNATURE kAmdSignature = {
    "amd_fixed", 0, kAmdFixed, "x????xxxxx", sizeof(kAmdFixed), 0x00
};

static uint64_t rol64(uint64_t value, unsigned int bits) {
    return (value << bits) | (value >> (64 - bits));
}

static void calc_key(uint64_t q500, uint64_t q508, uint64_t* key1, uint64_t* key2) {
    uint64_t x = q500 ^ 0x5348414430574E54ULL;
    uint64_t y = q508 ^ 0x4859504552564D58ULL;

for (int i = 0; i < 8; ++i) {
        x = x + 0x9E3779B97F4A7C15ULL * rol64(y, 13);
        y = (rol64(x, 29) - 0x40A7B892E31B1A47ULL) ^ y;
        x = x ^ (y >> 17);
        y = y + (x << 7);
    }

*key1 = x;
    *key2 = y;
}

static void print_le64(uint64_t value) {
    for (int i = 0; i < 8; ++i) {
        printf("%02X", (unsigned int)((value >> (8 * i)) & 0xFF));
    }
}

static void print_hex64(uint64_t value) {
    printf("%08lX%08lX",
        (unsigned long)((value >> 32) & 0xFFFFFFFFu),
        (unsigned long)(value & 0xFFFFFFFFu));
}

static int contains_ci(const char* s, const char* needle) {
    size_t nlen = strlen(needle);
    if (nlen == 0) {
        return 1;
    }

for (; *s; ++s) {
        size_t i = 0;
        while (i < nlen && s[i] &&
            tolower((unsigned char)s[i]) == tolower((unsigned char)needle[i])) {
            ++i;
        }
        if (i == nlen) {
            return 1;
        }
    }

return 0;
}

static int equals_ci(const char* a, const char* b) {
    while (*a && *b) {
        if (tolower((unsigned char)*a) != tolower((unsigned char)*b)) {
            return 0;
        }
        ++a;
        ++b;
    }

return *a == 0 && *b == 0;
}

static void print_usage(const char* program) {
    printf("Usage: %s [--cpu intel|amd] [--build number] [--file path]\n", program);
    printf("       %s [-c intel|amd] [-b number] [-f path]\n", program);
    printf("\n");
    printf("No arguments: detect current CPU, current Windows build, and System32 hvix64/hvax64 automatically.\n");
    printf("Supported by challenge scope: Intel build 10240..22631, AMD build 10240..19041.\n");
}

static int parse_options(int argc, char** argv, OPTIONS* options) {
    memset(options, 0, sizeof(*options));

for (int i = 1; i < argc; ++i) {
        const char* arg = argv[i];

if (equals_ci(arg, "--help") || equals_ci(arg, "-h") || equals_ci(arg, "/?")) {
            print_usage(argv[0]);
            exit(0);
        }
        else if (equals_ci(arg, "--cpu") || equals_ci(arg, "-c")) {
            const char* value = NULL;
            if (++i >= argc) {
                fprintf(stderr, "missing value for %s\n", arg);
                return 0;
            }
            value = argv[i];
            if (equals_ci(value, "intel")) {
                options->has_cpu = 1;
                options->is_intel = 1;
            }
            else if (equals_ci(value, "amd")) {
                options->has_cpu = 1;
                options->is_intel = 0;
            }
            else {
                fprintf(stderr, "invalid CPU type: %s\n", value);
                return 0;
            }
        }
        else if (equals_ci(arg, "--build") || equals_ci(arg, "-b")) {
            char* end = NULL;
            unsigned long value = 0;
            if (++i >= argc) {
                fprintf(stderr, "missing value for %s\n", arg);
                return 0;
            }
            value = strtoul(argv[i], &end, 10);
            if (!end || *end != 0 || value == 0 || value > 0xFFFFFFFFul) {
                fprintf(stderr, "invalid build number: %s\n", argv[i]);
                return 0;
            }
            options->has_build = 1;
            options->build = (DWORD)value;
        }
        else if (equals_ci(arg, "--file") || equals_ci(arg, "-f")) {
            if (++i >= argc) {
                fprintf(stderr, "missing value for %s\n", arg);
                return 0;
            }
            options->file_path = argv[i];
        }
        else {
            fprintf(stderr, "unknown argument: %s\n", arg);
            print_usage(argv[0]);
            return 0;
        }
    }

return 1;
}

static int get_cpu_vendor(char* vendor, DWORD vendor_size, int* is_intel) {
    HKEY key = NULL;
    DWORD type = 0;
    DWORD size = vendor_size;

vendor[0] = 0;
    *is_intel = -1;

if (RegOpenKeyExA(HKEY_LOCAL_MACHINE,
        "HARDWARE\\DESCRIPTION\\System\\CentralProcessor\\0",
        0, KEY_READ, &key) != ERROR_SUCCESS) {
        return 0;
    }

if (RegQueryValueExA(key, "VendorIdentifier", NULL, &type, (LPBYTE)vendor, &size) != ERROR_SUCCESS ||
        type != REG_SZ) {
        RegCloseKey(key);
        return 0;
    }

RegCloseKey(key);

if (contains_ci(vendor, "GenuineIntel")) {
        *is_intel = 1;
    }
    else if (contains_ci(vendor, "AuthenticAMD")) {
        *is_intel = 0;
    }

return *is_intel != -1;
}

static DWORD get_current_build(void) {
    HKEY key = NULL;
    char value[64];
    DWORD type = 0;
    DWORD size = sizeof(value);
    DWORD build = 0;

if (RegOpenKeyExA(HKEY_LOCAL_MACHINE,
        "SOFTWARE\\Microsoft\\Windows NT\\CurrentVersion",
        0, KEY_READ, &key) != ERROR_SUCCESS) {
        return 0;
    }

if (RegQueryValueExA(key, "CurrentBuild", NULL, &type, (LPBYTE)value, &size) == ERROR_SUCCESS &&
        type == REG_SZ) {
        build = (DWORD)strtoul(value, NULL, 10);
    }

if (build == 0) {
        size = sizeof(value);
        if (RegQueryValueExA(key, "CurrentBuildNumber", NULL, &type, (LPBYTE)value, &size) == ERROR_SUCCESS &&
            type == REG_SZ) {
            build = (DWORD)strtoul(value, NULL, 10);
        }
    }

RegCloseKey(key);
    return build;
}

static int find_hyperv_file(int is_intel, char* path, DWORD path_size) {
    char windows_dir[MAX_PATH];
    const char* filename = is_intel ? "hvix64.exe" : "hvax64.exe";

if (!GetWindowsDirectoryA(windows_dir, sizeof(windows_dir))) {
        return 0;
    }

_snprintf_s(path, path_size, _TRUNCATE, "%s\\Sysnative\\%s", windows_dir, filename);
    if (GetFileAttributesA(path) != INVALID_FILE_ATTRIBUTES) {
        return 1;
    }

_snprintf_s(path, path_size, _TRUNCATE, "%s\\System32\\%s", windows_dir, filename);
    if (GetFileAttributesA(path) != INVALID_FILE_ATTRIBUTES) {
        return 1;
    }

return 0;
}

static int read_file_all(const char* path, unsigned char** data, DWORD* size) {
    HANDLE file = INVALID_HANDLE_VALUE;
    LARGE_INTEGER file_size;
    unsigned char* buffer = NULL;
    DWORD total = 0;

*data = NULL;
    *size = 0;

file = CreateFileA(path, GENERIC_READ,
        FILE_SHARE_READ | FILE_SHARE_WRITE | FILE_SHARE_DELETE,
        NULL, OPEN_EXISTING, FILE_ATTRIBUTE_NORMAL, NULL);
    if (file == INVALID_HANDLE_VALUE) {
        return 0;
    }

if (!GetFileSizeEx(file, &file_size) || file_size.QuadPart <= 0 || file_size.QuadPart > 0x7FFFFFFF) {
        CloseHandle(file);
        return 0;
    }

buffer = (unsigned char*)malloc((size_t)file_size.QuadPart);
    if (!buffer) {
        CloseHandle(file);
        return 0;
    }

while (total < (DWORD)file_size.QuadPart) {
        DWORD got = 0;
        DWORD want = (DWORD)file_size.QuadPart - total;
        if (!ReadFile(file, buffer + total, want, &got, NULL) || got == 0) {
            free(buffer);
            CloseHandle(file);
            return 0;
        }
        total += got;
    }

CloseHandle(file);
    *data = buffer;
    *size = total;
    return 1;
}

static int parse_pe(PE_IMAGE* pe, const char* path) {
    IMAGE_DOS_HEADER* dos = NULL;
    IMAGE_NT_HEADERS64* nt64 = NULL;
    IMAGE_FILE_HEADER* file = NULL;
    IMAGE_SECTION_HEADER* sec = NULL;
    DWORD nt_off = 0;

memset(pe, 0, sizeof(*pe));

if (!read_file_all(path, &pe->data, &pe->size)) {
        return 0;
    }

if (pe->size < sizeof(IMAGE_DOS_HEADER)) {
        return 0;
    }

dos = (IMAGE_DOS_HEADER*)pe->data;
    if (dos->e_magic != IMAGE_DOS_SIGNATURE || dos->e_lfanew <= 0) {
        return 0;
    }

nt_off = (DWORD)dos->e_lfanew;
    if (nt_off + sizeof(DWORD) + sizeof(IMAGE_FILE_HEADER) > pe->size) {
        return 0;
    }

nt64 = (IMAGE_NT_HEADERS64*)(pe->data + nt_off);
    if (nt64->Signature != IMAGE_NT_SIGNATURE) {
        return 0;
    }

file = &nt64->FileHeader;
    if (nt_off + sizeof(DWORD) + sizeof(IMAGE_FILE_HEADER) + file->SizeOfOptionalHeader > pe->size) {
        return 0;
    }

if (nt64->OptionalHeader.Magic == IMAGE_NT_OPTIONAL_HDR64_MAGIC) {
        pe->image_base = nt64->OptionalHeader.ImageBase;
    }
    else if (nt64->OptionalHeader.Magic == IMAGE_NT_OPTIONAL_HDR32_MAGIC) {
        IMAGE_NT_HEADERS32* nt32 = (IMAGE_NT_HEADERS32*)(pe->data + nt_off);
        pe->image_base = nt32->OptionalHeader.ImageBase;
    }
    else {
        return 0;
    }

pe->section_count = file->NumberOfSections;
    pe->sections = (PE_SECTION*)calloc(pe->section_count, sizeof(PE_SECTION));
    if (!pe->sections) {
        return 0;
    }

sec = (IMAGE_SECTION_HEADER*)((unsigned char*)&nt64->OptionalHeader + file->SizeOfOptionalHeader);
    if ((unsigned char*)(sec + pe->section_count) > pe->data + pe->size) {
        return 0;
    }

for (WORD i = 0; i < pe->section_count; ++i) {
        pe->sections[i].va = sec[i].VirtualAddress;
        pe->sections[i].vsize = sec[i].Misc.VirtualSize;
        pe->sections[i].raw = sec[i].PointerToRawData;
        pe->sections[i].raw_size = sec[i].SizeOfRawData;
    }

return 1;
}

static void free_pe(PE_IMAGE* pe) {
    free(pe->sections);
    free(pe->data);
    memset(pe, 0, sizeof(*pe));
}

static int raw_to_rva(const PE_IMAGE* pe, DWORD raw, DWORD* rva) {
    for (WORD i = 0; i < pe->section_count; ++i) {
        const PE_SECTION* s = &pe->sections[i];
        if (s->raw_size == 0) {
            continue;
        }
        if (raw >= s->raw && raw < s->raw + s->raw_size) {
            *rva = s->va + (raw - s->raw);
            return 1;
        }
    }

return 0;
}

static int rva_to_raw(const PE_IMAGE* pe, DWORD rva, DWORD* raw) {
    for (WORD i = 0; i < pe->section_count; ++i) {
        const PE_SECTION* s = &pe->sections[i];
        DWORD span = s->vsize > s->raw_size ? s->vsize : s->raw_size;
        if (span == 0) {
            continue;
        }
        if (rva >= s->va && rva < s->va + span) {
            DWORD candidate = s->raw + (rva - s->va);
            if (candidate >= pe->size) {
                return 0;
            }
            *raw = candidate;
            return 1;
        }
    }

return 0;
}

static int read_u64_rva(const PE_IMAGE* pe, DWORD rva, uint64_t* value) {
    DWORD raw = 0;
    if (!rva_to_raw(pe, rva, &raw) || raw + sizeof(uint64_t) > pe->size) {
        return 0;
    }

memcpy(value, pe->data + raw, sizeof(uint64_t));
    return 1;
}

static const SIGNATURE* choose_signature(int is_intel, DWORD build) {
    if (!is_intel) {
        if (build < 10240 || build > 19041) {
            return NULL;
        }
        return &kAmdSignature;
    }

if (build < 10240 || build > 22631) {
        return NULL;
    }

for (size_t i = 0; i < sizeof(kIntelSignatures) / sizeof(kIntelSignatures[0]); ++i) {
        if (build >= kIntelSignatures[i].min_build) {
            return &kIntelSignatures[i];
        }
    }

return NULL;
}

static int match_at(const unsigned char* data, DWORD pos, const SIGNATURE* sig) {
    for (DWORD i = 0; i < sig->length; ++i) {
        if (sig->mask[i] == 'x' && data[pos + i] != sig->pattern[i]) {
            return 0;
        }
    }

return 1;
}

static DWORD find_signature_hits(const PE_IMAGE* pe, const SIGNATURE* sig, DWORD* first_hit) {
    DWORD hits = 0;
    *first_hit = 0;

if (pe->size < sig->length) {
        return 0;
    }

for (DWORD pos = 0; pos <= pe->size - sig->length; ++pos) {
        if (match_at(pe->data, pos, sig)) {
            if (hits == 0) {
                *first_hit = pos;
            }
            ++hits;
        }
    }

return hits;
}

int main(int argc, char** argv) {
    OPTIONS options;
    char vendor[128];
    char path[MAX_PATH];
    DWORD build = 0;
    int is_intel = -1;
    PE_IMAGE pe;
    const SIGNATURE* sig = NULL;
    DWORD match_raw = 0;
    DWORD hits = 0;
    DWORD match_rva = 0;
    DWORD call_site_raw = 0;
    DWORD call_site_rva = 0;
    int32_t rel32 = 0;
    DWORD handler_rva = 0;
    DWORD seed_page_rva = 0;
    DWORD q500_rva = 0;
    DWORD q508_rva = 0;
    uint64_t q500 = 0;
    uint64_t q508 = 0;
    uint64_t key1 = 0;
    uint64_t key2 = 0;

if (!parse_options(argc, argv, &options)) {
        return 1;
    }

vendor[0] = 0;
    path[0] = 0;

if (options.has_cpu) {
        is_intel = options.is_intel;
        strcpy_s(vendor, sizeof(vendor), is_intel ? "manual:intel" : "manual:amd");
    }
    else if (!get_cpu_vendor(vendor, sizeof(vendor), &is_intel)) {
        fprintf(stderr, "failed to detect CPU vendor\n");
        return 1;
    }

build = options.has_build ? options.build : get_current_build();
    if (build == 0) {
        fprintf(stderr, "failed to read Windows build number\n");
        return 1;
    }

if (options.file_path) {
        strcpy_s(path, sizeof(path), options.file_path);
    }
    else if (!find_hyperv_file(is_intel, path, sizeof(path))) {
        fprintf(stderr, "failed to find %s in Windows system directory\n", is_intel ? "hvix64.exe" : "hvax64.exe");
        return 1;
    }

sig = choose_signature(is_intel, build);
    if (!sig) {
        if (is_intel) {
            fprintf(stderr, "unsupported Intel Windows build: %lu, expected 10240..22631\n", (unsigned long)build);
        }
        else {
            fprintf(stderr, "unsupported AMD Windows build: %lu, expected 10240..19041\n", (unsigned long)build);
        }
        return 1;
    }

if (!parse_pe(&pe, path)) {
        fprintf(stderr, "failed to parse PE: %s\n", path);
        return 1;
    }

hits = find_signature_hits(&pe, sig, &match_raw);
    if (hits == 0) {
        fprintf(stderr, "signature not found: %s\n", sig->name);
        free_pe(&pe);
        return 1;
    }

call_site_raw = match_raw + sig->call_offset;
    if (call_site_raw + 5 > pe.size || pe.data[call_site_raw] != 0xE8) {
        fprintf(stderr, "selected call site is not E8\n");
        free_pe(&pe);
        return 1;
    }

if (!raw_to_rva(&pe, match_raw, &match_rva) || !raw_to_rva(&pe, call_site_raw, &call_site_rva)) {
        fprintf(stderr, "failed to convert raw offset to RVA\n");
        free_pe(&pe);
        return 1;
    }

memcpy(&rel32, pe.data + call_site_raw + 1, sizeof(rel32));
    handler_rva = call_site_rva + 5 + rel32;
    seed_page_rva = handler_rva & MASK_PAGE;
    q500_rva = seed_page_rva + 0x500;
    q508_rva = seed_page_rva + 0x508;

if (!read_u64_rva(&pe, q500_rva, &q500) || !read_u64_rva(&pe, q508_rva, &q508)) {
        fprintf(stderr, "failed to read seed qwords\n");
        free_pe(&pe);
        return 1;
    }

calc_key(q500, q508, &key1, &key2);

printf("cpu                 : %s\n", is_intel ? "intel" : "amd");
    printf("cpu vendor          : %s\n", vendor);
    if (build != 0) {
        printf("build               : %lu\n", (unsigned long)build);
    }
    printf("file                : %s\n", path);
    printf("signature           : %s\n", sig->name);
    printf("signature hits      : %lu (using index 0)\n", (unsigned long)hits);
    printf("match raw/rva/va    : 0x%lX / 0x%lX / 0x",
        (unsigned long)match_raw,
        (unsigned long)match_rva);
    print_hex64(pe.image_base + match_rva);
    printf("\n");
    printf("call site raw/rva/va: 0x%lX / 0x%lX / 0x",
        (unsigned long)call_site_raw,
        (unsigned long)call_site_rva);
    print_hex64(pe.image_base + call_site_rva);
    printf("\n");
    printf("call rel32          : 0x%08lX (%ld)\n",
        (unsigned long)((uint32_t)rel32),
        (long)rel32);
    printf("handler rva/va      : 0x%lX / 0x", (unsigned long)handler_rva);
    print_hex64(pe.image_base + handler_rva);
    printf("\n");
    printf("seed page rva/va    : 0x%lX / 0x", (unsigned long)seed_page_rva);
    print_hex64(pe.image_base + seed_page_rva);
    printf("\n");
    printf("q500 rva/va/value   : 0x%lX / 0x", (unsigned long)q500_rva);
    print_hex64(pe.image_base + q500_rva);
    printf(" / 0x");
    print_hex64(q500);
    printf("\n");
    printf("q508 rva/va/value   : 0x%lX / 0x", (unsigned long)q508_rva);
    print_hex64(pe.image_base + q508_rva);
    printf(" / 0x");
    print_hex64(q508);
    printf("\n");
    printf("key part1 (RBX)     : 0x");
    print_hex64(key1);
    printf("\n");
    printf("key part2 (RDX)     : 0x");
    print_hex64(key2);
    printf("\n");
    printf("key hex             : ");
    print_hex64(key1);
    print_hex64(key2);
    printf("\n");
    printf("key little-endian   : ");
    print_le64(key1);
    print_le64(key2);
    printf("\n");

free_pe(&pe);
    return 0;
}
```

## (3)检测hook方法

我想了几种方案

- cpuid 观察时间进行检测
- cpuid 观察协议进行检测
- 对设备进行检测
- 扫描物理内存进行检测

### R3检测方法

#### 时间检测

由于 hyperv 本质也是进行了一个hook，因此再次做 hook 比较时间差异不显著，而且因为系统机器的差异，我们所有的数据都只能从同一个环境获得。

在同样的环境，我们可以检测有控制码对应的分支和无控制码对应的分支，检测之间的比值是否低于正常值即可。

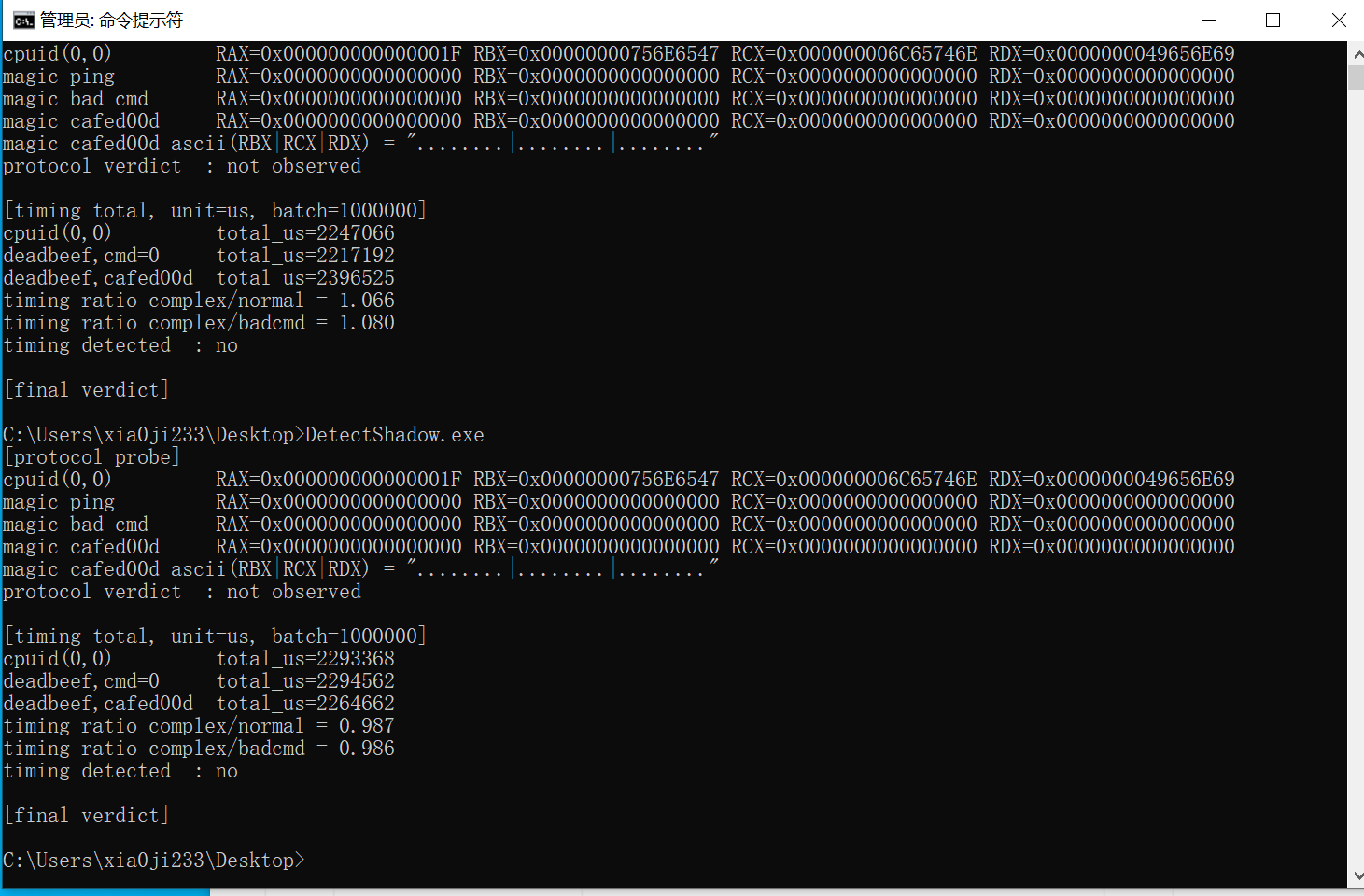

正常情况下，跑100w条 cpuid 指令，`cpuid(0,0)` 和 `cpuid(0xdeadbeef,0)`  和 `cpuid(deadbeef,cafed00d)` 之间的差异不会过于显著，基本上不会超过 `2%` 的水平。

![](upload/attach/202604/919002_XVHYGH3WUD3WCPQ.png)

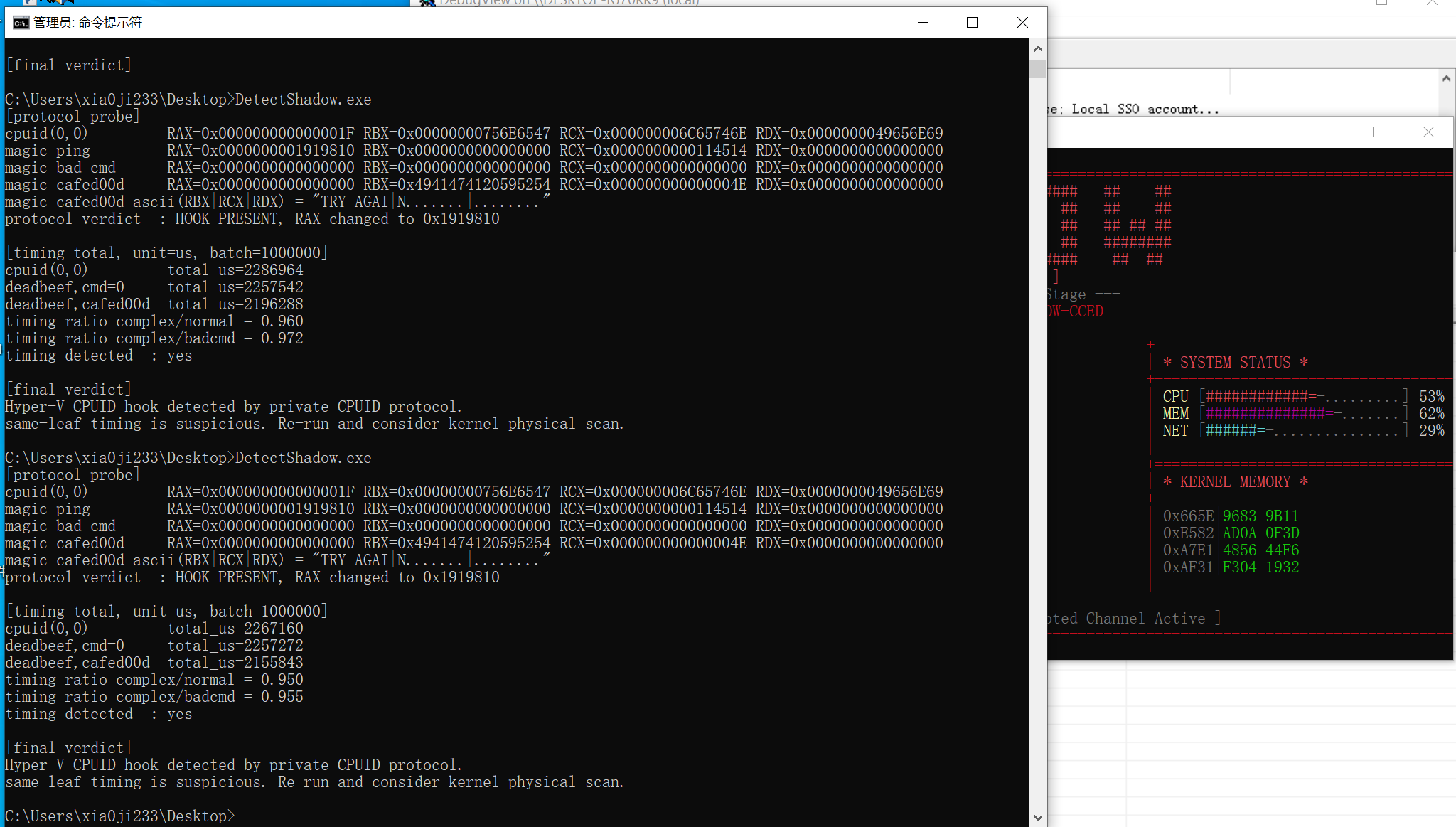

开启 `root` 之后，这个值显然被拉大了，虽然依然在 `5%` 附近，但是多次测试排除偶然性之后认定这个方案是可行的。

![](upload/attach/202604/919002_K7ABN7GZSEVEX4B.png)

#### 协议探测检测

这个很容易，`RCX=0x114514 RAX=0xDEADBEEF` 即可通过 `RAX` 的值判断是否开启了 `root` 系统，当然其它的控制码也可以检测。

#### VHD文件检测

ShadowRoot 运行之后，会生成一个 `C:\Windows\Temp\WdiServiceHost\{GUID}.vhd` 文件，通过检测该文件也可以判断 Shadow Root 的存活。

#### 检测代码

```C++
#define WIN32_LEAN_AND_MEAN
#include <windows.h>
#include <stdint.h>
#include <stdio.h>
#include <stdlib.h>
#include <string.h>
#include <ctype.h>

#if !defined(_M_X64) && !defined(__x86_64__)
#error This detector requires a Windows x64 build.
#endif

typedef struct {
    uint64_t rax;
    uint64_t rbx;
    uint64_t rcx;
    uint64_t rdx;
} CPUID_REGS64;

typedef void (*CPUID_FULL_FN)(
    uint64_t in_rax,
    uint64_t in_rbx,
    uint64_t in_rcx,
    uint64_t in_rdx,
    CPUID_REGS64* out_regs
    );

static const unsigned char kCpuidStubWin64[] = {
    0x53,                               /* push rbx */
    0x48, 0x89, 0xC8,                   /* mov  rax, rcx */
    0x48, 0x89, 0xD3,                   /* mov  rbx, rdx */
    0x4C, 0x89, 0xC1,                   /* mov  rcx, r8  */
    0x4C, 0x89, 0xCA,                   /* mov  rdx, r9  */
    0x0F, 0xA2,                         /* cpuid */
    0x4C, 0x8B, 0x54, 0x24, 0x30,       /* mov  r10, [rsp+30h] */
    0x49, 0x89, 0x02,                   /* mov  [r10+00h], rax */
    0x49, 0x89, 0x5A, 0x08,             /* mov  [r10+08h], rbx */
    0x49, 0x89, 0x4A, 0x10,             /* mov  [r10+10h], rcx */
    0x49, 0x89, 0x52, 0x18,             /* mov  [r10+18h], rdx */
    0x5B,                               /* pop  rbx */
    0xC3                                /* ret */
};

static int equals_ci(const char* a, const char* b) {
    while (*a && *b) {
        if (tolower((unsigned char)*a) != tolower((unsigned char)*b)) {
            return 0;
        }
        ++a;
        ++b;
    }
    return *a == 0 && *b == 0;
}

static void print_hex64(uint64_t value) {
    printf("%08lX%08lX",
        (unsigned long)((value >> 32) & 0xFFFFFFFFu),
        (unsigned long)(value & 0xFFFFFFFFu));
}

static void print_dec_u64(uint64_t value) {
    char buf[32];
    size_t pos = sizeof(buf);

buf[--pos] = 0;
    if (value == 0) {
        buf[--pos] = '0';
    }
    else {
        while (value != 0 && pos > 0) {
            buf[--pos] = (char)('0' + (value % 10));
            value /= 10;
        }
    }

printf("%s", &buf[pos]);
}

static void print_fixed_3(uint64_t value_x1000) {
    unsigned long frac = (unsigned long)(value_x1000 % 1000);
    print_dec_u64(value_x1000 / 1000);
    printf(".%03lu", frac);
}

static void print_regs(const char* tag, const CPUID_REGS64* regs) {
    printf("%-18s RAX=0x", tag);
    print_hex64(regs->rax);
    printf(" RBX=0x");
    print_hex64(regs->rbx);
    printf(" RCX=0x");
    print_hex64(regs->rcx);
    printf(" RDX=0x");
    print_hex64(regs->rdx);
    printf("\n");
}

static void regs_to_ascii(const CPUID_REGS64* regs, char* out, size_t out_size) {
    uint64_t values[3];
    size_t pos = 0;

values[0] = regs->rbx;
    values[1] = regs->rcx;
    values[2] = regs->rdx;

if (out_size == 0) {
        return;
    }

for (int r = 0; r < 3; ++r) {
        for (int i = 0; i < 8 && pos + 1 < out_size; ++i) {
            unsigned char c = (unsigned char)((values[r] >> (8 * i)) & 0xFF);
            out[pos++] = isprint(c) ? (char)c : '.';
        }
        if (r != 2 && pos + 1 < out_size) {
            out[pos++] = '|';
        }
    }

out[pos] = 0;
}

static CPUID_FULL_FN create_cpuid_stub(void) {
    void* mem = VirtualAlloc(NULL, sizeof(kCpuidStubWin64),
        MEM_COMMIT | MEM_RESERVE,
        PAGE_EXECUTE_READWRITE);
    if (!mem) {
        return NULL;
    }

memcpy(mem, kCpuidStubWin64, sizeof(kCpuidStubWin64));
    FlushInstructionCache(GetCurrentProcess(), mem, sizeof(kCpuidStubWin64));
    return (CPUID_FULL_FN)mem;
}

static void destroy_cpuid_stub(CPUID_FULL_FN fn) {
    if (fn) {
        VirtualFree((void*)fn, 0, MEM_RELEASE);
    }
}

static uint64_t qpc_elapsed_us(LARGE_INTEGER start, LARGE_INTEGER end, LARGE_INTEGER freq) {
    uint64_t delta = (uint64_t)(end.QuadPart - start.QuadPart);
    return (delta * 1000000ULL) / (uint64_t)freq.QuadPart;
}

static uint64_t measure_cpuid_batch_us(
    CPUID_FULL_FN cpuid_full,
    uint64_t in_rax,
    uint64_t in_rbx,
    uint64_t in_rcx,
    uint64_t in_rdx,
    size_t batch_count
) {
    CPUID_REGS64 tmp;
    LARGE_INTEGER freq;
    LARGE_INTEGER start;
    LARGE_INTEGER end;

QueryPerformanceFrequency(&freq);
    QueryPerformanceCounter(&start);
    for (size_t i = 0; i < batch_count; ++i) {
        cpuid_full(in_rax, in_rbx, in_rcx, in_rdx, &tmp);
    }
    QueryPerformanceCounter(&end);

return qpc_elapsed_us(start, end, freq);
}

static void harden_measurement_thread(void) {
    SetPriorityClass(GetCurrentProcess(), HIGH_PRIORITY_CLASS);
    SetThreadPriority(GetCurrentThread(), THREAD_PRIORITY_HIGHEST);
    SetThreadAffinityMask(GetCurrentThread(), (DWORD_PTR)1);
    Sleep(50);
}

static int has_vhd_extension_ci(const char* name) {
    const char* dot = strrchr(name, '.');

if (!dot) {
        return 0;
    }

return equals_ci(dot, ".vhd") || equals_ci(dot, ".vhdx") ||
        equals_ci(dot, ".avhd") || equals_ci(dot, ".avhdx");
}

static int detect_wdi_vhd_files(void) {
    char windows_dir[MAX_PATH];
    char search_path[MAX_PATH * 2];
    WIN32_FIND_DATAA find_data;
    HANDLE find_handle;
    DWORD attr;
    int found = 0;

if (!GetWindowsDirectoryA(windows_dir, (UINT)sizeof(windows_dir))) {
        printf("[wdi vhd probe]\n");
        printf("GetWindowsDirectoryA failed: %lu\n", GetLastError());
        return 0;
    }

_snprintf_s(search_path, sizeof(search_path), _TRUNCATE,
        "%s\\Temp\\WdiServiceHost", windows_dir);

printf("\n[wdi vhd probe]\n");
    printf("directory          : %s\n", search_path);

attr = GetFileAttributesA(search_path);
    if (attr == INVALID_FILE_ATTRIBUTES || !(attr & FILE_ATTRIBUTE_DIRECTORY)) {
        printf("directory verdict  : not present\n");
        return 0;
    }

_snprintf_s(search_path, sizeof(search_path), _TRUNCATE,
        "%s\\Temp\\WdiServiceHost\\*.vhd*", windows_dir);

find_handle = FindFirstFileA(search_path, &find_data);
    if (find_handle == INVALID_HANDLE_VALUE) {
        DWORD err = GetLastError();
        if (err == ERROR_FILE_NOT_FOUND) {
            printf("vhd verdict        : no vhd file found\n");
        }
        else {
            printf("FindFirstFileA failed: %lu\n", err);
        }
        return 0;
    }

do {
        if ((find_data.dwFileAttributes & FILE_ATTRIBUTE_DIRECTORY) == 0 &&
            has_vhd_extension_ci(find_data.cFileName)) {
            ULARGE_INTEGER size;

size.HighPart = find_data.nFileSizeHigh;
            size.LowPart = find_data.nFileSizeLow;

printf("vhd file           : %s size=", find_data.cFileName);
            print_dec_u64(size.QuadPart);
            printf(" bytes attrs=0x%08lX\n", find_data.dwFileAttributes);
            found = 1;
        }
    } while (FindNextFileA(find_handle, &find_data));

FindClose(find_handle);

printf("vhd verdict        : %s\n", found ? "present" : "no vhd file found");
    return found;
}

static int parse_iterations(int argc, char** argv, size_t* batch_count) {
    *batch_count = 1000000;

for (int i = 1; i < argc; ++i) {
        if (equals_ci(argv[i], "--help") || equals_ci(argv[i], "-h") || equals_ci(argv[i], "/?")) {
            printf("Usage: %s [--batch cpuid_count]\n", argv[0]);
            printf("\n");
            printf("Detects the Hyper-V CPUID hook by protocol probing and total CPUID time in microseconds.\n");
            printf("Default is --batch 1000000.\n");
            return 0;
        }

if (equals_ci(argv[i], "--batch") || equals_ci(argv[i], "-B")) {
            char* end = NULL;
            unsigned long value;
            if (++i >= argc) {
                fprintf(stderr, "missing value for --batch\n");
                return -1;
            }
            value = strtoul(argv[i], &end, 10);
            if (!end || *end != 0 || value < 1 || value > 10000000ul) {
                fprintf(stderr, "invalid batch count: %s\n", argv[i]);
                return -1;
            }
            *batch_count = (size_t)value;
        }
        else {
            fprintf(stderr, "unknown argument: %s\n", argv[i]);
            return -1;
        }
    }

return 1;
}

int main(int argc, char** argv) {
    CPUID_FULL_FN cpuid_full = NULL;
    CPUID_REGS64 leaf0;
    CPUID_REGS64 magic_ping;
    CPUID_REGS64 magic_bad_cmd;
    CPUID_REGS64 magic_try_again;
    uint64_t normal_us = 0;
    uint64_t bad_cmd_us = 0;
    uint64_t complex_us = 0;
    size_t batch_count = 1000000;
    int parse_result;
    char ascii[64];
    int protocol_hit;
    int timing_suspicious;
    int wdi_vhd_hit;
    uint64_t ratio_complex_normal_x1000;
    uint64_t ratio_complex_badcmd_x1000;

parse_result = parse_iterations(argc, argv, &batch_count);
    if (parse_result <= 0) {
        return parse_result == 0 ? 0 : 1;
    }

cpuid_full = create_cpuid_stub();
    if (!cpuid_full) {
        fprintf(stderr, "failed to allocate CPUID stub\n");
        return 1;
    }

harden_measurement_thread();

cpuid_full(0, 0, 0, 0, &leaf0);
    cpuid_full(0xDEADBEEFULL, 0, 0x114514ULL, 0, &magic_ping);
    cpuid_full(0xDEADBEEFULL, 0, 0, 0, &magic_bad_cmd);
    cpuid_full(0xDEADBEEFULL, 0, 0xCAFED00DULL, 0, &magic_try_again);

printf("[protocol probe]\n");
    print_regs("cpuid(0,0)", &leaf0);
    print_regs("magic ping", &magic_ping);
    print_regs("magic bad cmd", &magic_bad_cmd);
    print_regs("magic cafed00d", &magic_try_again);
    regs_to_ascii(&magic_try_again, ascii, sizeof(ascii));
    printf("magic cafed00d ascii(RBX|RCX|RDX) = \"%s\"\n", ascii);

protocol_hit = ((uint32_t)magic_ping.rax == 0x01919810u);
    printf("protocol verdict  : %s\n",
        protocol_hit ? "HOOK PRESENT, RAX changed to 0x1919810" : "not observed");

for (int i = 0; i < 2000; ++i) {
        cpuid_full(0, 0, 0, 0, &leaf0);
        cpuid_full(0xDEADBEEFULL, 0, 0, 0, &leaf0);
        cpuid_full(0xDEADBEEFULL, 0, 0xCAFED00DULL, 0, &leaf0);
    }

normal_us = measure_cpuid_batch_us(cpuid_full, 0, 0, 0, 0, batch_count);
    bad_cmd_us = measure_cpuid_batch_us(cpuid_full, 0xDEADBEEFULL, 0, 0, 0, batch_count);
    complex_us = measure_cpuid_batch_us(cpuid_full, 0xDEADBEEFULL, 0, 0xCAFED00DULL, 0, batch_count);

printf("\n[timing total, unit=us, batch=");
    print_dec_u64((uint64_t)batch_count);
    printf("]\n");
    printf("cpuid(0,0)         total_us=");
    print_dec_u64(normal_us);
    printf("\n");
    printf("deadbeef,cmd=0     total_us=");
    print_dec_u64(bad_cmd_us);
    printf("\n");
    printf("deadbeef,cafed00d  total_us=");
    print_dec_u64(complex_us);
    printf("\n");

ratio_complex_normal_x1000 = normal_us ? (complex_us * 1000) / normal_us : 0;
    ratio_complex_badcmd_x1000 = bad_cmd_us ? (complex_us * 1000) / bad_cmd_us : 0;
    printf("timing ratio complex/normal = ");
    print_fixed_3(ratio_complex_normal_x1000);
    printf("\n");
    printf("timing ratio complex/badcmd = ");
    print_fixed_3(ratio_complex_badcmd_x1000);
    printf("\n");

timing_suspicious = ratio_complex_badcmd_x1000 < 980;
    printf("timing detected  : %s\n", timing_suspicious ? "yes" : "no");

wdi_vhd_hit = detect_wdi_vhd_files();

printf("\n[final verdict]\n");
    if (protocol_hit) {
        printf("Hyper-V CPUID hook detected by private CPUID protocol.\n");
    }
    if (timing_suspicious) {
        printf("same-leaf timing is suspicious. Re-run and consider kernel physical scan.\n");
    }
    if (wdi_vhd_hit) {
        printf("WdiServiceHost VHD artifact detected. Treat as a Shadow Root environment indicator.\n");
    }
    if (!protocol_hit && !timing_suspicious && !wdi_vhd_hit) {
        printf("No Shadow Root indicator detected by user-mode checks.\n");
    }

destroy_cpuid_stub(cpuid_full);
    return protocol_hit ? 2 : ((timing_suspicious || wdi_vhd_hit) ? 1 : 0);
}

```

### R0检测方法

#### 设备检测

`Shadow Root` 在运行过程中会创建并挂载一个 `vhd` 文件，随后驱动层通过 `vhdmp` 设备栈与该虚拟磁盘交互。前面的调试中可以看到，只有在 `Shadow Root` 运行后，系统里才会出现一条 `\Driver\disk -> \Driver\vhdmp` 的设备栈。因此，可以通过枚举 `\Driver\disk` 下的设备对象，并检查其 lower/upper device stack 中是否存在 `\Driver\vhdmp`，将其作为检测 `Shadow Root` 是否运行过的一种侧信号。

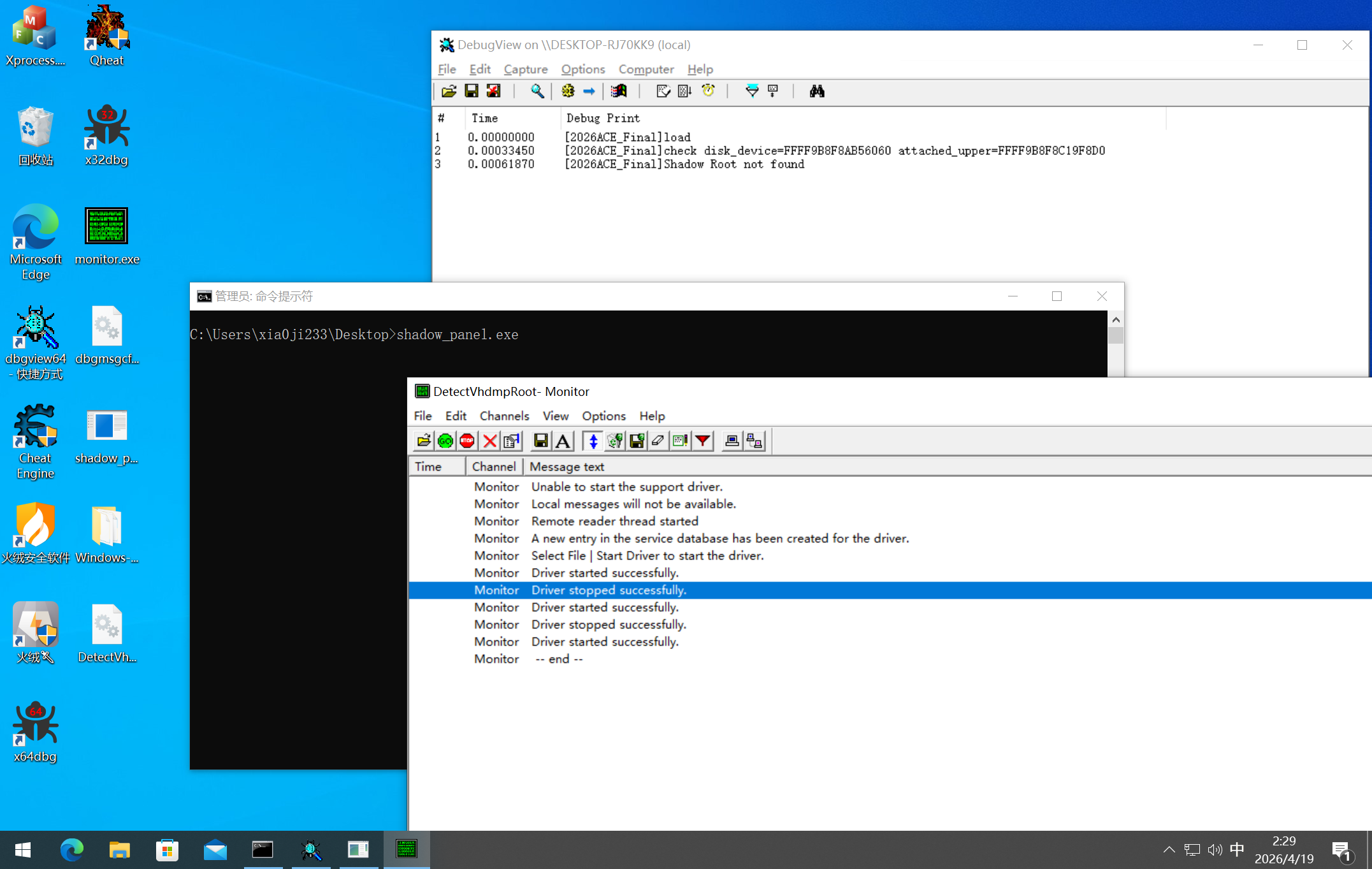

未开启 `Shadow Root`：

![](upload/attach/202604/919002_G3AZYZHR4MESZVR.png)

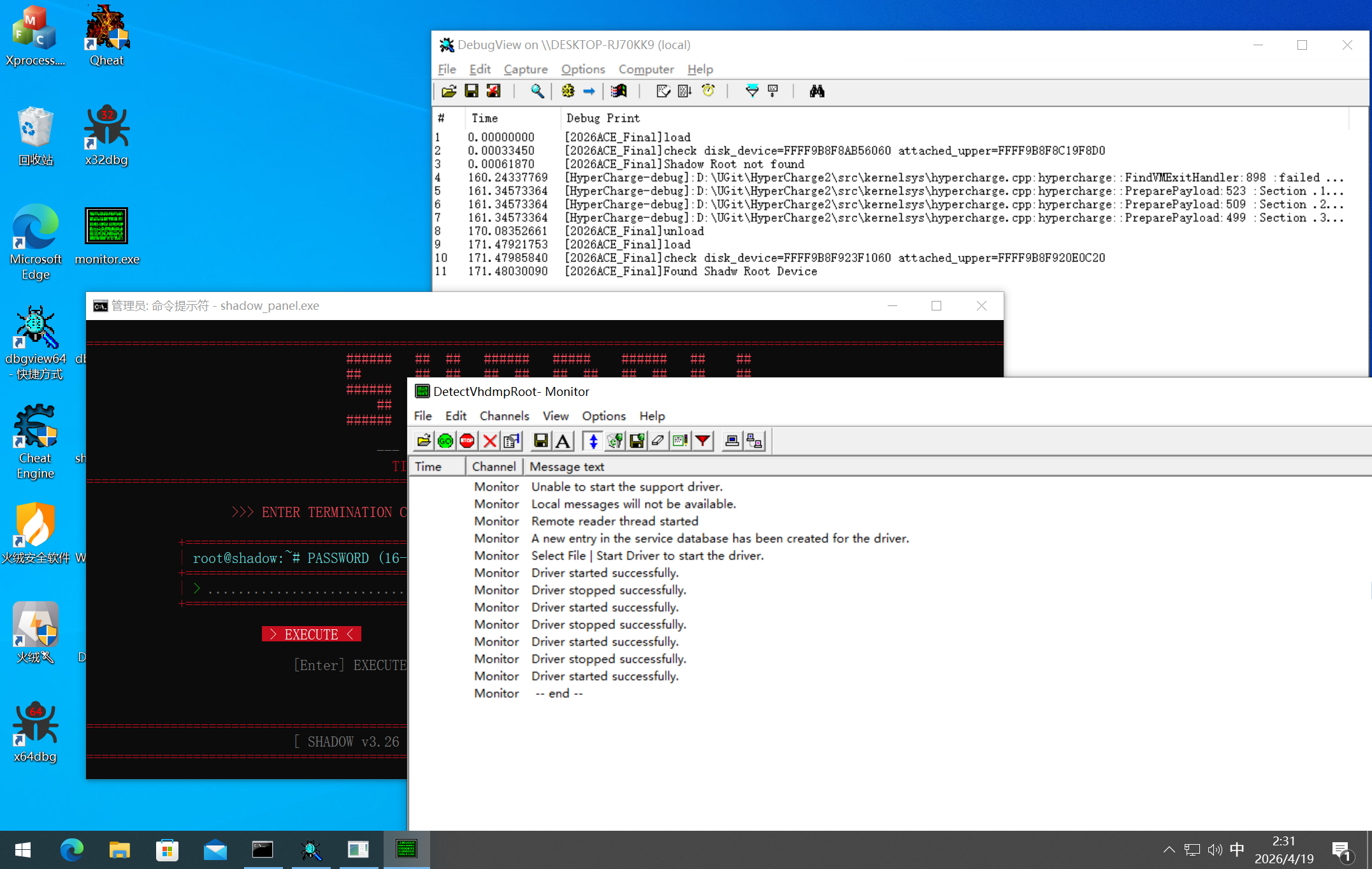

开启 `Shadow Root`：

![](upload/attach/202604/919002_A3NCDT337HXK46W.png)

代码：

```C++
#include <ntddk.h>

#define DBG_PRINT(...) DbgPrintEx( DPFLTR_IHVDRIVER_ID, DPFLTR_ERROR_LEVEL, "[2026ACE_Final]" __VA_ARGS__);
extern "C" POBJECT_TYPE* IoDriverObjectType;

extern "C"
NTKERNELAPI
NTSTATUS
ObReferenceObjectByName(
    _In_ PUNICODE_STRING ObjectName,
    _In_ ULONG Attributes,
    _In_opt_ PACCESS_STATE AccessState,
    _In_opt_ ACCESS_MASK DesiredAccess,
    _In_ POBJECT_TYPE ObjectType,
    _In_ KPROCESSOR_MODE AccessMode,
    _Inout_opt_ PVOID ParseContext,
    _Out_ PVOID* Object
);

typedef PDEVICE_OBJECT(*PFN_IO_GET_LOWER_DEVICE_OBJECT)(
    _In_ PDEVICE_OBJECT DeviceObject
    );

static PFN_IO_GET_LOWER_DEVICE_OBJECT
ResolveIoGetLowerDeviceObject()
{
    static PFN_IO_GET_LOWER_DEVICE_OBJECT getLower = NULL;
    static BOOLEAN resolved = FALSE;
    UNICODE_STRING routineName;

if (!resolved) {
        RtlInitUnicodeString(&routineName, L"IoGetLowerDeviceObject");
        getLower = (PFN_IO_GET_LOWER_DEVICE_OBJECT)MmGetSystemRoutineAddress(&routineName);
        resolved = TRUE;
    }

return getLower;
}

static BOOLEAN
IsVhdmpDevice(
    _In_ PDEVICE_OBJECT DeviceObject
)
{
    UNICODE_STRING vhdmpName;

RtlInitUnicodeString(&vhdmpName, L"\\Driver\\vhdmp");

return DeviceObject &&
        DeviceObject->DriverObject &&
        RtlEqualUnicodeString(&DeviceObject->DriverObject->DriverName, &vhdmpName, TRUE);
}

static PDEVICE_OBJECT
FindVhdmpUpperDeviceInStack(
    _In_ PDEVICE_OBJECT DeviceObject
)
{
    PDEVICE_OBJECT current = DeviceObject;

while (current) {
        if (IsVhdmpDevice(current)) {
            return current;
        }

current = current->AttachedDevice;
    }

return NULL;
}

static PDEVICE_OBJECT
FindVhdmpLowerDeviceInStack(
    _In_ PDEVICE_OBJECT DeviceObject
)
{
    PFN_IO_GET_LOWER_DEVICE_OBJECT getLower;
    PDEVICE_OBJECT current;

getLower = ResolveIoGetLowerDeviceObject();
    if (!getLower) {
        DBG_PRINT("IoGetLowerDeviceObject unavailable\n");
        return NULL;
    }

current = getLower(DeviceObject);
    while (current) {
        PDEVICE_OBJECT next;

if (IsVhdmpDevice(current)) {
            return current;
        }

next = getLower(current);
        ObDereferenceObject(current);
        current = next;
    }

return NULL;
}

static NTSTATUS
FindVhdmpBackedDiskDevice(
    _Outptr_ PDRIVER_OBJECT* DiskDriverObject,
    _Outptr_ PDEVICE_OBJECT* DiskDeviceObject,
    _Outptr_result_maybenull_ PDEVICE_OBJECT* VhdmpDeviceObject,
    _Out_ BOOLEAN* VhdmpDeviceReferenced
)
{
    UNICODE_STRING diskName;
    PDRIVER_OBJECT diskDriverObject = NULL;
    NTSTATUS status;

*DiskDriverObject = NULL;
    *DiskDeviceObject = NULL;
    *VhdmpDeviceObject = NULL;
    *VhdmpDeviceReferenced = FALSE;

RtlInitUnicodeString(&diskName, L"\\Driver\\disk");

status = ObReferenceObjectByName(
        &diskName,
        OBJ_CASE_INSENSITIVE,
        NULL,
        0,
        *IoDriverObjectType,
        KernelMode,
        NULL,
        (PVOID*)&diskDriverObject);
    if (!NT_SUCCESS(status)) {
        return status;
    }

for (PDEVICE_OBJECT diskDevice = diskDriverObject->DeviceObject;
         diskDevice;
         diskDevice = diskDevice->NextDevice) {

PDEVICE_OBJECT vhdmpDevice;

DBG_PRINT("check disk_device=%p attached_upper=%p\n",
            diskDevice,
            diskDevice->AttachedDevice);

vhdmpDevice = FindVhdmpLowerDeviceInStack(diskDevice);
        if (vhdmpDevice) {
            *DiskDriverObject = diskDriverObject;
            *DiskDeviceObject = diskDevice;
            *VhdmpDeviceObject = vhdmpDevice;
            *VhdmpDeviceReferenced = TRUE;
            return STATUS_SUCCESS;
        }

vhdmpDevice = FindVhdmpUpperDeviceInStack(diskDevice);
        if (vhdmpDevice) {
            *DiskDriverObject = diskDriverObject;
            *DiskDeviceObject = diskDevice;
            *VhdmpDeviceObject = vhdmpDevice;
            *VhdmpDeviceReferenced = FALSE;
            return STATUS_SUCCESS;
        }
    }

ObDereferenceObject(diskDriverObject);
    return STATUS_NOT_FOUND;
}

static VOID
DetectVhdmpRootUnload(
    _In_ PDRIVER_OBJECT DriverObject
)
{
    UNREFERENCED_PARAMETER(DriverObject);

DBG_PRINT("unload\n");
}

extern "C"
NTSTATUS
DriverEntry(
    _In_ PDRIVER_OBJECT DriverObject,
    _In_ PUNICODE_STRING RegistryPath
)
{
    PDRIVER_OBJECT diskDriverObject = NULL;
    PDEVICE_OBJECT diskDeviceObject = NULL;
    PDEVICE_OBJECT vhdmpDeviceObject = NULL;
    BOOLEAN vhdmpReferenced = FALSE;
    NTSTATUS status;

UNREFERENCED_PARAMETER(RegistryPath);

DriverObject->DriverUnload = DetectVhdmpRootUnload;

DBG_PRINT( "load\n");

status = FindVhdmpBackedDiskDevice(
        &diskDriverObject,
        &diskDeviceObject,
        &vhdmpDeviceObject,
        &vhdmpReferenced);

if (NT_SUCCESS(status)) {
        DBG_PRINT("Found Shadw Root Device\n");
    } else {
        DBG_PRINT("Shadow Root not found\n")
    }

if (vhdmpReferenced && vhdmpDeviceObject) {
        ObDereferenceObject(vhdmpDeviceObject);
    }

if (diskDriverObject) {
        ObDereferenceObject(diskDriverObject);
    }

return STATUS_SUCCESS;
}
```

#### DMA

运行之后，如果能够从 Hyper-V 侧视图读取到目标物理页，就可以在内存中找到 `payload.sys` 留下的特征字符串。

![](upload/attach/202604/919002_4NXHMKVFPH927AJ.png)

不过，普通的 Guest R0 物理内存扫描并不稳定。因为 `Shadow Root` 使用的是 EPT 读写/执行视图分离，某些页在普通物理读视角下可能表现为全 `FF` 或不可见。因此检测代码可以参考 `Shadow Root` 自身的做法：先遍历物理内存范围，筛选普通物理读视角下全 `FF` 的候选页，再通过 `vhdmp` 设备和 SCSI `WRITE(10)` / `READ(10)` 通道，把 Hyper-V 侧 backing page bounce 出来进行扫描。

扫描时检测 payload 中的特征字符串：

`now start to hook vm exit handler.`

为了避免扫描到检测驱动自身 `.sys` 中保存的明文特征，可以在代码中对该字符串做简单异或编码，运行时再解码比较。实际测试中，该方法可以在开启 `Shadow Root` 的机器上命中 payload 页，并输出检测结果。

![](upload/attach/202604/919002_K6CJFFZ2AU4QFXY.png)

代码：

```C++
#include <ntddk.h>
#include <ntddscsi.h>
#include <intrin.h>

#define DBG_PRINT(...) DbgPrintEx(DPFLTR_IHVDRIVER_ID, DPFLTR_ERROR_LEVEL, "[2026ACE_Final]" __VA_ARGS__)

#define TAG_SCAN 'nScP'
#define TAG_SPTD 'dSpP'
#define LOG_PREFIX "[PhysScanPayload] "
#define MAX_HITS 1
#define SCRATCH_LBA 0
#define SCSIOP_READ10 0x28
#define SCSIOP_WRITE10 0x2A
#define SECTOR_SIZE 512ULL
#define PAGE_SECTORS (PAGE_SIZE / SECTOR_SIZE)
#define PAGE_MASK_ULL (~((ULONGLONG)PAGE_SIZE - 1))
#define ALIGN_DOWN_PAGE_ULL(x) ((x) & PAGE_MASK_ULL)
#define ALIGN_UP_PAGE_ULL(x) (((x) + PAGE_SIZE - 1) & PAGE_MASK_ULL)
#define PATTERN_XOR_KEY 0xA7
#define MIN_BOUNCE_PHYSICAL_ADDRESS 0x100000000ULL
#define MAX_BOUNCE_PHYSICAL_ADDRESS 0x100200000ULL
#define MAX_BOUNCE_PROBES 512
#define REQUIRE_CPUID_PROTOCOL_BEFORE_BOUNCE 1

static const UCHAR g_EncodedPayloadPattern[] = {
    0xC9, 0xC8, 0xD0, 0x87, 0xD4, 0xD3, 0xC6, 0xD5,
    0xD3, 0x87, 0xD3, 0xC8, 0x87, 0xCF, 0xC8, 0xC8,
    0xCC, 0x87, 0xD1, 0xCA, 0x87, 0xC2, 0xDF, 0xCE,
    0xD3, 0x87, 0xCF, 0xC6, 0xC9, 0xC3, 0xCB, 0xC2
};

typedef struct _SPTD_WITH_SENSE {
    SCSI_PASS_THROUGH_DIRECT Sptd;
    UCHAR Sense[32];
} SPTD_WITH_SENSE, *PSPTD_WITH_SENSE;

typedef struct _SCAN_STATS {
    ULONG Hits;
    ULONG BounceProbes;
    BOOLEAN Stop;
} SCAN_STATS, *PSCAN_STATS;

extern "C" POBJECT_TYPE* IoDriverObjectType;

typedef PDEVICE_OBJECT(*PFN_IO_GET_LOWER_DEVICE_OBJECT)(
    _In_ PDEVICE_OBJECT DeviceObject
    );

static BOOLEAN
IsPageFilledWith(
    _In_reads_bytes_(PAGE_SIZE) const UCHAR* Page,
    _In_ UCHAR Value
)
{
    for (SIZE_T i = 0; i < PAGE_SIZE; ++i) {
        if (Page[i] != Value) {
            return FALSE;
        }
    }

return TRUE;
}

static NTSTATUS
CopyPhysicalPage(
    _In_ ULONGLONG PhysicalAddress,
    _Out_writes_bytes_(PAGE_SIZE) PUCHAR PageBuffer
)
{
    MM_COPY_ADDRESS sourceAddress;
    SIZE_T copied = 0;
    NTSTATUS status;

if ((PhysicalAddress & (PAGE_SIZE - 1)) != 0) {
        return STATUS_INVALID_PARAMETER;
    }

RtlZeroMemory(&sourceAddress, sizeof(sourceAddress));
    sourceAddress.PhysicalAddress.QuadPart = PhysicalAddress;

status = MmCopyMemory(
        PageBuffer,
        sourceAddress,
        PAGE_SIZE,
        MM_COPY_MEMORY_PHYSICAL,
        &copied);
    if (!NT_SUCCESS(status) || copied != PAGE_SIZE) {
        return NT_SUCCESS(status) ? STATUS_PARTIAL_COPY : status;
    }

return STATUS_SUCCESS;
}

static SIZE_T
MinSizeT(
    _In_ SIZE_T A,
    _In_ SIZE_T B
)
{
    return (A < B) ? A : B;
}

static UCHAR
GetPatternByte(
    _In_reads_(Index + 1) const UCHAR* EncodedPattern,
    _In_ SIZE_T Index
)
{
    return (UCHAR)(EncodedPattern[Index] ^ PATTERN_XOR_KEY);
}

static BOOLEAN
ProbeShadowCpuidProtocol(VOID)
{
    int regs[4] = { 0 };

__cpuidex(regs, 0xDEADBEEF, 0x114514);

if ((ULONG)regs[0] == 0x01919810) {
        DBG_PRINT(LOG_PREFIX "cpuid protocol probe: present eax=0x%08X\n", (ULONG)regs[0]);
        return TRUE;
    }

DBG_PRINT(LOG_PREFIX "cpuid protocol probe: absent eax=0x%08X\n", (ULONG)regs[0]);
    return FALSE;
}

static VOID
LogBytesFromOffset(
    _In_reads_bytes_(Length) const UCHAR* Bytes,
    _In_ SIZE_T Length,
    _In_ SIZE_T Offset
)
{
    static const CHAR hex[] = "0123456789ABCDEF";
    CHAR line[3 * 64 + 1];
    SIZE_T count;
    SIZE_T pos = 0;

RtlZeroMemory(line, sizeof(line));

if (!Bytes || Length == 0 || Offset >= Length) {
        DBG_PRINT(LOG_PREFIX "bytes: <unavailable>\n");
        return;
    }

count = MinSizeT(Length - Offset, 64);

for (SIZE_T i = 0; i < count && pos + 3 < sizeof(line); ++i) {
        UCHAR value = Bytes[Offset + i];
        line[pos++] = hex[(value >> 4) & 0xF];
        line[pos++] = hex[value & 0xF];
        line[pos++] = ' ';
    }

DBG_PRINT(LOG_PREFIX "bytes[%Iu:%Iu]: %s\n", Offset, Offset + count, line);
}

static VOID
BruteForceScanBuffer(
    _In_reads_bytes_(Length) const UCHAR* Buffer,
    _In_ SIZE_T Length,
    _In_ ULONGLONG BufferPhysicalAddress,
    _In_reads_bytes_(PatternLength) const UCHAR* EncodedPattern,
    _In_ SIZE_T PatternLength,
    _Inout_ PSCAN_STATS Stats
)
{
    if (!Buffer || !EncodedPattern || !Stats || PatternLength == 0 || Length < PatternLength) {
        return;
    }

for (SIZE_T offset = 0; offset + PatternLength <= Length; ++offset) {
        BOOLEAN matched = TRUE;

for (SIZE_T index = 0; index < PatternLength; ++index) {
            if (Buffer[offset + index] != GetPatternByte(EncodedPattern, index)) {
                matched = FALSE;
                break;
            }
        }

if (!matched) {
            continue;
        }

ULONGLONG hitPa = BufferPhysicalAddress + offset;
        ULONGLONG matchEndPa = hitPa + PatternLength - 1;

++Stats->Hits;
        DBG_PRINT(
            LOG_PREFIX "HIT[%lu] hit_pa=%I64x page_pa=%I64x page_off=%I64x match_end=%I64x\n",
            Stats->Hits,
            hitPa,
            ALIGN_DOWN_PAGE_ULL(hitPa),
            hitPa & (PAGE_SIZE - 1),
            matchEndPa);
        LogBytesFromOffset(Buffer, Length, offset);

if (Stats->Hits >= MAX_HITS) {
            Stats->Stop = TRUE;
            return;
        }
    }
}

static PFN_IO_GET_LOWER_DEVICE_OBJECT
ResolveIoGetLowerDeviceObject(VOID)
{
    static PFN_IO_GET_LOWER_DEVICE_OBJECT getLower = NULL;
    static BOOLEAN resolved = FALSE;
    UNICODE_STRING routineName;

return getLower;
}

static BOOLEAN
IsVhdmpDevice(
    _In_ PDEVICE_OBJECT DeviceObject
)
{
    UNICODE_STRING vhdmpName;

RtlInitUnicodeString(&vhdmpName, L"\\Driver\\vhdmp");

return DeviceObject &&
        DeviceObject->DriverObject &&
        RtlEqualUnicodeString(&DeviceObject->DriverObject->DriverName, &vhdmpName, TRUE);
}

static PDEVICE_OBJECT
FindVhdmpUpperDeviceInStack(
    _In_ PDEVICE_OBJECT DeviceObject
)
{
    PDEVICE_OBJECT current = DeviceObject;

while (current) {
        if (IsVhdmpDevice(current)) {
            return current;
        }

current = current->AttachedDevice;
    }

return NULL;
}

static PDEVICE_OBJECT
FindVhdmpLowerDeviceInStack(
    _In_ PDEVICE_OBJECT DeviceObject
)
{
    PFN_IO_GET_LOWER_DEVICE_OBJECT getLower;
    PDEVICE_OBJECT current;

getLower = ResolveIoGetLowerDeviceObject();
    if (!getLower) {
        DBG_PRINT(LOG_PREFIX "MmGetSystemRoutineAddress(IoGetLowerDeviceObject) failed\n");
        return NULL;
    }

current = getLower(DeviceObject);
    while (current) {
        PDEVICE_OBJECT next;

if (IsVhdmpDevice(current)) {
            return current;
        }

next = getLower(current);
        ObDereferenceObject(current);
        current = next;
    }

return NULL;
}

static NTSTATUS
FindVhdmpBackedDiskDevice(
    _Outptr_ PDRIVER_OBJECT* DiskDriverObject,
    _Outptr_ PDEVICE_OBJECT* DeviceObject
)
{
    UNICODE_STRING diskName;
    PDRIVER_OBJECT diskDriverObject = NULL;
    NTSTATUS status;

*DiskDriverObject = NULL;
    *DeviceObject = NULL;

RtlInitUnicodeString(&diskName, L"\\Driver\\disk");

for (PDEVICE_OBJECT deviceObject = diskDriverObject->DeviceObject;
        deviceObject;
        deviceObject = deviceObject->NextDevice) {
        PDEVICE_OBJECT vhdmpDevice;

vhdmpDevice = FindVhdmpLowerDeviceInStack(deviceObject);
        if (vhdmpDevice) {
            *DiskDriverObject = diskDriverObject;
            *DeviceObject = deviceObject;
            DBG_PRINT(LOG_PREFIX "selected disk device=%p vhdmp_lower_device=%p\n", deviceObject, vhdmpDevice);
            ObDereferenceObject(vhdmpDevice);
            return STATUS_SUCCESS;
        }

vhdmpDevice = FindVhdmpUpperDeviceInStack(deviceObject);
        if (vhdmpDevice) {
            *DiskDriverObject = diskDriverObject;
            *DeviceObject = deviceObject;
            DBG_PRINT(LOG_PREFIX "selected disk device=%p vhdmp_upper_device=%p\n", deviceObject, vhdmpDevice);
            return STATUS_SUCCESS;
        }
    }

ObDereferenceObject(diskDriverObject);
    return STATUS_NOT_FOUND;
}

static NTSTATUS
ScsiTransferPageAtLba(
    _In_ PDEVICE_OBJECT DeviceObject,
    _In_ UCHAR Operation,
    _In_ UCHAR DataDirection,
    _In_ ULONG Lba,
    _Inout_updates_bytes_(PAGE_SIZE) PVOID PageBuffer,
    _Out_ SIZE_T* BytesCopied,
    _Out_opt_ PUCHAR ScsiStatus
)
{
    PSPTD_WITH_SENSE request;
    KEVENT event;
    IO_STATUS_BLOCK iosb;
    PIRP irp;
    NTSTATUS status;
    USHORT sectors = (USHORT)PAGE_SECTORS;

*BytesCopied = 0;
    if (ScsiStatus) {
        *ScsiStatus = 0xFF;
    }

request = (PSPTD_WITH_SENSE)ExAllocatePool2(
        POOL_FLAG_NON_PAGED,
        sizeof(SPTD_WITH_SENSE),
        TAG_SPTD);
    if (!request) {
        return STATUS_INSUFFICIENT_RESOURCES;
    }

RtlZeroMemory(request, sizeof(SPTD_WITH_SENSE));

request->Sptd.Length = sizeof(SCSI_PASS_THROUGH_DIRECT);
    request->Sptd.CdbLength = 10;
    request->Sptd.SenseInfoLength = sizeof(request->Sense);
    request->Sptd.DataIn = DataDirection;
    request->Sptd.DataTransferLength = PAGE_SIZE;
    request->Sptd.TimeOutValue = 5;
    request->Sptd.DataBuffer = PageBuffer;
    request->Sptd.SenseInfoOffset = FIELD_OFFSET(SPTD_WITH_SENSE, Sense);

request->Sptd.Cdb[0] = Operation;
    request->Sptd.Cdb[2] = (UCHAR)((Lba >> 24) & 0xFF);
    request->Sptd.Cdb[3] = (UCHAR)((Lba >> 16) & 0xFF);
    request->Sptd.Cdb[4] = (UCHAR)((Lba >> 8) & 0xFF);
    request->Sptd.Cdb[5] = (UCHAR)(Lba & 0xFF);
    request->Sptd.Cdb[7] = (UCHAR)((sectors >> 8) & 0xFF);
    request->Sptd.Cdb[8] = (UCHAR)(sectors & 0xFF);

KeInitializeEvent(&event, NotificationEvent, FALSE);
    RtlZeroMemory(&iosb, sizeof(iosb));

irp = IoBuildDeviceIoControlRequest(
        IOCTL_SCSI_PASS_THROUGH_DIRECT,
        DeviceObject,
        request,
        sizeof(SPTD_WITH_SENSE),
        request,
        sizeof(SPTD_WITH_SENSE),
        FALSE,
        &event,
        &iosb);
    if (!irp) {
        ExFreePoolWithTag(request, TAG_SPTD);
        return STATUS_INSUFFICIENT_RESOURCES;
    }

status = IoCallDriver(DeviceObject, irp);
    if (status == STATUS_PENDING) {
        KeWaitForSingleObject(&event, Executive, KernelMode, FALSE, NULL);
        status = iosb.Status;
    }

if (NT_SUCCESS(status)) {
        status = iosb.Status;
    }

if (ScsiStatus) {
        *ScsiStatus = request->Sptd.ScsiStatus;
    }

if (NT_SUCCESS(status) && request->Sptd.ScsiStatus == 0) {
        *BytesCopied = request->Sptd.DataTransferLength;
    }

ExFreePoolWithTag(request, TAG_SPTD);
    return status;
}

static NTSTATUS
ReadScratchPage(
    _In_ PDEVICE_OBJECT DeviceObject,
    _Out_writes_bytes_(PAGE_SIZE) PUCHAR PageBuffer,
    _Out_ SIZE_T* BytesCopied,
    _Out_opt_ PUCHAR ScsiStatus
)
{
    RtlZeroMemory(PageBuffer, PAGE_SIZE);
    return ScsiTransferPageAtLba(
        DeviceObject,
        SCSIOP_READ10,
        SCSI_IOCTL_DATA_IN,
        SCRATCH_LBA,
        PageBuffer,
        BytesCopied,
        ScsiStatus);
}

static NTSTATUS
WriteScratchPage(
    _In_ PDEVICE_OBJECT DeviceObject,
    _In_reads_bytes_(PAGE_SIZE) PVOID PageBuffer,
    _Out_ SIZE_T* BytesCopied,
    _Out_opt_ PUCHAR ScsiStatus
)
{
    return ScsiTransferPageAtLba(
        DeviceObject,
        SCSIOP_WRITE10,
        SCSI_IOCTL_DATA_OUT,
        SCRATCH_LBA,
        PageBuffer,
        BytesCopied,
        ScsiStatus);
}

static NTSTATUS
BounceReadPhysicalPageViaVhdmp(
    _In_ PDEVICE_OBJECT DeviceObject,
    _In_ ULONGLONG PhysicalAddress,
    _Out_writes_bytes_(PAGE_SIZE) PUCHAR OutputPage,
    _Out_ SIZE_T* BytesCopied
)
{
    PVOID mappedPage;
    PHYSICAL_ADDRESS physicalAddress;
    SIZE_T written = 0;
    UCHAR scsiStatus = 0xFF;
    NTSTATUS status;

*BytesCopied = 0;

if ((PhysicalAddress & (PAGE_SIZE - 1)) != 0) {
        return STATUS_INVALID_PARAMETER;
    }

physicalAddress.QuadPart = PhysicalAddress;
    mappedPage = MmMapIoSpace(physicalAddress, PAGE_SIZE, MmNonCached);
    if (!mappedPage) {
        return STATUS_CONFLICTING_ADDRESSES;
    }

status = WriteScratchPage(DeviceObject, mappedPage, &written, &scsiStatus);
    MmUnmapIoSpace(mappedPage, PAGE_SIZE);
    if (!NT_SUCCESS(status) || scsiStatus != 0 || written < PAGE_SIZE) {
        return NT_SUCCESS(status) ? STATUS_IO_DEVICE_ERROR : status;
    }

status = ReadScratchPage(DeviceObject, OutputPage, BytesCopied, &scsiStatus);
    if (!NT_SUCCESS(status) || scsiStatus != 0 || *BytesCopied < PAGE_SIZE) {
        return NT_SUCCESS(status) ? STATUS_IO_DEVICE_ERROR : status;
    }

return STATUS_SUCCESS;
}

static VOID
ScanVhdmpBounceForPayload(VOID)
{
    const SIZE_T patternLength = sizeof(g_EncodedPayloadPattern);
    PPHYSICAL_MEMORY_RANGE ranges = NULL;
    PDRIVER_OBJECT diskDriverObject = NULL;
    PDEVICE_OBJECT deviceObject = NULL;
    PUCHAR pageBuffer = NULL;
    PUCHAR physicalView = NULL;
    PUCHAR scanBuffer = NULL;
    PUCHAR originalScratch = NULL;
    SCAN_STATS stats;
    NTSTATUS status;
    BOOLEAN cpuidProtocolPresent = FALSE;

RtlZeroMemory(&stats, sizeof(stats));

DBG_PRINT(
        LOG_PREFIX "load\n"
        LOG_PREFIX "scan start, mode=vhdmp-bounce-write10-read10-bruteforce-xor pattern_size=0x%Ix scratch_lba=%lu pa=%I64x-%I64x max_probes=%lu\n",
        patternLength,
        (ULONG)SCRATCH_LBA,
        (ULONGLONG)MIN_BOUNCE_PHYSICAL_ADDRESS,
        (ULONGLONG)MAX_BOUNCE_PHYSICAL_ADDRESS,
        (ULONG)MAX_BOUNCE_PROBES);

if (KeGetCurrentIrql() != PASSIVE_LEVEL) {
        DBG_PRINT(LOG_PREFIX "unexpected IRQL=%lu, skip scan\n", KeGetCurrentIrql());
        goto Exit;
    }

cpuidProtocolPresent = ProbeShadowCpuidProtocol();
    if (REQUIRE_CPUID_PROTOCOL_BEFORE_BOUNCE && !cpuidProtocolPresent) {
        DBG_PRINT(LOG_PREFIX "skip vhdmp bounce scan because private cpuid protocol was not observed\n");
        goto Exit;
    }

pageBuffer = (PUCHAR)ExAllocatePool2(POOL_FLAG_NON_PAGED, PAGE_SIZE, TAG_SCAN);
    physicalView = (PUCHAR)ExAllocatePool2(POOL_FLAG_NON_PAGED, PAGE_SIZE, TAG_SCAN);
    scanBuffer = (PUCHAR)ExAllocatePool2(POOL_FLAG_NON_PAGED, PAGE_SIZE, TAG_SCAN);
    originalScratch = (PUCHAR)ExAllocatePool2(POOL_FLAG_NON_PAGED, PAGE_SIZE, TAG_SCAN);
    if (!pageBuffer || !physicalView || !scanBuffer || !originalScratch) {
        DBG_PRINT(LOG_PREFIX "ExAllocatePool2 failed\n");
        goto Exit;
    }

status = FindVhdmpBackedDiskDevice(&diskDriverObject, &deviceObject);
    if (!NT_SUCCESS(status)) {
        DBG_PRINT(LOG_PREFIX "FindVhdmpBackedDiskDevice failed: 0x%08X\n", status);
        goto Exit;
    }

{
        SIZE_T copied = 0;
        UCHAR scsiStatus = 0xFF;

status = ReadScratchPage(deviceObject, originalScratch, &copied, &scsiStatus);
        if (!NT_SUCCESS(status) || scsiStatus != 0 || copied < PAGE_SIZE) {
            DBG_PRINT(
                LOG_PREFIX "backup scratch LBA failed: status=0x%08X scsi=0x%02X copied=0x%Ix\n",
                status,
                scsiStatus,
                copied);
            goto Exit;
        }
    }

ranges = MmGetPhysicalMemoryRanges();
    if (!ranges) {
        DBG_PRINT(LOG_PREFIX "MmGetPhysicalMemoryRanges failed\n");
        goto Exit;
    }

for (PPHYSICAL_MEMORY_RANGE range = ranges;
        range->BaseAddress.QuadPart || range->NumberOfBytes.QuadPart;
        ++range) {
        ULONGLONG rawStart = (ULONGLONG)range->BaseAddress.QuadPart;
        ULONGLONG rawSize = (ULONGLONG)range->NumberOfBytes.QuadPart;
        ULONGLONG rawEnd = rawStart + rawSize;
        ULONGLONG start = ALIGN_UP_PAGE_ULL(rawStart);
        ULONGLONG end = ALIGN_DOWN_PAGE_ULL(rawEnd);

if (rawEnd <= rawStart || end <= start) {
            continue;
        }

if (end <= MIN_BOUNCE_PHYSICAL_ADDRESS) {
            continue;
        }

if (start < MIN_BOUNCE_PHYSICAL_ADDRESS) {
            start = MIN_BOUNCE_PHYSICAL_ADDRESS;
        }

if (start >= MAX_BOUNCE_PHYSICAL_ADDRESS) {
            continue;
        }

if (end > MAX_BOUNCE_PHYSICAL_ADDRESS) {
            end = MAX_BOUNCE_PHYSICAL_ADDRESS;
        }

if (end <= start) {
            continue;
        }

DBG_PRINT(LOG_PREFIX "range pa=%I64x-%I64x\n", start, end);

for (ULONGLONG pa = start; pa < end; pa += PAGE_SIZE) {
            SIZE_T copied = 0;

status = CopyPhysicalPage(pa, physicalView);
            if (!NT_SUCCESS(status) || !IsPageFilledWith(physicalView, 0xFF)) {
                continue;
            }

if (stats.BounceProbes >= MAX_BOUNCE_PROBES) {
                DBG_PRINT(LOG_PREFIX "stop scan after max bounce probes=%lu\n", stats.BounceProbes);
                stats.Stop = TRUE;
                break;
            }

++stats.BounceProbes;

status = BounceReadPhysicalPageViaVhdmp(deviceObject, pa, pageBuffer, &copied);
            if (!NT_SUCCESS(status)) {
                continue;
            }

RtlCopyMemory(scanBuffer, pageBuffer, copied);

BruteForceScanBuffer(
                scanBuffer,
                copied,
                pa,
                g_EncodedPayloadPattern,
                patternLength,
                &stats);

if (stats.Stop) {
                break;
            }
        }

if (stats.Stop) {
            break;
        }
    }

Exit:
    if (deviceObject && originalScratch) {
        SIZE_T restored = 0;
        UCHAR scsiStatus = 0xFF;

status = WriteScratchPage(deviceObject, originalScratch, &restored, &scsiStatus);
        DBG_PRINT(
            LOG_PREFIX "restore scratch LBA status=0x%08X scsi=0x%02X copied=0x%Ix\n",
            status,
            scsiStatus,
            restored);
    }

if (stats.Hits != 0) {
        DBG_PRINT(LOG_PREFIX "Detected Shadow Root\n");
    } else {
        DBG_PRINT(LOG_PREFIX "Shadow Root not detected\n");
    }

if (ranges) {
        ExFreePool(ranges);
    }

if (diskDriverObject) {
        ObDereferenceObject(diskDriverObject);
    }

if (originalScratch) {
        ExFreePoolWithTag(originalScratch, TAG_SCAN);
    }

if (scanBuffer) {
        ExFreePoolWithTag(scanBuffer, TAG_SCAN);
    }

if (physicalView) {
        ExFreePoolWithTag(physicalView, TAG_SCAN);
    }

if (pageBuffer) {
        ExFreePoolWithTag(pageBuffer, TAG_SCAN);
    }
}

static VOID
ScanMemoryUnload(
    _In_ PDRIVER_OBJECT DriverObject
)
{
    UNREFERENCED_PARAMETER(DriverObject);
    DBG_PRINT(LOG_PREFIX "unload\n");
}

extern "C"
NTSTATUS
DriverEntry(
    _In_ PDRIVER_OBJECT DriverObject,
    _In_ PUNICODE_STRING RegistryPath
)
{
    UNREFERENCED_PARAMETER(RegistryPath);

DriverObject->DriverUnload = ScanMemoryUnload;
    ScanVhdmpBounceForPayload();

return STATUS_SUCCESS;
}

```

## 附件说明

- Source/HookEPT：调试用的驱动源码
- Source/Keygen：TerminateCode生成源码
- Source/DetectShadow：R3层三种检测代码源码
- Source/ScanMemory：扫描内存检测代码
- Source/DetectVhdmp：检测设备代码
- Bin/：对应的二进制文件
- Conversation：对应的AI问答记录，使用了 claude 和 codex。

登录后可查看完整内容

冰与火的战歌：Windows内核攻防实战高级班！从零到实战，融合AI与Windows内核攻防全技术栈，打造具备自动化能力的内核开发高手。

#Reverse

最新回复 (10)
Saileaxh 雪币： 3114 活跃值： (2924) 能力值： ( LV6，RANK：80 ) 在线值：发帖 18 回帖 49 粉丝 111 关注私信	Saileaxh 1 2 楼 tql 2026-4-20 00:34 0
smallzhong_ 雪币： 3771 活跃值： (6837) 能力值： ( LV5，RANK：65 ) 在线值：发帖 10 回帖 99 粉丝 178 关注私信	smallzhong_ 3 楼前排支持 2026-4-20 07:03 0
XCicada 雪币： 3103 活跃值： (2705) 能力值： ( LV6，RANK：80 ) 在线值：发帖 3 回帖 324 粉丝 101 关注私信	XCicada 2 4 楼 tql 2026-4-20 17:02 1
Imxz 雪币： 110 活跃值： (9576) 能力值： ( LV2，RANK：10 ) 在线值：发帖 6 回帖 775 粉丝 9 关注私信	Imxz 5 楼 tql 2026-4-20 17:37 0
需要渗透高手雪币： 114 活跃值： (280) 能力值： ( LV2，RANK：10 ) 在线值：发帖 0 回帖 42 粉丝 1 关注私信	需要渗透高手 6 楼支持支持 2026-4-22 17:23 0
fengyunabc 雪币： 5418 活跃值： (6237) 能力值： ( LV4，RANK：50 ) 在线值：发帖 11 回帖 634 粉丝 27 关注私信	fengyunabc 1 7 楼感谢分享。 2026-4-24 14:57 0
chiikawa_gui 雪币： 200 能力值： ( LV1，RANK：0 ) 在线值：发帖 1 回帖 7 粉丝 0 关注私信	chiikawa_gui 8 楼怎么没看到附件呀 2026-4-27 16:06 0
Haohandc 雪币： 241 活跃值： (76) 能力值： ( LV2，RANK：10 ) 在线值：发帖 3 回帖 2 粉丝 0 关注私信	Haohandc 9 楼有决赛附件吗，求求 2026-9-13 17:59 0
wx_一天雪币： 204 能力值： ( LV1，RANK：0 ) 在线值：发帖 1 回帖 38 粉丝 0 关注私信	wx_一天 10 楼 11 2026-9-21 17:50 0
wx_一天雪币： 204 能力值： ( LV1，RANK：0 ) 在线值：发帖 1 回帖 38 粉丝 0 关注私信	wx_一天 11 楼附件在哪啊，大佬，题目打包一下，方便我们测试了 2026-9-22 14:16 0
	游客登录 \| 注册方可回帖回帖表情雪币赚取及消费高级回复
