[原创] 花指令: miasm去除函数跳转
-
发表于: 4天前
-
源码分析
通过阅读源码，可以得知几个关键的函数
run_at(self, ircfg, addr, lbl_stop=None, step=False)
- ifcgf: 中间表示的控制流图(ir)
- addr: 指定符号执行的起始位置
- lbl_stop: 指定符号执行的停止位置（
target_label = loc_db.get_offset_location(end_addr)需要转成loc_key对象 - step: 控制执行模式, 默认False，当打开时，会输出单步执行的信息
eval_updt_irblock(self, irb, step=False)
- irb: 要执行的中间表示基本块(ir块)
- step: 控制执行模式, 默认False，当打开时，会输出单步执行的信息
这两个函数，一个是符号执行的入口，通过传入的地址，来获取对应的ir块，然后遍历ir块的指令
# 从传入的地址开始，遍历ir块 def run_at(self, ircfg, addr, lbl_stop=None, step=False): """ Symbolic execution starting at @addr @addr: address to execute (int or ExprInt or label) @lbl_stop: LocKey to stop execution on @step: display intermediate steps """ while True: irblock = ircfg.get_block(addr) if irblock is None: break if irblock.loc_key == lbl_stop: break addr = self.eval_updt_irblock(irblock, step=step) return addr
# 遍历执行ir块中的指令
def eval_updt_irblock(self, irb, step=False):
"""
Symbolic execution of the @irb on the current state
@irb: irbloc instance
@step: display intermediate steps
"""
for assignblk in irb:
if step:
print('Instr', assignblk.instr)
print('Assignblk:')
print(assignblk)
print('_' * 80)
self.eval_updt_assignblk(assignblk) # 执行指令
if step:
self.dump(mems=False)
self.dump(ids=False)
print('_' * 80)
dst = self.eval_expr(self.lifter.IRDst) # 得到下一个ir块的地址
return dst功能扩展
在第一篇文章中，miasm不能自动跳转执行函数花指令，我们需要手动来处理，重新运行，有了上面两个函数的理解，就可以开始给miasm增加新功能了
新建一个文件名为：funcEngine.py
这里直接贴增加重载后的类
from miasm.ir.symbexec import SymbolicExecutionEngine
from miasm.expression.expression import *
class FuncExecutionEngine(SymbolicExecutionEngine):
def __init__(self, ira):
super().__init__(ira)
self.jump = False
def is_function_call_assignblk(self, assignblk):
for dst, src in assignblk.items():
instr = assignblk.instr
if instr.name == "BL":
if isinstance(src, ExprOp):
for i, arg in enumerate(src.args):
if isinstance(arg, ExprLoc):
return 1, arg
return 0, False
def eval_updt_irblock(self, irb, step=False):
"""
Symbolic execution of the @irb on the current state
@irb: irbloc instance
@step: display intermediate steps
"""
for assignblk in irb:
instr = assignblk.instr
offset = instr.offset
if step:
print(f"0x{offset:x} ", instr)
print('Assignblk:')
print(assignblk)
print('_' * 80)
self.eval_updt_assignblk(assignblk)
if step:
self.dump(mems=False)
self.dump(ids=False)
print('=' * 80)
status, is_jump = self.is_function_call_assignblk(assignblk)
if status == 1:
new_offset = 0
for variable, value in viewitems(self.symbols.symbols_id):
if variable.name == "X0":
new_offset = value.args[0].arg
self.symbols.symbols_id[ExprId("LR", 64)] = ExprInt(instr.offset + 4, 64)
self.symbols.symbols_id[ExprId("PC", 64)] = ExprInt(new_offset, 64)
self.jump = True
return new_offset
dst = self.eval_expr(self.lifter.IRDst)
return dst
def run_at_into_func(self, mdis, ira, addr, lbl_stop=None, step=False, deep=1):
asm_cfg = mdis.dis_multiblock(addr)
ir_cfg = ira.new_ircfg_from_asmcfg(asm_cfg)
while True:
irblock = ir_cfg.get_block(addr)
if irblock is None and deep:
asm_cfg = mdis.dis_multiblock(addr)
ir_cfg = ira.new_ircfg_from_asmcfg(asm_cfg)
deep -= 1
print("**************************************** [jump] ****************************************")
continue
if irblock is None and self.jump:
self.jump = False
asm_cfg = mdis.dis_multiblock(addr)
ir_cfg = ira.new_ircfg_from_asmcfg(asm_cfg)
print("**************************************** [ret] ****************************************")
continue
if irblock is None:
break
if irblock.loc_key == lbl_stop:
break
addr = self.eval_updt_irblock(irblock, step=step)
return addr那么调用也需要改动
import loguru
from miasm.analysis.binary import Container
from miasm.analysis.machine import Machine
from miasm.core.locationdb import LocationDB
from funcEngine import FuncExecutionEngine
soPath = "libmetasec_ov.so"
loc_db = LocationDB()
container = Container.from_stream(open(soPath, "rb"), loc_db)
machine = Machine("aarch64l")
start_addr = 0x67BA8
mdis = machine.dis_engine(container.bin_stream, loc_db=loc_db)
ira = machine.ira(mdis.loc_db)
STACK_BASE = 0x10000000
STACK_SIZE = 0x10000
sb = FuncExecutionEngine(ira)
sb.run_at_into_func(mdis, ira, start_addr, step=True)新增了一个run_at_into_func函数，原理就是，当执行到函数跳转，如bl指令的时候，记录函数返回地址，写入lr寄存器，因为是分析arm64，指令是+4，模拟真实指令跳转，在跳转时，修改了lr和pc寄存器
当跳转的函数执行完毕后，irblock会得到空，这时通过lr的地址，再跳回原来的函数，因为原函数的ir已经被覆盖，所以需要重新构建ir中间表示，这时因为寄存器没有改变，lr的值会被保存，符号会继续执行add的操作，最终会自动得到br x1的地址
效果展示：

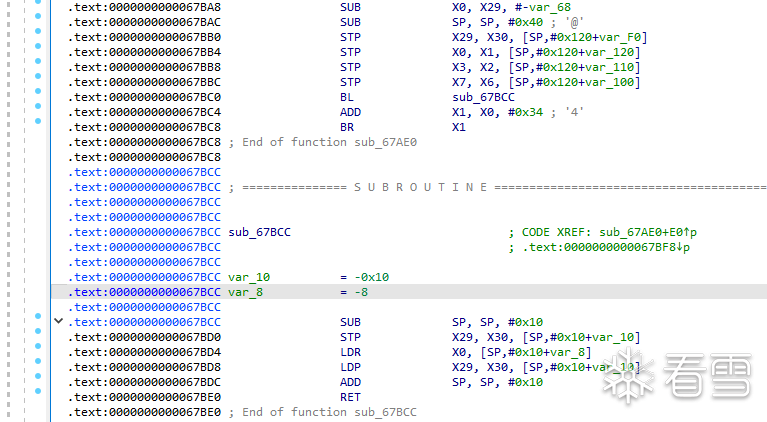

目标花指令
效果图：
0x67ba8 SUB X0, X29, 0x68 Assignblk: X0 = X29 + -0x68 ________________________________________________________________________________ X0 = X29 + 0xFFFFFFFFFFFFFF98 ================================================================================ 0x67bac SUB SP, SP, 0x40 Assignblk: SP = SP + -0x40 ________________________________________________________________________________ X0 = X29 + 0xFFFFFFFFFFFFFF98 SP = SP + 0xFFFFFFFFFFFFFFC0 ================================================================================ 0x67bb0 STP X29, LR, [SP, 0x30] Assignblk: @64[SP + 0x30] = X29 @64[SP + 0x30 + 0x8] = LR ________________________________________________________________________________ X0 = X29 + 0xFFFFFFFFFFFFFF98 SP = SP + 0xFFFFFFFFFFFFFFC0 @64[SP + 0xFFFFFFFFFFFFFFF0] = X29 @64[SP + 0xFFFFFFFFFFFFFFF8] = LR ================================================================================ 0x67bb4 STP X0, X1, [SP] Assignblk: @64[SP + 0x0] = X0 @64[SP + 0x0 + 0x8] = X1 ________________________________________________________________________________ X0 = X29 + 0xFFFFFFFFFFFFFF98 SP = SP + 0xFFFFFFFFFFFFFFC0 @64[SP + 0xFFFFFFFFFFFFFFC0] = X29 + 0xFFFFFFFFFFFFFF98 @64[SP + 0xFFFFFFFFFFFFFFC8] = X1 @64[SP + 0xFFFFFFFFFFFFFFF0] = X29 @64[SP + 0xFFFFFFFFFFFFFFF8] = LR ================================================================================ 0x67bb8 STP X3, X2, [SP, 0x10] Assignblk: @64[SP + 0x10] = X3 @64[SP + 0x10 + 0x8] = X2 ________________________________________________________________________________ X0 = X29 + 0xFFFFFFFFFFFFFF98 SP = SP + 0xFFFFFFFFFFFFFFC0 @64[SP + 0xFFFFFFFFFFFFFFC0] = X29 + 0xFFFFFFFFFFFFFF98 @64[SP + 0xFFFFFFFFFFFFFFC8] = X1 @64[SP + 0xFFFFFFFFFFFFFFD0] = X3 @64[SP + 0xFFFFFFFFFFFFFFD8] = X2 @64[SP + 0xFFFFFFFFFFFFFFF0] = X29 @64[SP + 0xFFFFFFFFFFFFFFF8] = LR ================================================================================ 0x67bbc STP X7, X6, [SP, 0x20] Assignblk: @64[SP + 0x20] = X7 @64[SP + 0x20 + 0x8] = X6 ________________________________________________________________________________ X0 = X29 + 0xFFFFFFFFFFFFFF98 SP = SP + 0xFFFFFFFFFFFFFFC0 @64[SP + 0xFFFFFFFFFFFFFFC0] = X29 + 0xFFFFFFFFFFFFFF98 @64[SP + 0xFFFFFFFFFFFFFFC8] = X1 @64[SP + 0xFFFFFFFFFFFFFFD0] = X3 @64[SP + 0xFFFFFFFFFFFFFFD8] = X2 @64[SP + 0xFFFFFFFFFFFFFFE0] = X7 @64[SP + 0xFFFFFFFFFFFFFFE8] = X6 @64[SP + 0xFFFFFFFFFFFFFFF0] = X29 @64[SP + 0xFFFFFFFFFFFFFFF8] = LR ================================================================================ 0x67bc0 BL loc_key_691 Assignblk: X0 = call_func_ret(loc_key_691, SP) SP = call_func_stack(loc_key_691, SP) ________________________________________________________________________________ X0 = call_func_ret(0x67BCC, SP + 0xFFFFFFFFFFFFFFC0) SP = call_func_stack(0x67BCC, SP + 0xFFFFFFFFFFFFFFC0) @64[SP + 0xFFFFFFFFFFFFFFC0] = X29 + 0xFFFFFFFFFFFFFF98 @64[SP + 0xFFFFFFFFFFFFFFC8] = X1 @64[SP + 0xFFFFFFFFFFFFFFD0] = X3 @64[SP + 0xFFFFFFFFFFFFFFD8] = X2 @64[SP + 0xFFFFFFFFFFFFFFE0] = X7 @64[SP + 0xFFFFFFFFFFFFFFE8] = X6 @64[SP + 0xFFFFFFFFFFFFFFF0] = X29 @64[SP + 0xFFFFFFFFFFFFFFF8] = LR ================================================================================ **************************************** [jump] **************************************** 0x67bcc SUB SP, SP, 0x10 Assignblk: SP = SP + -0x10 ________________________________________________________________________________ X0 = call_func_ret(0x67BCC, SP + 0xFFFFFFFFFFFFFFC0) SP = call_func_stack(0x67BCC, SP + 0xFFFFFFFFFFFFFFC0) + 0xFFFFFFFFFFFFFFF0 LR = 0x67BC4 PC = 0x67BCC @64[SP + 0xFFFFFFFFFFFFFFC0] = X29 + 0xFFFFFFFFFFFFFF98 @64[SP + 0xFFFFFFFFFFFFFFC8] = X1 @64[SP + 0xFFFFFFFFFFFFFFD0] = X3 @64[SP + 0xFFFFFFFFFFFFFFD8] = X2 @64[SP + 0xFFFFFFFFFFFFFFE0] = X7 @64[SP + 0xFFFFFFFFFFFFFFE8] = X6 @64[SP + 0xFFFFFFFFFFFFFFF0] = X29 @64[SP + 0xFFFFFFFFFFFFFFF8] = LR ================================================================================ 0x67bd0 STP X29, LR, [SP] Assignblk: @64[SP + 0x0] = X29 @64[SP + 0x0 + 0x8] = LR ________________________________________________________________________________ X0 = call_func_ret(0x67BCC, SP + 0xFFFFFFFFFFFFFFC0) SP = call_func_stack(0x67BCC, SP + 0xFFFFFFFFFFFFFFC0) + 0xFFFFFFFFFFFFFFF0 LR = 0x67BC4 PC = 0x67BCC @64[SP + 0xFFFFFFFFFFFFFFC0] = X29 + 0xFFFFFFFFFFFFFF98 @64[SP + 0xFFFFFFFFFFFFFFC8] = X1 @64[SP + 0xFFFFFFFFFFFFFFD0] = X3 @64[SP + 0xFFFFFFFFFFFFFFD8] = X2 @64[SP + 0xFFFFFFFFFFFFFFE0] = X7 @64[SP + 0xFFFFFFFFFFFFFFE8] = X6 @64[SP + 0xFFFFFFFFFFFFFFF0] = X29 @64[SP + 0xFFFFFFFFFFFFFFF8] = LR @64[call_func_stack(0x67BCC, SP + 0xFFFFFFFFFFFFFFC0) + 0xFFFFFFFFFFFFFFF0] = X29 @64[call_func_stack(0x67BCC, SP + 0xFFFFFFFFFFFFFFC0) + 0xFFFFFFFFFFFFFFF8] = 0x67BC4 ================================================================================ 0x67bd4 LDR X0, [SP, 0x8] Assignblk: X0 = @64[SP + 0x8] ________________________________________________________________________________ X0 = 0x67BC4 SP = call_func_stack(0x67BCC, SP + 0xFFFFFFFFFFFFFFC0) + 0xFFFFFFFFFFFFFFF0 LR = 0x67BC4 PC = 0x67BCC @64[SP + 0xFFFFFFFFFFFFFFC0] = X29 + 0xFFFFFFFFFFFFFF98 @64[SP + 0xFFFFFFFFFFFFFFC8] = X1 @64[SP + 0xFFFFFFFFFFFFFFD0] = X3 @64[SP + 0xFFFFFFFFFFFFFFD8] = X2 @64[SP + 0xFFFFFFFFFFFFFFE0] = X7 @64[SP + 0xFFFFFFFFFFFFFFE8] = X6 @64[SP + 0xFFFFFFFFFFFFFFF0] = X29 @64[SP + 0xFFFFFFFFFFFFFFF8] = LR @64[call_func_stack(0x67BCC, SP + 0xFFFFFFFFFFFFFFC0) + 0xFFFFFFFFFFFFFFF0] = X29 @64[call_func_stack(0x67BCC, SP + 0xFFFFFFFFFFFFFFC0) + 0xFFFFFFFFFFFFFFF8] = 0x67BC4 ================================================================================ 0x67bd8 LDP X29, LR, [SP] Assignblk: X29 = @64[SP + 0x0] LR = @64[SP + 0x0 + 0x8] ________________________________________________________________________________ X0 = 0x67BC4 SP = call_func_stack(0x67BCC, SP + 0xFFFFFFFFFFFFFFC0) + 0xFFFFFFFFFFFFFFF0 LR = 0x67BC4 PC = 0x67BCC @64[SP + 0xFFFFFFFFFFFFFFC0] = X29 + 0xFFFFFFFFFFFFFF98 @64[SP + 0xFFFFFFFFFFFFFFC8] = X1 @64[SP + 0xFFFFFFFFFFFFFFD0] = X3 @64[SP + 0xFFFFFFFFFFFFFFD8] = X2 @64[SP + 0xFFFFFFFFFFFFFFE0] = X7 @64[SP + 0xFFFFFFFFFFFFFFE8] = X6 @64[SP + 0xFFFFFFFFFFFFFFF0] = X29 @64[SP + 0xFFFFFFFFFFFFFFF8] = LR @64[call_func_stack(0x67BCC, SP + 0xFFFFFFFFFFFFFFC0) + 0xFFFFFFFFFFFFFFF0] = X29 @64[call_func_stack(0x67BCC, SP + 0xFFFFFFFFFFFFFFC0) + 0xFFFFFFFFFFFFFFF8] = 0x67BC4 ================================================================================ 0x67bdc ADD SP, SP, 0x10 Assignblk: SP = SP + 0x10 ________________________________________________________________________________ X0 = 0x67BC4 SP = call_func_stack(0x67BCC, SP + 0xFFFFFFFFFFFFFFC0) LR = 0x67BC4 PC = 0x67BCC @64[SP + 0xFFFFFFFFFFFFFFC0] = X29 + 0xFFFFFFFFFFFFFF98 @64[SP + 0xFFFFFFFFFFFFFFC8] = X1 @64[SP + 0xFFFFFFFFFFFFFFD0] = X3 @64[SP + 0xFFFFFFFFFFFFFFD8] = X2 @64[SP + 0xFFFFFFFFFFFFFFE0] = X7 @64[SP + 0xFFFFFFFFFFFFFFE8] = X6 @64[SP + 0xFFFFFFFFFFFFFFF0] = X29 @64[SP + 0xFFFFFFFFFFFFFFF8] = LR @64[call_func_stack(0x67BCC, SP + 0xFFFFFFFFFFFFFFC0) + 0xFFFFFFFFFFFFFFF0] = X29 @64[call_func_stack(0x67BCC, SP + 0xFFFFFFFFFFFFFFC0) + 0xFFFFFFFFFFFFFFF8] = 0x67BC4 ================================================================================ 0x67be0 RET LR Assignblk: PC = LR IRDst = LR ________________________________________________________________________________ X0 = 0x67BC4 SP = call_func_stack(0x67BCC, SP + 0xFFFFFFFFFFFFFFC0) LR = 0x67BC4 PC = 0x67BC4 IRDst = 0x67BC4 @64[SP + 0xFFFFFFFFFFFFFFC0] = X29 + 0xFFFFFFFFFFFFFF98 @64[SP + 0xFFFFFFFFFFFFFFC8] = X1 @64[SP + 0xFFFFFFFFFFFFFFD0] = X3 @64[SP + 0xFFFFFFFFFFFFFFD8] = X2 @64[SP + 0xFFFFFFFFFFFFFFE0] = X7 @64[SP + 0xFFFFFFFFFFFFFFE8] = X6 @64[SP + 0xFFFFFFFFFFFFFFF0] = X29 @64[SP + 0xFFFFFFFFFFFFFFF8] = LR @64[call_func_stack(0x67BCC, SP + 0xFFFFFFFFFFFFFFC0) + 0xFFFFFFFFFFFFFFF0] = X29 @64[call_func_stack(0x67BCC, SP + 0xFFFFFFFFFFFFFFC0) + 0xFFFFFFFFFFFFFFF8] = 0x67BC4 ================================================================================ **************************************** [ret] **************************************** 0x67bc4 ADD X1, X0, 0x34 Assignblk: X1 = X0 + 0x34 ________________________________________________________________________________ X0 = 0x67BC4 SP = call_func_stack(0x67BCC, SP + 0xFFFFFFFFFFFFFFC0) LR = 0x67BC4 PC = 0x67BC4 IRDst = 0x67BC4 X1 = 0x67BF8 @64[SP + 0xFFFFFFFFFFFFFFC0] = X29 + 0xFFFFFFFFFFFFFF98 @64[SP + 0xFFFFFFFFFFFFFFC8] = X1 @64[SP + 0xFFFFFFFFFFFFFFD0] = X3 @64[SP + 0xFFFFFFFFFFFFFFD8] = X2 @64[SP + 0xFFFFFFFFFFFFFFE0] = X7 @64[SP + 0xFFFFFFFFFFFFFFE8] = X6 @64[SP + 0xFFFFFFFFFFFFFFF0] = X29 @64[SP + 0xFFFFFFFFFFFFFFF8] = LR @64[call_func_stack(0x67BCC, SP + 0xFFFFFFFFFFFFFFC0) + 0xFFFFFFFFFFFFFFF0] = X29 @64[call_func_stack(0x67BCC, SP + 0xFFFFFFFFFFFFFFC0) + 0xFFFFFFFFFFFFFFF8] = 0x67BC4 ================================================================================ 0x67bc8 BR X1 Assignblk: PC = X1 IRDst = X1 ________________________________________________________________________________ X0 = 0x67BC4 SP = call_func_stack(0x67BCC, SP + 0xFFFFFFFFFFFFFFC0) LR = 0x67BC4 PC = 0x67BF8 IRDst = 0x67BF8 X1 = 0x67BF8 @64[SP + 0xFFFFFFFFFFFFFFC0] = X29 + 0xFFFFFFFFFFFFFF98 @64[SP + 0xFFFFFFFFFFFFFFC8] = X1 @64[SP + 0xFFFFFFFFFFFFFFD0] = X3 @64[SP + 0xFFFFFFFFFFFFFFD8] = X2 @64[SP + 0xFFFFFFFFFFFFFFE0] = X7 @64[SP + 0xFFFFFFFFFFFFFFE8] = X6 @64[SP + 0xFFFFFFFFFFFFFFF0] = X29 @64[SP + 0xFFFFFFFFFFFFFFF8] = LR @64[call_func_stack(0x67BCC, SP + 0xFFFFFFFFFFFFFFC0) + 0xFFFFFFFFFFFFFFF0] = X29 @64[call_func_stack(0x67BCC, SP + 0xFFFFFFFFFFFFFFC0) + 0xFFFFFFFFFFFFFFF8] = 0x67BC4 ================================================================================

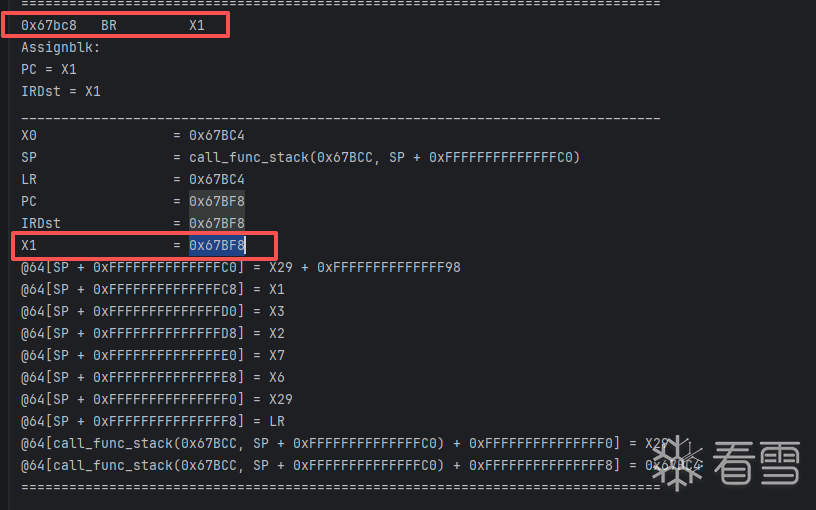

最终可以看到x1的正确地址
当然样本只是个例，可能需要更多优化！！！
