## 1.字符串混淆
都是传入了一个函数来解密的格式
![image.png](upload/attach/202602/1026350_MZMDESJZ6NDRKWX.png)
思路：用frida去hook最后的结果，然后用dexlib2来patch
目前写了一个小demo,尝试对一个地方进行patch
```java
package org.example;

import com.google.common.collect.Lists;
import org.jf.dexlib2.DexFileFactory;
import org.jf.dexlib2.Opcodes;
import org.jf.dexlib2.iface.ClassDef;
import org.jf.dexlib2.iface.DexFile;
import org.jf.dexlib2.iface.Method;
import org.jf.dexlib2.iface.MethodImplementation;
import org.jf.dexlib2.iface.instruction.Instruction;
import org.jf.dexlib2.iface.instruction.OneRegisterInstruction;
import org.jf.dexlib2.iface.instruction.ReferenceInstruction;
import org.jf.dexlib2.iface.reference.StringReference;
import org.jf.dexlib2.builder.MutableMethodImplementation;
import org.jf.dexlib2.builder.instruction.BuilderInstruction21c;
import org.jf.dexlib2.immutable.reference.ImmutableStringReference;
import org.jf.dexlib2.builder.instruction.BuilderInstruction10x;
import org.jf.dexlib2.Opcode;
import org.jf.dexlib2.immutable.ImmutableClassDef;
import org.jf.dexlib2.immutable.ImmutableMethod;
import org.jf.dexlib2.writer.io.FileDataStore;
import org.jf.dexlib2.writer.pool.DexPool;
import org.jf.dexlib2.builder.BuilderInstruction;
import org.jf.dexlib2.immutable.ImmutableMethodImplementation;
import java.io.File;
import java.io.IOException;
import java.util.ArrayList;
import java.util.List;

public class Main {
    public static void main(String[] args) throws IOException {
        File file = new File("C:\\Users\\cpq\\IdeaProjects\\untitled\\src\\main\\resources\\classes03.dex");
        DexFile dexFile = DexFileFactory.loadDexFile(file, Opcodes.getDefault());

// 1. 创建 DexPool 用于重组和写入 Dex
        DexPool dexPool = new DexPool(Opcodes.getDefault());

for (ClassDef classDef : dexFile.getClasses()) {
            if (classDef.getType().equals("Lio/liankong/riskdetector/core/VO0O0OOOOOOO0;")) {
                System.out.println("Processing target class: " + classDef.getType());
                // 2. 获取修改后的类定义
                ClassDef modifiedClass = ReplaceStr(classDef);
                dexPool.internClass(modifiedClass);
            } else {
                // 3. 非目标类直接原样放入池中
                dexPool.internClass(classDef);
            }
        }

// 4. 保存文件
        File outFile = new File("classes03_patched.dex");
        System.out.println("Writing to " + outFile.getAbsolutePath());
        dexPool.writeTo(new FileDataStore(outFile));
        System.out.println("Done.");
    }

private static ClassDef ReplaceStr(ClassDef classDef) {
        boolean isClassModified = false;
        List<Method> newMethods = new ArrayList<>();

for (Method method : classDef.getMethods()) {
            MethodImplementation methodImpl = method.getImplementation();

// 仅处理 <clinit> 且有实现的方法
            if (methodImpl != null && method.getName().equals("<clinit>")) {

MutableMethodImplementation mutableImpl = new MutableMethodImplementation(methodImpl);

// === Fix 1: 必须复制到一个新的 ArrayList 中 ===
                // mutableImpl.getInstructions() 返回的是只读视图，不能直接 set
                List<BuilderInstruction> instructions = new ArrayList<>(mutableImpl.getInstructions());

boolean isMethodModified = false;

for (int i = 0; i < instructions.size(); i++) {
                    Instruction instruction = instructions.get(i);

if (instruction instanceof ReferenceInstruction) {
                        ReferenceInstruction refInst = (ReferenceInstruction) instruction;
                        if (refInst.getReference() instanceof org.jf.dexlib2.iface.reference.MethodReference) {
                            org.jf.dexlib2.iface.reference.MethodReference methodRef = (org.jf.dexlib2.iface.reference.MethodReference) refInst
                                    .getReference();

if (methodRef.getDefiningClass().equals("Lio/liankong/riskdetector/OO0O0000O000;") &&
                                    methodRef.getName().equals("IIIIIIIILIII")) {

System.out.println("Found target call at index " + i);

if (i >= 2) {
                                    Instruction prev1 = instructions.get(i - 1);
                                    Instruction prev2 = instructions.get(i - 2);

if (prev1.getOpcode().name.startsWith("const-string") &&
                                            prev2.getOpcode().name.startsWith("const-string")) {

String str1 = ((StringReference) ((ReferenceInstruction) prev1).getReference())
                                                .getString();
                                        String str2 = ((StringReference) ((ReferenceInstruction) prev2).getReference())
                                                .getString();

if (str2.contains("ggFH+206pVWHeByNO0rnJtdlR40APuch1xYmkHAu3TnsX1DGAGyuaYM=") &&
                                                str1.contains("qj59oF0XnBQ=")) {

System.out.println("  --> Patching...");

int targetReg = ((OneRegisterInstruction) prev2).getRegisterA();

BuilderInstruction newConstStr = new BuilderInstruction21c(
                                                    Opcode.CONST_STRING,
                                                    targetReg,
                                                    new ImmutableStringReference("\u98ce\u9669App\u68c0\u6d4b"));
                                            BuilderInstruction nop = new BuilderInstruction10x(Opcode.NOP);

instructions.set(i, newConstStr);
                                            instructions.set(i+1,newConstStr);

// if (i + 1 < instructions.size()) {
                                            //     instructions.set(i + 1, nop);
                                            // }

isMethodModified = true;
                                            isClassModified = true;
                                        }
                                    }
                                }
                            }
                        }
                    }
                }

if (isMethodModified) {
                    // === Fix 2: 使用修改后的指令列表构建新的 Implementation ===
                    // 我们不能复用 mutableImpl，因为它里面的列表没变。我们手动创建一个 ImmutableImplementation。
                    MethodImplementation newImplementation = new ImmutableMethodImplementation(
                            mutableImpl.getRegisterCount(),
                            instructions, // 我们修改后的 List
                            mutableImpl.getTryBlocks(),
                            mutableImpl.getDebugItems());

newMethods.add(new ImmutableMethod(
                            method.getDefiningClass(),
                            method.getName(),
                            method.getParameters(),
                            method.getReturnType(),
                            method.getAccessFlags(),
                            method.getAnnotations(),
                            method.getHiddenApiRestrictions(),
                            newImplementation // 传入新的实现
                    ));
                } else {
                    newMethods.add(method); // 未修改，保留原样
                }
            } else {
                newMethods.add(method); // 其他方法，保留原样
            }
        }

if (isClassModified) {
            return new ImmutableClassDef(
                    classDef.getType(),
                    classDef.getAccessFlags(),
                    classDef.getSuperclass(),
                    classDef.getInterfaces(),
                    classDef.getSourceFile(),
                    classDef.getAnnotations(),
                    classDef.getFields(),
                    newMethods);
        } else {
            return classDef;
        }
    }

}
```

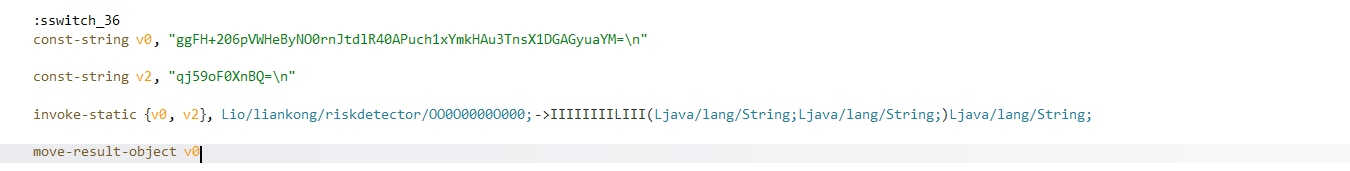

踩雷：
![8836ba7b0575c0bfe4dbcf4412b7a01b.png](upload/attach/202602/1026350_C9PJ74SJP88GXM2.png)

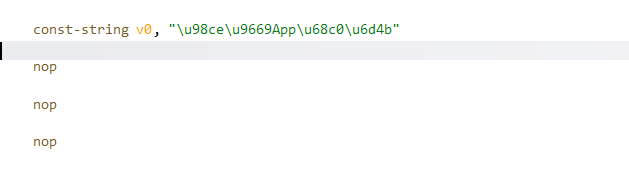

修改成
![638629e5d3014314e2a9b0008cd93c53.png](upload/attach/202602/1026350_YQ7H6TVFQSEF5HV.png)

应该是长度对不齐，就会失败，对齐之后会发现确实去掉了这个地方
![image.png](upload/attach/202602/1026350_AK7TK3KKRVU4J92.png)
利用frida打一个表，然后尝试批量化
```js
Java.perform(function () {
        var OO0O0000O000 = Java.use("io.liankong.riskdetector.OO0O0000O000");
OO0O0000O000["IIIIIIIILIII"].implementation = function (str, str2) {
    let result = this["IIIIIIIILIII"](str, str2);
    str = str.replace(/\n/g, '');
    str2 = str2.replace(/\n/g, '');
    console.log(`${str2},${str}:${result}`);
    return result;
};
});
```
凡是在frida里面被hook调用到的都会被patch回去
![66422e890b1228988672a94eccfb5f35.png](upload/attach/202602/1026350_XCKASM9KXWQ4SAD.png)
最后改成遍历所有类就ok了，重写了回溯，成功
最终版本
```java
package org.example;

import org.jf.dexlib2.DexFileFactory;
import org.jf.dexlib2.Opcodes;
import org.jf.dexlib2.Opcode;
import org.jf.dexlib2.iface.ClassDef;
import org.jf.dexlib2.iface.DexFile;
import org.jf.dexlib2.iface.Method;
import org.jf.dexlib2.iface.MethodImplementation;
import org.jf.dexlib2.iface.instruction.Instruction;
import org.jf.dexlib2.iface.instruction.OneRegisterInstruction;
import org.jf.dexlib2.iface.instruction.ReferenceInstruction;
import org.jf.dexlib2.iface.reference.StringReference;
import org.jf.dexlib2.builder.MutableMethodImplementation;
import org.jf.dexlib2.builder.instruction.BuilderInstruction21c;
import org.jf.dexlib2.builder.instruction.BuilderInstruction10x;
import org.jf.dexlib2.immutable.reference.ImmutableStringReference;
import org.jf.dexlib2.immutable.ImmutableClassDef;
import org.jf.dexlib2.immutable.ImmutableMethod;
import org.jf.dexlib2.immutable.ImmutableMethodImplementation;
import org.jf.dexlib2.writer.io.FileDataStore;
import org.jf.dexlib2.writer.pool.DexPool;
import org.jf.dexlib2.builder.BuilderInstruction;

import java.io.File;
import java.io.IOException;
import java.nio.charset.StandardCharsets;
import java.nio.file.Files;
import java.nio.file.Paths;
import java.util.ArrayList;
import java.util.List;

public class Main {
    static class PatchConfig {
        String targetStr1; // 对应参数 v2 (例如 key)
        String targetStr2; // 对应参数 v0 (例如密文)
        String newStr;     // 替换后的明文
        public PatchConfig(String t1, String t2, String n) {
            this.targetStr1 = t1;
            this.targetStr2 = t2;
            this.newStr = n;
        }
    }
    public static void main(String[] args) throws IOException {
        // 输入和输出文件路径
        File file = new File("C:\\Users\\cpq\\IdeaProjects\\untitled\\src\\main\\resources\\classes03.dex");
        String configPath = "C:\\Users\\cpq\\IdeaProjects\\untitled\\src\\main\\resources\\tmp.txt"; // 配置文件路径
        File outFile = new File("classes03_patched.dex");
        List<PatchConfig> patchConfigs = new ArrayList<>();
        List<String> lines = Files.readAllLines(Paths.get(configPath), StandardCharsets.UTF_8);
        for (String line : lines) {
            if (line.trim().isEmpty() || line.startsWith("#"))
                continue;
            String[] parts = line.split(":", 2);
            if (parts.length == 2) {
                String encryptedPart = parts[0];
                String newStr = parts[1];
                String[] encParams = encryptedPart.split(",");
                if (encParams.length >= 2) {
                    String t1 = encParams[0].trim();
                    String t2 = encParams[1].trim();
                    // 将解析结果存入列表 去重
                    if (patchConfigs.stream().noneMatch(pc -> pc.targetStr1.equals(t1) && pc.targetStr2.equals(t2))) {
                        patchConfigs.add(new PatchConfig(t1, t2, newStr));
                    }
                } else {
                    System.err.println("Skipping invalid line (comma missing): " + line);
                }
            } else {
                System.err.println("Skipping invalid line (colon missing): " + line);
            }
        }
        System.out.println("Loaded " + patchConfigs.size() + " replacement rules.");
        // 2. 加载 Dex
        DexFile dexFile = DexFileFactory.loadDexFile(file, Opcodes.getDefault());
        DexPool dexPool = new DexPool(Opcodes.getDefault());
        // 3. 遍历并修改类
        for (ClassDef classDef : dexFile.getClasses()) {
            if (classDef.getType().contains("io/liankong/riskdetector")) {
                System.out.println("Processing target class: " + classDef.getType());
                ClassDef currentClass = classDef;
                for (PatchConfig config : patchConfigs) {
                    currentClass = ReplaceStr(
                            currentClass,
                            "Lio/liankong/riskdetector/OO0O0000O000;", // 解密函数所在类
                            "IIIIIIIILIII", // 解密函数名
                            config.targetStr1, // 对应 mapping 中的 TargetStr1
                            config.targetStr2, // 对应 mapping 中的 TargetStr2
                            config.newStr // 对应 mapping 中的 NewStr
                    );
                }
                dexPool.internClass(currentClass);
            } else {
                dexPool.internClass(classDef);
            }
        }
        // 4. 保存文件
        System.out.println("Writing to " + outFile.getAbsolutePath());
        dexPool.writeTo(new FileDataStore(outFile));
        System.out.println("Done.");
    }
    private static ClassDef ReplaceStr(ClassDef classDef, String ClassName, String MethodName, String TargetStr1,
                                       String TargetStr2, String NewStr) {
        boolean isClassModified = false;
        List<Method> newMethods = new ArrayList<>();
        for (Method method : classDef.getMethods()) {
            MethodImplementation methodImpl = method.getImplementation();
            if (methodImpl != null) {
                MutableMethodImplementation mutableImpl = new MutableMethodImplementation(methodImpl);
                List<BuilderInstruction> instructions = new ArrayList<>(mutableImpl.getInstructions());
                boolean isMethodModified = false;
                for (int i = 0; i < instructions.size(); i++) {
                    Instruction instruction = instructions.get(i);
                    if (instruction instanceof ReferenceInstruction) {
                        ReferenceInstruction refInst = (ReferenceInstruction) instruction;
                        if (refInst.getReference() instanceof org.jf.dexlib2.iface.reference.MethodReference) {
                            org.jf.dexlib2.iface.reference.MethodReference methodRef = (org.jf.dexlib2.iface.reference.MethodReference) refInst
                                    .getReference();
                            if (methodRef.getDefiningClass().equals(ClassName) &&
                                    methodRef.getName().equals(MethodName)) {
                                String foundContent = null; // 离 invoke 最近的 (参数2)
                                String foundKey = null;     // 离 invoke 较远的 (参数1)
                                int foundCount = 0;
                                // 向上回溯查找前两个 const-string
                                for (int k = i - 1; k >= 0; k--) {
                                    Instruction prev = instructions.get(k);
                                    if (prev.getOpcode().name.startsWith("const-string")) {
                                        String val = ((StringReference) ((ReferenceInstruction) prev).getReference()).getString();
                                        if (foundCount == 0) {
                                            foundContent = val;
                                            foundCount++;
                                        } else if (foundCount == 1) {
                                            foundKey = val;
                                            foundCount++;
                                            break;
                                        }
                                    }
                                    // 防止回溯过远 (可选)
                                    if (i - k > 30) break;
                                }
                                // 检查是否匹配
                                if (foundCount == 2 &&
                                        foundKey.contains(TargetStr2) &&
                                        foundContent.contains(TargetStr1)) {
                                    System.out.println("Patching found in: " + method.getName());
                                    int targetReg = 0;
                                    boolean hasMoveResult = false;
                                    if (i + 1 < instructions.size()) {
                                        Instruction nextInst = instructions.get(i + 1);
                                        if (nextInst.getOpcode().name.startsWith("move-result")) {
                                            targetReg = ((OneRegisterInstruction) nextInst).getRegisterA();
                                            hasMoveResult = true;
                                        }
                                    }
                                    if (hasMoveResult) {
                                        BuilderInstruction newConstStr = new BuilderInstruction21c(
                                                Opcode.CONST_STRING,
                                                targetReg,
                                                new ImmutableStringReference(NewStr));
                                        BuilderInstruction nop = new BuilderInstruction10x(Opcode.NOP);
                                        // 替换 invoke
                                        instructions.set(i, newConstStr);
                                        instructions.set(i + 1, newConstStr);
                                        isMethodModified = true;
                                        isClassModified = true;
                                    } else {
                                        System.err.println("Warning: No move-result after invoke, skipping patch.");
                                    }
                                }
                            }
                        }
                    }
                }
                if (isMethodModified) {
                    MethodImplementation newImplementation = new ImmutableMethodImplementation(
                            mutableImpl.getRegisterCount(),
                            instructions, // 我们修改后的 List
                            mutableImpl.getTryBlocks(),
                            mutableImpl.getDebugItems());
                    newMethods.add(new ImmutableMethod(
                            method.getDefiningClass(),
                            method.getName(),
                            method.getParameters(),
                            method.getReturnType(),
                            method.getAccessFlags(),
                            method.getAnnotations(),
                            method.getHiddenApiRestrictions(),
                            newImplementation // 传入新的实现
                    ));
                } else {
                    newMethods.add(method); // 未修改，保留原样
                }
            } else {
                newMethods.add(method); // 其他方法，保留原样
            }
        }
        if (isClassModified) {
            return new ImmutableClassDef(
                    classDef.getType(),
                    classDef.getAccessFlags(),
                    classDef.getSuperclass(),
                    classDef.getInterfaces(),
                    classDef.getSourceFile(),
                    classDef.getAnnotations(),
                    classDef.getFields(),
                    newMethods);
        } else {
            return classDef;
        }
    }
}
```

登录后可查看完整内容

冰与火的战歌：Windows内核攻防实战高级班！从零到实战，融合AI与Windows内核攻防全技术栈，打造具备自动化能力的内核开发高手。

最后于 2025-12-3 17:34 被BediveRe_编辑，原因：

#逆向分析 #脱壳反混淆

最新回复 (5)
mb_asiwnxyv 雪币： 6 能力值： ( LV1，RANK：0 ) 在线值：发帖 0 回帖 100 粉丝 0 关注私信	mb_asiwnxyv 2 楼感谢分享 2025-12-3 21:15 0
bananaships 雪币： 321 活跃值： (150) 能力值： ( LV2，RANK：10 ) 在线值：发帖 4 回帖 4 粉丝 12 关注私信	bananaships 3 楼 tql 2025-12-3 22:34 0
iBa0 雪币： 1901 活跃值： (5923) 能力值： ( LV4，RANK：40 ) 在线值：发帖 6 回帖 490 粉丝 37 关注私信	iBa0 4 楼 1 2025-12-4 11:03 0
uni7corn 雪币： 0 活跃值： (2485) 能力值： ( LV2，RANK：10 ) 在线值：发帖 0 回帖 182 粉丝 0 关注私信	uni7corn 5 楼感谢分享 2025-12-15 23:27 0
shuangmou 雪币： 754 能力值： ( LV1，RANK：0 ) 在线值：发帖 0 回帖 68 粉丝 1 关注私信	shuangmou 6 楼感谢分享 2026-2-6 17:12 0
	游客登录 \| 注册方可回帖回帖表情雪币赚取及消费高级回复
