[原创]CVE-2022-2602 内核提权详细分析
-
发表于: 2025-3-7 15:15 4822
-
漏洞编号: CVE-2022-2602
影响版本:Linux Kernel < v6.0.3。v6.0.3已修复。
漏洞产品: linux kernel - io_uring & unix_gc
利用效果: 本地提权
复现环境:qemu + linux kernel v5.18.19
环境附件: mowenroot/Kernel

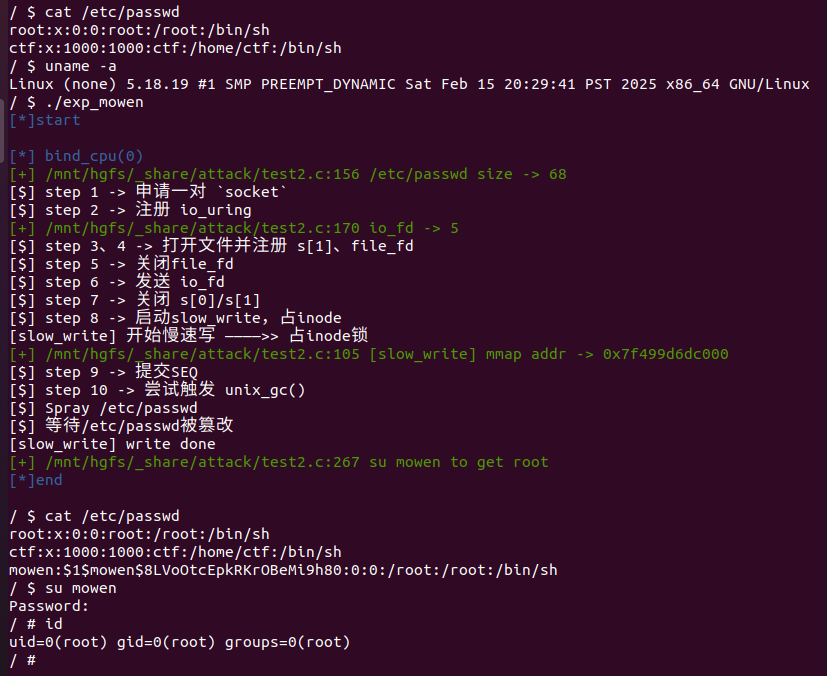

复现流程: 执行exp后,账号:mowen,密码:mowen的root用户被添加。su mowen完成提权。
漏洞本质是 filp
的 UAF
。 io_uring
模块提供的 io_uring_register
系统调用中的 IORING_REGISTER_FILES
能注册文件。调用后会把文件放入 io_uring->sk->receive_queue
。在 Linux gc
垃圾回收机制中又会将该列表的文件取出,尝试会将文件取出并释放。导致下次使用 io_uring
利用该文件时会触发 UAF
。
漏洞技术点涉及 io_uring 、飞行计数、gc回收机制等,涉及的还是比较多的,下面详细分析。
参考链接:
【kernel exploit】CVE-2022-2602垃圾回收错误释放iouring的file导致UAF — bsauce
io_uring, SCM_RIGHTS, and reference-count cycles(https://lwn.net/Articles/779472/)
The quantum state of Linux kernel garbage collection CVE-2021-0920 (Part I)(https://googleprojectzero.blogspot.com/2022/08/the-quantum-state-of-linux-kernel.html)
Linux 进程间通信是很重要的一个功能。Linux sock就允许建立一个双向socket来传递消息,通常会在两个进程中通信使用。SCM_RIGHTS 是 Unix 域套接字(Unix Domain Socket)中用于 进程间传递文件描述符的控制消息类型。其核心作用在于允许两个进程通过 IPC 机制共享已打开的文件、套接字或其他资源,而无需重复打开或复制数据。接下来主要针对 SCM_RIGHTS 方面分析。
但是传递总会有影响,比如我这边发送过去,对方还没接收到就关闭了文件。对方该怎么处理,不可能再去使用已经释放的资源。所以在文件准备发送的阶段,就会对文件引用计数 +1
。即使在对方没接收到就关闭文件,他的引用计数才不会为 0
而被释放。这样在socket
被关闭时,调用sock_release
对未接受到的文件,使用 fput()
来减少引用计数,这样就可以正常使用文件。
在资源释放比较依赖于 socket
被关闭,但是我发送 socket fd
本身,这样就会造成无法释放。比如下图
1、打开两个sock A、B,初始引用计数都是为 1 。
2、把 A 发送给 B ,B 发送给 A。两个引用计数都 +1 ,这时 ref_A==ref_B==2 。
3、关闭用户态的文件描述符,即关闭 A、B。引用计数都会 -1 ,这时 ref_A==ref_B==1。
4、用户态已经无法再次对 A、B 操作,也就无法调用sock_release
,但是内核又不会主动对 A、B 操作,就导致了资源无法释放。
这样 Linux gc
垃圾回收机制就诞生了,内核会主动回收这种类似的资源,下面详细分析。先来了解发送的一个过程,再来分析回收机制。
在用户态使用 socketpair(AF_UNIX,SOCK_DGRAM,0,s);
申请 SOCK_DGRAM
类型的 socket
然后使用 sendmsg()
发送 SCM_RIGHTS
类型的信息的时候,会调用unix_dgram_sendmsg()
。
「1」 首先会调用 scm_send
获取文件结构体 file
,初始化 scm_cookie
。这个 scm_cookie
涉及文件存放的列表,并且前面提到的准备发送阶段的文件引用计数增加,就在这个函数中实现。 相关结构体如下。
「2」初始化了相关文件,接着需要处理发送目的,other
为目标 socket
,如果没指定地址就会通过 unix_peer_get()
获取已连接的对端,比如在最开始的描述中,把 A
发送给 B
,other
在这里就是为 B
。
「3」 接下来处理发送数据,把 scm_cookie
中的文件添加到 skb
,并且还会对文件引用计数与飞行计数增加操作等。
「4」 把当前 skb
挂载到对方的 sk_receive_queue
(未接收列表),然后通知对方有数据要来,最后通过 scm_destroy
销毁局部变量 scm_cookie
,减少最开始增加的引用计数。需要注意的是 scm_destroy
减少的只是局部变量引用增加的,不是准备发送阶段增加的。
约等于直接调用了__scm_send()
,重点关注 SCM_RIGHTS
,在这个选择中调用 scm_fp_copy
来获取file结构体,初始化 scm_cookie->fp
文件列表,并把 file
结构体放入文件数组( fp->fp
)中。
「1」 首先会对文件列表进行初始化,再尝试把文件放入文件数组。
「2」 会循环使用 fget_raw()
从文件描述符中获取 file
结构体,过程中引用计数 +1
,这里 +1 是前面提到的局部变量引用增加的,不是准备发送阶段增加的。在之后的 scm_destroy()
中会对应减少,到这里我们对 scm_cookie
有了更深的理解,无非就是两层结构,大致可看为 文件列表 -> 文件数组的关系。现在做的操作就是需要初始化文件列表,然后把要发送的文件存放进文件数组中。
「1」 该函数主要工作是将 scm_cookie
添加到 skb
,进行文件的发送工作。设置一些 cb
信息后调用 unix_attach_fds()
。
「1」 到这里就是核心发送阶段了,先调用 scm_fp_dup()
对每个文件增加文件计数引用,在这里才是准备发送阶段增加的计数引用,之前获取 file
使用的 fget_raw()
增加是临时的,代表 scm
正在引用。
「2」 然后调用 unix_inflight()
尝试添加飞行计数。
「1」 因为只有在发送 socket
自身的 fd
才会导致资源无法释放的问题,在普通文件引用的情况都会在 sock_release()
中释放,所以在添加飞行引用计数只考虑 sock
类(socket和io_uring)。通过 unix_get_socket()
获取 sock
,而这只有 socket
和 io_uring
才能找到。普通文件返回 NULL
。接着会对 sock
类进行特殊处理。
「2」 如果存在则会 inc
自增u->inflight
,前面提到飞行计数并不涉及普通文件,只针对 sock
类,所以当然的飞行计数不存放在 file
,而是在文件对应的 sock
。当第一次增加 inflight
时,添加到全局飞行列表 gc_inflight_list
。这点很关键,当使用 unix_gc()
回收时就会在 gc_inflight_list
找出符合的释放。
即如果传进来的是 socket
或者 io_uring
会进行以下操作:
增加飞行计数——u->inflight++
添加到全局飞行队列 gc_inflight_list
全局飞行计数增加 unix_tot_inflight++
用户飞行计数增加 user->unix_inflight++
「1」首先销毁cred,释放文件列表调用 __scm_destroy()
「2」遍历文件列表,使用 fput()
减少文件计数引用,抵消最开始 fget_raw()
增加的文件引用计数。
通过上面的分析,我们大致对发送 SCM_RIGHTS
和 飞行计数 有了一个大致的了解。
文件初始阶段——在发送文件描述符时,会先通过 fd
获取 file
结构体,以数组列表形式挂载到局部变量 scm_cookie
。
文件准发阶段——再把局部变量 scm_cookie
中的文件列表添加到 skb
上。同时增加文件计数引用,防止未接受就关闭的风险。并增加飞行引用计数和挂载到全局飞行列表 gc_inflight_list
,而飞行引用计数只有 sock
类(socket、io_uring)再会增加,普通文件不做处理。
文件发送阶段——添加各种附加信息,把当前 skb
挂载到对端未接受列表(sk_receive_queue
),并通知进程有数据到达。
资源销毁阶段——因为 scm_cookie
为局部变量,并在第一阶段采用 fget_raw()
增加文件计数引用,在这一阶段需要安全释放资源见减少文件引用计数然后函数返回。
垃圾回收的触发在一个 socket
被关闭时,主要通过 unix_gc()
函数,调用栈:
在了解了飞行计数的概念后,最开始的图完善成如下图。在发送 socket
自身 fd
后关闭,文件引用计数为 1
,并且用户态再无法对文件描述符操作,因为文件引用计数不为 0
导致还是无法释放文件资源。但在增加了飞行计数引用后,对于 sock
类增加了飞行计数,这时A、B的 文件引用计数==飞机计数==1
,并且对应的 skb
挂载在全局飞行列表 gc_inflight_list
。
unix_gc
回收本质就是遍历全局飞行列表 gc_inflight_list
,查看是否有符合这种闭环条件,然后进行释放回收内存。
在分析 unix_gc
源码前,我们需要有一个清楚的认知就是导致 sock fd
无法释放的真正原因,是因为增加 ref
后,但对方又未接受到而被挂于对端的 sk_receive_queue
上所导致的闭环。你可以理解为unix_gc
就是在处理闭环(不准确,还有多持有僵死状态),而 unix_gc
机制核心在于对 gc_inflight_list->sock->sk_receive_queue
上 的文件检查并释放。
gc_inflight_list
全局飞行列表,挂载的是发送的 sock
文件。
sk_receive_queue
未接受列表,存放的是 skb
,skb
中存放未接受文件的列表 fp
。
「1」首先遍历全局飞行列表 gc_inflight_list
,如果当 文件引用计数==飞行计数 就判定为“垃圾”,被放进备选垃圾队列gc_candidates
,如果两个引用计数都不相同就不满足闭环的条件。
「2」上面提及 unix_gc
机制核心在于对 sk_receive_queue
的处理,unix_gc
就是在处理闭环(不准确,还有多持有僵死状态),而这里引用的 scan_children
则是核心,有关scan_children
函数建议师傅们先看过一遍,相关分析在下面。所以需要遍历备选垃圾队列gc_candidates
,遍历队列每个 sock
中的 sk_receive_queue
,进行飞行引用计数的减少闭环,这里减少的目的就在于下一步判断是否是闭环(文件循环发送)。
「3」接下来判断是否是闭环,遍历 gc_candidates
列表,判断飞行引用计数是否大于0,如果大于0就说明文件还在使用,为什么这么说呢。原因在于上一步调用 scan_children()
减少的飞行计数引用是 sk_receive_queue
中的,如果不是闭环或者多持有状态,那么就不会在 sk_receive_queue 找到该文件并减少飞行计数,简而言之文件还在使用。合法文件就添加到 not_cycle_list
,并恢复飞行计数引用。
「4」 遍历 gc_candidates
,把之前减少的飞行引用计数加回来,然后添加到 hitlist
以供之后恢复使用。
「5」 遍历 not_cycle_list
,恢复合法文件重新添加回gc_inflight_list
。
「6」 调用__skb_queue_purge(&hitlist);
进行释放操作。
scan_children
直接调用 scan_inflight
,所以直接放了 scan_inflight
相关源码。
「1」在之前分析发送的过程中 skb
会被挂载到对端的sk_receive_queue
上。所以这里从文件对应的 sock
中的 sk_receive_queue
(未接收列表)取出 skb
,而 skb
里面有 文件列表。所以相当于最终遍历 sk_receive_queue
中的每一个文件,如果遇到 sock
类文件,进行func(u)
操作(一般是进行飞行计数的加减)。
「2」 如果需要提取出来使用,就会把 skb
从 sk_receive_queue
取出,然后添加到 hitlist
。
「1」对于传进来的列表,遍历其中的 skb
进行逐个释放。
基础分析在上篇文章已经分析过,这里就只展开有关漏洞的部分
主要调用了一个关键函数 io_sqe_files_scm()
来进行绑定操作。
该函数是 __io_sqe_files_scm()
的封装,直接看__io_sqe_files_scm
。
「1」 根据传进来的 nr
文件数量进行遍历,使用 get_file()
获取 file
结构体,文件引用计数 +1,并添加到文件列表中。并对每个文件调用 unix_inflight
尝试对每个 sock
文件添加飞行计数。
「2」 如果有文件列表有文件,则会把文件列表挂载到 skb
上,然后将 skb
添加到 io_uring 自己的 sk_receive_queue。最后遍历文件调用 fput()
抵消最开始的文件引用计数增加。
在之前分析了 unix_inflight
和 sk_receive_queue
再来看注册文件的一个过程,会显得有点奇怪,因为我们之前分析过sk_receive_queue
为对端未接受文件的列表,当时现在挂载到自己的 ctx->ring_sock->sk->sk_receive_queue
上,在这样操作之后也导致了非法释放 filp
的操作,比如现在 io_uring->sk_receive_queue = {s[1],fd}; s[1]->sk_receive_queue={io_uring_fd};这样造成的结果就是io_uring和s[1]完成闭环,释放资源的时候非法释放了fd
。
函数会先初始化IO请求,然后进行一些link的操作这里忽略,重点关注io_queue_sqe()
会尝试执行。因为非法释放 filp
,我们可以采用 dirty cred
的手法往"/etc/passwd"中写入数据,而 io_uring 中有自带的写任务,所以我们跟一下 io_uring 如何完成IORING_OP_WRITEV 类型任务。
调用链如下
需要注意的是文件鉴权在 io_write()
中的 io_rw_init_file()
中,而在之前是在 io_submit_sqe()
中就完成鉴权。在一定程度上缓减了 dirty cred
。
概况:在非法释放后,实际写之前,喷射大量 "/etc/passwd"
文件,覆盖由gc回收非法释放的file
结构体,实际写恶意数据会到 "/etc/passwd"
文件。
「1」 使用 socketpair()
申请一对socket
,文件描述符分别为s[0]
、s[1]
。默认计数引用都为 1
。
「2」 调用 io_uring_setup
(模式使用SQ轮询) ,初始化 io_uring
,文件描述符为io_fd
,引用计数为 1
。
「3」 打开一个普通可读写文件,比如 "/tmp/mowen"
,文件描述符为file_fd
,初始状态引用计数为 1
。
「4」 调用 io_uring_register
中的注册文件模式 IORING_REGISTER_FILES
,来注册 s[1]
、file_fd
。在注册的时候文件引用计数会 +1
。其中还会调用 unix_inflight
对sock
类 s[1]
飞行引用计数 +1
。值得注意的是: 会将 file_fd
和 s[1]
放进同一个 skb
。
s[1]
:引用计数 2
,飞行引用计数 1
。
file_fd
:引用计数 2
,没有飞行计数。
「4」——调试图,当前 sk
为 io_uring
自带的,和之前的io_sqe_files_register配合分析,当前io_uring自己的sk_receive_queue,一共有两个文件,skb
只有一个。
「5」 关闭 file_fd
,这时 file_fd
引用计数为 1
,在 skb
中。
「5」——调试图,这时filp并未被释放,仍然在 skb
中。
通过f_op指针判断 0xffff8881018a7900
所在slub 为 file_fd的file结构体。
「6」 往 s[0]
,发送 io_fd
,即通过 s[0]
把 io_fd
发送给 s[1]
,发送过程会调用 unix_inflight
,因为 io_uring
属于 sock
类,故飞行计数会 +1
,并且引用计数也会 +1
。
「7」依次关闭 s[0]、s[1]
,关闭后引用计数会 -1
。
「8」 使用线程占用文件 inode
锁——往 "/tmp/mowen"
中写入大量数据,占用 inode
文件锁,致使其他进程无法对该文件进行操作。
「9」 提交 io_uring
任务,使用 IORING_OP_WRITEV
提交 writev
任务,往 "/tmp/mowen"
中写入恶意数据(新root),因为 inode
锁的存在,这个任务会阻塞在——拷贝数据并检查权限后,实际写之前。
「10」 造成gc回收的非法释放,先关闭 io_uring
,调用 io_uring_queue_exit()
关闭 io_fd
,过程中引用计数 -1
。
io_fd
:引用计数 1
,飞行引用计数 1
,不会被释放。
「11」关闭一个 socket
,触发 unix_gc()
,这个时候只要满足 引用计数==飞行计数 unix_gc
就会从sk_receive_queue
中取下并调用__skb_queue_purge
释放对应的skb
,其中会减少飞行引用计数并调用fput()
,减少引用计数。
「12」大量的"/etc/passwd"
文件,覆盖这个块内存 ,就可以写到"/etc/passwd"
文件。
/* net/unix/af_unix.c */
static
int
unix_dgram_sendmsg(
struct
socket *sock,
struct
msghdr *msg,
size_t
len)
{
struct
sock *sk = sock->sk;
// 获取socket对应的sock结构
DECLARE_SOCKADDR(
struct
sockaddr_un *, sunaddr, msg->msg_name);
// 获取目标地址
struct
sock *other = NULL;
// other为目标socket(如果没指定地址默认为对端)
struct
sk_buff *skb;
// skb数据缓冲区
struct
scm_cookie scm;
// 用于传递文件描述符等控制消息
wait_for_unix_gc();
// 等待垃圾回收完成
// 获取文件结构体file ,初始化 scm_cookie
err = scm_send(sock, msg, &scm,
false
);
// ...
// 处理目标地址
if
(msg->msg_namelen) {
// 如果指定了目标地址,验证地址有效性
err = unix_validate_addr(sunaddr, msg->msg_namelen);
if
(err)
goto
out;
}
else
{
// 未指定目标地址,尝试获取已连接的对端
sunaddr = NULL;
err = -ENOTCONN;
// other为对端
other = unix_peer_get(sk);
if
(!other)
goto
out;
}
// ...
// 分配发送缓冲区
skb = sock_alloc_send_pskb(sk, len - data_len, data_len,
msg->msg_flags & MSG_DONTWAIT, &err,
PAGE_ALLOC_COSTLY_ORDER);
if
(skb == NULL)
goto
out;
// 将 scm_cookie 添加到skb 文件的发送工作
err = unix_scm_to_skb(&scm, skb,
true
);
if
(err < 0)
goto
out_free;
//...
// 把skb添加到 对端的sk_receive_queue(未接收列表)
skb_queue_tail(&other->sk_receive_queue, skb);
unix_state_unlock(other);
// 通知接收进程有数据到达
other->sk_data_ready(other);
sock_put(other);
// 销毁 scm_cookie
scm_destroy(&scm);
return
len;
//...
return
err;
}
/* net/unix/af_unix.c */
static
int
unix_dgram_sendmsg(
struct
socket *sock,
struct
msghdr *msg,
size_t
len)
{
struct
sock *sk = sock->sk;
// 获取socket对应的sock结构
DECLARE_SOCKADDR(
struct
sockaddr_un *, sunaddr, msg->msg_name);
// 获取目标地址
struct
sock *other = NULL;
// other为目标socket(如果没指定地址默认为对端)
struct
sk_buff *skb;
// skb数据缓冲区
struct
scm_cookie scm;
// 用于传递文件描述符等控制消息
wait_for_unix_gc();
// 等待垃圾回收完成
// 获取文件结构体file ,初始化 scm_cookie
err = scm_send(sock, msg, &scm,
false
);
// ...
// 处理目标地址
if
(msg->msg_namelen) {
// 如果指定了目标地址,验证地址有效性
err = unix_validate_addr(sunaddr, msg->msg_namelen);
if
(err)
goto
out;
}
else
{
// 未指定目标地址,尝试获取已连接的对端
sunaddr = NULL;
err = -ENOTCONN;
// other为对端
other = unix_peer_get(sk);
if
(!other)
goto
out;
}
// ...
// 分配发送缓冲区
skb = sock_alloc_send_pskb(sk, len - data_len, data_len,
msg->msg_flags & MSG_DONTWAIT, &err,
PAGE_ALLOC_COSTLY_ORDER);
if
(skb == NULL)
goto
out;
// 将 scm_cookie 添加到skb 文件的发送工作
err = unix_scm_to_skb(&scm, skb,
true
);
if
(err < 0)
goto
out_free;
//...
// 把skb添加到 对端的sk_receive_queue(未接收列表)
skb_queue_tail(&other->sk_receive_queue, skb);
unix_state_unlock(other);
// 通知接收进程有数据到达
other->sk_data_ready(other);
sock_put(other);
// 销毁 scm_cookie
scm_destroy(&scm);
return
len;
//...
return
err;
}
struct
scm_cookie {
struct
pid * pid;
/* 0 8 */
struct
scm_fp_list * fp;
//文件列表 /* 8 8 */
struct
scm_creds creds;
/* 16 12 */
struct
lsmblob lsmblob;
/* 28 16 */
};
struct
scm_fp_list {
short
int
count;
/* 0 2 */
short
int
max;
/* 2 2 */
struct
user_struct * user;
/* 8 8 */
struct
file * fp[253];
/* 16 2024 */
};
struct
scm_cookie {
struct
pid * pid;
/* 0 8 */
struct
scm_fp_list * fp;
//文件列表 /* 8 8 */
struct
scm_creds creds;
/* 16 12 */
struct
lsmblob lsmblob;
/* 28 16 */
};
struct
scm_fp_list {
short
int
count;
/* 0 2 */
short
int
max;
/* 2 2 */
struct
user_struct * user;
/* 8 8 */
struct
file * fp[253];
/* 16 2024 */
};
/* net/core/scm.c */
int
__scm_send(
struct
socket *sock,
struct
msghdr *msg,
struct
scm_cookie *p)
{
struct
cmsghdr *cmsg;
// 遍历控制头
for_each_cmsghdr(cmsg, msg) {
//...
switch
(cmsg->cmsg_type)
{
case
SCM_RIGHTS:
// 传递文件描述符
// 必须是UNIX域socket
if
(!sock->ops || sock->ops->family != PF_UNIX)
goto
error;
// 获取 file 结构体
err=scm_fp_copy(cmsg, &p->fp);
if
(err<0)
goto
error;
break
;
//...
}
//...
}
/* net/core/scm.c */
int
__scm_send(
struct
socket *sock,
struct
msghdr *msg,
struct
scm_cookie *p)
{
struct
cmsghdr *cmsg;
// 遍历控制头
for_each_cmsghdr(cmsg, msg) {
//...
switch
(cmsg->cmsg_type)
{
case
SCM_RIGHTS:
// 传递文件描述符
// 必须是UNIX域socket
if
(!sock->ops || sock->ops->family != PF_UNIX)
goto
error;
// 获取 file 结构体
err=scm_fp_copy(cmsg, &p->fp);
if
(err<0)
goto
error;
break
;
//...
}
//...
}
/* net/unix/af_unix.c */
static
int
scm_fp_copy(
struct
cmsghdr *cmsg,
struct
scm_fp_list **fplp)
{
int
*fdp = (
int
*)CMSG_DATA(cmsg);
struct
scm_fp_list *fpl = *fplp;
struct
file **fpp;
int
i, num;
// 获取数量
num = (cmsg->cmsg_len -
sizeof
(
struct
cmsghdr))/
sizeof
(
int
);
if
(num <= 0)
return
0;
if
(num > SCM_MAX_FD)
return
-EINVAL;
// fpl 文件列表,如果文件列表为空,则进行初始化
if
(!fpl)
{
// 分配空间 使用GFP_KERNEL_ACCOUNT
fpl = kmalloc(
sizeof
(
struct
scm_fp_list), GFP_KERNEL_ACCOUNT);
if
(!fpl)
return
-ENOMEM;
// 初始化参数
*fplp = fpl;
fpl->count = 0;
// 文件个数
fpl->max = SCM_MAX_FD;
// 文件最大数量
fpl->user = NULL;
}
// 获取文件列表中的文件数组位置
fpp = &fpl->fp[fpl->count];
if
(fpl->count + num > fpl->max)
return
-EINVAL;
// 遍历所有文件结构体
for
(i=0; i< num; i++)
{
int
fd = fdp[i];
struct
file *file;
// fget_raw 获取文件结构体,引用计数 +1
// 这里 +1 是前面提到的局部变量引用增加的,不是准备发送阶段增加的
if
(fd < 0 || !(file = fget_raw(fd)))
return
-EBADF;
*fpp++ = file;
//存放进数组
// 文件列表计数,count为文件结构体个数
fpl->count++;
}
if
(!fpl->user)
fpl->user = get_uid(current_user());
return
num;
}
/* net/unix/af_unix.c */
static
int
scm_fp_copy(
struct
cmsghdr *cmsg,
struct
scm_fp_list **fplp)
{
int
*fdp = (
int
*)CMSG_DATA(cmsg);
struct
scm_fp_list *fpl = *fplp;
struct
file **fpp;
int
i, num;
// 获取数量
num = (cmsg->cmsg_len -
sizeof
(
struct
cmsghdr))/
sizeof
(
int
);
if
(num <= 0)
return
0;
if
(num > SCM_MAX_FD)
return
-EINVAL;
// fpl 文件列表,如果文件列表为空,则进行初始化
if
(!fpl)
{
// 分配空间 使用GFP_KERNEL_ACCOUNT
fpl = kmalloc(
sizeof
(
struct
scm_fp_list), GFP_KERNEL_ACCOUNT);
if
(!fpl)
return
-ENOMEM;
// 初始化参数
*fplp = fpl;
fpl->count = 0;
// 文件个数
fpl->max = SCM_MAX_FD;
// 文件最大数量
fpl->user = NULL;
}
// 获取文件列表中的文件数组位置
fpp = &fpl->fp[fpl->count];
if
(fpl->count + num > fpl->max)
return
-EINVAL;
// 遍历所有文件结构体
for
(i=0; i< num; i++)
{
int
fd = fdp[i];
struct
file *file;
// fget_raw 获取文件结构体,引用计数 +1
// 这里 +1 是前面提到的局部变量引用增加的,不是准备发送阶段增加的
if
(fd < 0 || !(file = fget_raw(fd)))
return
-EBADF;
*fpp++ = file;
//存放进数组
// 文件列表计数,count为文件结构体个数
fpl->count++;
}
if
(!fpl->user)
fpl->user = get_uid(current_user());
return
num;
}
/* net/unix/af_unix.c */
static
int
unix_scm_to_skb(
struct
scm_cookie *scm,
struct
sk_buff *skb,
bool
send_fds)
{
int
err = 0;
// 初始化 skb->cb
UNIXCB(skb).pid = get_pid(scm->pid);
UNIXCB(skb).uid = scm->creds.uid;
UNIXCB(skb).gid = scm->creds.gid;
UNIXCB(skb).fp = NULL;
unix_get_secdata(scm, skb);
// 文件列表存在,即有文件时调用unix_attach_fds
if
(scm->fp && send_fds)
err = unix_attach_fds(scm, skb);
skb->destructor = unix_destruct_scm;
return
err;
}
/* net/unix/af_unix.c */
static
int
unix_scm_to_skb(
struct
scm_cookie *scm,
struct
sk_buff *skb,
bool
send_fds)
{
int
err = 0;
// 初始化 skb->cb
UNIXCB(skb).pid = get_pid(scm->pid);
UNIXCB(skb).uid = scm->creds.uid;
UNIXCB(skb).gid = scm->creds.gid;
UNIXCB(skb).fp = NULL;
unix_get_secdata(scm, skb);
// 文件列表存在,即有文件时调用unix_attach_fds
if
(scm->fp && send_fds)
err = unix_attach_fds(scm, skb);
skb->destructor = unix_destruct_scm;
return
err;
}
/* net/unix/scm.c */
int
unix_attach_fds(
struct
scm_cookie *scm,
struct
sk_buff *skb)
{
int
i;
if
(too_many_unix_fds(current))
return
-ETOOMANYREFS;
/*
* Need to duplicate file references for the sake of garbage
* collection. Otherwise a socket in the fps might become a
* candidate for GC while the skb is not yet queued.
*/
// scm_fp_dup 会为 scm->fp 中所有文件 增加计数引用
UNIXCB(skb).fp = scm_fp_dup(scm->fp);
if
(!UNIXCB(skb).fp)
return
-ENOMEM;
// 遍历每个文件,尝试添加飞行计数
for
(i = scm->fp->count - 1; i >= 0; i--)
unix_inflight(scm->fp->user, scm->fp->fp[i]);
return
0;
}
/* net/unix/scm.c */
int
unix_attach_fds(
struct
scm_cookie *scm,
struct
sk_buff *skb)
{
int
i;
if
(too_many_unix_fds(current))
return
-ETOOMANYREFS;
/*
* Need to duplicate file references for the sake of garbage
* collection. Otherwise a socket in the fps might become a
* candidate for GC while the skb is not yet queued.
*/
// scm_fp_dup 会为 scm->fp 中所有文件 增加计数引用
UNIXCB(skb).fp = scm_fp_dup(scm->fp);
if
(!UNIXCB(skb).fp)
return
-ENOMEM;
// 遍历每个文件,尝试添加飞行计数
for
(i = scm->fp->count - 1; i >= 0; i--)
unix_inflight(scm->fp->user, scm->fp->fp[i]);
return
0;
}
/* net/core/scm.c */
struct
scm_fp_list *scm_fp_dup(
struct
scm_fp_list *fpl)
{
struct
scm_fp_list *new_fpl;
int
i;
if
(!fpl)
return
NULL;
// 复制新的文件列表
new_fpl = kmemdup(fpl, offsetof(
struct
scm_fp_list, fp[fpl->count]),
GFP_KERNEL_ACCOUNT);
if
(new_fpl) {
// 准备发送阶段的引用计数 +1
for
(i = 0; i < fpl->count; i++)
get_file(fpl->fp[i]);
new_fpl->max = new_fpl->count;
new_fpl->user = get_uid(fpl->user);
}
return
new_fpl;
}
/* net/core/scm.c */
struct
scm_fp_list *scm_fp_dup(
struct
scm_fp_list *fpl)
{
struct
scm_fp_list *new_fpl;
int
i;
if
(!fpl)
return
NULL;
// 复制新的文件列表
new_fpl = kmemdup(fpl, offsetof(
struct
scm_fp_list, fp[fpl->count]),
GFP_KERNEL_ACCOUNT);
if
(new_fpl) {
// 准备发送阶段的引用计数 +1
for
(i = 0; i < fpl->count; i++)
get_file(fpl->fp[i]);
new_fpl->max = new_fpl->count;
new_fpl->user = get_uid(fpl->user);
}
return
new_fpl;
}
/* net/unix/scm.c */
void
unix_inflight(
struct
user_struct *user,
struct
file *fp)
{
// 获取sock(只有socket和io_uring才能找到)
struct
sock *s = unix_get_socket(fp);
spin_lock(&unix_gc_lock);
//对于sock类增加飞行计数
if
(s) {
struct
unix_sock *u = unix_sk(s);
// inc自增u->inflight,飞行计数不存放在file,而是在文件对应的sock
// 当第一次增加inflight时,添加到全局飞行列表 gc_inflight_list
if
(atomic_long_inc_return(&u->inflight) == 1) {
BUG_ON(!list_empty(&u->link));
list_add_tail(&u->link, &gc_inflight_list);
}
else
{
BUG_ON(list_empty(&u->link));
}
/* Paired with READ_ONCE() in wait_for_unix_gc() */
// 全局飞行计数 +1
WRITE_ONCE(unix_tot_inflight, unix_tot_inflight + 1);
}
// 用户inflight计数++
user->unix_inflight++;
spin_unlock(&unix_gc_lock);
}
/* net/unix/scm.c */
void
unix_inflight(
struct
user_struct *user,
struct
file *fp)
{
// 获取sock(只有socket和io_uring才能找到)
struct
sock *s = unix_get_socket(fp);
spin_lock(&unix_gc_lock);
//对于sock类增加飞行计数
if
(s) {
struct
unix_sock *u = unix_sk(s);
// inc自增u->inflight,飞行计数不存放在file,而是在文件对应的sock
// 当第一次增加inflight时,添加到全局飞行列表 gc_inflight_list
if
(atomic_long_inc_return(&u->inflight) == 1) {
BUG_ON(!list_empty(&u->link));
list_add_tail(&u->link, &gc_inflight_list);
}
else
{
BUG_ON(list_empty(&u->link));
}
/* Paired with READ_ONCE() in wait_for_unix_gc() */
// 全局飞行计数 +1
WRITE_ONCE(unix_tot_inflight, unix_tot_inflight + 1);
}
// 用户inflight计数++
user->unix_inflight++;
spin_unlock(&unix_gc_lock);
}
/* net/unix/scm.c */
struct
sock *unix_get_socket(
struct
file *filp)
{
struct
sock *u_sock = NULL;
struct
inode *inode = file_inode(filp);
//获取inode
/* Socket ? */
// socket情况
if
(S_ISSOCK(inode->i_mode) && !(filp->f_mode & FMODE_PATH)) {
struct
socket *sock = SOCKET_I(inode);
struct
sock *s = sock->sk;
/* PF_UNIX ? */
if
(s && sock->ops && sock->ops->family == PF_UNIX)
u_sock = s;
}
else
{
/* Could be an io_uring instance */
// 获取io_uring的sock
u_sock = io_uring_get_socket(filp);
}
return
u_sock;
}
/* net/unix/scm.c */
struct
sock *unix_get_socket(
struct
file *filp)
{
struct
sock *u_sock = NULL;
struct
inode *inode = file_inode(filp);
//获取inode
/* Socket ? */
// socket情况
if
(S_ISSOCK(inode->i_mode) && !(filp->f_mode & FMODE_PATH)) {
struct
socket *sock = SOCKET_I(inode);
struct
sock *s = sock->sk;
/* PF_UNIX ? */
if
(s && sock->ops && sock->ops->family == PF_UNIX)
u_sock = s;
}
else
{
/* Could be an io_uring instance */
// 获取io_uring的sock
u_sock = io_uring_get_socket(filp);
}
return
u_sock;
}
/* include/net/scm.h */
static
__inline__
void
scm_destroy(
struct
scm_cookie *scm)
{
scm_destroy_cred(scm);
if
(scm->fp)
__scm_destroy(scm);
}
/* net/core/scm.c */
void
__scm_destroy(
struct
scm_cookie *scm)
{
struct
scm_fp_list *fpl = scm->fp;
int
i;
if
(fpl) {
scm->fp = NULL;
for
(i=fpl->count-1; i>=0; i--)
fput(fpl->fp[i]);
free_uid(fpl->user);
kfree(fpl);
}
}
/* include/net/scm.h */
static
__inline__
void
scm_destroy(
struct
scm_cookie *scm)
{
scm_destroy_cred(scm);
if
(scm->fp)
__scm_destroy(scm);
}
/* net/core/scm.c */
void
__scm_destroy(
struct
scm_cookie *scm)
{
struct
scm_fp_list *fpl = scm->fp;
int
i;
if
(fpl) {
scm->fp = NULL;
for
(i=fpl->count-1; i>=0; i--)
fput(fpl->fp[i]);
free_uid(fpl->user);
kfree(fpl);
}
}
/* net/unix/garbage.c */
void
unix_gc(
void
)
{
struct
unix_sock *u;
struct
unix_sock *next;
struct
sk_buff_head hitlist;
struct
list_head cursor;
LIST_HEAD(not_cycle_list);
//...
// 遍历 gc_inflight_list ,取出链子上的文件
list_for_each_entry_safe(u, next, &gc_inflight_list, link) {
long
total_refs;
long
inflight_refs;
// 文件引用计数
total_refs = file_count(u->sk.sk_socket->file);
// 飞行计数
inflight_refs = atomic_long_read(&u->inflight);
BUG_ON(inflight_refs < 1);
BUG_ON(total_refs < inflight_refs);
// 如果当 文件引用计数==飞行计数,就判定为垃圾
if
(total_refs == inflight_refs) {
//添加进 gc_candidates
list_move_tail(&u->link, &gc_candidates);
// 设置 UNIX_GC_CANDIDATE、UNIX_GC_MAYBE_CYCLE
__set_bit(UNIX_GC_CANDIDATE, &u->gc_flags);
__set_bit(UNIX_GC_MAYBE_CYCLE, &u->gc_flags);
}
}
// 遍历每个sock,先进行减少飞行计数引用
list_for_each_entry(u, &gc_candidates, link)
scan_children(&u->sk, dec_inflight, NULL);
list_add(&cursor, &gc_candidates);
/*
遍历 gc_candidates 列表,
找出合法文件(飞行计数-1之后仍然大于>0,表示仍在使用),
合法文件添加到 not_cycle_list 列表
*/
while
(cursor.next != &gc_candidates) {
u = list_entry(cursor.next,
struct
unix_sock, link);
/* Move cursor to after the current position. */
list_move(&cursor, &u->link);
if
(atomic_long_read(&u->inflight) > 0) {
// 不是垃圾的添加到 not_cycle_list
list_move_tail(&u->link, ¬_cycle_list);
// 清除 UNIX_GC_MAYBE_CYCLE
__clear_bit(UNIX_GC_MAYBE_CYCLE, &u->gc_flags);
// 恢复飞行计数引用(inc自增)
scan_children(&u->sk, inc_inflight_move_tail, NULL);
}
}
list_del(&cursor);
// 初始化 hitlist ,这个列表为最终回收用的列表
skb_queue_head_init(&hitlist);
// 遍历gc_candidates,把之前减少的飞行引用计数加回来,然后添加到 hitlist
list_for_each_entry(u, &gc_candidates, link)
scan_children(&u->sk, inc_inflight, &hitlist);
//遍历 not_cycle_list,恢复合法文件
while
(!list_empty(¬_cycle_list)) {
u = list_entry(not_cycle_list.next,
struct
unix_sock, link);
__clear_bit(UNIX_GC_CANDIDATE, &u->gc_flags);
list_move_tail(&u->link, &gc_inflight_list);
}
spin_unlock(&unix_gc_lock);
/* Here we are. Hitlist is filled. Die. */
// 调用__skb_queue_purge进行释放操作
__skb_queue_purge(&hitlist);
//...
}
/* net/unix/garbage.c */
void
unix_gc(
void
)
{
struct
unix_sock *u;
struct
unix_sock *next;
struct
sk_buff_head hitlist;
struct
list_head cursor;
LIST_HEAD(not_cycle_list);
//...
// 遍历 gc_inflight_list ,取出链子上的文件
list_for_each_entry_safe(u, next, &gc_inflight_list, link) {
long
total_refs;
long
inflight_refs;
// 文件引用计数
total_refs = file_count(u->sk.sk_socket->file);
// 飞行计数
inflight_refs = atomic_long_read(&u->inflight);
BUG_ON(inflight_refs < 1);
BUG_ON(total_refs < inflight_refs);
// 如果当 文件引用计数==飞行计数,就判定为垃圾
if
(total_refs == inflight_refs) {
//添加进 gc_candidates
list_move_tail(&u->link, &gc_candidates);
// 设置 UNIX_GC_CANDIDATE、UNIX_GC_MAYBE_CYCLE
__set_bit(UNIX_GC_CANDIDATE, &u->gc_flags);
__set_bit(UNIX_GC_MAYBE_CYCLE, &u->gc_flags);
}
}
// 遍历每个sock,先进行减少飞行计数引用
list_for_each_entry(u, &gc_candidates, link)
scan_children(&u->sk, dec_inflight, NULL);
list_add(&cursor, &gc_candidates);
/*
遍历 gc_candidates 列表,
找出合法文件(飞行计数-1之后仍然大于>0,表示仍在使用),
合法文件添加到 not_cycle_list 列表
*/
while
(cursor.next != &gc_candidates) {
u = list_entry(cursor.next,
struct
unix_sock, link);
/* Move cursor to after the current position. */
list_move(&cursor, &u->link);
if
(atomic_long_read(&u->inflight) > 0) {
// 不是垃圾的添加到 not_cycle_list
list_move_tail(&u->link, ¬_cycle_list);
// 清除 UNIX_GC_MAYBE_CYCLE
__clear_bit(UNIX_GC_MAYBE_CYCLE, &u->gc_flags);
// 恢复飞行计数引用(inc自增)
scan_children(&u->sk, inc_inflight_move_tail, NULL);
}
}
list_del(&cursor);
// 初始化 hitlist ,这个列表为最终回收用的列表
skb_queue_head_init(&hitlist);
// 遍历gc_candidates,把之前减少的飞行引用计数加回来,然后添加到 hitlist
list_for_each_entry(u, &gc_candidates, link)
scan_children(&u->sk, inc_inflight, &hitlist);
//遍历 not_cycle_list,恢复合法文件
while
(!list_empty(¬_cycle_list)) {
u = list_entry(not_cycle_list.next,
struct
unix_sock, link);
__clear_bit(UNIX_GC_CANDIDATE, &u->gc_flags);
list_move_tail(&u->link, &gc_inflight_list);
}
spin_unlock(&unix_gc_lock);
/* Here we are. Hitlist is filled. Die. */
// 调用__skb_queue_purge进行释放操作
__skb_queue_purge(&hitlist);
//...
}
/* net/unix/garbage.c */
static
void
scan_inflight(
struct
sock *x,
void
(*func)(
struct
unix_sock *),
struct
sk_buff_head *hitlist)
{
struct
sk_buff *skb;
struct
sk_buff *next;
spin_lock(&x->sk_receive_queue.lock);
//从对应 sk_receive_queue 中取出 skb
skb_queue_walk_safe(&x->sk_receive_queue, skb, next) {
/* Do we have file descriptors ? */
// 如果 skb存在文件列表
if
(UNIXCB(skb).fp) {
bool
hit =
false
;
/* Process the descriptors of this socket */
// nfd 为 skb包含文件数量
int
nfd = UNIXCB(skb).fp->count;
// fp 为 文件数组
struct
file **fp = UNIXCB(skb).fp->fp;
// 遍历每个文件
while
(nfd--) {
/* Get the socket the fd matches if it indeed does so */
//只有sock类需要特殊处理
struct
sock *sk = unix_get_socket(*fp++);
if
(sk) {
struct
unix_sock *u = unix_sk(sk);
/* Ignore non-candidates, they could
* have been added to the queues after
* starting the garbage collection
*/
// 如果在之前 文件引用计数==飞行计数,才会满足条件
if
(test_bit(UNIX_GC_CANDIDATE, &u->gc_flags)) {
hit =
true
;
// 一般是进行飞行计数的加减
func(u);
}
}
}
if
(hit && hitlist != NULL) {
//把 skb 从 sk_receive_queue 取出
__skb_unlink(skb, &x->sk_receive_queue);
// 添加到 hitlist
__skb_queue_tail(hitlist, skb);
}
}
}
spin_unlock(&x->sk_receive_queue.lock);
}
/* net/unix/garbage.c */
static
void
scan_inflight(
struct
sock *x,
void
(*func)(
struct
unix_sock *),
struct
sk_buff_head *hitlist)
{
struct
sk_buff *skb;
struct
sk_buff *next;
spin_lock(&x->sk_receive_queue.lock);
//从对应 sk_receive_queue 中取出 skb
skb_queue_walk_safe(&x->sk_receive_queue, skb, next) {
/* Do we have file descriptors ? */
// 如果 skb存在文件列表
if
(UNIXCB(skb).fp) {
bool
hit =
false
;
/* Process the descriptors of this socket */
// nfd 为 skb包含文件数量
int
nfd = UNIXCB(skb).fp->count;
// fp 为 文件数组
struct
file **fp = UNIXCB(skb).fp->fp;
