[原创] KCTF2025 - 第四题血色试炼题解
发表于: 2025-8-21 09:07 3592
[原创] KCTF2025 - 第四题血色试炼题解

只管出不管做
2025-8-21 09:07
3592
换表，小端序，padding特殊处理的 base64 + 修改了密钥派生函数的 AES-128 + 自定义 tweak 流密码异或
手工实现三个修改过的 base64 + AES + tweak 就可以解密，密文套了四层
可能存在速通方法，因为实际的校验是：
所以如果 hook 自定义的加密，然后调用三次应该就能得到期望的 serial，无需苦力逆向。

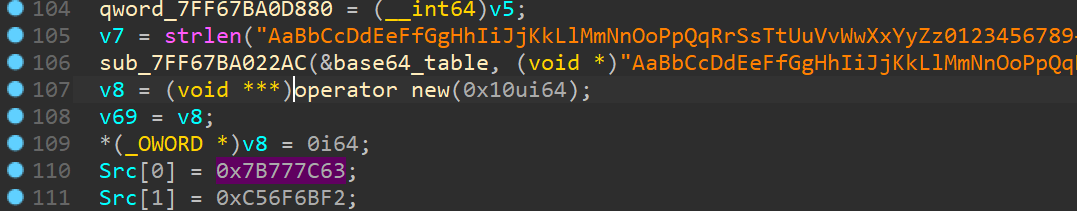

搜字符串找到明文 base64 码表和 key：

跟进引用发现是一系列初始化函数，被初始化的全局变量再引用一次进到 TLSCallBack 里：

这里面还初始化了两组密钥，还有 AES 的标准 S 盒，逆 S 盒，置换表

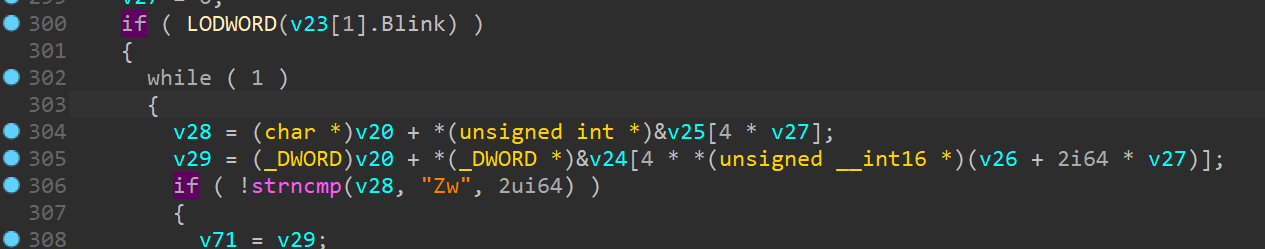

函数的下方还有导出 ntdll 里 Zw 开头的函数并存在（大概是）map 里的操作，应该是隐藏了某些 API call

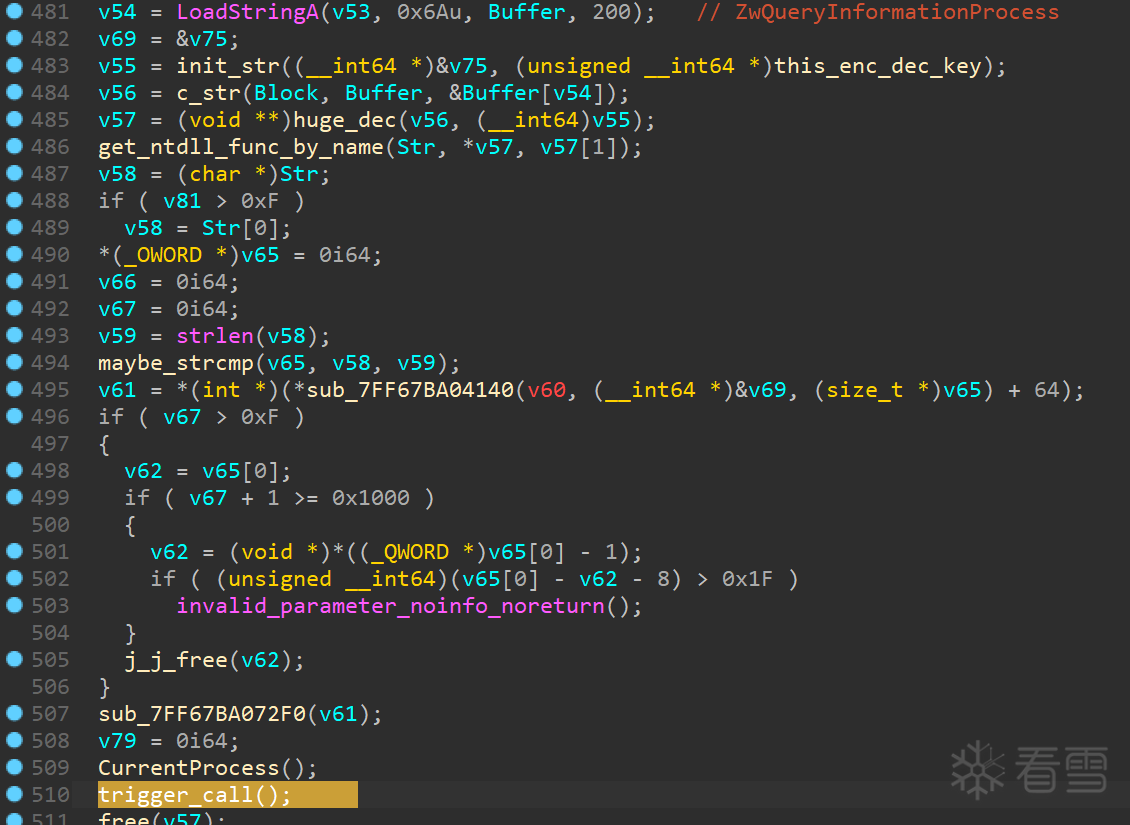

函数末尾取出加密字符串，解密后迫不及待地call了一次（调试看是 ZwQueryInformationProcess ）：

这里如果发现被调试就修改异常状态崩掉程序，直接 patch 成 jmp 就可以过掉整个程序唯一一个生效的反调：

不过其实如果不调后面部分的话，不 patch 也可以，因为反调试是第一次解密后的，我们已经可以调完整的解密过程了
复原解密就是普通的苦力活（不过可以喂给 GPT 写出完全一致的实现）
于是挨个喂了 base64 解码，密钥派生，然后检查了一下 AES 的其他部分都是完全常规的（但 GPT 一起造出来了）
再手动封装一层用于异或的密钥流派生就可以完美还原加密逻辑了 （就是用另一组密钥依次加密 struct.pack("<I", 0x24D67345 + index) * 4 作为无限长的密钥流）
然后跟到 mian 里面注册的中断处理：

大概看一下逻辑就是上文说的
然后再喊 GPT 直接根据代码把逆运算都写出来 （这里写 base64 的逆 GPT 总是直接写不对，笔者这里需要再喂加密的 C 伪代码才行。但笔者并没有试过直接用程序里的 base64 解密逻辑让 GPT 写）
除了 base64 别的都能一遍过，以下是完整脚本：
输出：
最近两题都干翻了丐版 MCP 自动逆向工作流，但从人工解题的过程来看，LLM 完全有能力根据伪代码完美复现源码实现，或许是笔者的 prompt 不对，或许应该考虑尝试对于比较复杂的任务要求 LLM 优先挨个分析关键函数（并写出源码实现验证），然后再进行大的逆向。直接要求 LLM 做过大任务的话 LLM 很可能只能理解部分事实，比如认为上一题就是一个 RSA （而不是很多个 RSA 套在一起），或者认为本题是 base64 + XTS-AES （而不是非标准实现）。
目前笔者观察到 GPT 的另一个限制是如果用户直接提供完整任务（给出样例 name + serial，并且告诉 AI 目标是生成 KCTF 的serial）， GPT 会急于求出 KCTF 的密钥而省略大量逆向过程。
但如果只告诉 AI 第一个任务是 还原 name - serial 的比较逻辑 的话， AI 就能更好的工作。

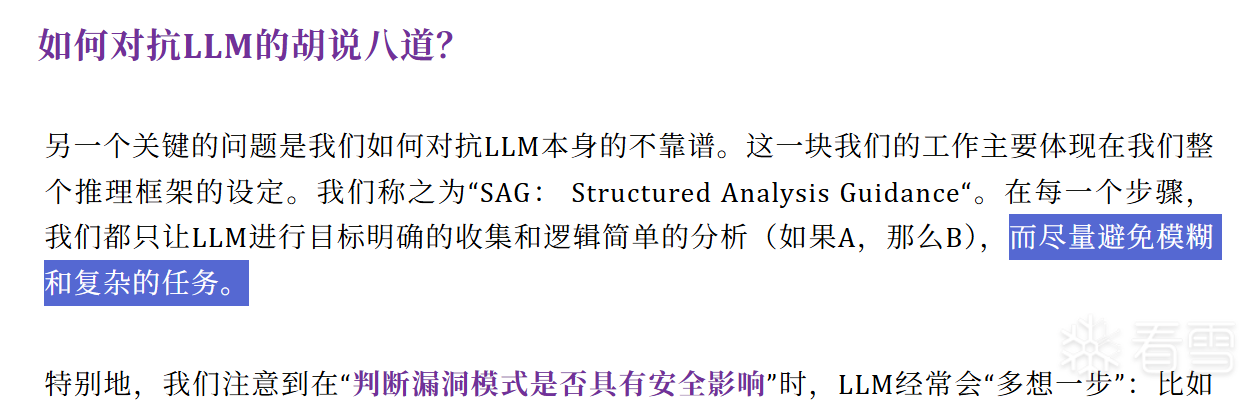

这一观察也和今年软工顶会 FSE'25 上的一篇文章相符：
【论文分享】突破误报瓶颈：LLM × 静态分析的新范式——BugLens
所以想要机器人队自动上分或许还需要帮 LLM 把任务分成合理的小目标去做
（笔者依旧乐观地认为如果方法得当，LLM 不仅能自动还原算法实现，也能发现原程序已经有逆运算的可能并且直接 hook call自动生成密钥）

import struct
from typing import List

sbox = [
    0x63, 0x7c, 0x77, 0x7b, 0xf2, 0x6b, 0x6f, 0xc5, 0x30, 0x01, 0x67, 0x2b, 0xfe, 0xd7, 0xab, 0x76,
    0xca, 0x82, 0xc9, 0x7d, 0xfa, 0x59, 0x47, 0xf0, 0xad, 0xd4, 0xa2, 0xaf, 0x9c, 0xa4, 0x72, 0xc0,
    0xb7, 0xfd, 0x93, 0x26, 0x36, 0x3f, 0xf7, 0xcc, 0x34, 0xa5, 0xe5, 0xf1, 0x71, 0xd8, 0x31, 0x15,
    0x04, 0xc7, 0x23, 0xc3, 0x18, 0x96, 0x05, 0x9a, 0x07, 0x12, 0x80, 0xe2, 0xeb, 0x27, 0xb2, 0x75,
    0x09, 0x83, 0x2c, 0x1a, 0x1b, 0x6e, 0x5a, 0xa0, 0x52, 0x3b, 0xd6, 0xb3, 0x29, 0xe3, 0x2f, 0x84,
    0x53, 0xd1, 0x00, 0xed, 0x20, 0xfc, 0xb1, 0x5b, 0x6a, 0xcb, 0xbe, 0x39, 0x4a, 0x4c, 0x58, 0xcf,
    0xd0, 0xef, 0xaa, 0xfb, 0x43, 0x4d, 0x33, 0x85, 0x45, 0xf9, 0x02, 0x7f, 0x50, 0x3c, 0x9f, 0xa8,
    0x51, 0xa3, 0x40, 0x8f, 0x92, 0x9d, 0x38, 0xf5, 0xbc, 0xb6, 0xda, 0x21, 0x10, 0xff, 0xf3, 0xd2,
    0xcd, 0x0c, 0x13, 0xec, 0x5f, 0x97, 0x44, 0x17, 0xc4, 0xa7, 0x7e, 0x3d, 0x64, 0x5d, 0x19, 0x73,
    0x60, 0x81, 0x4f, 0xdc, 0x22, 0x2a, 0x90, 0x88, 0x46, 0xee, 0xb8, 0x14, 0xde, 0x5e, 0x0b, 0xdb,
    0xe0, 0x32, 0x3a, 0x0a, 0x49, 0x06, 0x24, 0x5c, 0xc2, 0xd3, 0xac, 0x62, 0x91, 0x95, 0xe4, 0x79,
    0xe7, 0xc8, 0x37, 0x6d, 0x8d, 0xd5, 0x4e, 0xa9, 0x6c, 0x56, 0xf4, 0xea, 0x65, 0x7a, 0xae, 0x08,
    0xba, 0x78, 0x25, 0x2e, 0x1c, 0xa6, 0xb4, 0xc6, 0xe8, 0xdd, 0x74, 0x1f, 0x4b, 0xbd, 0x8b, 0x8a,
    0x70, 0x3e, 0xb5, 0x66, 0x48, 0x03, 0xf6, 0x0e, 0x61, 0x35, 0x57, 0xb9, 0x86, 0xc1, 0x1d, 0x9e,
    0xe1, 0xf8, 0x98, 0x11, 0x69, 0xd9, 0x8e, 0x94, 0x9b, 0x1e, 0x87, 0xe9, 0xce, 0x55, 0x28, 0xdf,
    0x8c, 0xa1, 0x89, 0x0d, 0xbf, 0xe6, 0x42, 0x68, 0x41, 0x99, 0x2d, 0x0f, 0xb0, 0x54, 0xbb, 0x16
]

inv_sbox = [
    0x52, 0x09, 0x6A, 0xD5, 0x30, 0x36, 0xA5, 0x38, 0xBF, 0x40, 0xA3, 0x9E, 0x81, 0xF3, 0xD7, 0xFB,
    0x7C, 0xE3, 0x39, 0x82, 0x9B, 0x2F, 0xFF, 0x87, 0x34, 0x8E, 0x43, 0x44, 0xC4, 0xDE, 0xE9, 0xCB,
    0x54, 0x7B, 0x94, 0x32, 0xA6, 0xC2, 0x23, 0x3D, 0xEE, 0x4C, 0x95, 0x0B, 0x42, 0xFA, 0xC3, 0x4E,
    0x08, 0x2E, 0xA1, 0x66, 0x28, 0xD9, 0x24, 0xB2, 0x76, 0x5B, 0xA2, 0x49, 0x6D, 0x8B, 0xD1, 0x25,
    0x72, 0xF8, 0xF6, 0x64, 0x86, 0x68, 0x98, 0x16, 0xD4, 0xA4, 0x5C, 0xCC, 0x5D, 0x65, 0xB6, 0x92,
    0x6C, 0x70, 0x48, 0x50, 0xFD, 0xED, 0xB9, 0xDA, 0x5E, 0x15, 0x46, 0x57, 0xA7, 0x8D, 0x9D, 0x84,
    0x90, 0xD8, 0xAB, 0x00, 0x8C, 0xBC, 0xD3, 0x0A, 0xF7, 0xE4, 0x58, 0x05, 0xB8, 0xB3, 0x45, 0x06,
    0xD0, 0x2C, 0x1E, 0x8F, 0xCA, 0x3F, 0x0F, 0x02, 0xC1, 0xAF, 0xBD, 0x03, 0x01, 0x13, 0x8A, 0x6B,
    0x3A, 0x91, 0x11, 0x41, 0x4F, 0x67, 0xDC, 0xEA, 0x97, 0xF2, 0xCF, 0xCE, 0xF0, 0xB4, 0xE6, 0x73,
    0x96, 0xAC, 0x74, 0x22, 0xE7, 0xAD, 0x35, 0x85, 0xE2, 0xF9, 0x37, 0xE8, 0x1C, 0x75, 0xDF, 0x6E,
    0x47, 0xF1, 0x1A, 0x71, 0x1D, 0x29, 0xC5, 0x89, 0x6F, 0xB7, 0x62, 0x0E, 0xAA, 0x18, 0xBE, 0x1B,
    0xFC, 0x56, 0x3E, 0x4B, 0xC6, 0xD2, 0x79, 0x20, 0x9A, 0xDB, 0xC0, 0xFE, 0x78, 0xCD, 0x5A, 0xF4,
    0x1F, 0xDD, 0xA8, 0x33, 0x88, 0x07, 0xC7, 0x31, 0xB1, 0x12, 0x10, 0x59, 0x27, 0x80, 0xEC, 0x5F,
    0x60, 0x51, 0x7F, 0xA9, 0x19, 0xB5, 0x4A, 0x0D, 0x2D, 0xE5, 0x7A, 0x9F, 0x93, 0xC9, 0x9C, 0xEF,
    0xA0, 0xE0, 0x3B, 0x4D, 0xAE, 0x2A, 0xF5, 0xB0, 0xC8, 0xEB, 0xBB, 0x3C, 0x83, 0x53, 0x99, 0x61,
    0x17, 0x2B, 0x04, 0x7E, 0xBA, 0x77, 0xD6, 0x26, 0xE1, 0x69, 0x14, 0x63, 0x55, 0x21, 0x0C, 0x7D
]


def gmul(a: int, b: int) -> int:
    p = 0
    for _ in range(8):
        if b & 1:
            p ^= a
        hi = a & 0x80
        a = (a << 1) & 0xFF
        if hi:
            a ^= 0x1B
        b >>= 1
    return p


def mix_single_column(col: List[int]) -> List[int]:
    a0, a1, a2, a3 = col
    return [
        gmul(a0, 2) ^ gmul(a1, 3) ^ a2 ^ a3,
        a0 ^ gmul(a1, 2) ^ gmul(a2, 3) ^ a3,
        a0 ^ a1 ^ gmul(a2, 2) ^ gmul(a3, 3),
        gmul(a0, 3) ^ a1 ^ a2 ^ gmul(a3, 2),
    ]


def inv_mix_single_column(col: List[int]) -> List[int]:
    a0, a1, a2, a3 = col
    return [
        gmul(a0, 14) ^ gmul(a1, 11) ^ gmul(a2, 13) ^ gmul(a3, 9),
        gmul(a0, 9) ^ gmul(a1, 14) ^ gmul(a2, 11) ^ gmul(a3, 13),
        gmul(a0, 13) ^ gmul(a1, 9) ^ gmul(a2, 14) ^ gmul(a3, 11),
        gmul(a0, 11) ^ gmul(a1, 13) ^ gmul(a2, 9) ^ gmul(a3, 14),
    ]


def load_state_from_bytes(block: bytes) -> List[List[int]]:
    """column-major: s[r][c] = block[4*c + r]"""
    s = [[0] * 4 for _ in range(4)]
    for c in range(4):
        for r in range(4):
            s[r][c] = block[4 * c + r]
    return s


def state_to_bytes(state: List[List[int]]) -> bytes:
    out = bytearray(16)
    for c in range(4):
        for r in range(4):
            out[4 * c + r] = state[r][c]
    return bytes(out)


def sub_bytes(state: List[List[int]]) -> None:
    for r in range(4):
        for c in range(4):
            state[r][c] = sbox[state[r][c]]


def inv_sub_bytes(state: List[List[int]]) -> None:
    for r in range(4):
        for c in range(4):
            state[r][c] = inv_sbox[state[r][c]]


def shift_rows(state: List[List[int]]) -> None:
    state[1] = state[1][1:] + state[1][:1]
    state[2] = state[2][2:] + state[2][:2]
    state[3] = state[3][3:] + state[3][:3]


def inv_shift_rows(state: List[List[int]]) -> None:
    state[1] = state[1][-1:] + state[1][:-1]
    state[2] = state[2][-2:] + state[2][:-2]
    state[3] = state[3][-3:] + state[3][:-3]


def mix_columns(state: List[List[int]]) -> None:
    cols = list(zip(state[0], state[1], state[2], state[3]))
    new_cols = [mix_single_column(list(col)) for col in cols]
    for c in range(4):
        state[0][c], state[1][c], state[2][c], state[3][c] = new_cols[c]


def inv_mix_columns(state: List[List[int]]) -> None:
    cols = list(zip(state[0], state[1], state[2], state[3]))
    new_cols = [inv_mix_single_column(list(col)) for col in cols]
    for c in range(4):
        state[0][c], state[1][c], state[2][c], state[3][c] = new_cols[c]


def add_round_key(state: List[List[int]], round_words: List[int]) -> None:
    for c in range(4):
        w = round_words[c]
        state[0][c] ^= (w >> 0) & 0xFF
        state[1][c] ^= (w >> 8) & 0xFF
        state[2][c] ^= (w >> 16) & 0xFF
        state[3][c] ^= (w >> 24) & 0xFF


def _assemble_initial_words_from_key(key_bytes: bytes) -> List[int]:
    s = load_state_from_bytes(key_bytes)
    words = []
    for c in range(4):
        v = 0
        for r in range(4):
            b = s[r][c]
            v = ((b | v) << 8) & 0xFFFFFFFF
        words.append(v)
    return words


def expand_key_nonstandard(key_bytes: bytes) -> List[int]:
    assert len(key_bytes) == 16
    W = _assemble_initial_words_from_key(key_bytes)
    rcons = [0x01, 0x01, 0x02, 0x04, 0x08, 0x10, 0x20, 0x40, 0x80, 0x1B]
    r_idx = 0
    for i in range(4, 44):
        if i % 4 == 0:
            temp = (rcons[r_idx] << 24) & 0xFFFFFFFF
            r_idx += 1
            W.append(W[i - 4] ^ temp)
        else:
            W.append(W[i - 4] ^ W[i - 1])
    return W


def encrypt_block_nonstandard(plaintext: bytes, key: bytes) -> bytes:
    assert len(plaintext) == 16 and len(key) == 16
    W = expand_key_nonstandard(key)
    state = load_state_from_bytes(plaintext)
    add_round_key(state, W[0:4])  # round 0
    for r in range(1, 10):  # rounds 1..9
        sub_bytes(state)
        shift_rows(state)
        mix_columns(state)
        add_round_key(state, W[4 * r:4 * r + 4])
    sub_bytes(state)  # final
    shift_rows(state)
    add_round_key(state, W[40:44])
    return state_to_bytes(state)


def decrypt_block_nonstandard(ciphertext: bytes, key: bytes) -> bytes:
    assert len(ciphertext) == 16 and len(key) == 16
    W = expand_key_nonstandard(key)
    state = load_state_from_bytes(ciphertext)
    add_round_key(state, W[40:44])  # initial (round 10)
    for r in range(9, 0, -1):  # rounds 9..1
        inv_sub_bytes(state)
        inv_shift_rows(state)
        add_round_key(state, W[4 * r:4 * r + 4])
        inv_mix_columns(state)
    inv_sub_bytes(state)  # final
    inv_shift_rows(state)
    add_round_key(state, W[0:4])
    return state_to_bytes(state)


_B64_ALPHABET = "AaBbCcDdEeFfGgHhIiJjKkLlMmNnOoPpQqRrSsTtUuVvWwXxYyZz0123456789+/="
_B64_MAP = {ch: i for i, ch in enumerate(_B64_ALPHABET)}  # 包含 '=': 64
_B64_PAD = _B64_ALPHABET[-1]
_NULL_INDEX = len(_B64_ALPHABET)  # == 65，对应 C 的 strchr(..., '\0')


def b64_decode_le(s: str) -> bytes:
    s = "".join(ch for ch in s if not ch.isspace())
    out = bytearray()
    i = 0
    n = len(s)

    while i < n:
        quad = s[i:i + 4]
        i += 4

        v = 0
        pad = 0
        for j in range(3, -1, -1):
            if j < len(quad):
                ch = quad[j]
                if ch == _B64_PAD:
                    pad += 1
                    continue
                idx = _B64_MAP.get(ch)
                if idx is None:
                    raise ValueError(f"Invalid base64 char: {ch!r}")
            else:
                idx = _NULL_INDEX
            v = ((v << 6) + idx) & 0xFFFFFFFF

        if pad == 0:
            out.append(v & 0xFF)
            out.append((v >> 8) & 0xFF)
            out.append((v >> 16) & 0xFF)
        elif pad == 1:
            out.append(v & 0xFF)
            out.append((((v & 0x0FFF) + ((v >> 2) & 0xF000)) >> 8) & 0xFF)
        elif pad == 2:
            out.append(((v & 0x3F) + ((v >> 4) & 0xC0)) & 0xFF)
        else:
            pass

    return bytes(out)


def b64_encode_le(data: bytes) -> str:
    enc = _B64_ALPHABET[:-1]  # 你的特殊字母表（不含 '='）
    PAD = _B64_PAD
    out = []
    i = 0
    n = len(data)
    while i < n:
        rem = n - i
        if rem >= 3:
            b0, b1, b2 = data[i], data[i + 1], data[i + 2]
            i += 3
            v = b0 | (b1 << 8) | (b2 << 16)
            out.append(enc[(v >> 0) & 0x3F])
            out.append(enc[(v >> 6) & 0x3F])
            out.append(enc[(v >> 12) & 0x3F])
            out.append(enc[(v >> 18) & 0x3F])
        elif rem == 2:
            b0, b1 = data[i], data[i + 1]
            i += 2
            q0 = b0 & 0x3F
            q1 = ((b1 & 0x0F) << 2) | (b0 >> 6)
            q2 = ((b1 >> 4) & 0x0F) << 2
            out.extend([enc[q0], enc[q1 & 0x3F], enc[q2], PAD])
        else:  # rem == 1
            b0 = data[i]
            i += 1
            q0 = b0 & 0x3F
            q1 = ((b0 >> 6) & 0x03) << 4
            out.extend([enc[q0], enc[q1], PAD, PAD])

    return "".join(out)


def encrypt_blocks_nonstandard(data: bytes, key: bytes) -> bytes:
    out = bytearray()
    for i in range(0, len(data), 16):
        block = data[i:i + 16]
        if len(block) < 16:
            raise ValueError("Input length must be a multiple of 16")
        out += encrypt_block_nonstandard(block, key)
    return bytes(out)


def decrypt_blocks_nonstandard(data: bytes, key: bytes) -> bytes:
    out = bytearray()
    for i in range(0, len(data), 16):
        block = data[i:i + 16]
        if len(block) < 16:
            raise ValueError("Input length must be a multiple of 16")
        out += decrypt_block_nonstandard(block, key)
    return bytes(out)


key = b"ThisEncAndDecKey"
key2 = b"tweakKey_2024521"


def inverse_main(final_s: str) -> str:
    s = final_s
    for _ in range(4):
        pt = s.encode("utf-8")
        if len(pt) % 16 != 0:
            pt += b"\x00" * (16 - (len(pt) % 16))
        ct_out = bytearray()
        for j in range(0, len(pt), 16):
            pblk = pt[j:j + 16]
            twk = struct.pack("<I", 0x24D67344 + (j // 16) + 1) * 4
            d = encrypt_blocks_nonstandard(twk, key2)
            pt1 = bytes(pb ^ db for pb, db in zip(pblk, d))
            ct = encrypt_blocks_nonstandard(pt1, key)
            ct_out.extend(ct)
        s = b64_encode_le(bytes(ct_out))
    return s


def main(s):
    for _ in range(4):
        ct_r = b64_decode_le(s)
        pt = []
        for j in range(0, len(ct_r), 16):
            ct = ct_r[j:j + 16]
            pt1 = decrypt_blocks_nonstandard(ct, key)
            pt2 = struct.pack("<I", 0x24D67344 + (j // 16) + 1) * 4
            d = encrypt_blocks_nonstandard(pt2, key2)
            for i in range(16):
                pt.append(pt1[i] ^ d[i])
        pt = bytes(pt)
        while pt[-1] == 0:
            pt = pt[:-1]
        s = pt.decode()
    return s


if __name__ == "__main__":
    x = "7PqLbsGeTagqDgXbYjcvqd0mJNUkK8yzy0uQYYJZx+mzDahZf8A38LcEZVSd7UcSd/n0bSt0pZCPyecxXZlOBA=="
    print(x)
    x = main(x)
    print(x)
    x = inverse_main(x)
    print(x)
    x = main(x)
    print(x)

    print("Server flag is:")
    c = inverse_main("KCTF")
    print(c)
    c = main(c)
    print(c)
import struct
from typing import List

sbox = [
    0x63, 0x7c, 0x77, 0x7b, 0xf2, 0x6b, 0x6f, 0xc5, 0x30, 0x01, 0x67, 0x2b, 0xfe, 0xd7, 0xab, 0x76,
    0xca, 0x82, 0xc9, 0x7d, 0xfa, 0x59, 0x47, 0xf0, 0xad, 0xd4, 0xa2, 0xaf, 0x9c, 0xa4, 0x72, 0xc0,
    0xb7, 0xfd, 0x93, 0x26, 0x36, 0x3f, 0xf7, 0xcc, 0x34, 0xa5, 0xe5, 0xf1, 0x71, 0xd8, 0x31, 0x15,
    0x04, 0xc7, 0x23, 0xc3, 0x18, 0x96, 0x05, 0x9a, 0x07, 0x12, 0x80, 0xe2, 0xeb, 0x27, 0xb2, 0x75,
    0x09, 0x83, 0x2c, 0x1a, 0x1b, 0x6e, 0x5a, 0xa0, 0x52, 0x3b, 0xd6, 0xb3, 0x29, 0xe3, 0x2f, 0x84,
    0x53, 0xd1, 0x00, 0xed, 0x20, 0xfc, 0xb1, 0x5b, 0x6a, 0xcb, 0xbe, 0x39, 0x4a, 0x4c, 0x58, 0xcf,
    0xd0, 0xef, 0xaa, 0xfb, 0x43, 0x4d, 0x33, 0x85, 0x45, 0xf9, 0x02, 0x7f, 0x50, 0x3c, 0x9f, 0xa8,
    0x51, 0xa3, 0x40, 0x8f, 0x92, 0x9d, 0x38, 0xf5, 0xbc, 0xb6, 0xda, 0x21, 0x10, 0xff, 0xf3, 0xd2,
    0xcd, 0x0c, 0x13, 0xec, 0x5f, 0x97, 0x44, 0x17, 0xc4, 0xa7, 0x7e, 0x3d, 0x64, 0x5d, 0x19, 0x73,
    0x60, 0x81, 0x4f, 0xdc, 0x22, 0x2a, 0x90, 0x88, 0x46, 0xee, 0xb8, 0x14, 0xde, 0x5e, 0x0b, 0xdb,
    0xe0, 0x32, 0x3a, 0x0a, 0x49, 0x06, 0x24, 0x5c, 0xc2, 0xd3, 0xac, 0x62, 0x91, 0x95, 0xe4, 0x79,
    0xe7, 0xc8, 0x37, 0x6d, 0x8d, 0xd5, 0x4e, 0xa9, 0x6c, 0x56, 0xf4, 0xea, 0x65, 0x7a, 0xae, 0x08,
    0xba, 0x78, 0x25, 0x2e, 0x1c, 0xa6, 0xb4, 0xc6, 0xe8, 0xdd, 0x74, 0x1f, 0x4b, 0xbd, 0x8b, 0x8a,
    0x70, 0x3e, 0xb5, 0x66, 0x48, 0x03, 0xf6, 0x0e, 0x61, 0x35, 0x57, 0xb9, 0x86, 0xc1, 0x1d, 0x9e,
    0xe1, 0xf8, 0x98, 0x11, 0x69, 0xd9, 0x8e, 0x94, 0x9b, 0x1e, 0x87, 0xe9, 0xce, 0x55, 0x28, 0xdf,
    0x8c, 0xa1, 0x89, 0x0d, 0xbf, 0xe6, 0x42, 0x68, 0x41, 0x99, 0x2d, 0x0f, 0xb0, 0x54, 0xbb, 0x16
]

inv_sbox = [
    0x52, 0x09, 0x6A, 0xD5, 0x30, 0x36, 0xA5, 0x38, 0xBF, 0x40, 0xA3, 0x9E, 0x81, 0xF3, 0xD7, 0xFB,
    0x7C, 0xE3, 0x39, 0x82, 0x9B, 0x2F, 0xFF, 0x87, 0x34, 0x8E, 0x43, 0x44, 0xC4, 0xDE, 0xE9, 0xCB,
    0x54, 0x7B, 0x94, 0x32, 0xA6, 0xC2, 0x23, 0x3D, 0xEE, 0x4C, 0x95, 0x0B, 0x42, 0xFA, 0xC3, 0x4E,
    0x08, 0x2E, 0xA1, 0x66, 0x28, 0xD9, 0x24, 0xB2, 0x76, 0x5B, 0xA2, 0x49, 0x6D, 0x8B, 0xD1, 0x25,
    0x72, 0xF8, 0xF6, 0x64, 0x86, 0x68, 0x98, 0x16, 0xD4, 0xA4, 0x5C, 0xCC, 0x5D, 0x65, 0xB6, 0x92,
    0x6C, 0x70, 0x48, 0x50, 0xFD, 0xED, 0xB9, 0xDA, 0x5E, 0x15, 0x46, 0x57, 0xA7, 0x8D, 0x9D, 0x84,
    0x90, 0xD8, 0xAB, 0x00, 0x8C, 0xBC, 0xD3, 0x0A, 0xF7, 0xE4, 0x58, 0x05, 0xB8, 0xB3, 0x45, 0x06,
    0xD0, 0x2C, 0x1E, 0x8F, 0xCA, 0x3F, 0x0F, 0x02, 0xC1, 0xAF, 0xBD, 0x03, 0x01, 0x13, 0x8A, 0x6B,
    0x3A, 0x91, 0x11, 0x41, 0x4F, 0x67, 0xDC, 0xEA, 0x97, 0xF2, 0xCF, 0xCE, 0xF0, 0xB4, 0xE6, 0x73,
    0x96, 0xAC, 0x74, 0x22, 0xE7, 0xAD, 0x35, 0x85, 0xE2, 0xF9, 0x37, 0xE8, 0x1C, 0x75, 0xDF, 0x6E,
    0x47, 0xF1, 0x1A, 0x71, 0x1D, 0x29, 0xC5, 0x89, 0x6F, 0xB7, 0x62, 0x0E, 0xAA, 0x18, 0xBE, 0x1B,
    0xFC, 0x56, 0x3E, 0x4B, 0xC6, 0xD2, 0x79, 0x20, 0x9A, 0xDB, 0xC0, 0xFE, 0x78, 0xCD, 0x5A, 0xF4,
    0x1F, 0xDD, 0xA8, 0x33, 0x88, 0x07, 0xC7, 0x31, 0xB1, 0x12, 0x10, 0x59, 0x27, 0x80, 0xEC, 0x5F,
    0x60, 0x51, 0x7F, 0xA9, 0x19, 0xB5, 0x4A, 0x0D, 0x2D, 0xE5, 0x7A, 0x9F, 0x93, 0xC9, 0x9C, 0xEF,
    0xA0, 0xE0, 0x3B, 0x4D, 0xAE, 0x2A, 0xF5, 0xB0, 0xC8, 0xEB, 0xBB, 0x3C, 0x83, 0x53, 0x99, 0x61,
    0x17, 0x2B, 0x04, 0x7E, 0xBA, 0x77, 0xD6, 0x26, 0xE1, 0x69, 0x14, 0x63, 0x55, 0x21, 0x0C, 0x7D
]


def gmul(a: int, b: int) -> int:
    p = 0
    for _ in range(8):
        if b & 1:
            p ^= a
        hi = a & 0x80
        a = (a << 1) & 0xFF
        if hi:
            a ^= 0x1B
        b >>= 1
    return p


def mix_single_column(col: List[int]) -> List[int]:
    a0, a1, a2, a3 = col
    return [
        gmul(a0, 2) ^ gmul(a1, 3) ^ a2 ^ a3,
        a0 ^ gmul(a1, 2) ^ gmul(a2, 3) ^ a3,
        a0 ^ a1 ^ gmul(a2, 2) ^ gmul(a3, 3),
        gmul(a0, 3) ^ a1 ^ a2 ^ gmul(a3, 2),
    ]


def inv_mix_single_column(col: List[int]) -> List[int]:
    a0, a1, a2, a3 = col
    return [
        gmul(a0, 14) ^ gmul(a1, 11) ^ gmul(a2, 13) ^ gmul(a3, 9),
        gmul(a0, 9) ^ gmul(a1, 14) ^ gmul(a2, 11) ^ gmul(a3, 13),
        gmul(a0, 13) ^ gmul(a1, 9) ^ gmul(a2, 14) ^ gmul(a3, 11),
        gmul(a0, 11) ^ gmul(a1, 13) ^ gmul(a2, 9) ^ gmul(a3, 14),
    ]


def load_state_from_bytes(block: bytes) -> List[List[int]]:
    """column-major: s[r][c] = block[4*c + r]"""
    s = [[0] * 4 for _ in range(4)]
    for c in range(4):
        for r in range(4):
            s[r][c] = block[4 * c + r]
    return s


def state_to_bytes(state: List[List[int]]) -> bytes:
    out = bytearray(16)
    for c in range(4):
        for r in range(4):
            out[4 * c + r] = state[r][c]
    return bytes(out)


def sub_bytes(state: List[List[int]]) -> None:
    for r in range(4):
        for c in range(4):
            state[r][c] = sbox[state[r][c]]


def inv_sub_bytes(state: List[List[int]]) -> None:
    for r in range(4):
        for c in range(4):
            state[r][c] = inv_sbox[state[r][c]]


def shift_rows(state: List[List[int]]) -> None:
    state[1] = state[1][1:] + state[1][:1]
    state[2] = state[2][2:] + state[2][:2]
    state[3] = state[3][3:] + state[3][:3]


def inv_shift_rows(state: List[List[int]]) -> None:
    state[1] = state[1][-1:] + state[1][:-1]
    state[2] = state[2][-2:] + state[2][:-2]
    state[3] = state[3][-3:] + state[3][:-3]


def mix_columns(state: List[List[int]]) -> None:
    cols = list(zip(state[0], state[1], state[2], state[3]))
    new_cols = [mix_single_column(list(col)) for col in cols]
    for c in range(4):
        state[0][c], state[1][c], state[2][c], state[3][c] = new_cols[c]


def inv_mix_columns(state: List[List[int]]) -> None:
    cols = list(zip(state[0], state[1], state[2], state[3]))
    new_cols = [inv_mix_single_column(list(col)) for col in cols]
    for c in range(4):
        state[0][c], state[1][c], state[2][c], state[3][c] = new_cols[c]


def add_round_key(state: List[List[int]], round_words: List[int]) -> None:
    for c in range(4):
        w = round_words[c]
        state[0][c] ^= (w >> 0) & 0xFF
        state[1][c] ^= (w >> 8) & 0xFF
        state[2][c] ^= (w >> 16) & 0xFF
        state[3][c] ^= (w >> 24) & 0xFF


def _assemble_initial_words_from_key(key_bytes: bytes) -> List[int]:
    s = load_state_from_bytes(key_bytes)
    words = []
    for c in range(4):
        v = 0
        for r in range(4):
            b = s[r][c]
            v = ((b | v) << 8) & 0xFFFFFFFF
        words.append(v)
    return words


def expand_key_nonstandard(key_bytes: bytes) -> List[int]:
    assert len(key_bytes) == 16
    W = _assemble_initial_words_from_key(key_bytes)
    rcons = [0x01, 0x01, 0x02, 0x04, 0x08, 0x10, 0x20, 0x40, 0x80, 0x1B]
    r_idx = 0
    for i in range(4, 44):
        if i % 4 == 0:
            temp = (rcons[r_idx] << 24) & 0xFFFFFFFF
            r_idx += 1
            W.append(W[i - 4] ^ temp)
        else:
            W.append(W[i - 4] ^ W[i - 1])
    return W


def encrypt_block_nonstandard(plaintext: bytes, key: bytes) -> bytes:
    assert len(plaintext) == 16 and len(key) == 16
    W = expand_key_nonstandard(key)
    state = load_state_from_bytes(plaintext)
    add_round_key(state, W[0:4])  # round 0
    for r in range(1, 10):  # rounds 1..9
        sub_bytes(state)
        shift_rows(state)
        mix_columns(state)
        add_round_key(state, W[4 * r:4 * r + 4])
    sub_bytes(state)  # final




				登录后可查看完整内容





传播安全知识、拓宽行业人脉——看雪讲师团队等你加入！

		最后于  2025-8-22 04:04
				被只管出不管做编辑

		，原因： 漂亮图图
