[原创] nanopb 静态分析
-
发表于: 2025-4-13 16:34
-
nanopb 873K9s2c8@1M7s2y4Q4x3@1q4Q4x3V1k6Q4x3V1k6Y4K9i4c8Z5N6h3u0Q4x3X3g2U0L8$3#2Q4x3V1k6F1j5h3&6G2M7r3u0Q4x3V1k6F1j5h3&6G2M7r3t1`. 是 protobuf 的一个节省资源的实现。生成出来的可执行程序和 protobuf 略有区别，所以无法用 protobuf 逆向中直接输入文件，读取 descriptor 来复原 proto 的工具（例如 pbtk:c19K9s2c8@1M7s2y4Q4x3@1q4Q4x3V1k6Q4x3V1k6Y4K9i4c8Z5N6h3u0Q4x3X3g2U0L8$3#2Q4x3V1k6E0j5i4u0A6L8W2)9J5k6r3#2Q4x3V1k6H3j5Y4c8C8i4@1g2r3i4@1u0o6i4K6R3&6i4@1f1K6i4K6R3H3i4K6R3J5
nanopb 最终传输的数据和 protobuf 是兼容的，所以如果能够拿到数据就可以用 protobuf-decoder 之类的工具解析。但是拿不到数据的情况下，纯静态分析代码也不是不行。
网上搜了一下，发现三年前有人写了一个 nanopb ida 解析脚本 041K9s2c8@1M7s2y4Q4x3@1q4Q4x3V1k6Q4x3V1k6Y4K9i4c8Z5N6h3u0Q4x3X3g2U0L8$3#2Q4x3V1k6S2L8Y4k6A6L8s2y4W2j5%4g2J5k6g2)9J5c8X3&6S2L8X3!0H3j5W2)9J5k6r3c8W2j5$3!0E0M7r3W2D9k6i4t1`. 。可惜我这用起来老是报错，解析出来的 proto 完全不符合逻辑。
从这个脚本的实现看，nanopb 不同版本的实现细节还不一样。直接拉几份 nanopb LTS 版本的源码下来看。
经过编译比对发现，我分析的文件比较接近 3.9.10 版本，所以后面的例子版本都是 nanopb-3.9.10 。编译比对的时候最好用 linux，Windows 下编出来某些结构体调试信息的偏移似乎不太对劲。
和 protobuf 一样，用户先定义 .proto 文件。例如
编译时会生成 simple.pb.c 和 simple.pb.h。用户需要关注的其实只有 消息名_fields 这个结构体。下面这个简单的解析示例中，我们看到 SimpleMessage_fields 作为 pb_encode 和 pb_decode 的第二个参数。
查看这个结构体的具体实现。
是一个 pb_field_t 结构体数组。这个 fileds 带了所有字段的信息，最后结尾是一个全 0 的结构。所以只要在程序中找到这个字段，理论上就能恢复 .proto 文件。找到这个字段比较简单，寻找 pb_encode 和 pb_decode 的第二个参数就行。
接下来详细分析 pb_field_t 这个结构体。开头的 tag 是字段 id。对应于 proto 文件中的 = 号后面的数字。type 定义了该字段的类型。最后的 ptr 定义了有没有子消息，也就是嵌套消息。中间的 offset 应该是记录该字段在结构体中的偏移。因为偏移/tag 可能超出一字节，所以 pb_size_t 做了一个变长的实现，可以是 8/16/32 位。
用户可以在编译的时候通过宏来决定结构体的长度
接下来继续分析 pb_type_t 的详细实现。这是一个一字节的描述类型的字段。在源码中搜索 PB_DECODERS，可以比较清晰的看到处理方法。低 4 位作为 PB_DECODERS 的序号决定 decoder/encoder 函数。高四位的低两位代表必须/可选/重复/Oneof，高两位代表分配类型静态/指针/回调。
到这里，拿到 fields 字段已经基本可以逆向复原出 protobuf 了。
先找到 pb_encode 或者 pb_decode，可以参考插件原作者的做法，或者通过别的字符串，或者 pb_ostream_t 定位。这一步不难。
要定位nanopb字段数组的内存位置，请按照以下步骤：
在IDA中搜索"wrong size for fixed count field"错误字符串。
跟踪XREF到记录此消息的函数。根据您的nanopb版本，这个函数可能是pb_decode_noinit或pb_decode_inner。
继续跟踪XREF到上述函数，这将是pb_decode或pb_decode_ex函数。第二个参数就是字段数组。
先看看被引用的字段之间的间隔，如果间隔有 0x20，那基本确定编译的时候用了 32 位的宏。在 ida 里定义结构体。
去 LocalTypes 里加个定义。
然后在字段上按 Y，输入pb_field_s回车。* 定义数组。

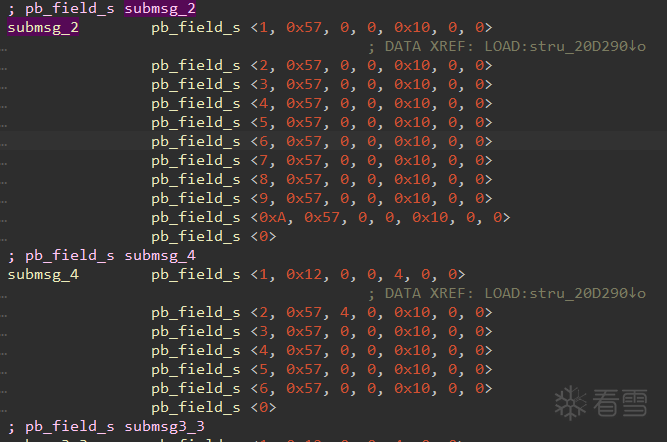

如果对不上号就调整一下结构体定义，尤其注意不同平台的对齐可能不一样。然后可以看到，结果十分的合理啊。
根据插件输出结果来看，结构解析肯定没对上号。插件里定义结构的函数是这样的
选择 8/16/32 位后，定义了 size_fmt，然后拼接一个 pb_filed_fmt 出来。这个结构体定义完全没有做对齐。而我这个文件里的结构是有对齐的。

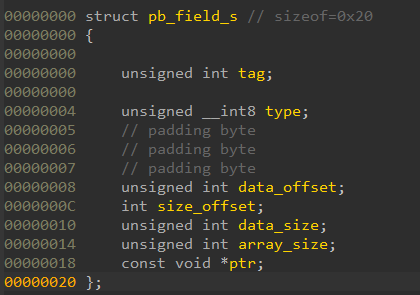

那就加个对齐试试看。直接硬编码。xxx表示三字节对齐。
解出来十分合理，嵌套的子消息也都出来了。感谢前人的智慧~
本文简单分析了 nanopb 3.x 的二进制结构，并通过修复一款 nanopb 解析插件实现自动解析。nanopb 4.x 的字段定义结构有所改变，但插件修复的思路可能是一样的。
